Industrial power supply
Until on stock

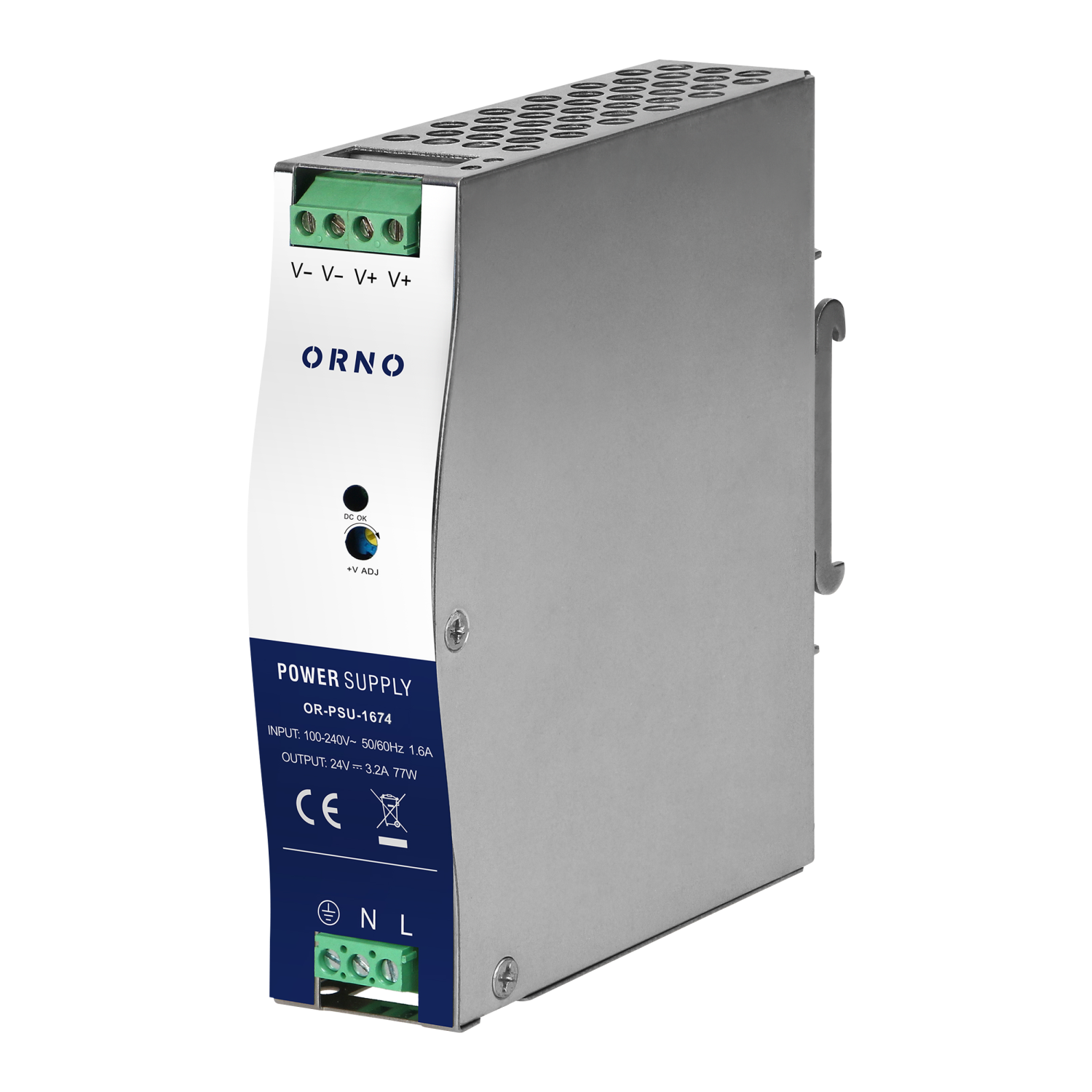

The industrial power supply for a DIN rail is a modern and versatile device for increasing the efficiency and safety of industrial installations in switchboards, switchgears or machines used in automation.
The unit provides a stable 24V DC output voltage with a maximum output current of 3,2A with up to 5A load capability. The 12-48V AC output voltage range allows to adjust its operation to different system requirements. An output power of 77W and a precise voltage stabilization guarantee efficient and reliable power supply to the connected devices.
The unit is equipped with an advanced short-circuit, surge and current protection, increasing operational safety and securing both the power supply and the connected devices. It is Class II rated, therefore it meets the high safety standards required in industry.
It is intended for heavy-duty use. Its design facilitates air to flow freely, preventing overheating and supporting long-term, stable operation. Resistance to low and high temperatures further enhances the device's reliability in a variety of environments.
Activation of the power supply is indicated by a LED diode. In addition, it is equipped with a potential-free output, which allows more advanced control over the unit. Screws ensure permanent and secure wire connection. DIN rail mounting. Suitable for indoor use (IP20).
The power supply has compact dimensions (33x125x103 mm) to save space in switchboards and switchgears. The robust metal housing and high-quality components ensure a long service life.
The device complies with standards: EN 55032, EN 61204-3, EN 61000-3-2-3, EAC TP TC 020, UL508, EN 62368-1, EAC TP TC 004, BSMI CNS14336-1.
| General information: | |
|---|---|
| Voltage type of supply voltage: | AC |
| 1st secondary output voltage at DC [V]: | 24 |
| Max. output current 1 [A]: | 3.2 |
| Max. output current 2 [A]: | 5 |
| Max. Overload [%]: | 160 |
| Max. Overcurrent [V]: | 240 |
| Secondary voltage adjustable [V]: | 12-48 |
| Short-circuit-proof: | Tak |
| Rated supply voltage at AC 50 Hz [V]: | 90-264 |
| Rated supply voltage at AC 60 Hz [V]: | 90-264 |
| Output voltage stabilized: | Tak |
| Line Regulation: | ±5% |
| Power output [W]: | 76.8 |
| Efficiency: | 0.875 |
| Stabilized: | Tak |
| Type of electric connection: | Połączenie Śrubowe |
| Rail mounting possible: | Tak |
| Wall mounting possible: | Nie |
| Direct mounting possible: | Nie |
| Width [mm]: | 33 |
| Height [mm]: | 125 |
| Depth [mm]: | 103 |
| Degree of protection (IP): | IP20 |
| Operating Temperature: | -20 - +60 |
| Storage Temp: | -40 - +85 |
| Storage Humidity(RH):: | 10 - 95% |
| Working Humidity(RH): / wilgotność podczas pracy (bez kondensacji): | 20 - 95% |
| Compliance with standards: | EN 55032, EN 61204-3, EN 61000-3-2-3, EAC TP TC 020, UL508, EN 62368-1, EAC TP TC 004,BSMI CNS14336-1 |
