For junction box

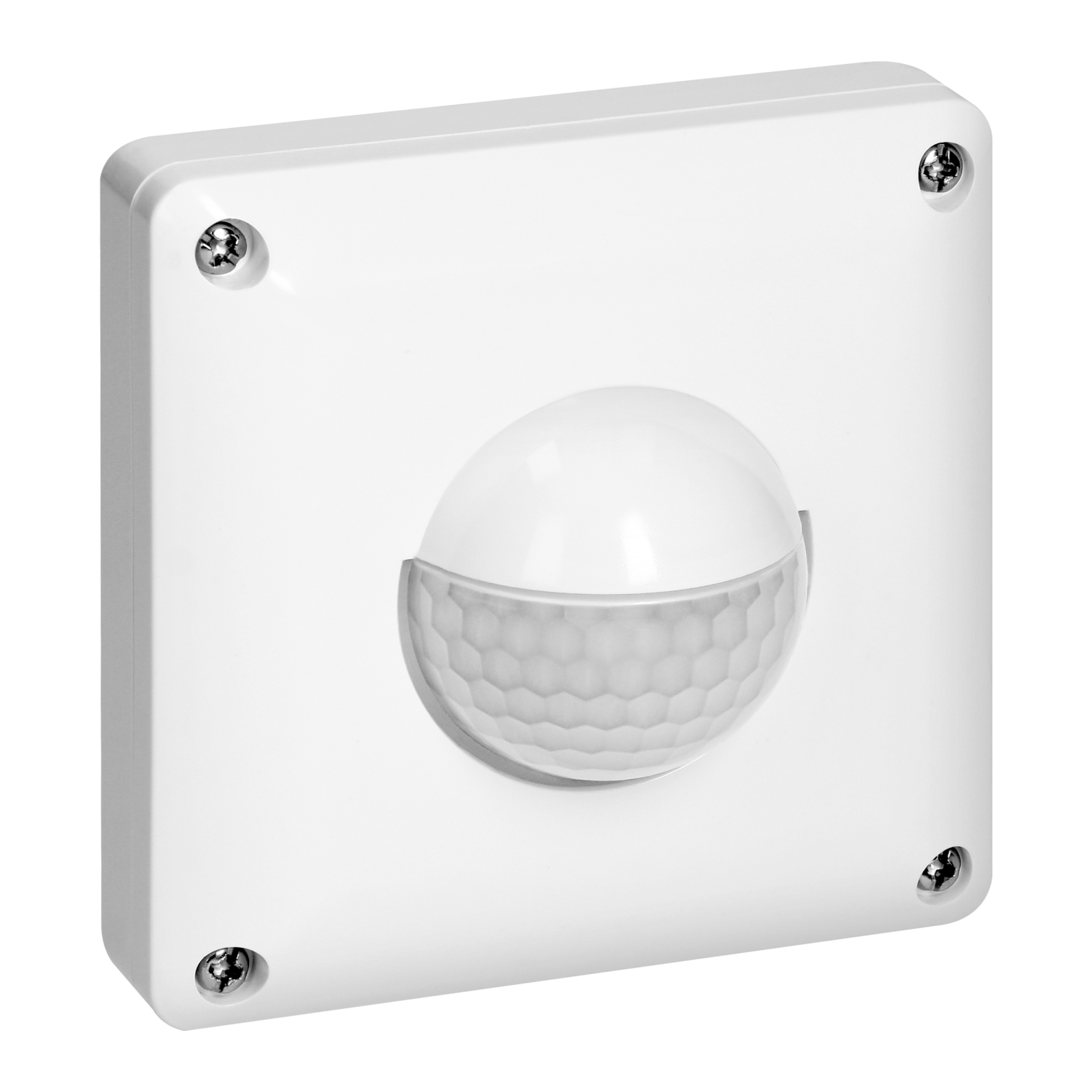

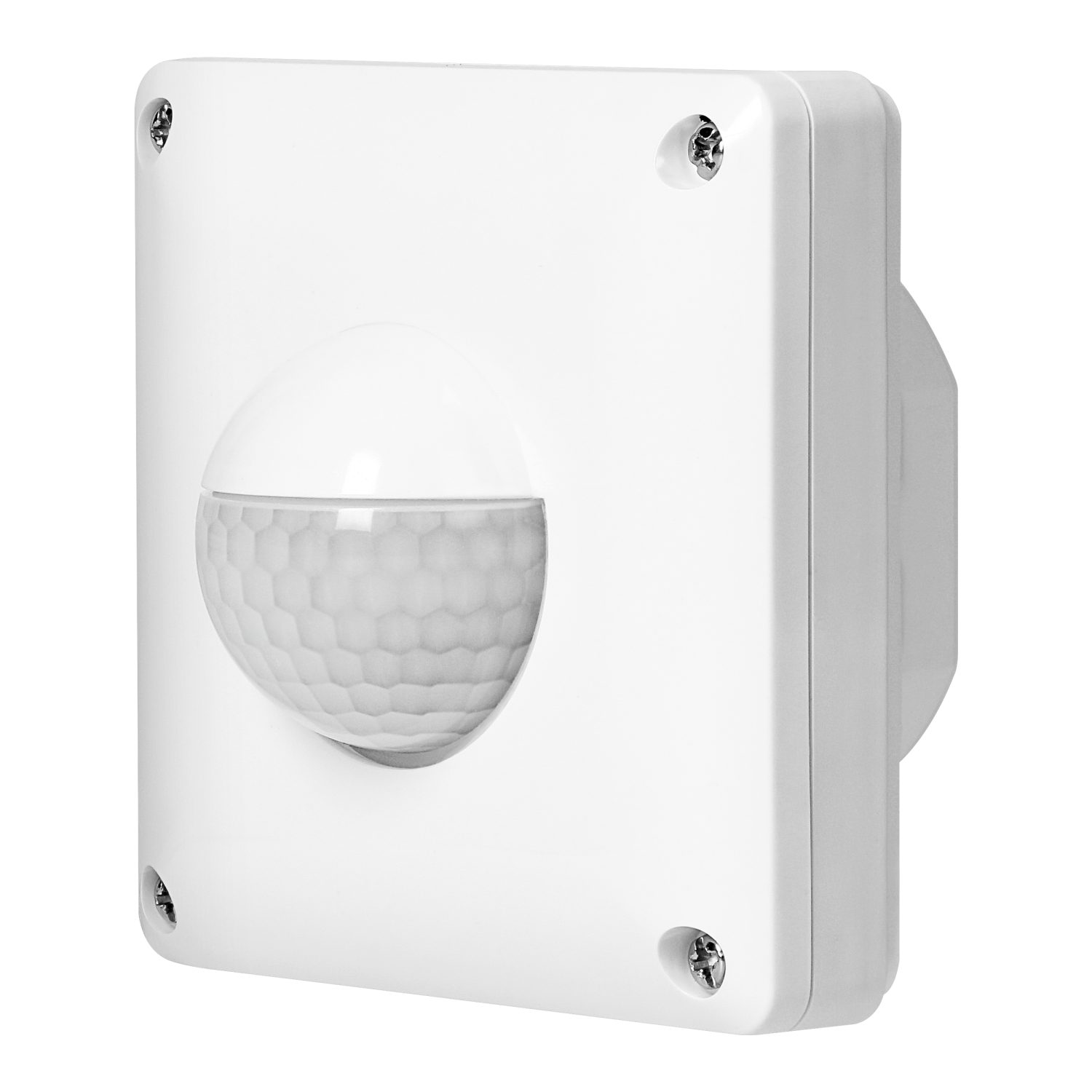

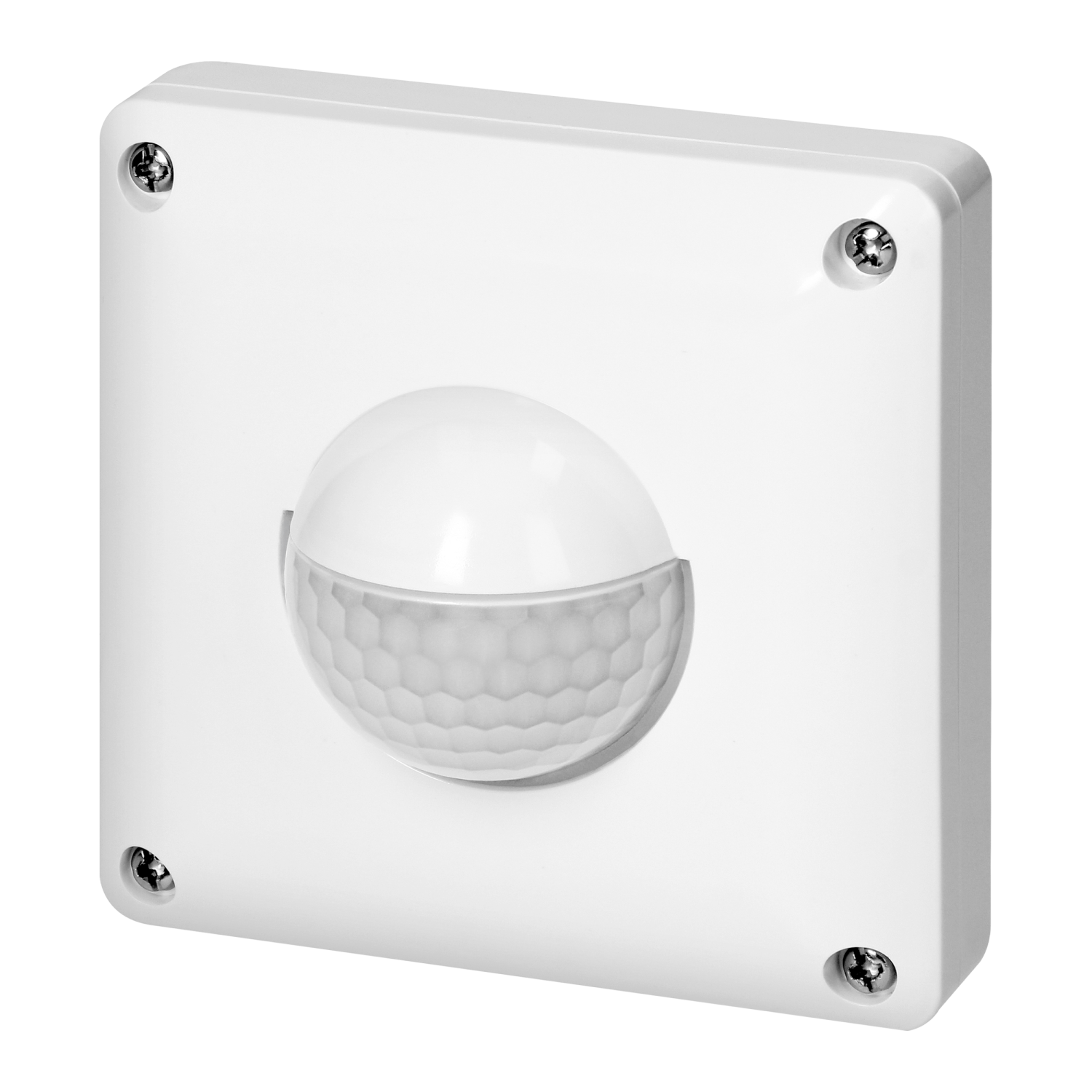

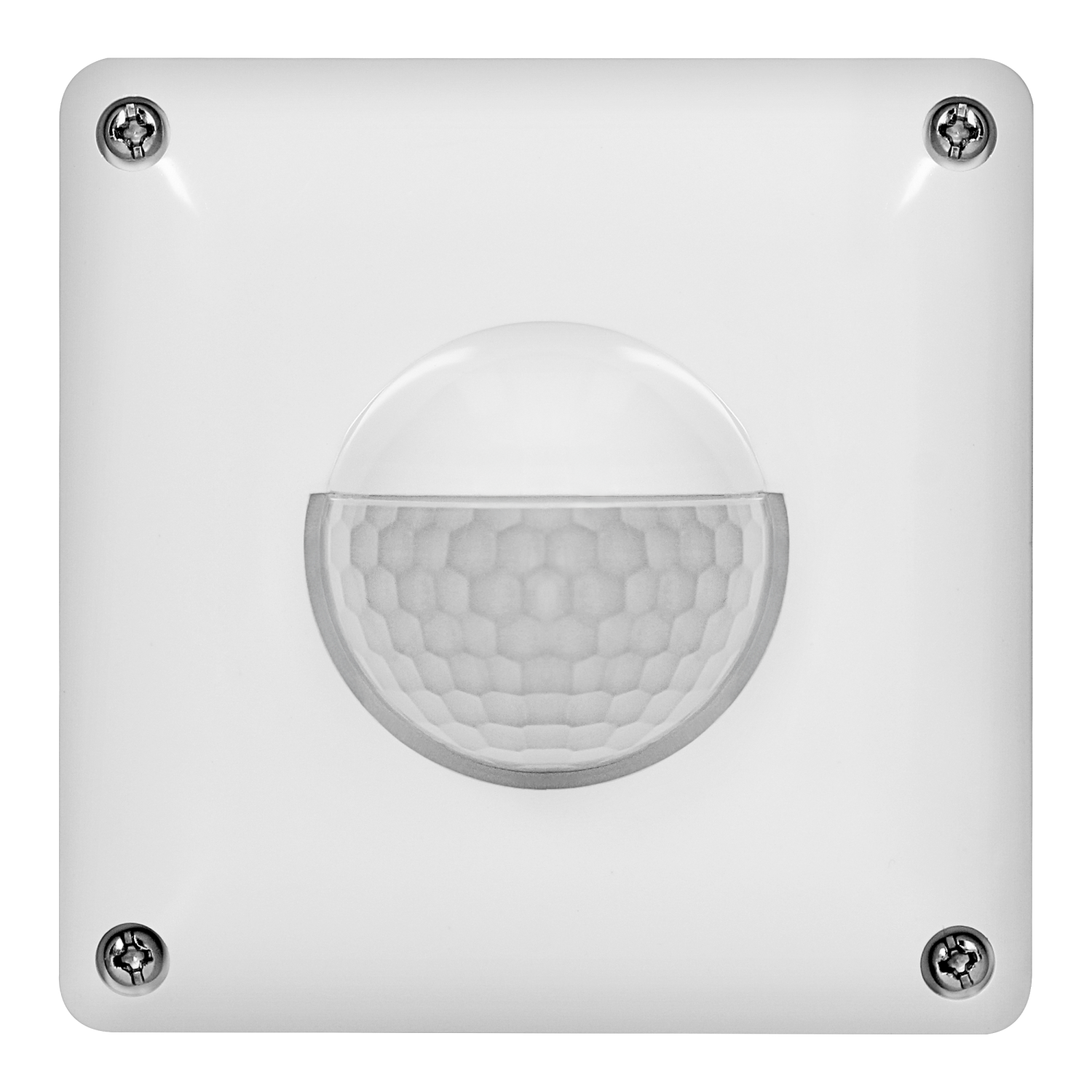

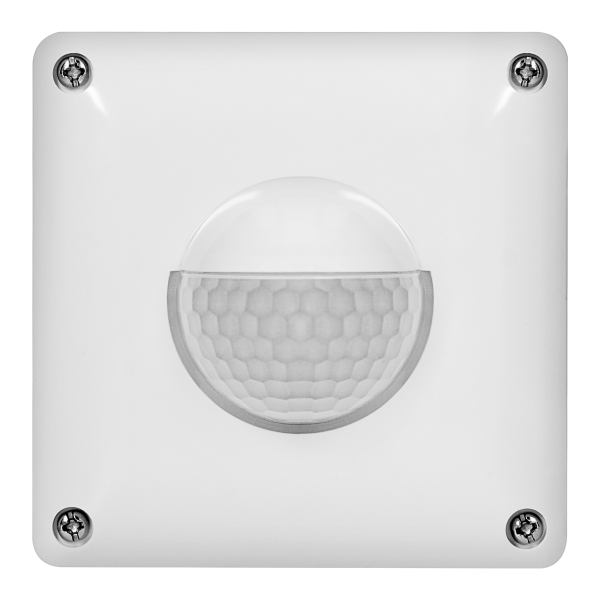

The motion sensor with a detection angle of 190° is a modern device which is perfect for a variety of applications, both indoor and outdoor. It offers a maximum reach of up to 10 m frontally. The device uses passive infrared technology (PIR), responding to movement in its field of view.
The sensor features a wide 190° scanning angle, fully covering the monitored area. The device allows the light intensity to be adjusted in the range within <3-2000 lux, therefore it adapts to the prevailing lighting conditions.
The maximum switching power allows to connect classic light sources with a power of 200W or LEDs with a total power of up to 5-65W. The sensor operates at a nominal voltage of 230V AC and a frequency of 50Hz, and its low energy consumption of just 0.5W makes it an energy-efficient solution.
The sensor is designed for flush mounting on a wall in a two- or three-wire system, ensuring an aesthetic appearance. The high-quality polycarbonate housing guarantees durability and resistance to mechanical damage and weather conditions. Thanks to the IP65 rate the device is fully resistant to dust and water, which allows it to be safely used outdoors, regardless of weather conditions.
The device features a relay output and an adjustable switching time between 10s-7min. The sensor operates over a wide temperature range from -20°C to +40°C.
The white housing not only makes it look aesthetic but also makes it perfectly blend with almost any environment. Its compact dimensions (86x86x63 mm) and the minimum installation depth of 25mm facilitate installation even in harder-to-reach places.
The installation diameter is 60 mm.
The device is covered by a 3-year warranty.
| General information: | |
|---|---|
| Model: | Czujnik ruchu |
| Sensor type: | Podczerwień pasywna |
| Scan angle [°]: | 190 |
| Optimum mounting height [m]: | 1 - 1,8 |
| Max. reach frontally [m]: | 10 |
| Detection moving speed [m/s]: | 0,6 - 1,5 |
| Response value luminosity adjustable: | Tak |
| Light intensity adjustment range [lux]: | <3-2000 |
| Mounting method: | Montaż podtynkowy |
| Suitable for ceiling mounting: | Nie |
| Suitable for wall mounting: | Tak |
| Connection type: | Zacisk śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Colour: | Biały |
| Degree of protection: | IP65 |
| Voltage type: | AC |
| Frequency [Hz]: | 50 |
| Nominal voltage [V]: | 230 |
| Min. switch-on time [s]: | 10 |
| Max. duty cycle [min]: | 7 |
| Detection angle horizontal [°]: | 190 |
| Max. switching power [W]: | 250 |
| Max. switching power LED [W]: | 5-65 |
| Power consumption [W]: | 0.5 |
| Relay output: | Tak |
| Temperature [°C]: | -20 - +40 |
| Working humidity: | <93% |
| Width [mm]: | 86 |
| Height [mm]: | 86 |
| Depth [mm]: | 63 |
| Weight [g]: | 130 |
| Built-in diameter [mm]: | 60 |
| Min. depth of built-in installation box [mm]: | 25 |
