For junction box

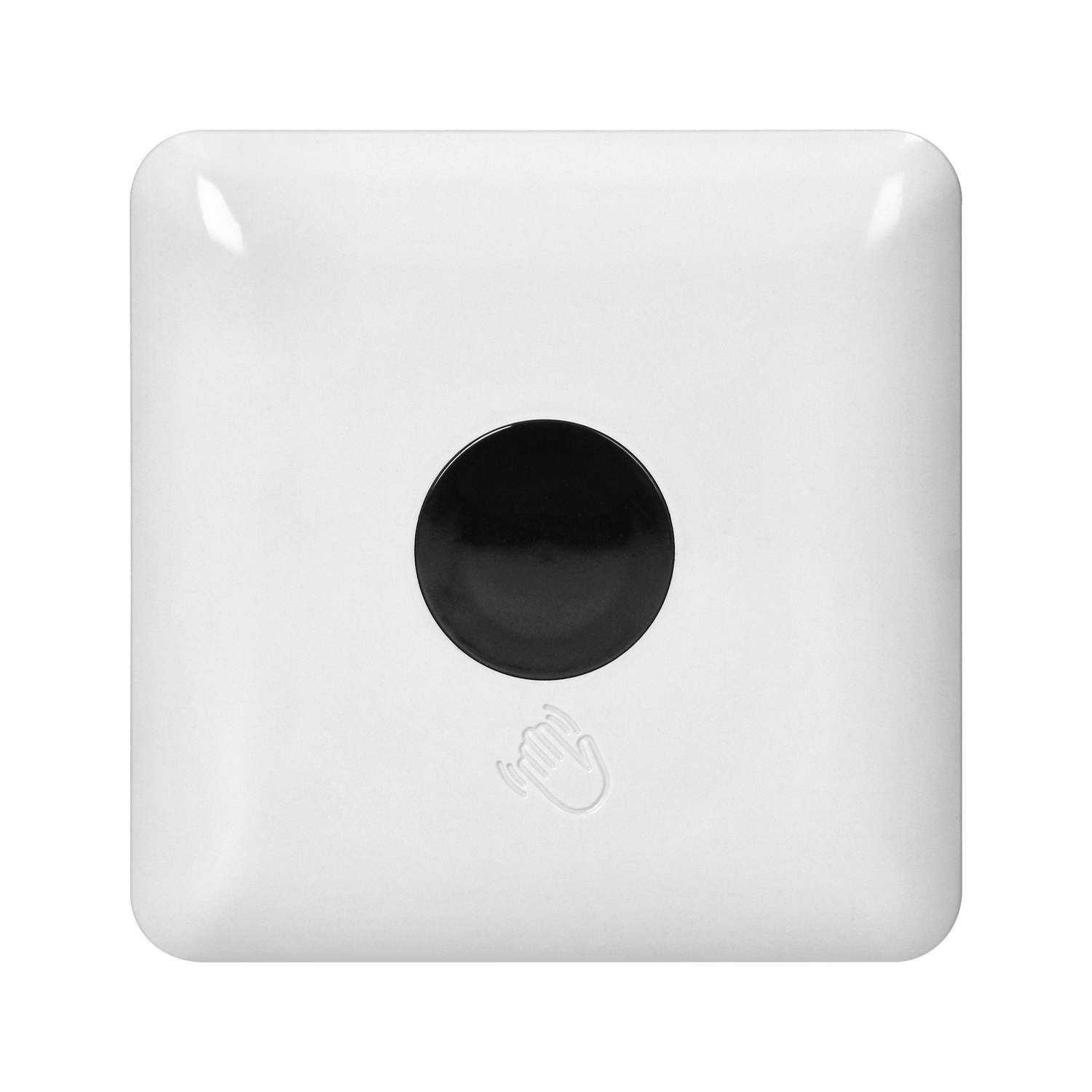

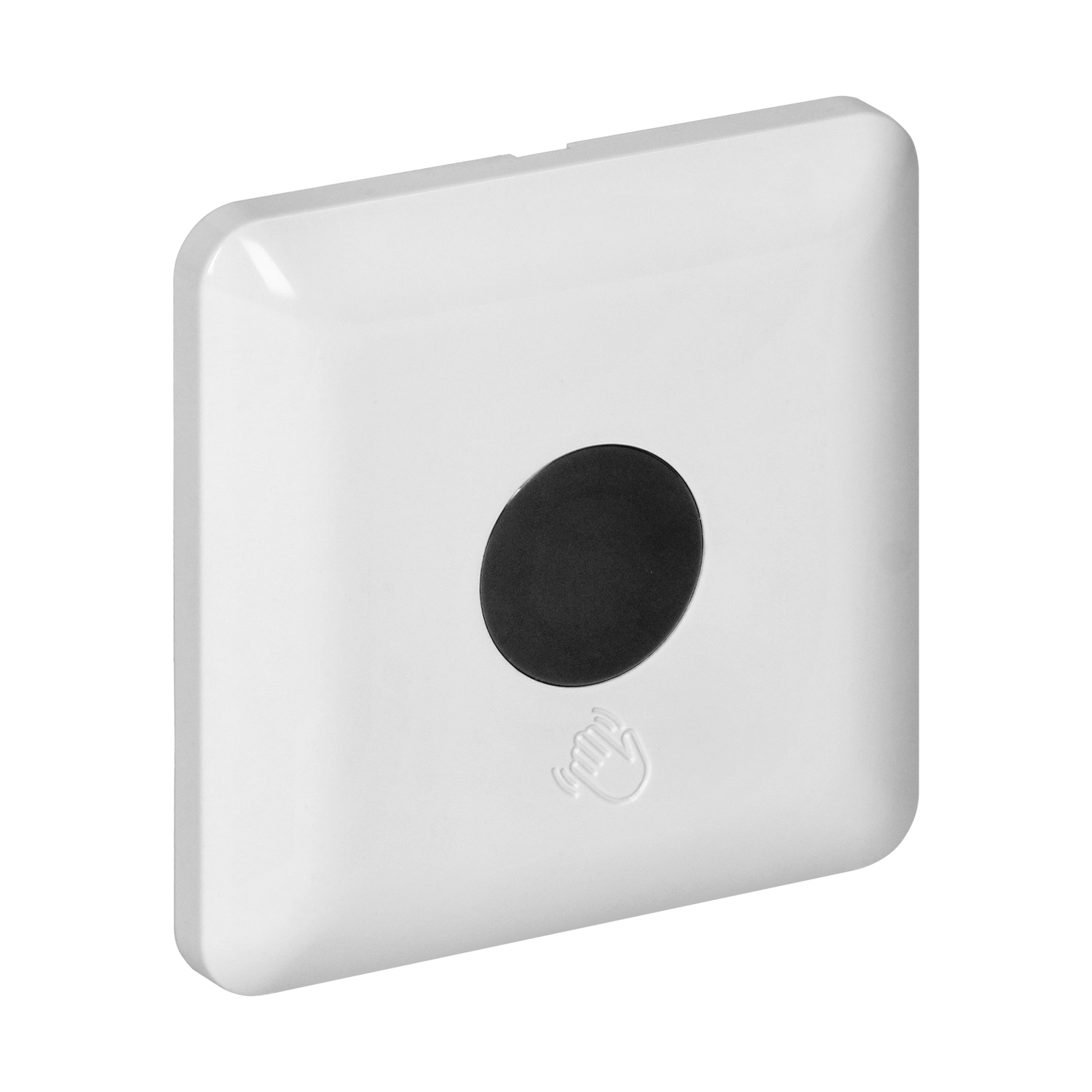

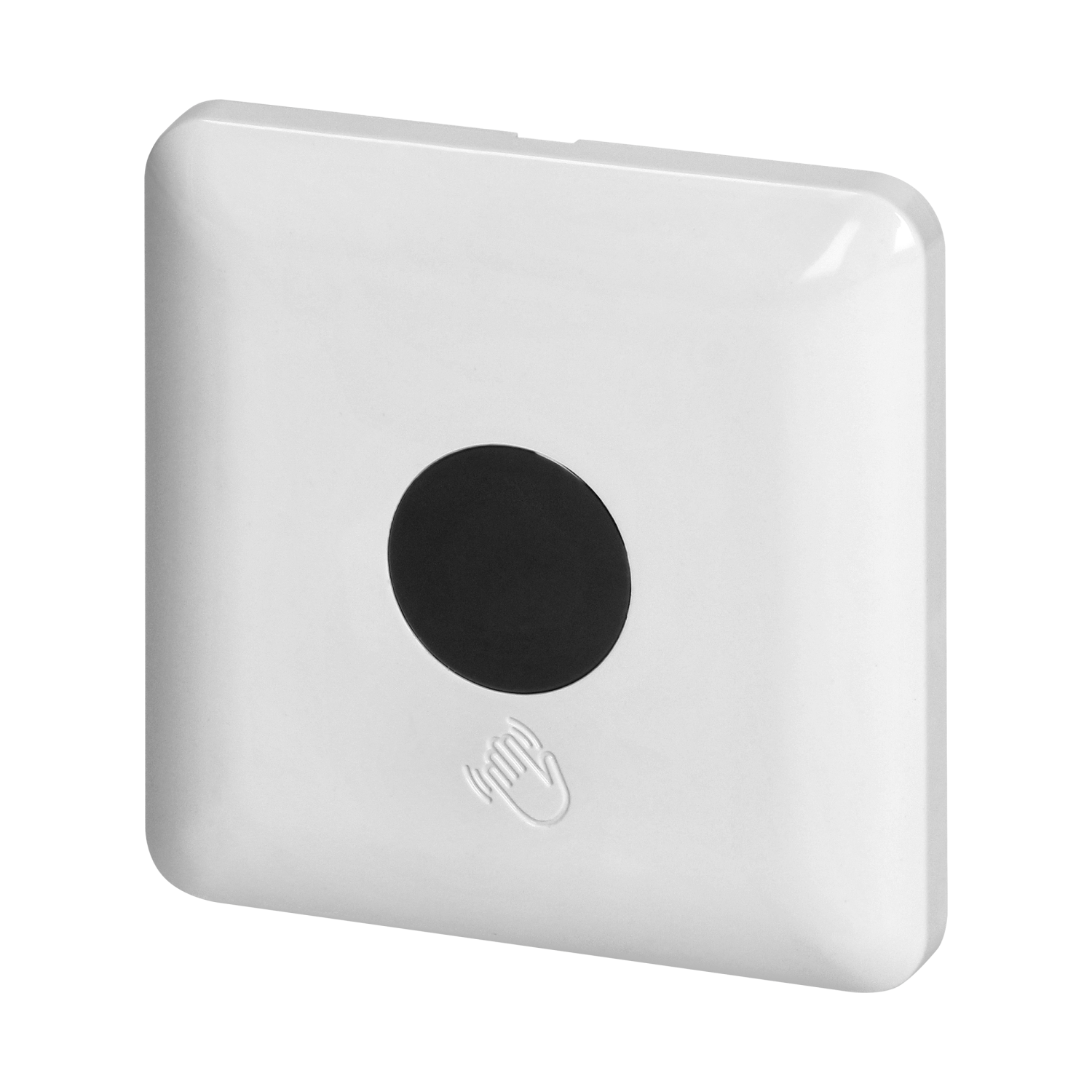

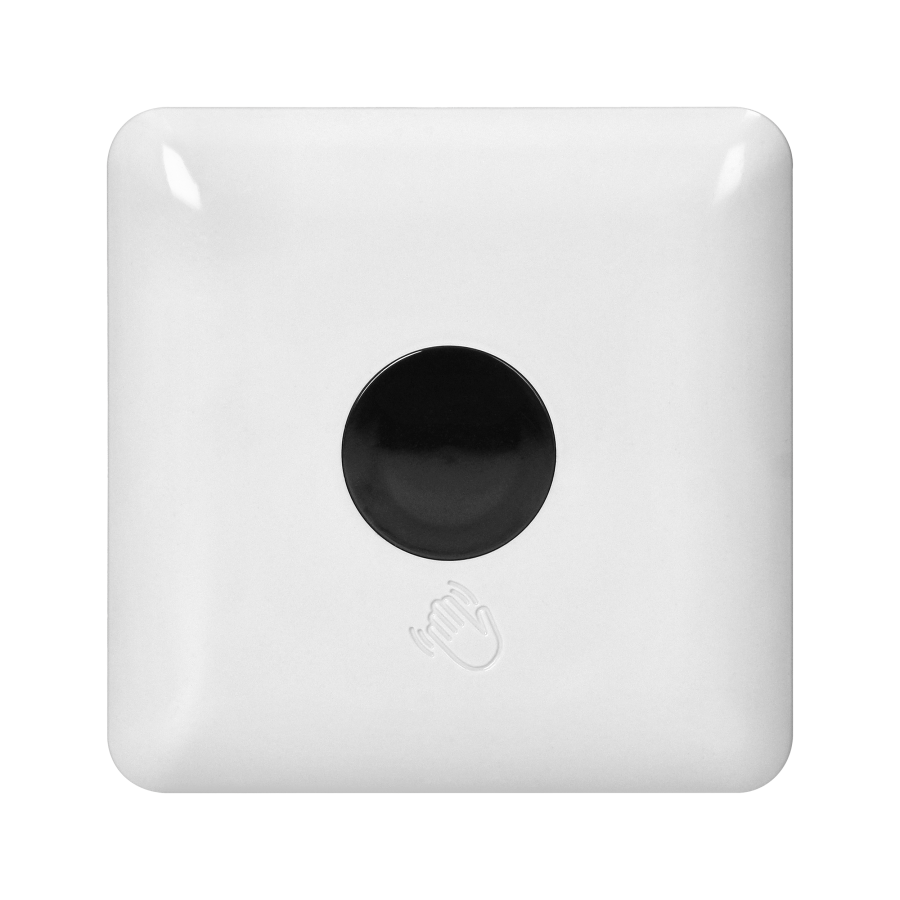

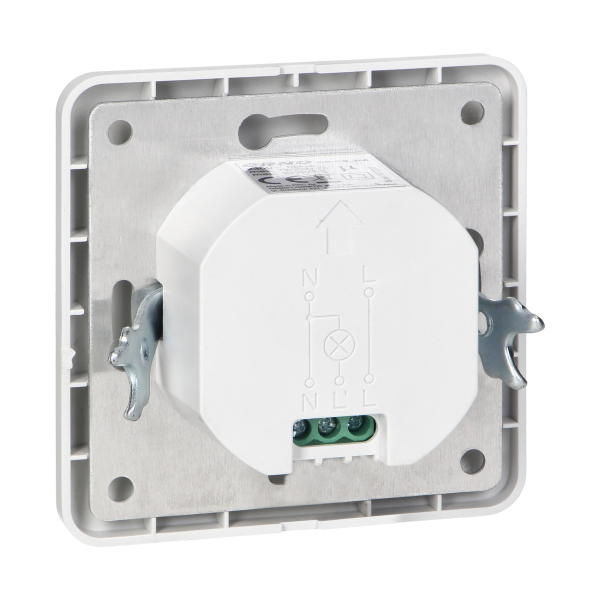

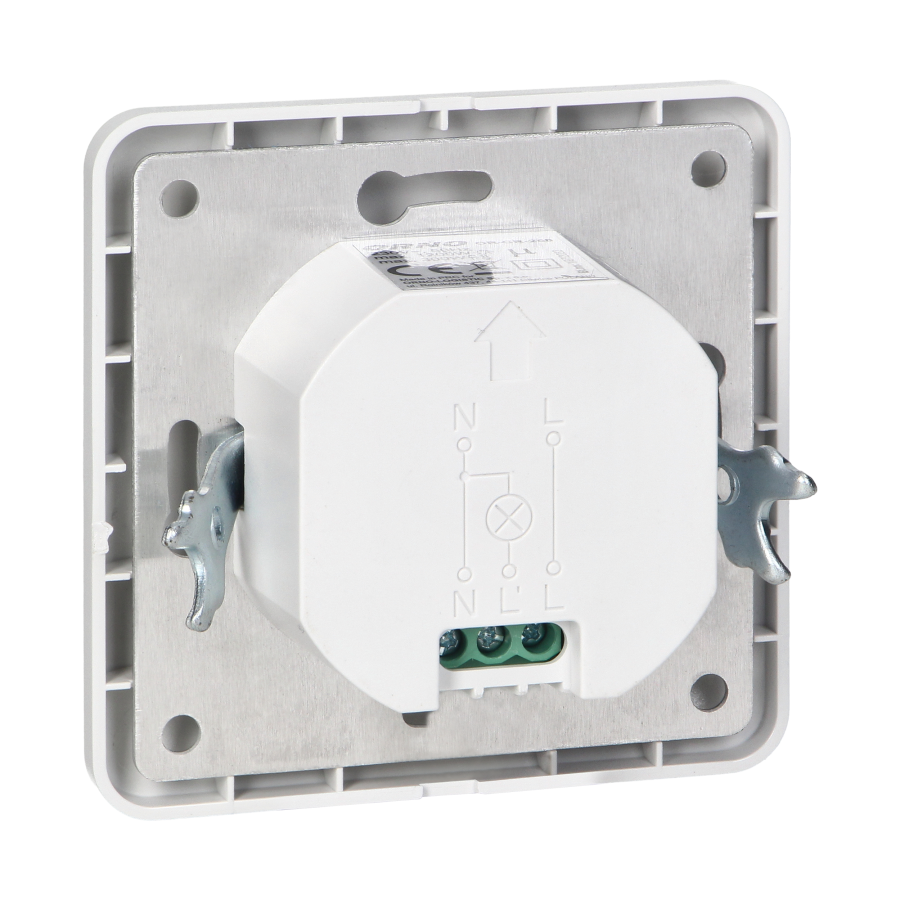

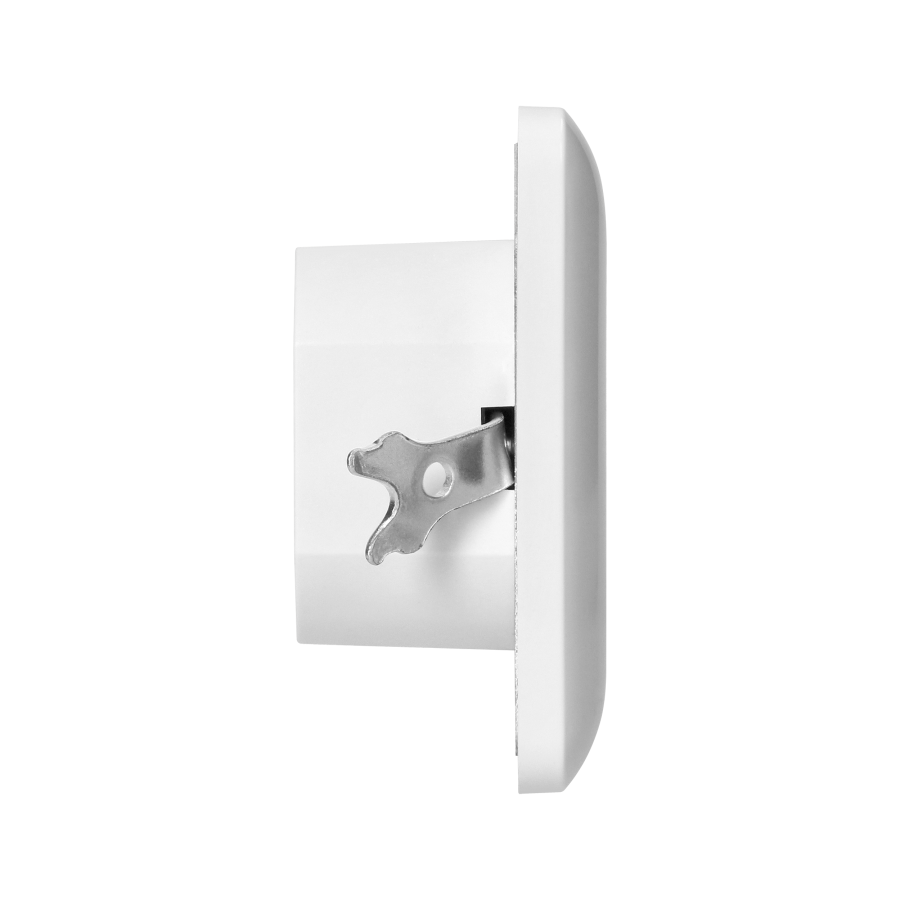

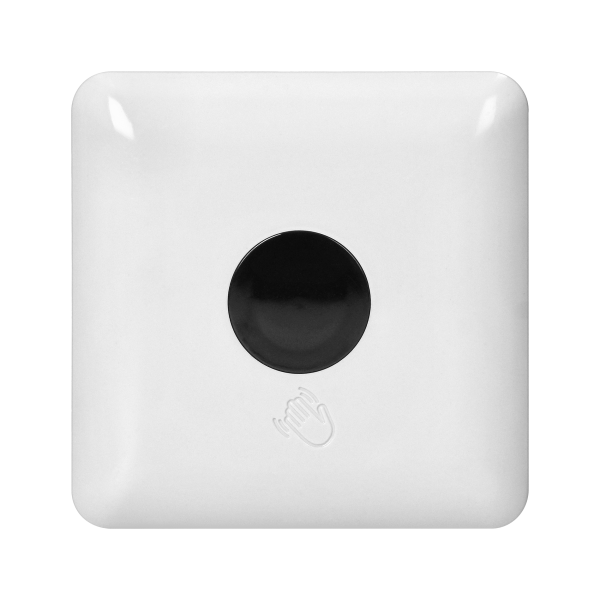

Flush mounted non-contact sensor with short detection range. Its switching on and off is controlled by hand movements. A hand movement towards the sensor is detected by the sensor and switches the light on. The light remains switched on until the sensor detects another hand movement. Detection range 5-6 cm
| General information: | |
|---|---|
| Model: | Inny |
| Max. reach frontally [m]: | 0,05-0,06 |
| Mounting method: | Montaż podtynkowy |

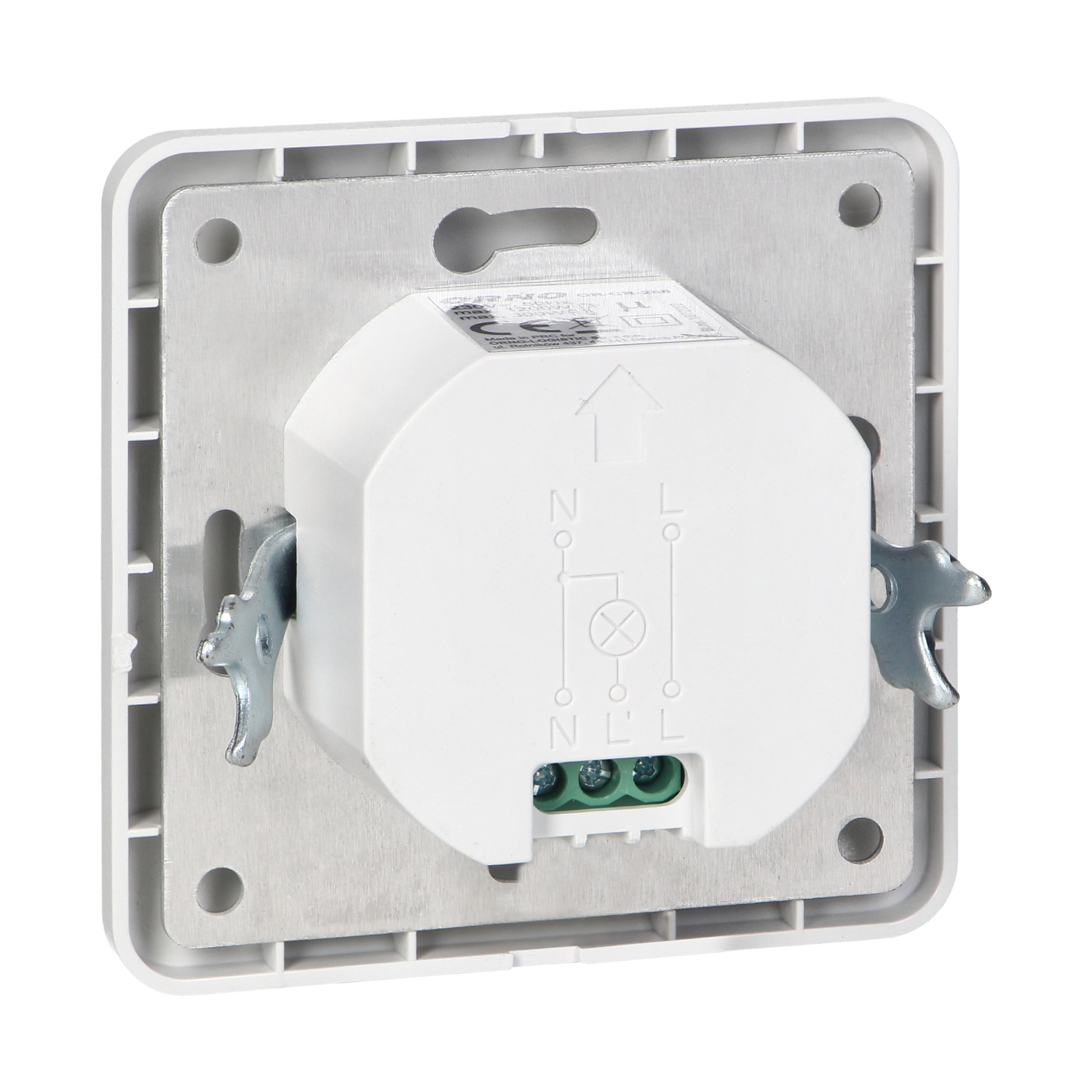

| Connection type: | Zacisk śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Colour: | Biały |
| Degree of protection: | IP20 |
| Voltage type: | AC |
| Frequency [Hz]: | 50 |
| Nominal voltage [V]: | 230 |
| Max. switching power [W]: | 1200 |
| Max. switching power LED [W]: | 300 |
| Relay output: | Tak |
| Temperature [°C]: | -20 - +40 |
| Working humidity: | <93% |
| Width [mm]: | 80 |
| Height [mm]: | 80 |
| Depth [mm]: | 37 |
| Weight [g]: | 63 |
| Built-in depth [mm]: | 27 |
| Built-in diameter [mm]: | 58 |
| Min. depth of built-in installation box [mm]: | 35 |
