Flush-mounted switches

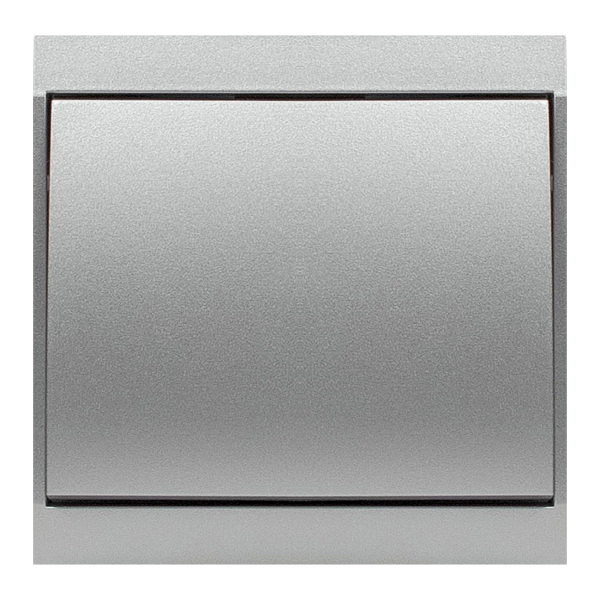

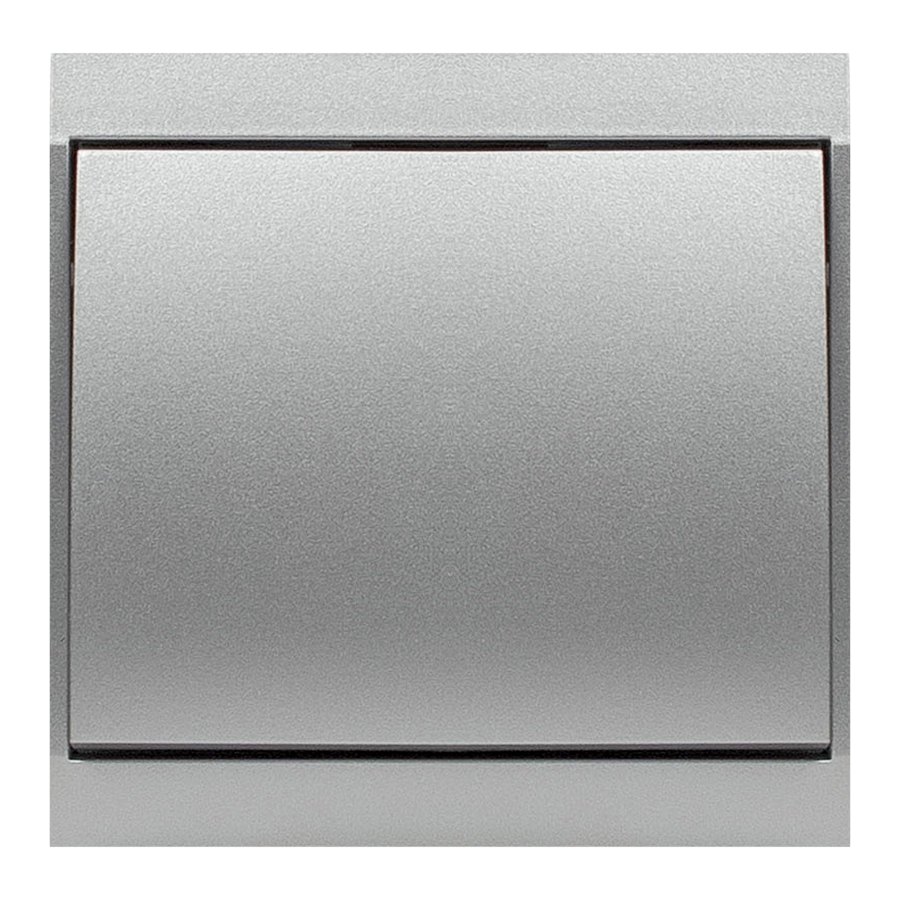

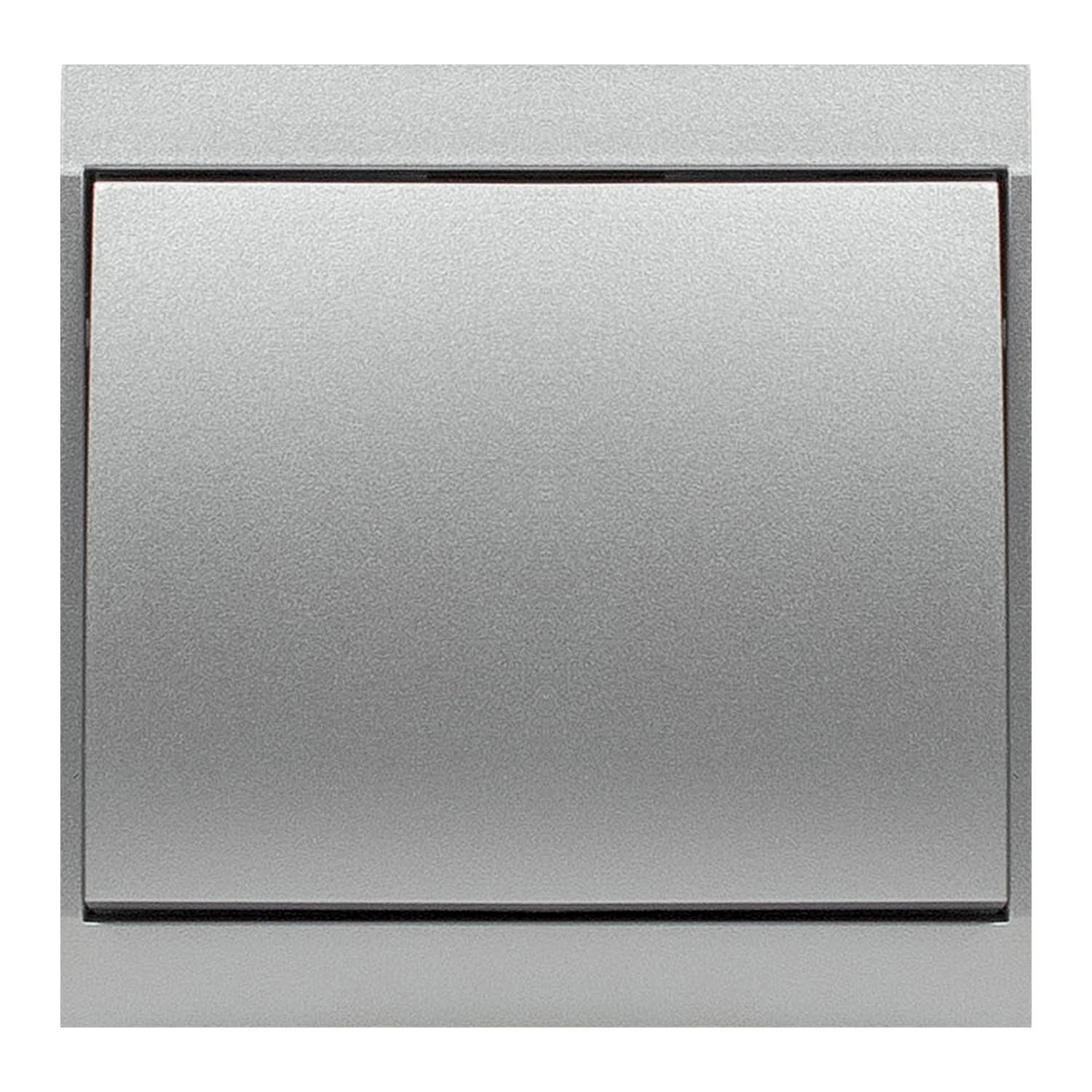

Just one click is enough to trigger the bell or gong! This button from the Luna series only works when you press it. It is suitable for use at home, in the office, reception area or consulting room – anywhere where a quick, discreet signal is needed.
Delicate orientation lighting helps you find the button in a dark corridor – without searching the wall and without having to install additional lighting.
The installation is flush-mounted using screws or claws in a standard box. Screw clamps guarantee stable connection.
The silver, painted surface of the button looks modern, is resistant to everyday use and fits well with contemporary interiors. It forms a coherent set with the other elements of the Luna system (frames, sockets, connectors).
Key features of the Luna WP-6/7LS button:
press – it rings, release – silence,
backlighting indicates the button after dark,
easy installation in a standard box,
elegant silver finish,
matches other Luna system components.
| General information: | |
|---|---|
| Wiring system: | Styk zwierny (NO) |
| Method of operation: | Przycisk wahadłowy |
| Assembly arrangement: | Element systemu modułowego do osprzętu elektroinstalacyjnego |
| Number of rockers: | 1 |
| Mounting method: | Montaż podtynkowy |
| Type of fastening: | Montaż pazurkowy /-śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Surface protection: | Malowanie |
| Colour: | Srebrny |
| Label space/information surface: | Nie |
| Illumination: | Tak |
| Function lighting: | Orientacyjne |
| Suitable for degree of protection (IP): | IP20 |
| Nominal voltage [V]: | 250 |
| Frequency [Hz]: | 50 |
| Rated current [A]: | 10 |
| Connection type: | Zacisk śrubowy |
| Device width [mm]: | 81 |
| Device height [mm]: | 81 |
| Device depth [mm]: | 13 |
| Built-in depth [mm]: | 27 |
| Min. depth of built-in installation box [mm]: | 27 |
