Flush-mounted sockets for RTV
New
Modular series with a frame plate system. A series of modern switches and sockets harmoniously blending with original designer interiors. The switches' modern quick-connect mechanism (wires are connected by pushing them directly into the body) provides secure and safe wire installation and removal. The sockets are equipped with traditional screw connections. The internal design of the terminals guarantees secure connection of wires from 0.75 mm² to 2.5 mm². Strong and robust mounting plate grid and special mounting elements enable stable and secure installation in the box.

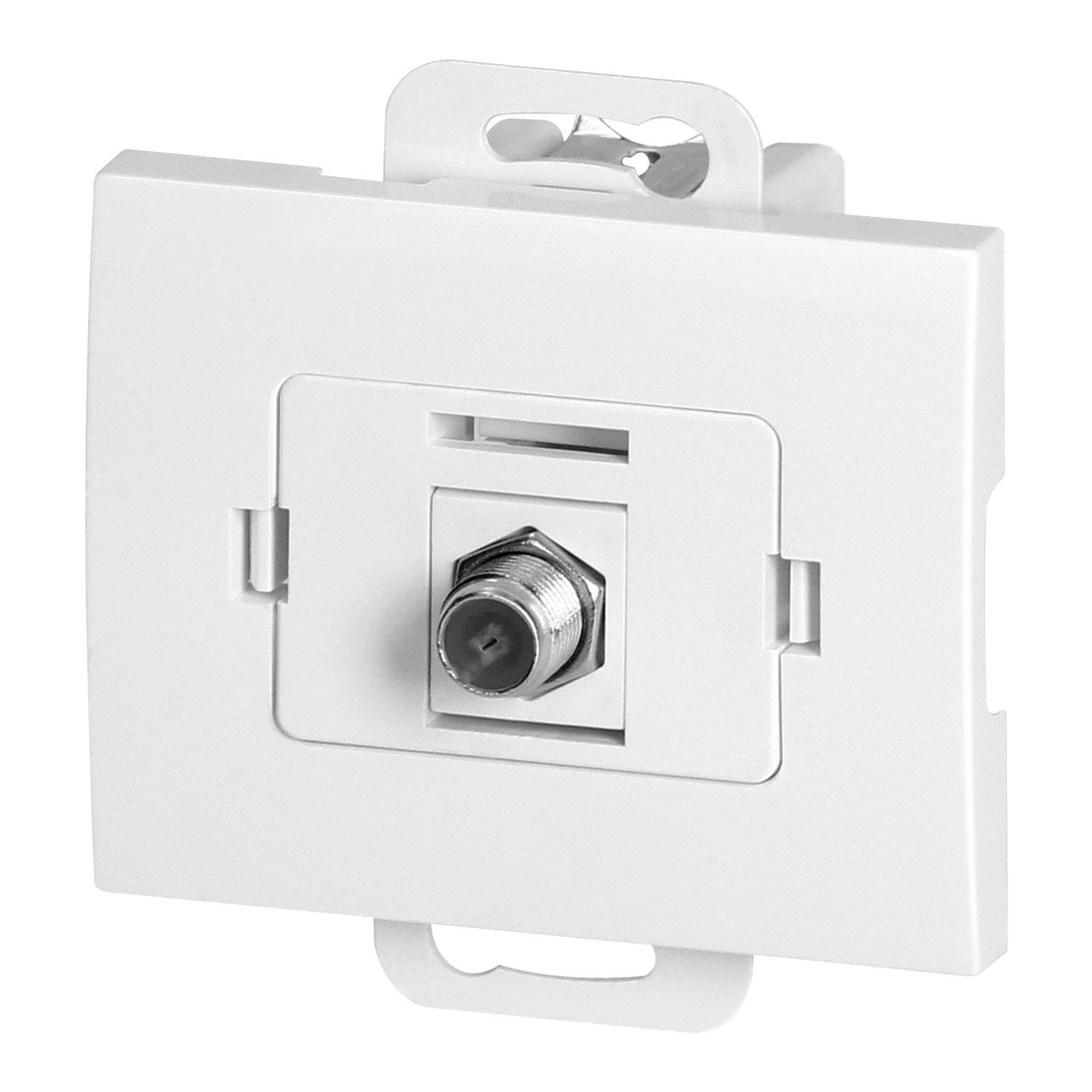

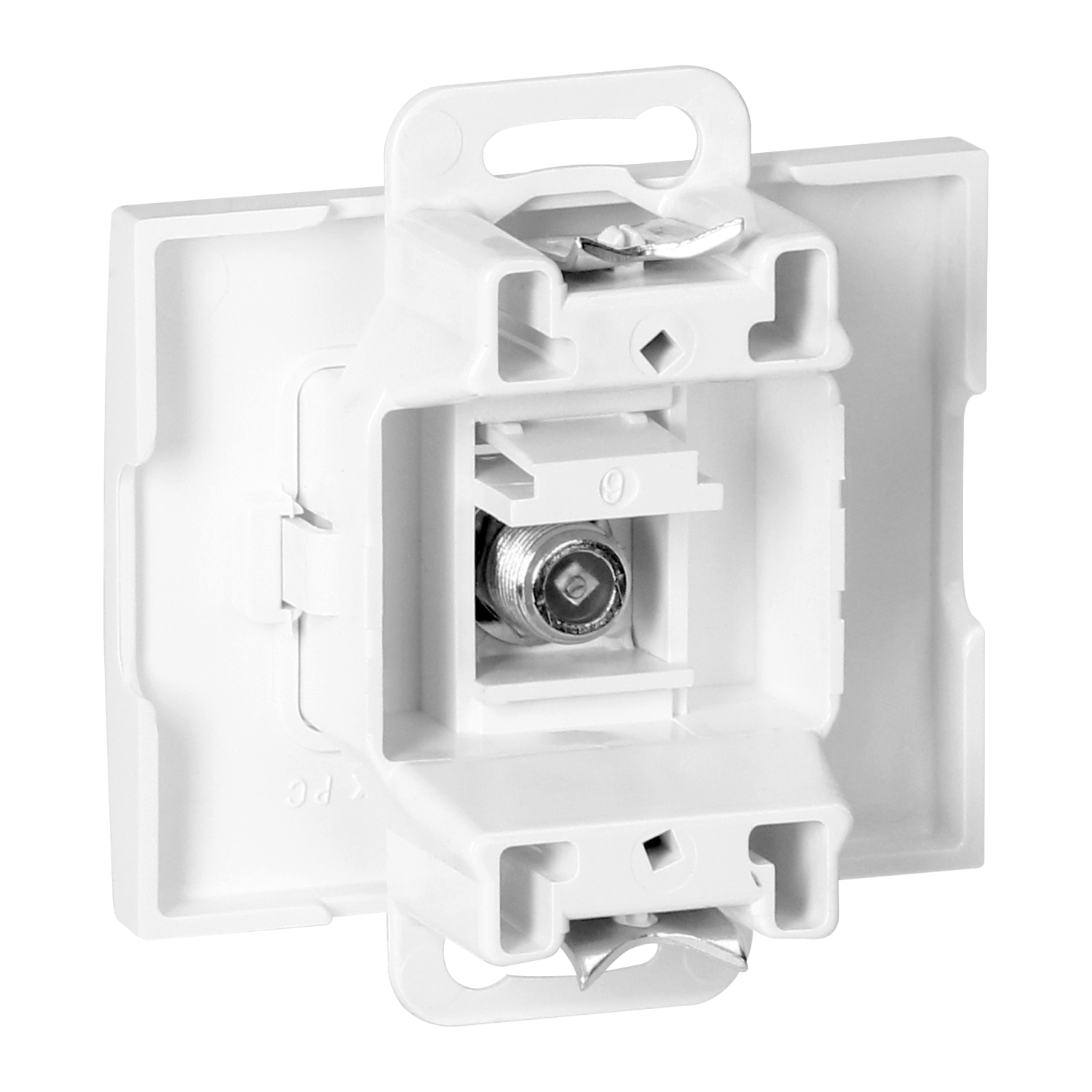

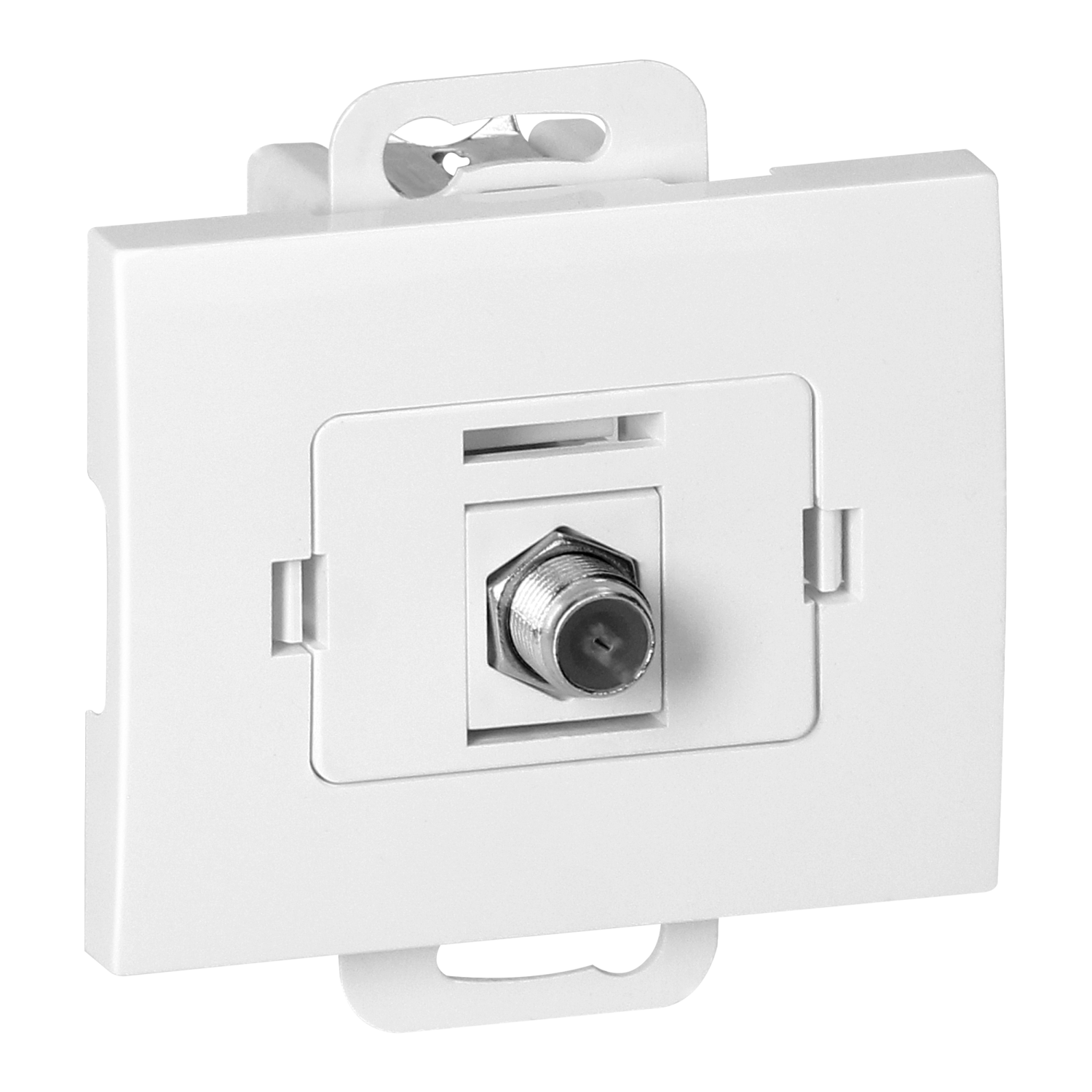

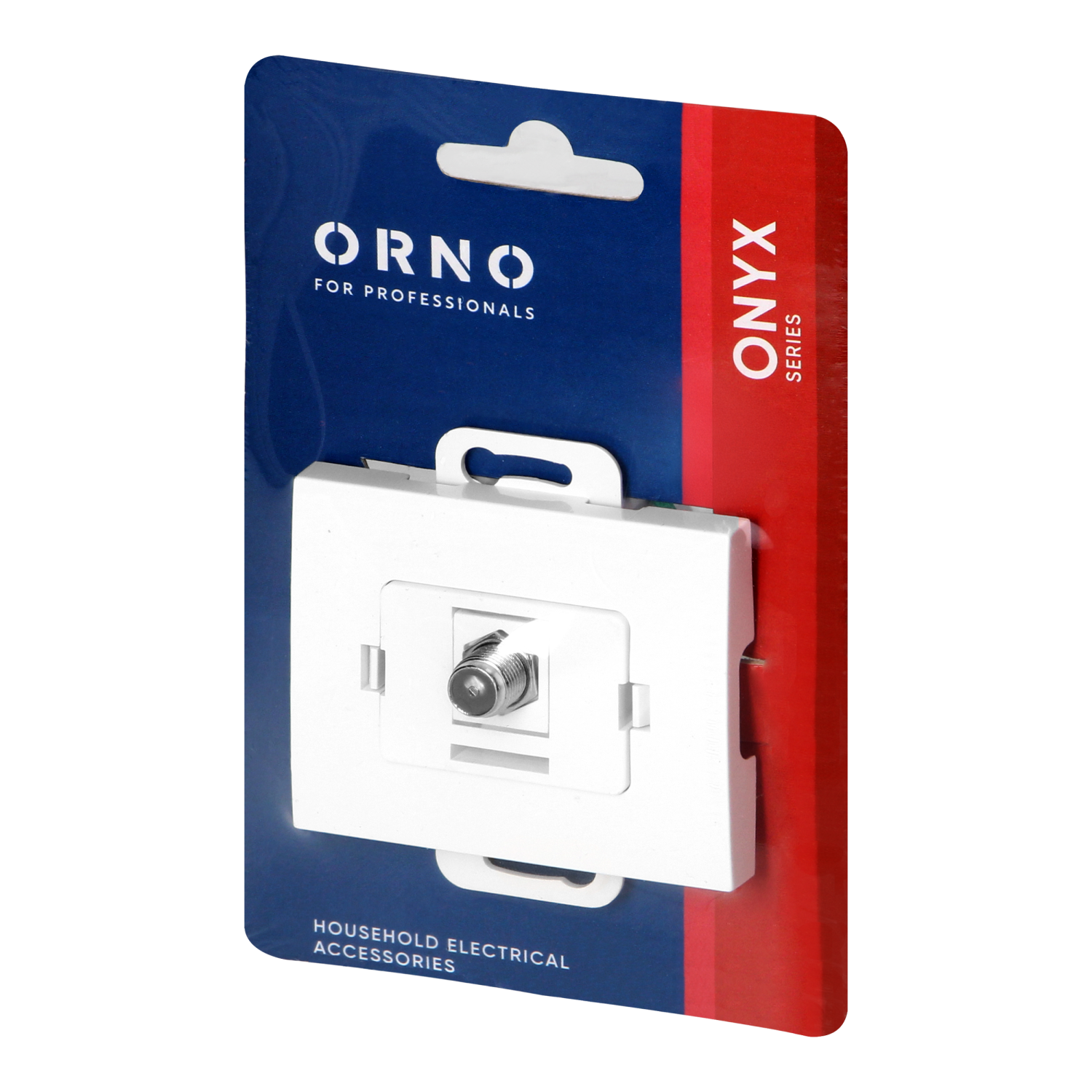

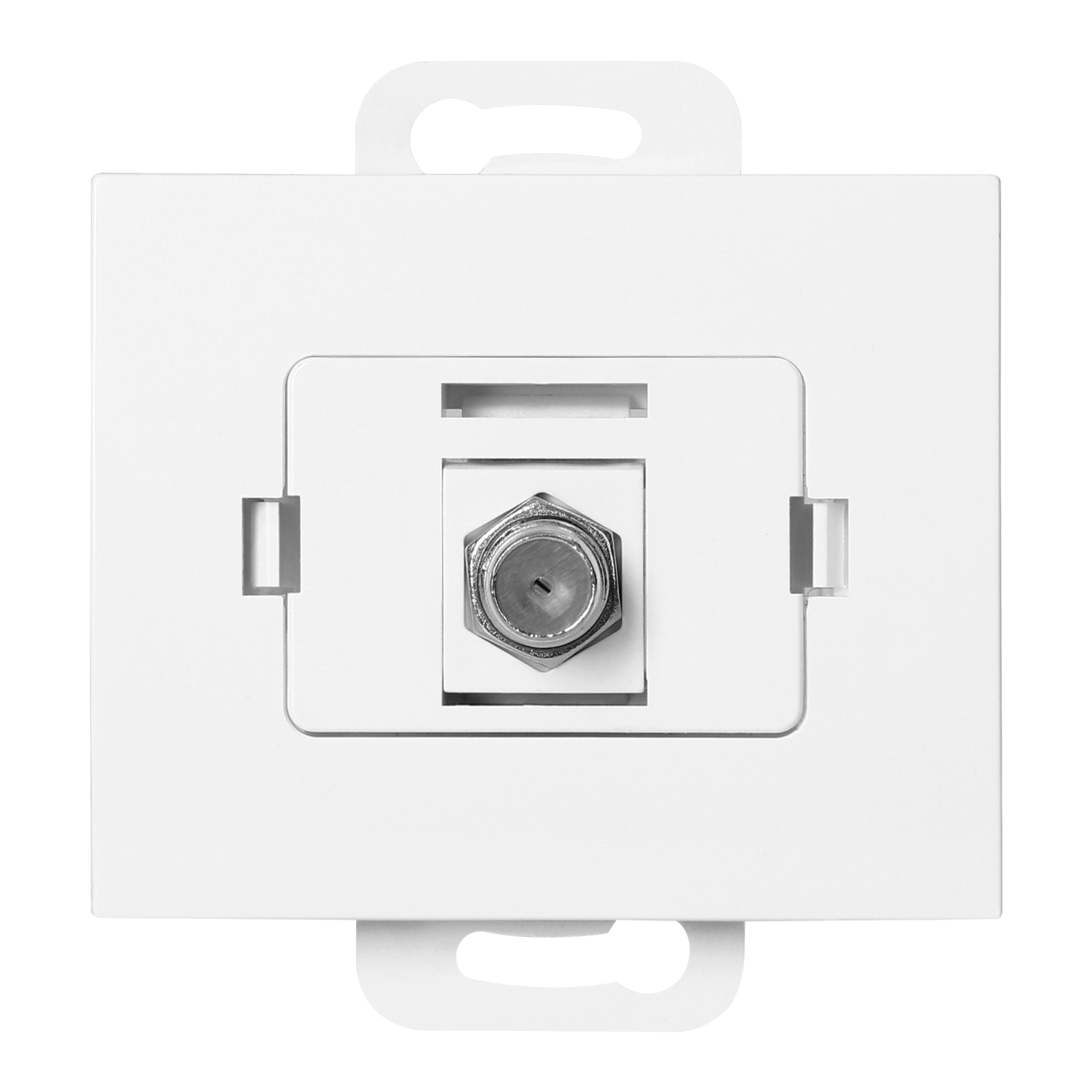

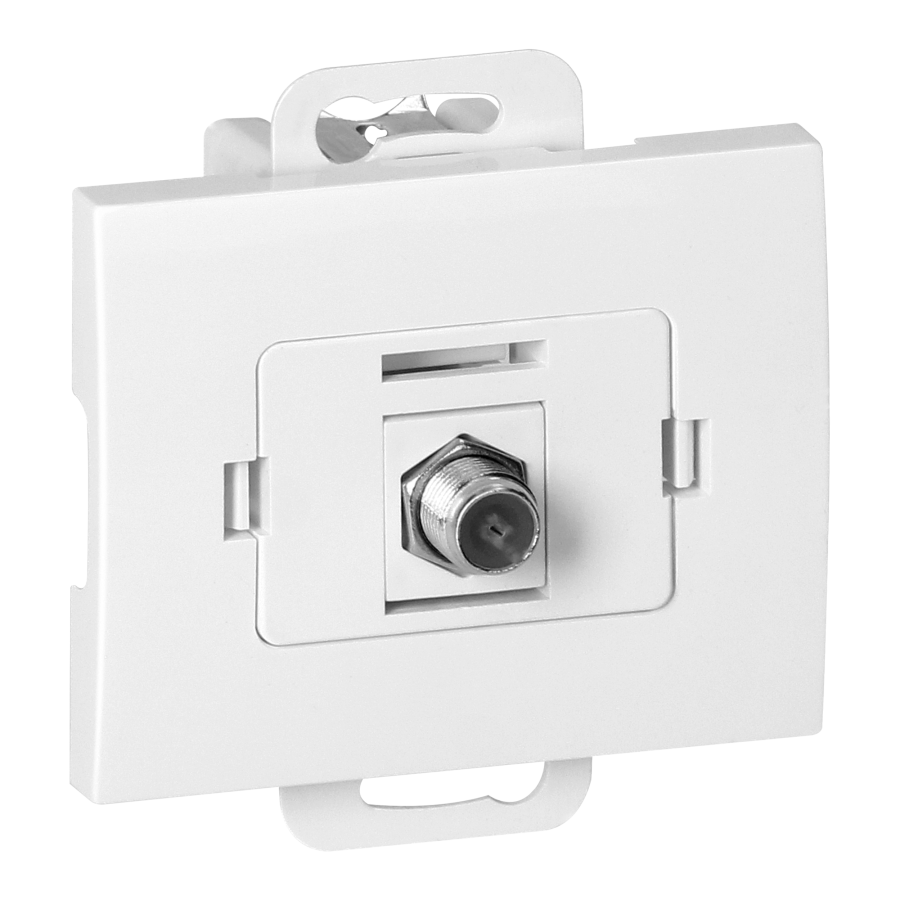

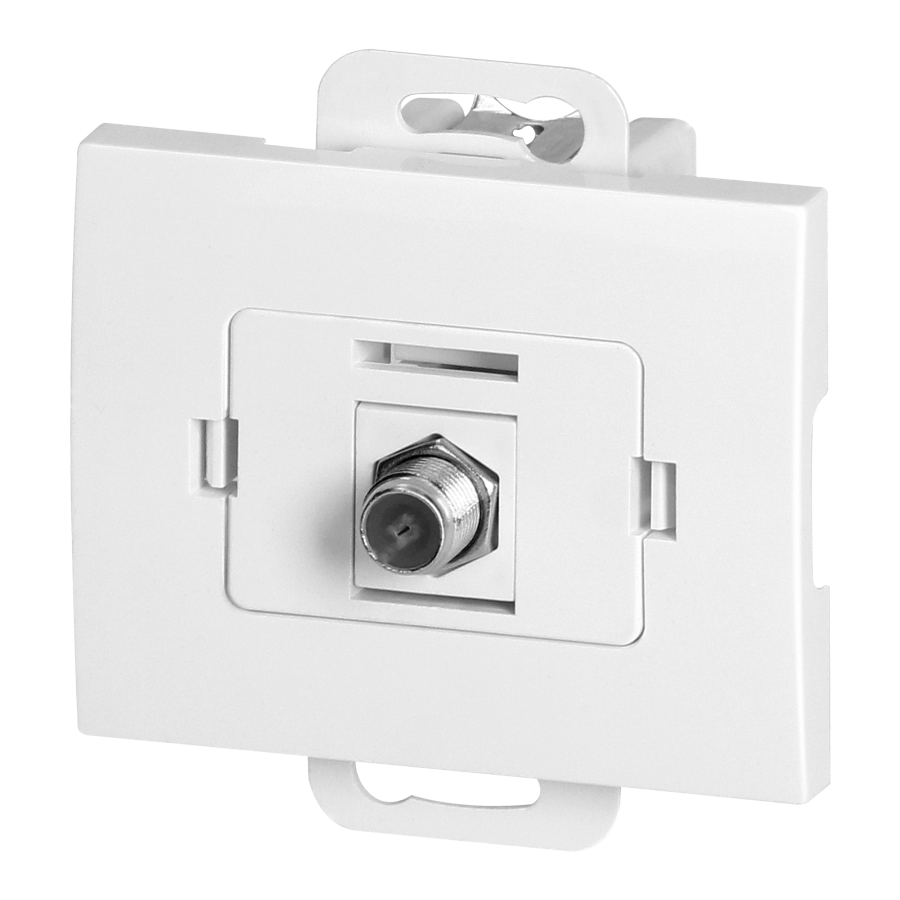

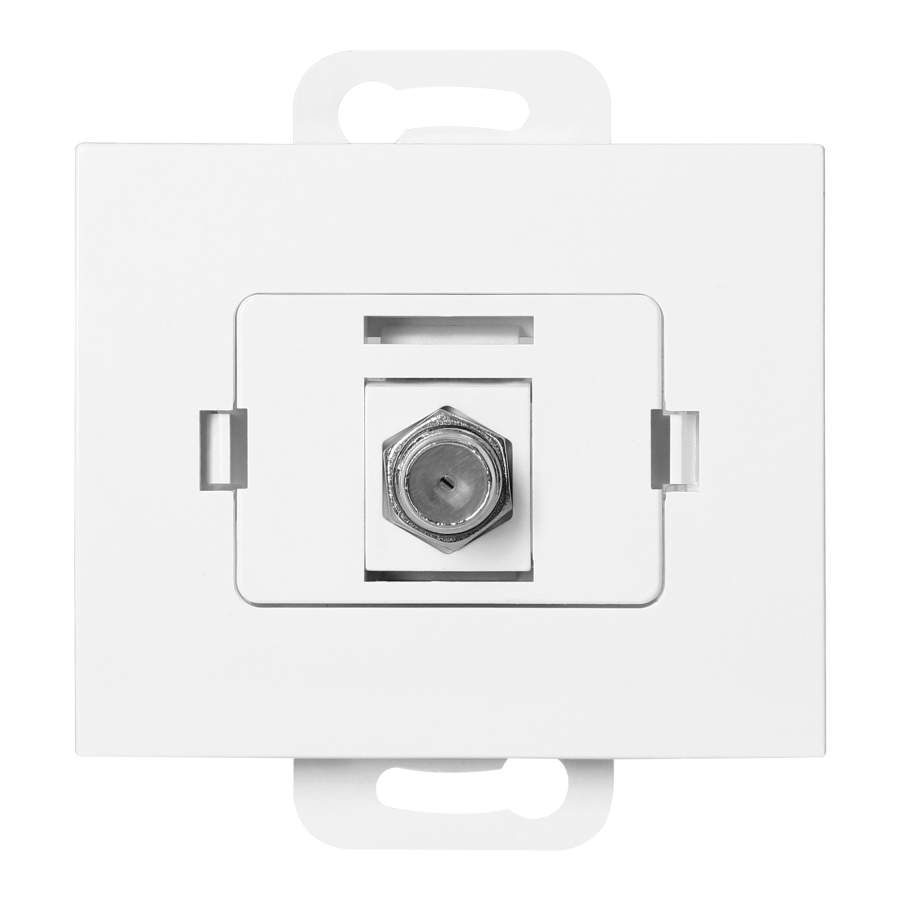

Single antenna TV socket, F-type. Allows connection of one receiver in TV, satellite or cable systems. It should be used indoors (IP20).
The product is available in two colors: white and black. Dimensions 82x98mm.
| General information: | |
|---|---|
| Assembly arrangement: | Element systemu modułowego do osprzętu elektroinstalacyjnego |
| Utilization: | Wtyk F |
| Mounting method: | Montaż podtynkowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Surface protection: | Malowanie |
| Surface finishing: | Błyszczący |
| Colour: | Biały |
| Type of fastening: | Montaż pazurkowy /-śrubowy |
| Number of modules (module system): | 1 |
| Suitable for degree of protection (IP): | IP20 |
| Device width [mm]: | 98 |
| Device height [mm]: | 82 |
| Device depth [mm]: | 9 |
