Flush-mounted sockets for RTV
New

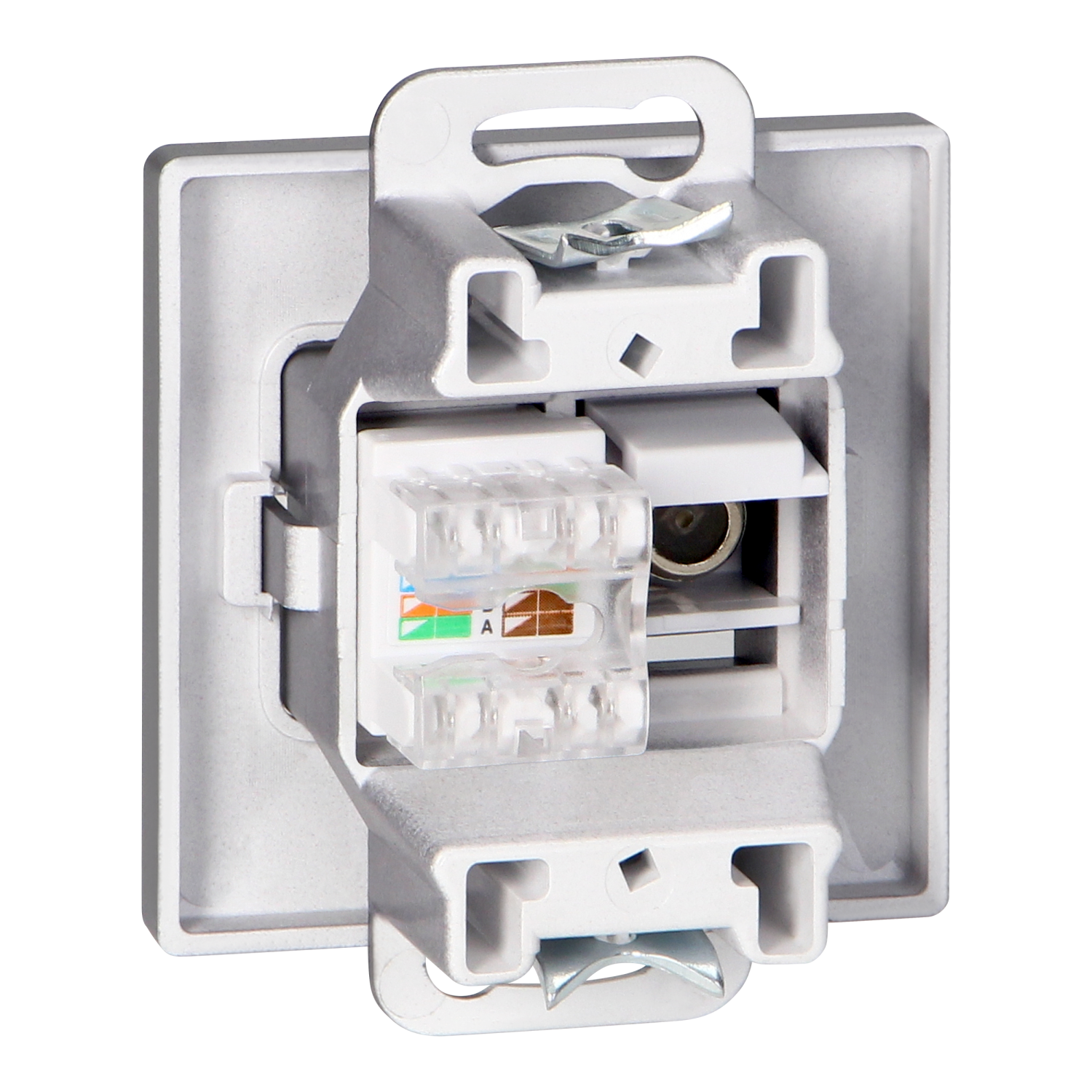

Modular series with a symmetrical frame plate system (for 1-, 2-, 3-, 4-, 5-modules) allowing the product to be mounted in both horizontal and vertical positions. The modern quick-connect mechanism (wires are connected by pushing them directly into the body) provides secure and safe wire installation and removal. The sockets are equipped with traditional screw connections. The internal design of the terminals guarantees secure connection of wires from 0.75 mm² to 2.5 mm². Strong and robust mounting plate grid and high-quality self-retracting elements enable stable and secure installation in the box. Special springing elements facilitate fitting the frame into the body.

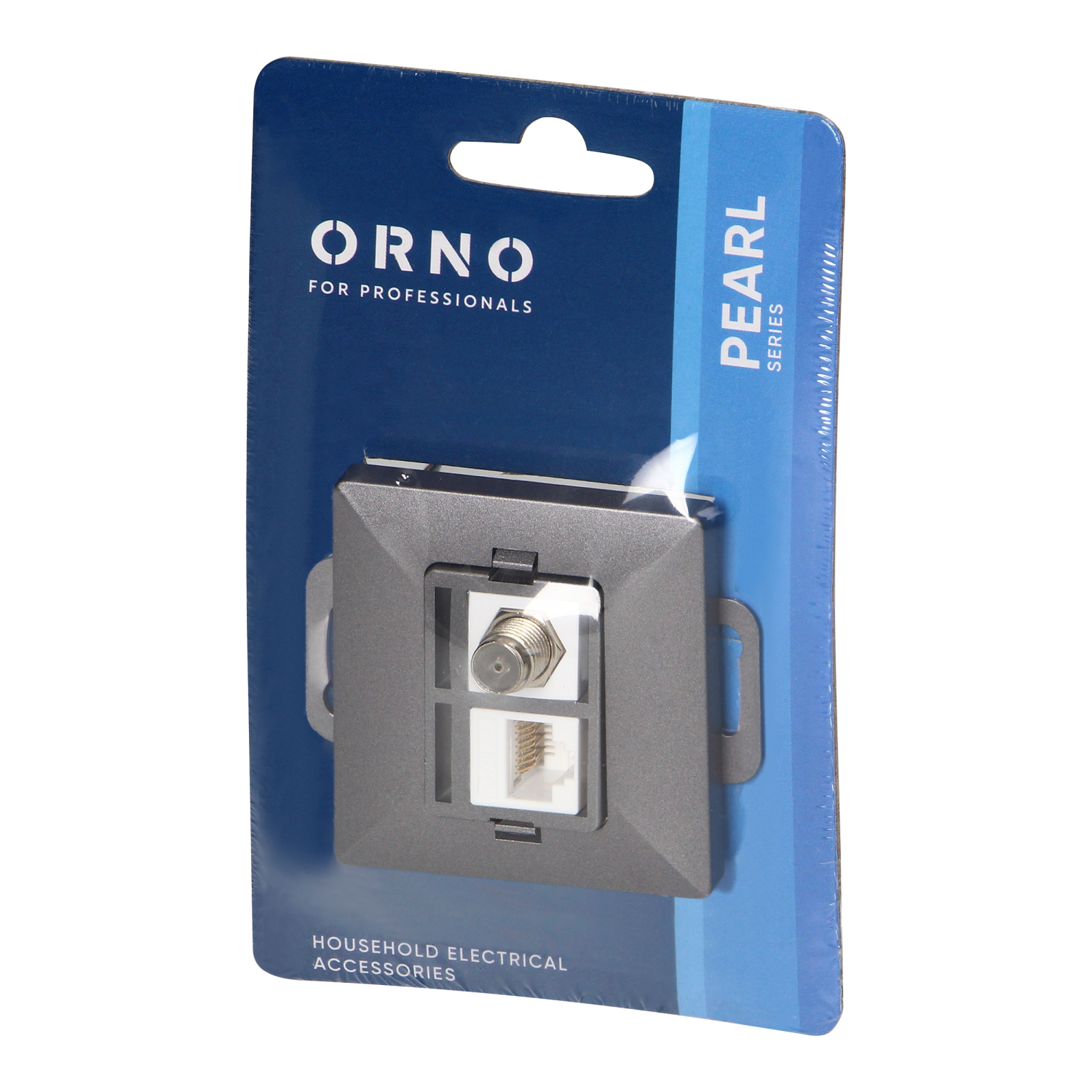

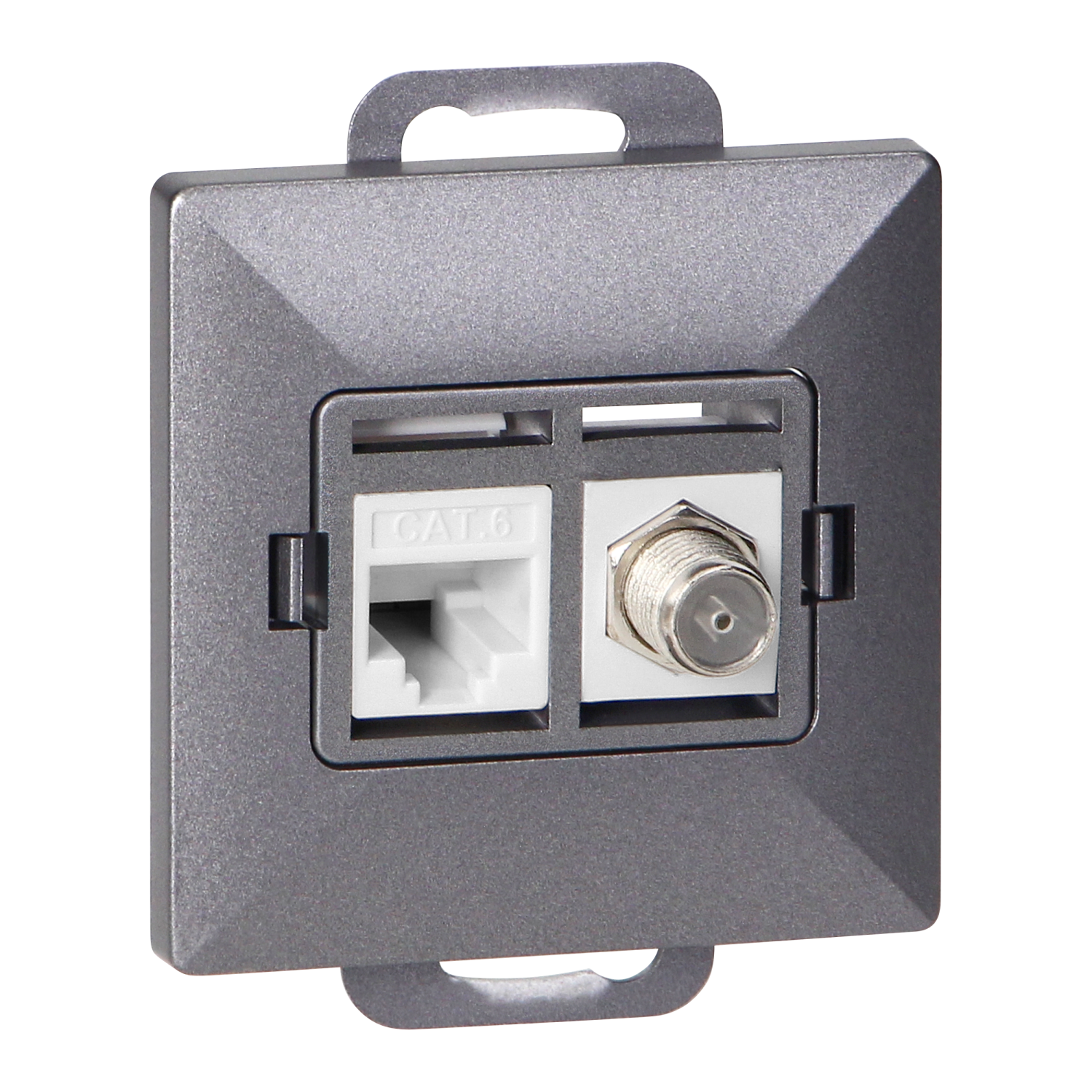

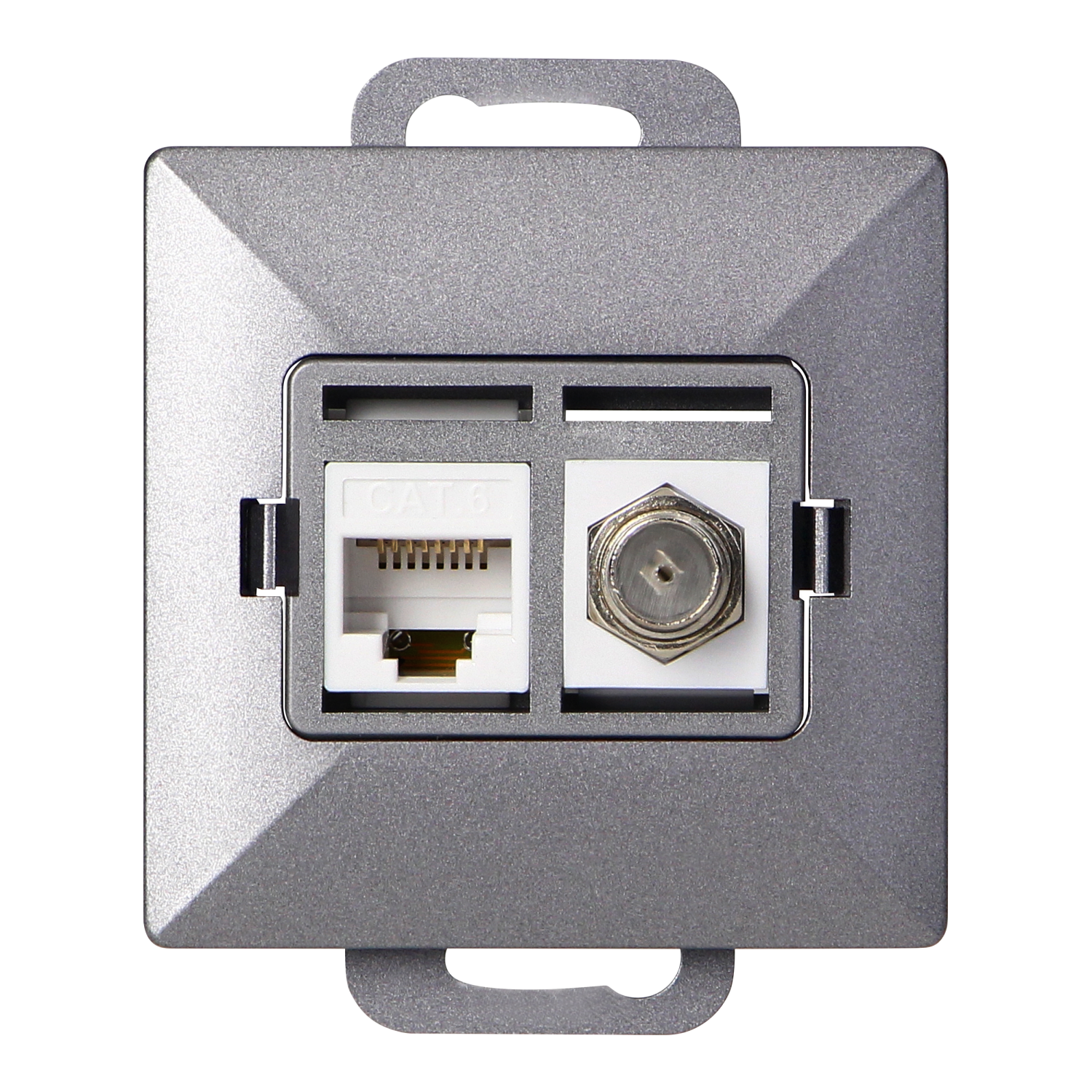

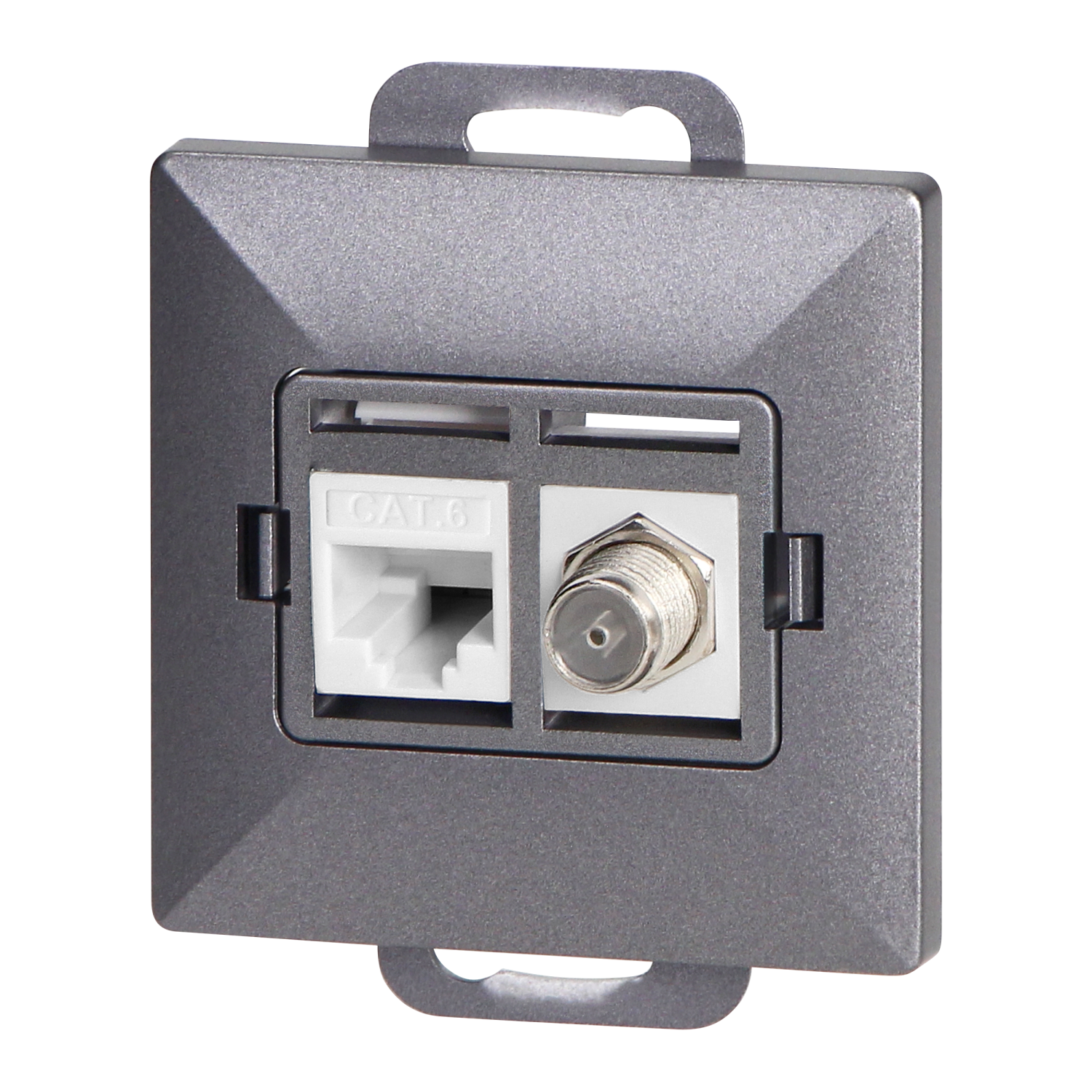

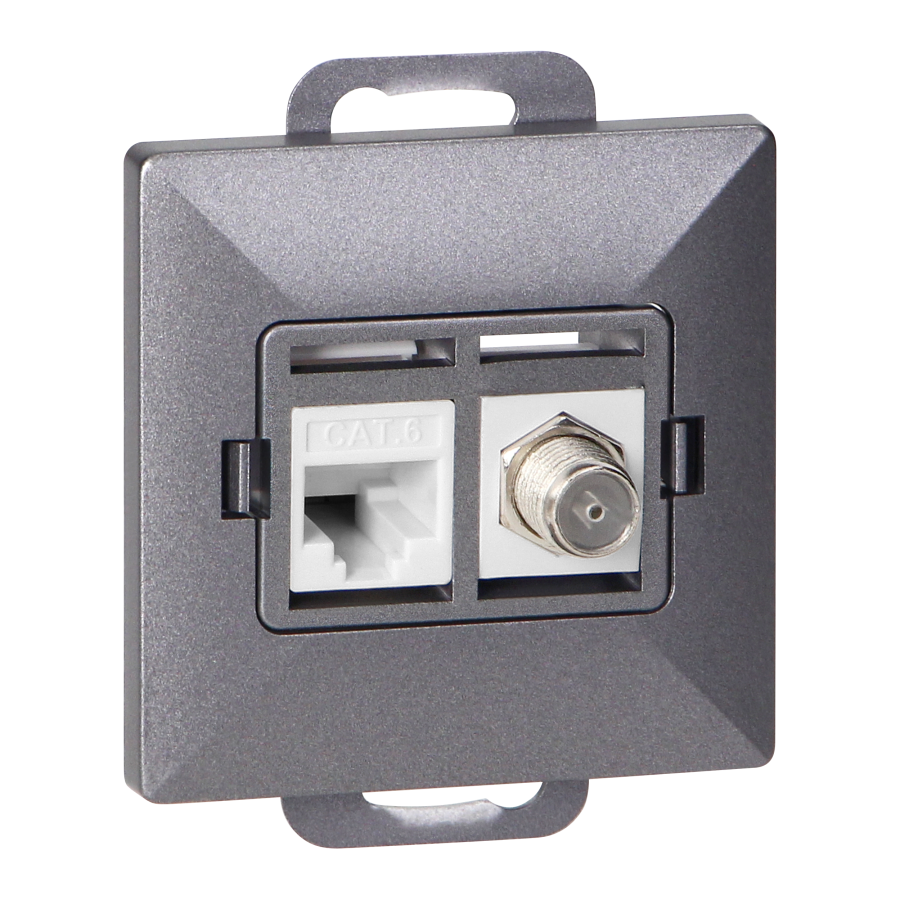

Set of sockets: single antenna socket, F-type. Enables connection of one cable with F-type connector. Single RJ45 computer socket, unshielded Cat6. Adapted for flush mounting. It should be used indoors (IP20).
The product is available in three colors: white, black and anthracite.
| General information: | |
|---|---|
| Assembly arrangement: | Element systemu modułowego do osprzętu elektroinstalacyjnego |
| Utilization: | Wtyk F + RJ46 |
| Mounting method: | Montaż podtynkowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Surface protection: | Malowanie |
| Surface finishing: | Matowy |
| Colour: | Antracyt |
| Type of fastening: | Montaż pazurkowy /-śrubowy |
| Number of modules (module system): | 1 |
| Suitable for degree of protection (IP): | IP20 |
| Device width [mm]: | 81 |
| Device height [mm]: | 81 |
| Device depth [mm]: | 7.6 |
