Flush-mounted sockets for RTV
New

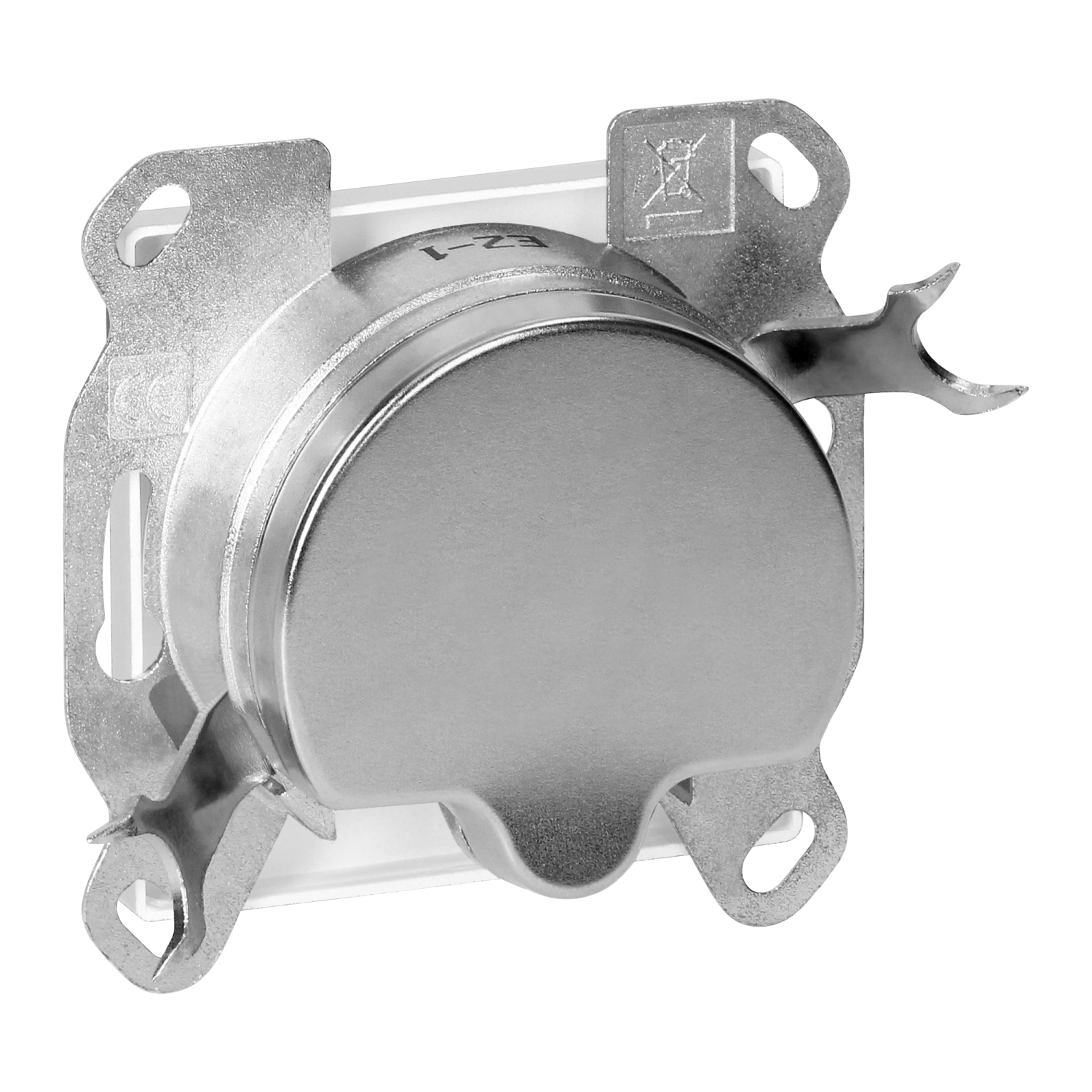

Modular series with a symmetrical frame plate system (for 1-, 2-, 3-, 4-, 5-modules) allowing the product to be mounted in both horizontal and vertical positions. The modern quick-connect mechanism (wires are connected by pushing them directly into the body) provides secure and safe wire installation and removal. The sockets are equipped with traditional screw connections. The internal design of the terminals guarantees secure connection of wires from 0.75 mm² to 2.5 mm². Strong and robust mounting plate grid and high-quality self-retracting elements enable stable and secure installation in the box. Special springing elements facilitate fitting the frame into the body.

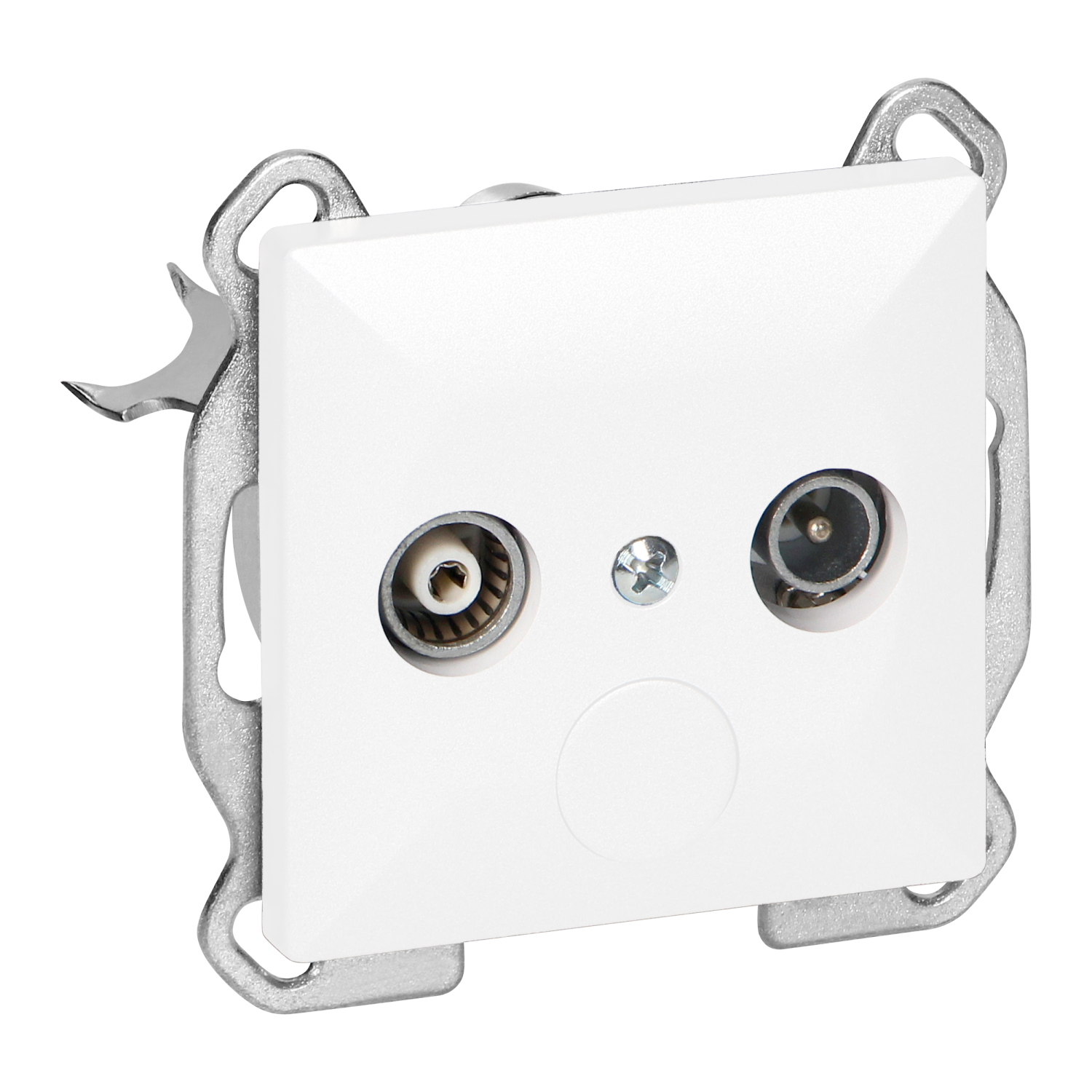

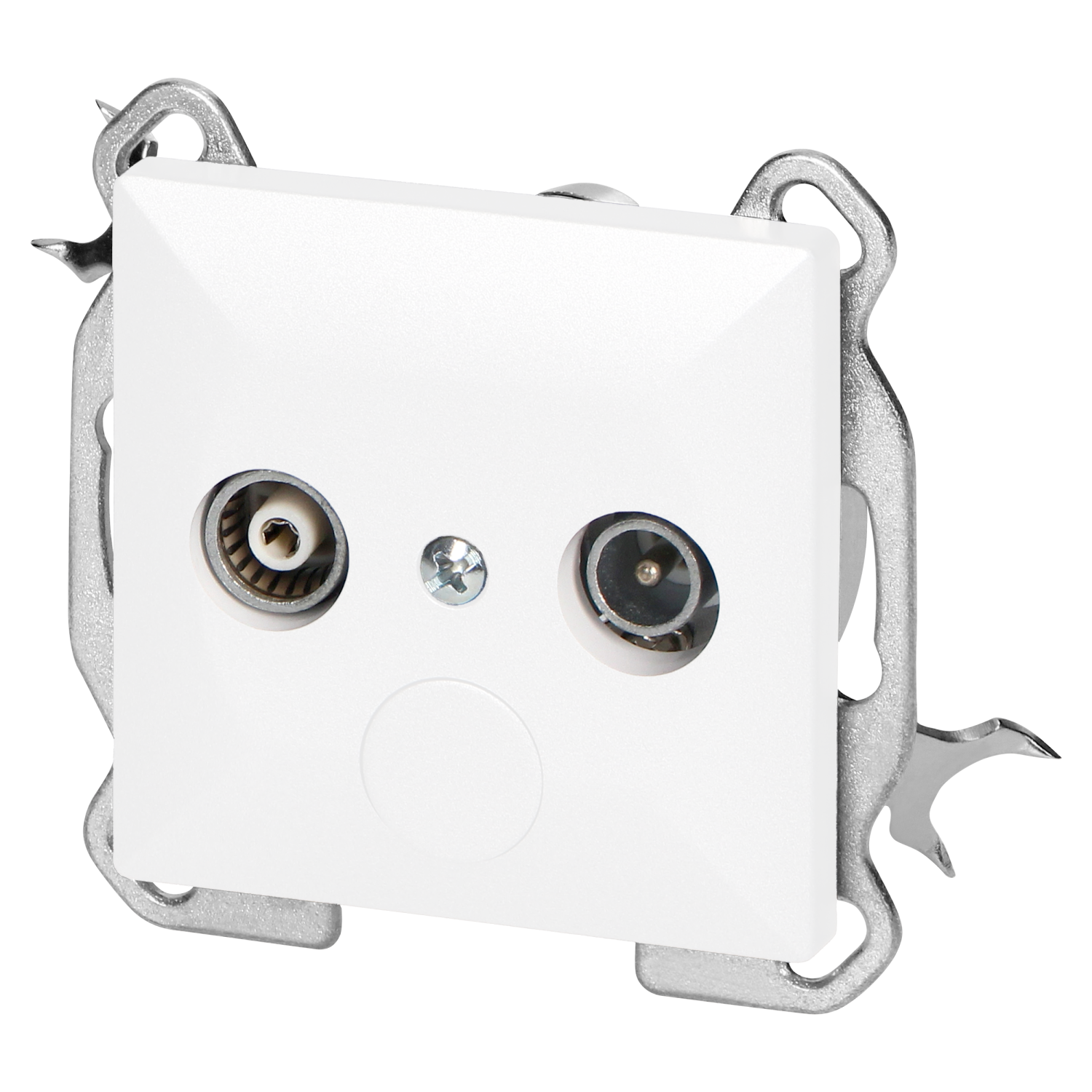

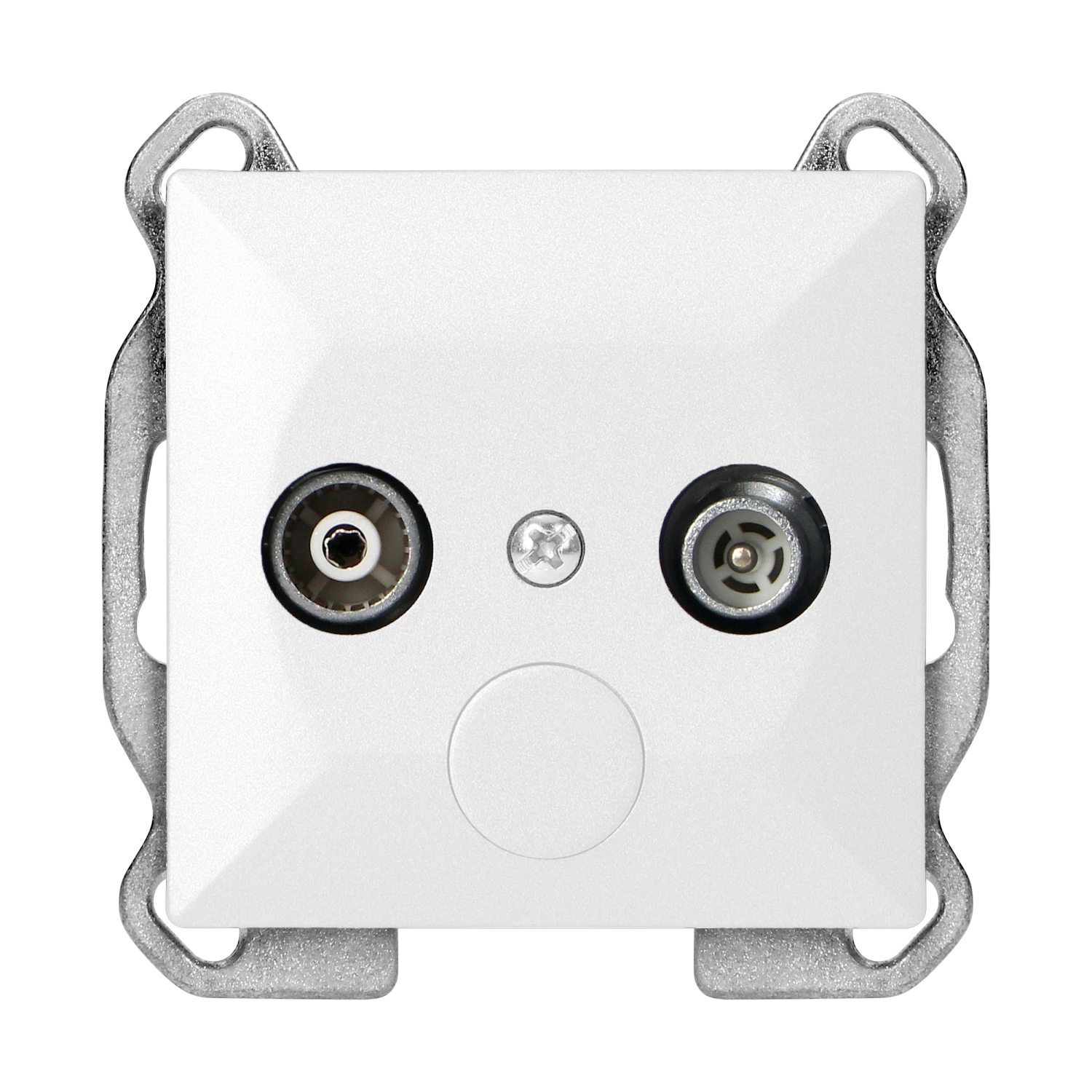

RTV end socket, designed for flush mounting. Enables connection of a radio and television receiver (terrestrial digital or analogue TV). It should be used indoors (IP20).
The product is available in three colors: white, black and anthracite.
| General information: | |
|---|---|
| Model: | Gniazdo końcowe |
| Type of socket outlet: | TV |
| Mounting method: | Montaż podtynkowy |
| Number of modules (module system): | 1 |
| Type of fastening: | Montaż pazurkowy /-śrubowy |
| Colour: | Biały |
| Surface protection: | Malowanie |
| Surface finishing: | Błyszczący |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Nominal voltage [V]: | 250 |
| Nominal current [A]: | 16 |
| Degree of protection (IP): | IP20 |
| Device width: | 81 |
| Device height: | 81 |
| Device depth: | 7.6 |
