Energy meters without MID

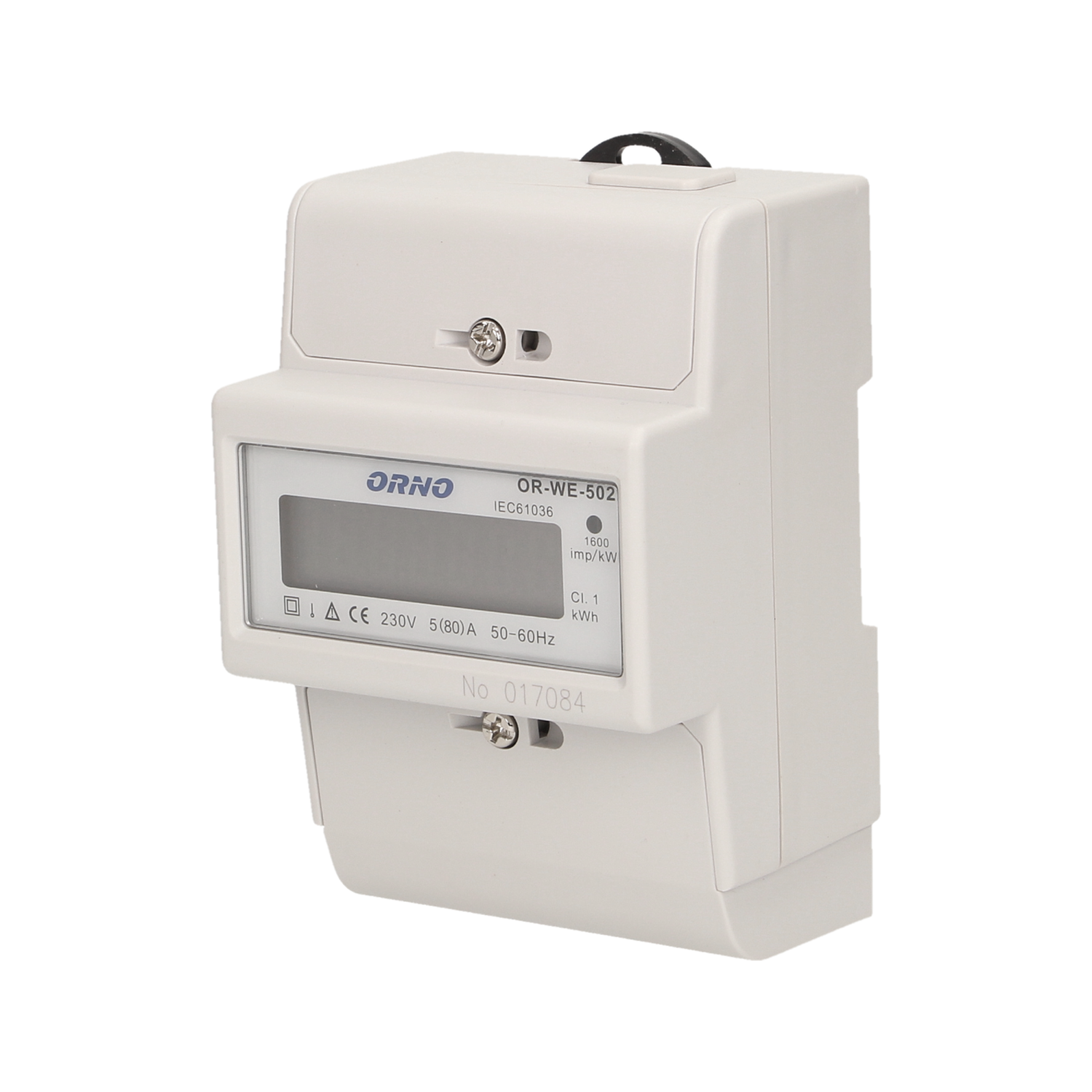

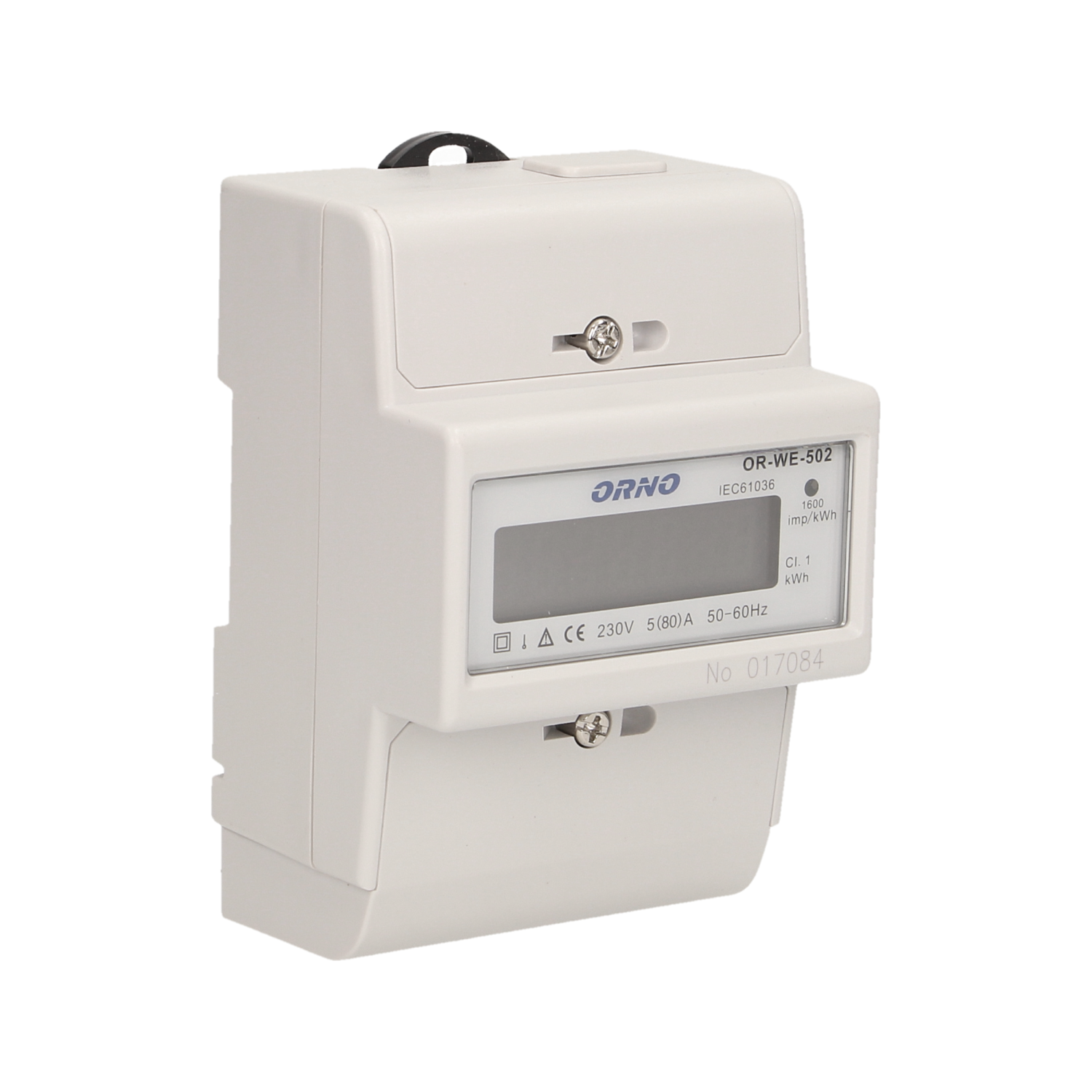

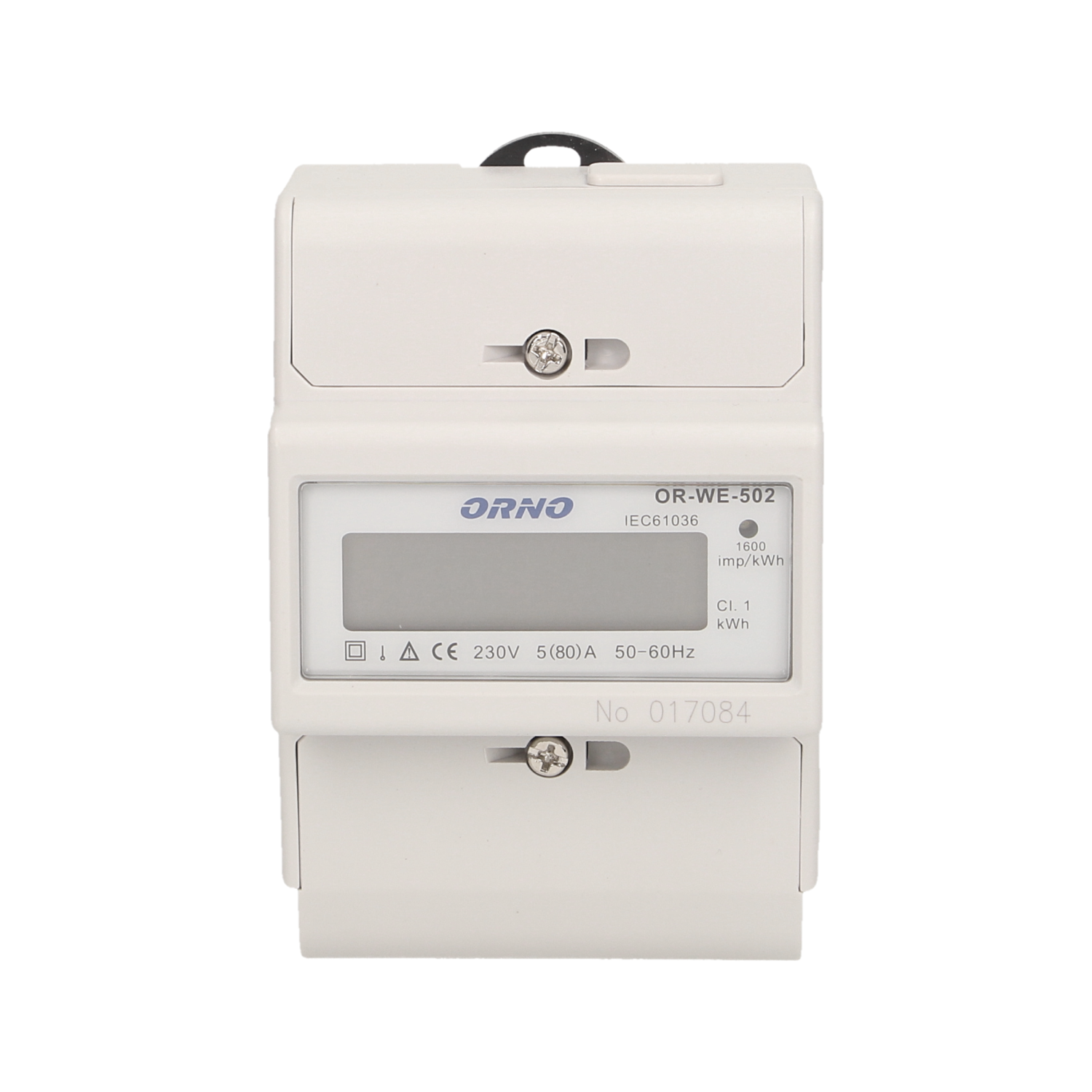

Device for making indications in kWh. A special electronic circuit, by the flow of current and applied voltage generates pulses in proportion to the energy consumed. Phase energy consumption is signaled by a flashing LED. The number of pulses is converted into energy input and its value is indicated on the LCD display (6 + 1).
| General information: | |
|---|---|
| Backlight: | No |
| Type: | 1-phase |
| Base current (lb): | 5 A |
| Maximum current (lmax): | 80 A |
| Degree of protection (IP): | 20 |
| Pulse frequency: | 1600 imp/kWh |
| Class of measurement accuracy: | 1 |
| Pulse output: | No |
| Multi-tariff: | No |
| Dimensions - depth: | 65 mm |
| Number of modules: | 4.5 |
| Dimensions - width: | 78 mm |
| Dimensions - height: | 115 mm |
| Compliance with mid certificate (2014/32/eu): | No |
| Communication protocol: | none |
| Display: | 6+1 " |
| Ports: | none |
