Energy meters without MID

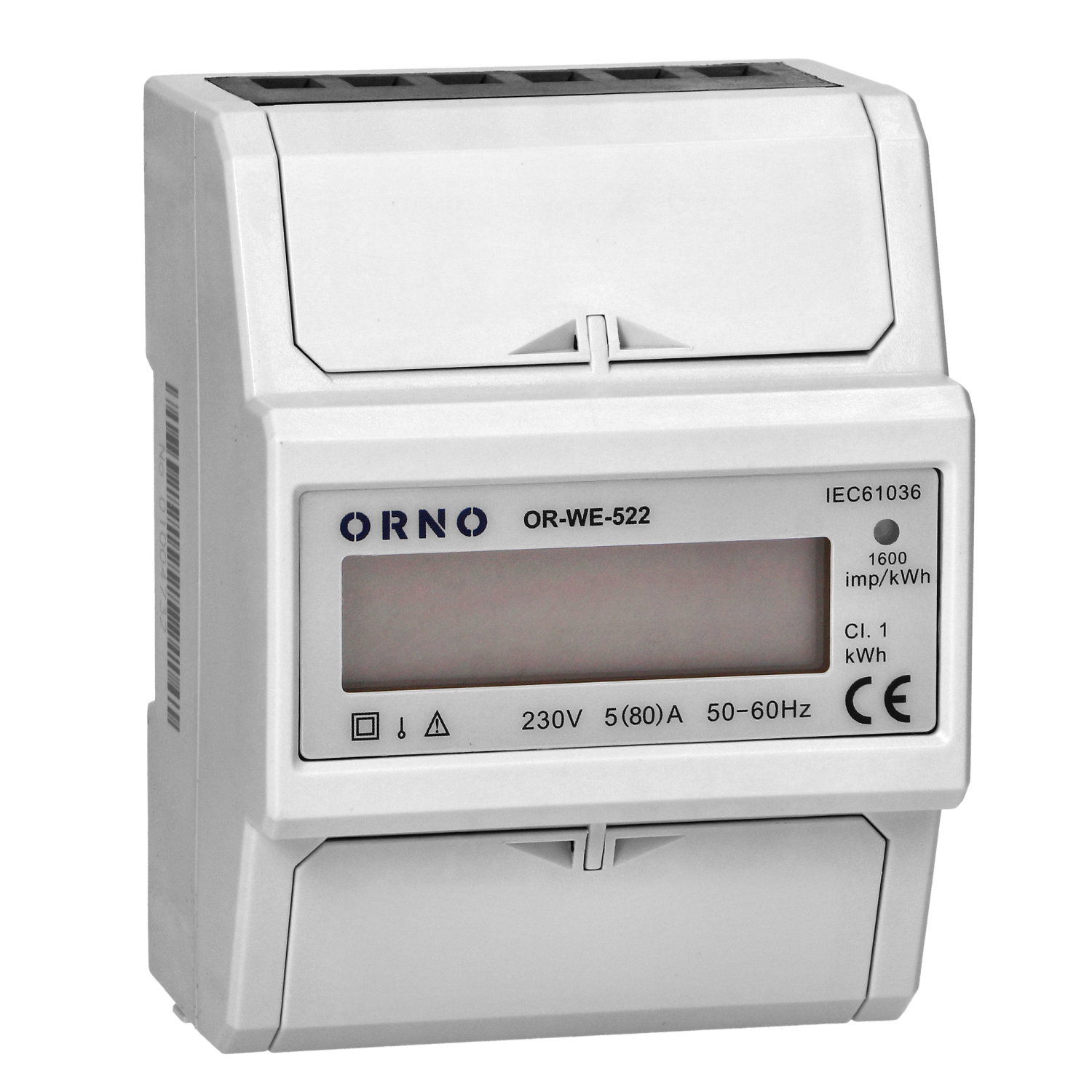

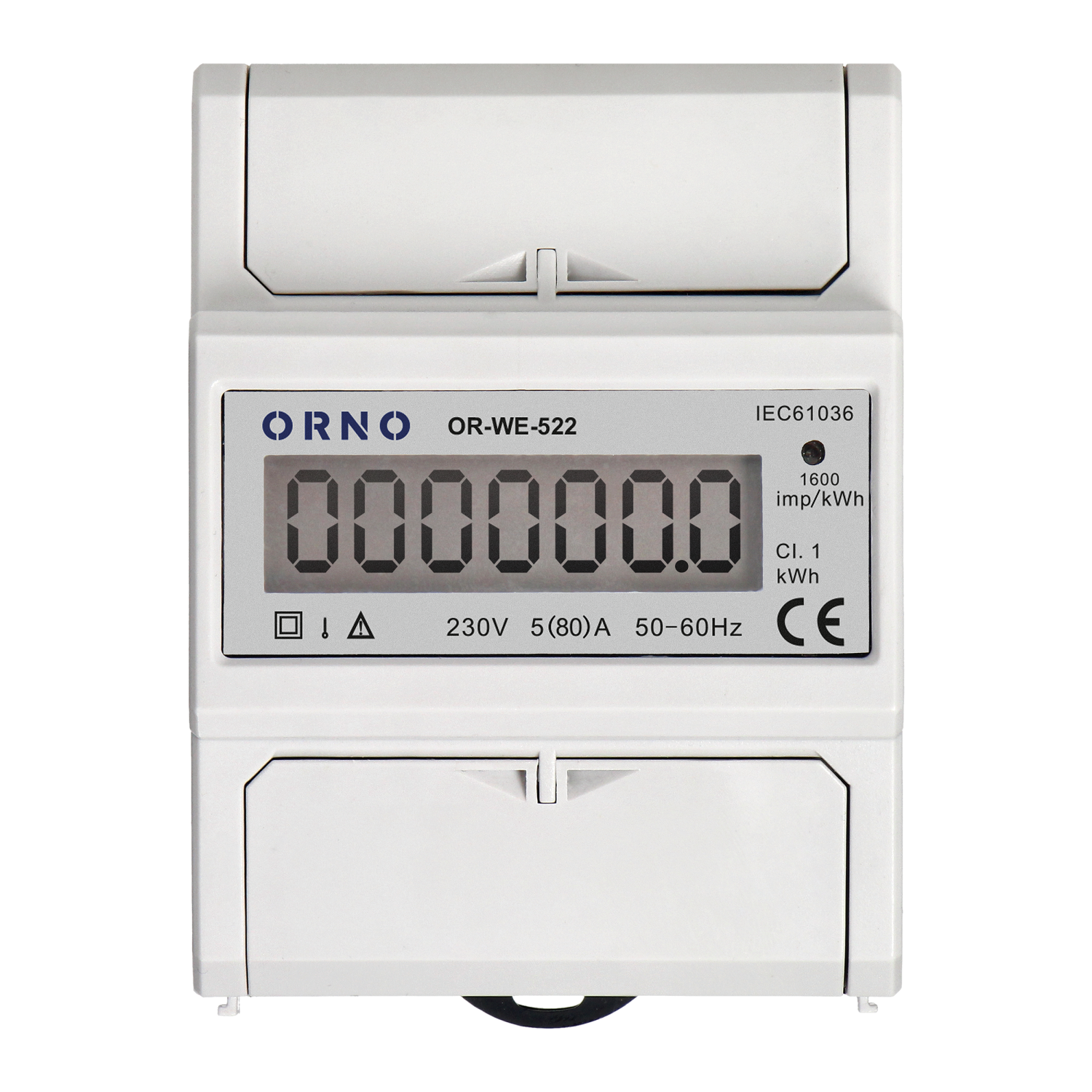

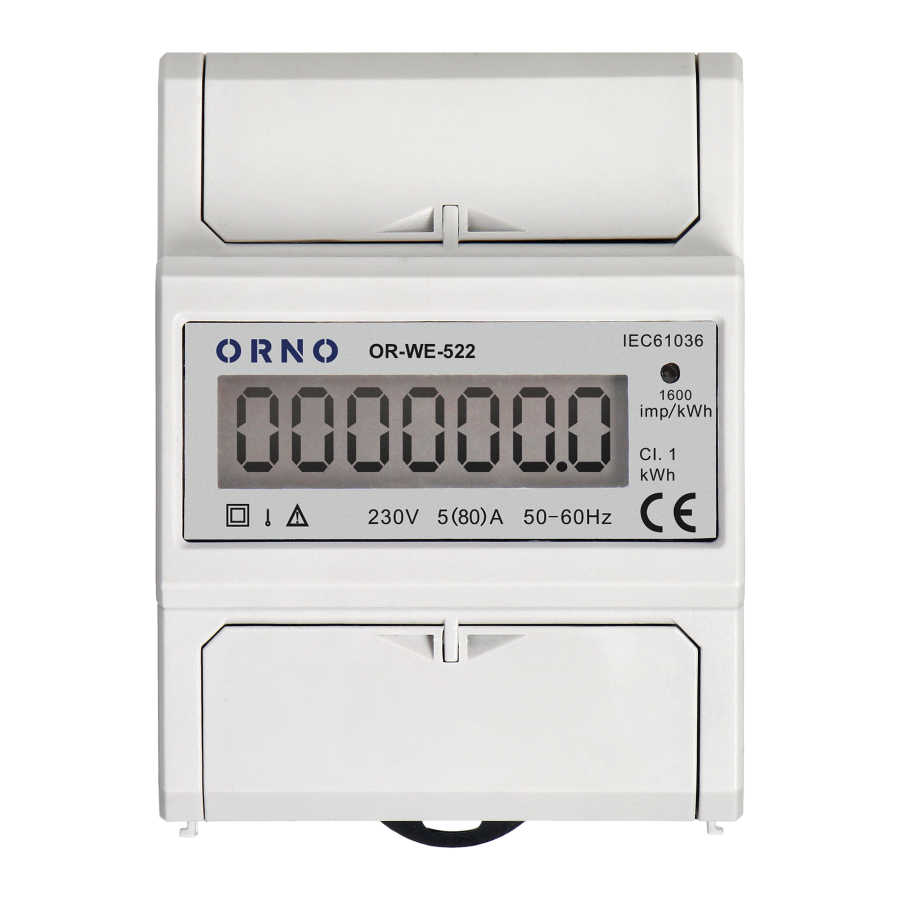

A device providing readings in metric units (kWh), for direct measurement of active power in a single-phase system. A special electronic circuit, when exposed to the flowing current and applied voltage, generates pulses in proportion to the electrical energy consumed. Energy consumption is indicated by a flashing LED. The number of pulses is converted into consumed energy and its value is indicated by an LCD display (6+1). Power supply: 230V~, 50Hz, base current: 5A, max. current: 80A, pulse frequency: 1600imp/kWh, readings accuracy: class 1, mounted on 35 mm rail.
| General information: | |
|---|---|
| Type of meter: | Elektroniczny |
| Nominal current (In) [A]: | 5 |
| Max. current (Imax) [A]: | 80 |
| Min. Current [A]: | 0.25 |
| Start current (Ist) [A]: | 0.001 |
| Nominal voltage (Un) N-L [V]: | 230 |
| Frequency [Hz]: | 50 |
| Pulse frequency [imp/kWh]: | 1600 |
| Accuracy class: | 1 |
| Pole type: | Jednofazowy |
| Model: | Pomiar bezpośredni |
| Energy type: | Moc czynna |
| Active power: | Tak |
| Reactive power: | Nie |
| Forwarded power: | Tak |
| Reversed power: | Nie |
| Tariff type: | 1 |
| Tariff control: | Nie |
| Resetting sub-meter possibility: | Nie |
| Memory support: | EEPROM |
| Measurement type load profile: | Nie |
| Escapement mechanism: | Tak |
| Calibrated: | Nie |
| Approval: | IEC61036 |
| Pulse output: | Tak |
| Pulse type: | S0 |
| Multi-tariff: | Nie |
| Type of indication: | Cyfrowy |
| Backlight: | Nie |

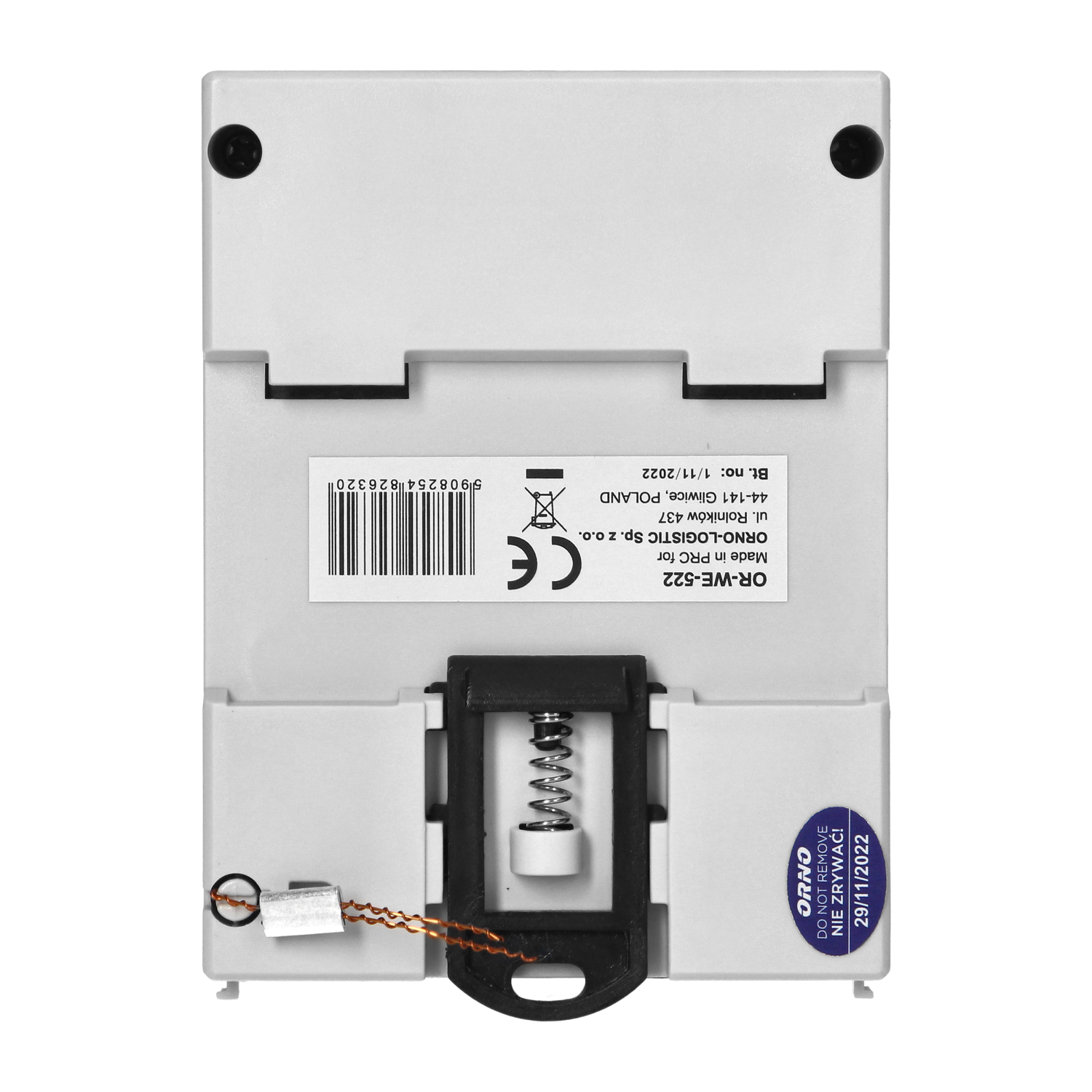

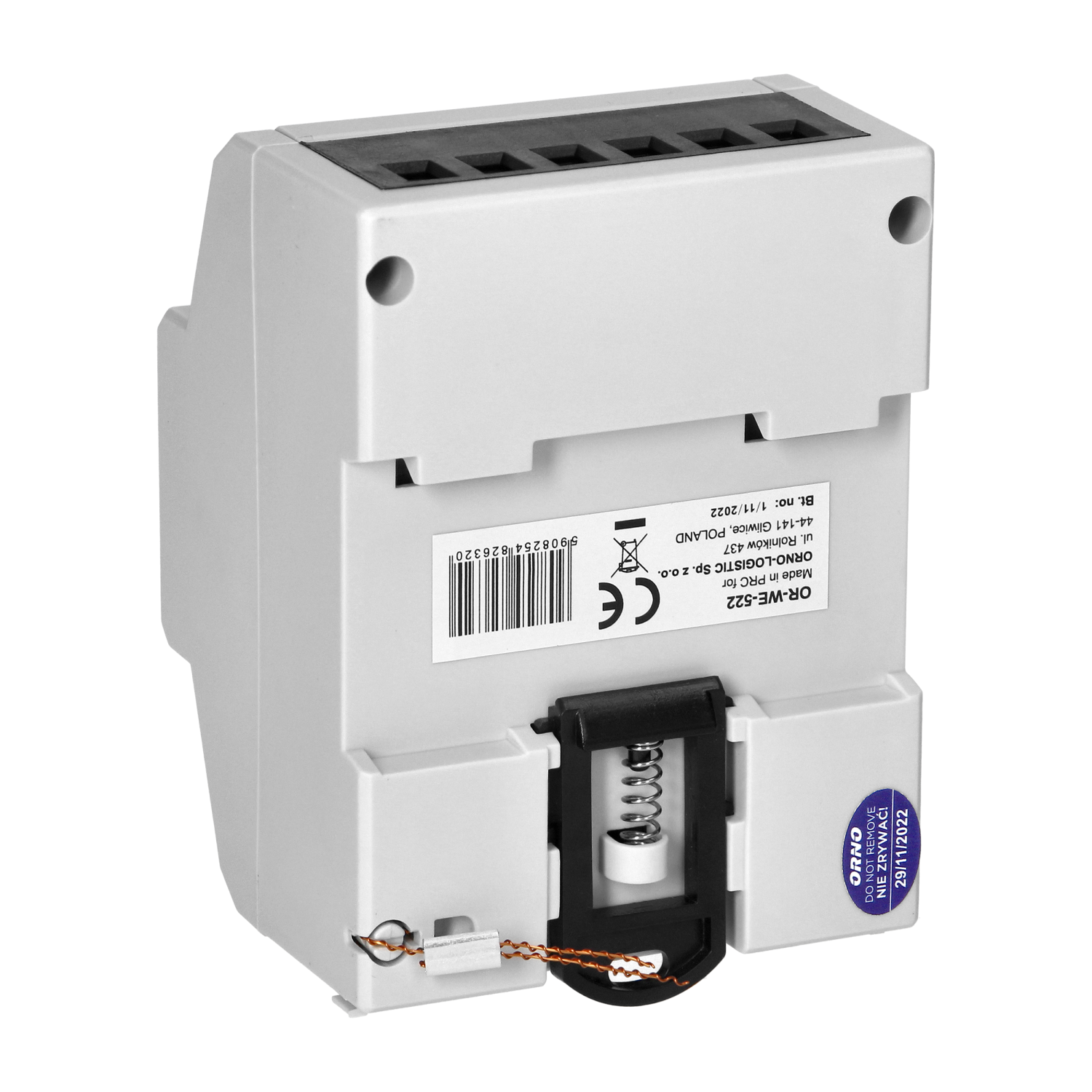

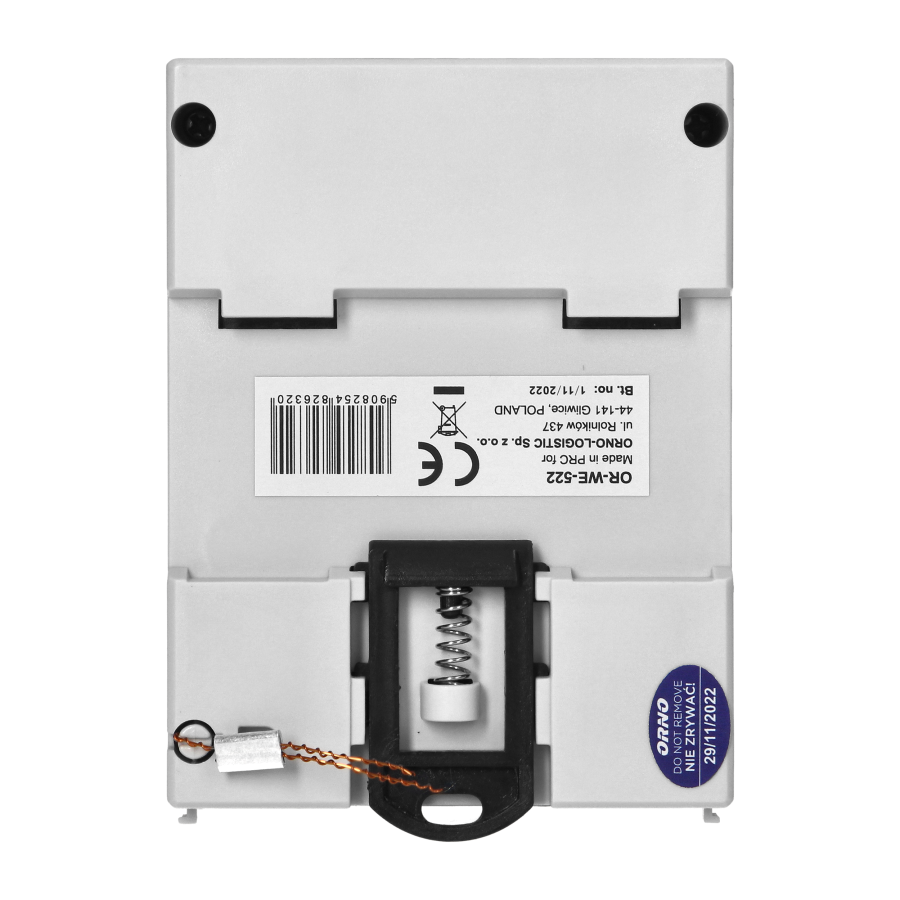

| Mounting method: | Adapter szyny DIN |
| Width in number of modular spacings: | 4,3 |
| Max. Cross-section of cables: | 35 |
| Width [mm]: | 78 |
| Depth [mm]: | 65 |
| Height [mm]: | 103 |
| Temperature Range: | -25 - +45 |
| Max. Humidity: | ≤85% |
| Degree of protection (IP): | IP20 |

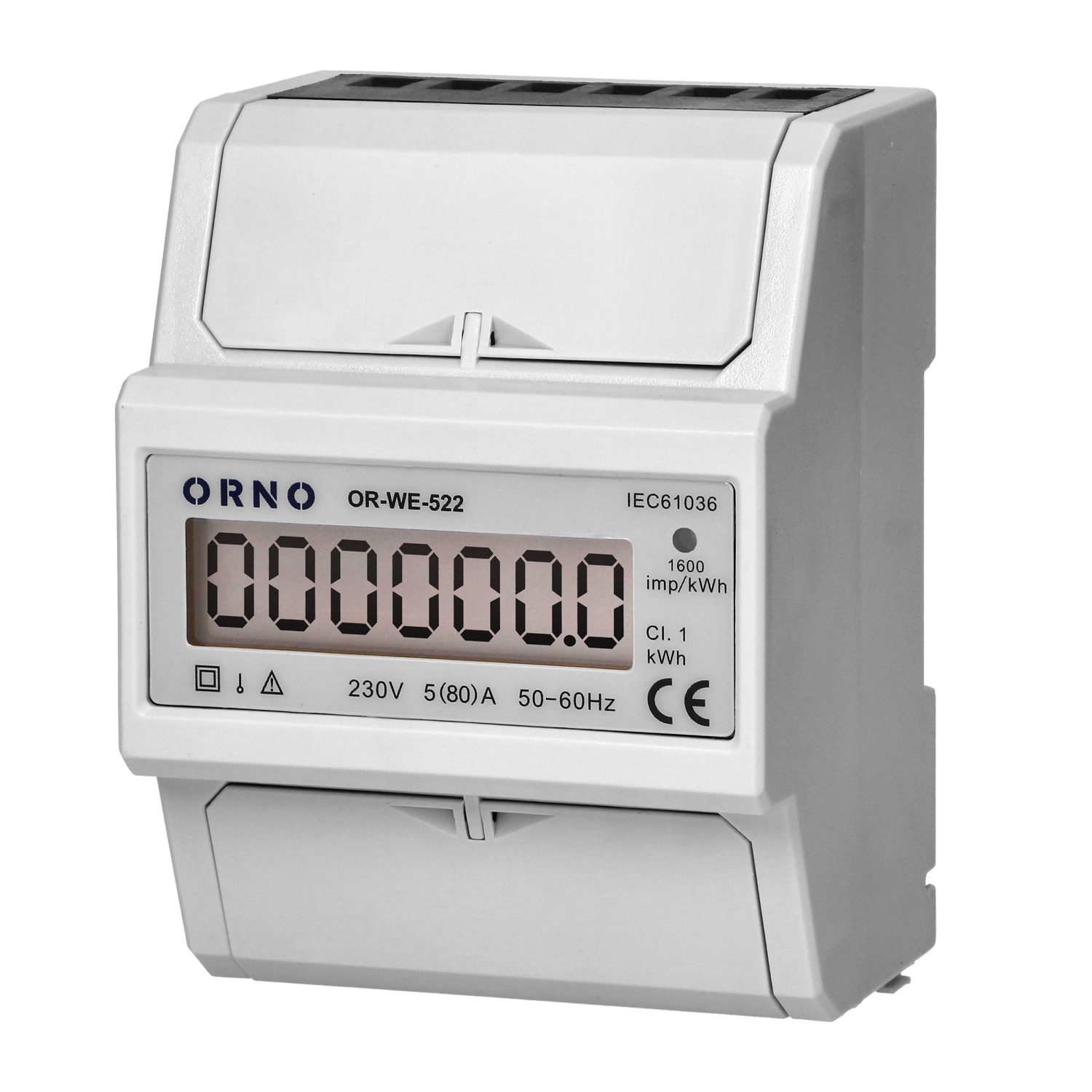

| Display [kWh]: | LCD 6+1 = 123456,1 |
