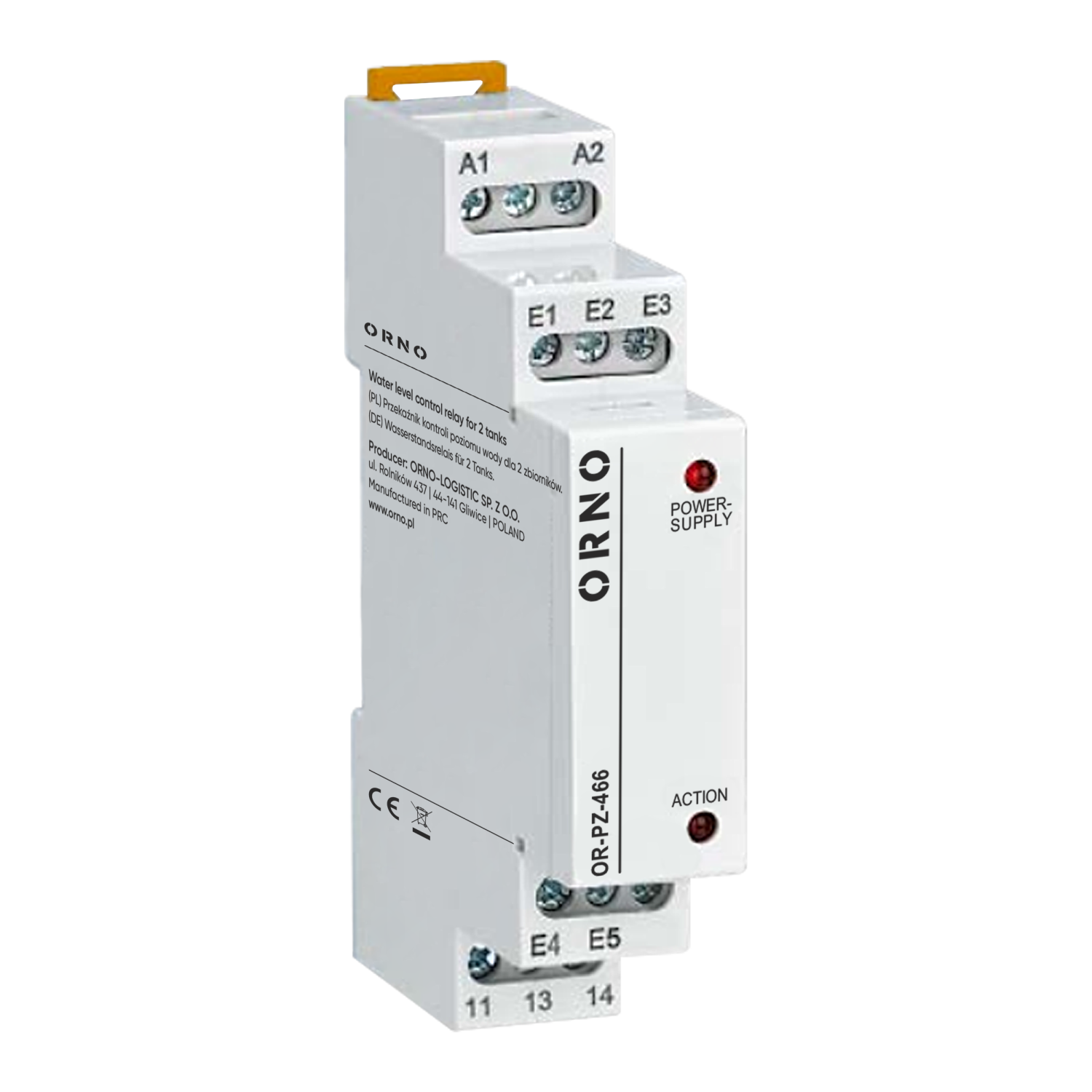

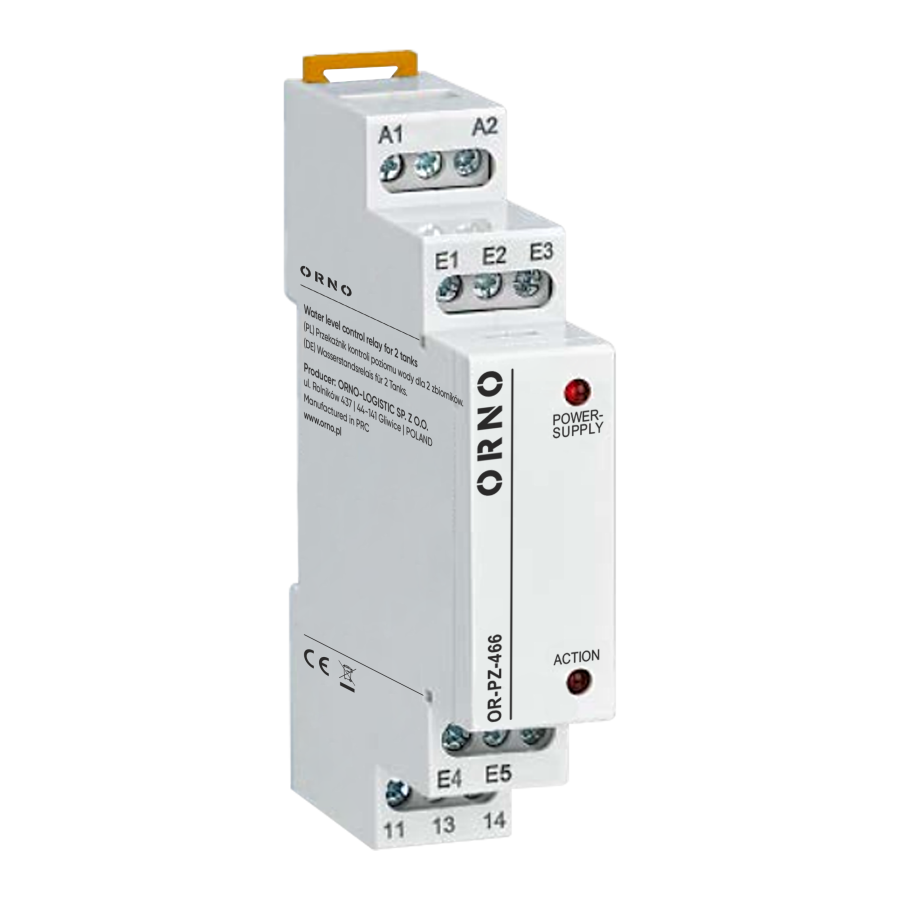

1 modular water level control relay for 2 tank 24-240VAC/DC

The 1 modular water level control relay is a universal device designed for the precise monitoring and regulation of liquid levels in two tanks. Capable of operating over a wide 24-240V AC/DC supply voltage range. The relay is used in environments, such as water tanks, deep wells and water treatment and purification systems.

The unit is designed to automate water level management processes. As it is integrated with water level sensors, the relay effectively automates the filling, emptying and pumping processes of liquids.

The relay operates on the physical principle of measuring conductivity, which guarantees accurate readings and reliable operation even in difficult conditions. Such automation significantly reduces the need for manual intervention, increases operational efficiency and minimises the risk of errors.

In critical situations, such as the threat of an overfilled or underfilled tank, the device reacts immediately, preventing potential losses or disruptions.

An additional function of the relay is the ability to set and manage different liquid levels in 2 tanks using a single device or a system (cascade feature). This applies to situations where the relay can control several levels of water (or other liquid) at the same time and reacts to changes accordingly.

The relay is equipped with one changing contact, which allows to switch on circuits with a rated current of up to 5A.

The design of the relay allows easy installation on a DIN rail. The unit's compact dimensions of 18x96x64 mm make it convenient to install and its small size allows efficient use of space in switchboards.
