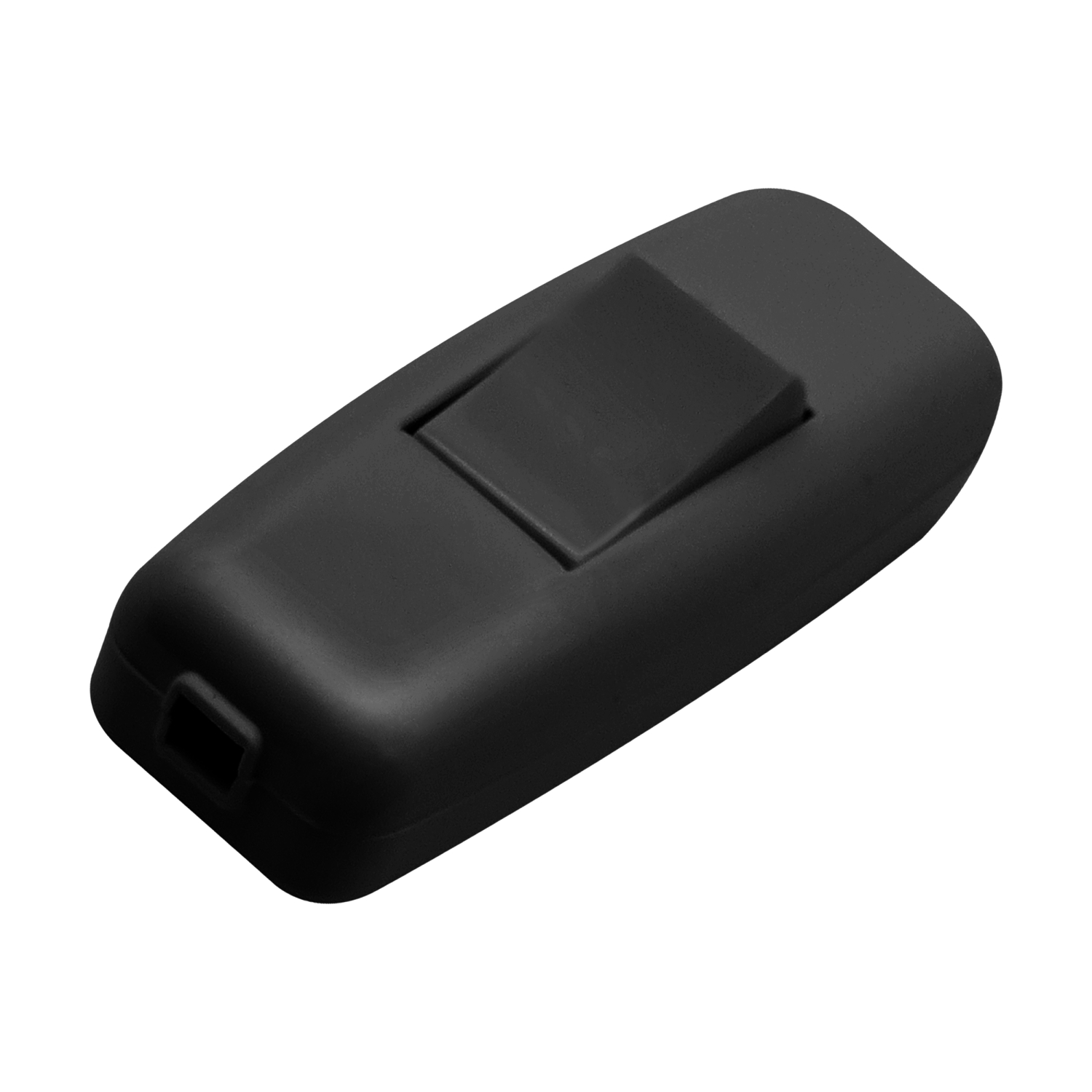

Switch buttons
Install this switch when you want to cut off two wires at the same time. The two-track design allows you to disconnect the entire circuit with one movement, which increases safety and is useful when both wires need to be disconnected simultaneously.
The switch operates in OFF-ON mode and is suitable for simple systems such as table lights, LED modules, lamps, small appliances and DIY projects.
The black housing complements the dark cables and modern equipment. The body is made of durable ABS plastic.
Screw terminals make installation easy: simply insert the wires, tighten the screws and close the housing.
This unit is a good choice when you need a mechanical switch that disconnects the entire power line with one movement.
Safety - eliminates the risk of electric shock if the plug is inserted into the socket backwards.
| General information: | |
|---|---|
| Wiring system: | Łącznik 2-biegunowy |
| Method of operation: | Przycisk wahadłowy |
| Assembly arrangement: | możliwość łatwego włączania i wyłączania obwodów elektrycznych |
| Push button switch: | Tak |
| Number of rockers: | 1 |
| Mounting method: | Inne |
| Type of fastening: | Mocowanie śrubowe |
| Material: | Tworzywo sztuczne |
| Material quality: | ABS, Miedź |
| Surface finishing: | Błyszczący |
| Colour: | Czarny |
| Colour of switch operator: | Czarny |
| Label space/information surface: | Tak |
| Illumination: | Nie |
| Suitable for degree of protection (IP): | IP20 |
| Nominal voltage [V]: | 250 |
| Rated current [A]: | 6 |
| Connection type: | Zacisk śrubowy |
| Device width [mm]: | 65 |
| Device height [mm]: | 27 |
| Device depth [mm]: | 22 |
| Weight [g]: | 14.6 |
| Frequeency [Hz]: | 50/60 |
| Temperature resistance [℃]: | 120 |
| Resistance load [KW]: | 1.5 |
