Surface-mounted switches and sockets
The B2 series of sockets and switches, IP54 rated, dust and moisture resistant. The series features a timeless shape and robust housing. Perfect for installation in industrial facilities and households. The switches are equipped with quick connectors, while the sockets are equipped with traditional screw connections.

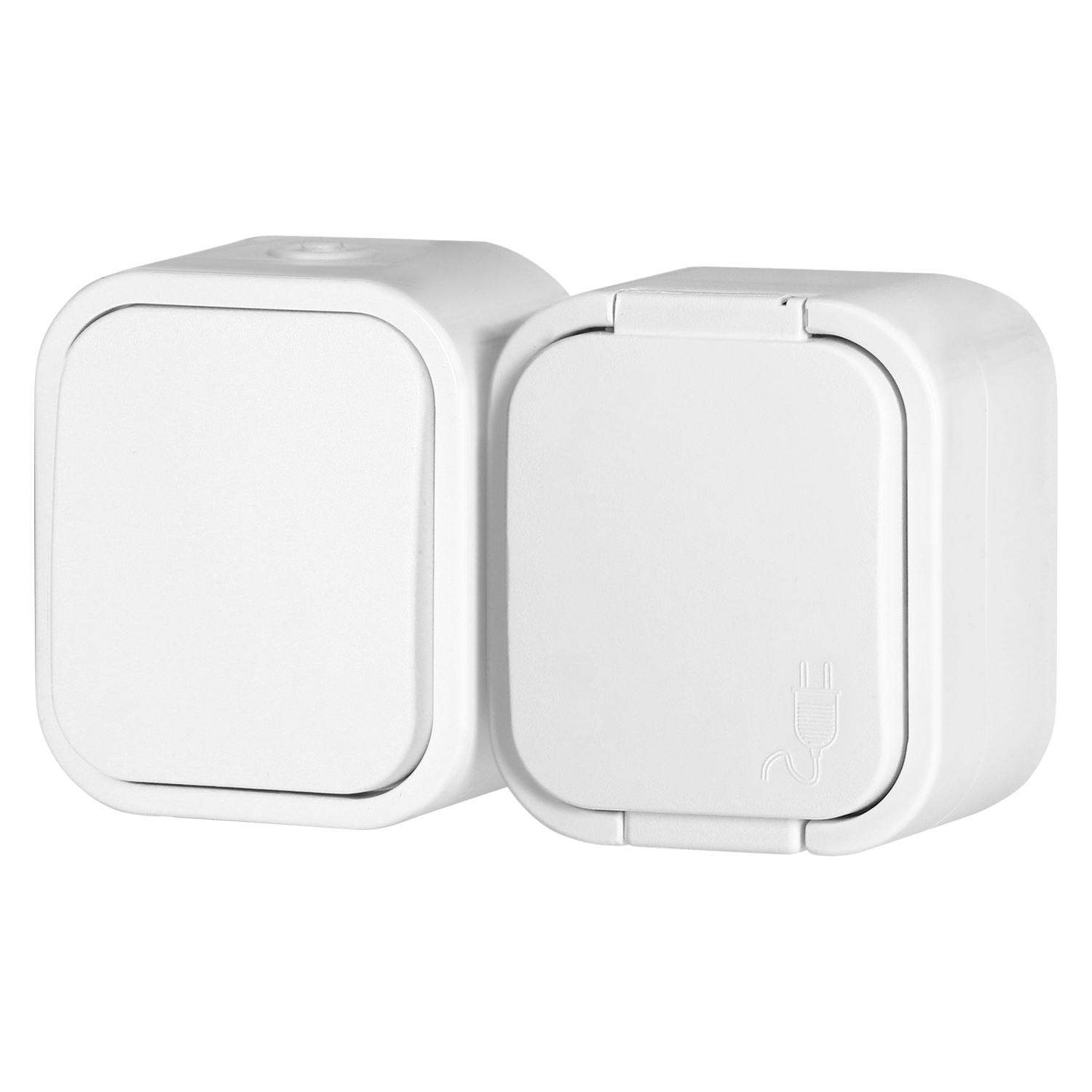

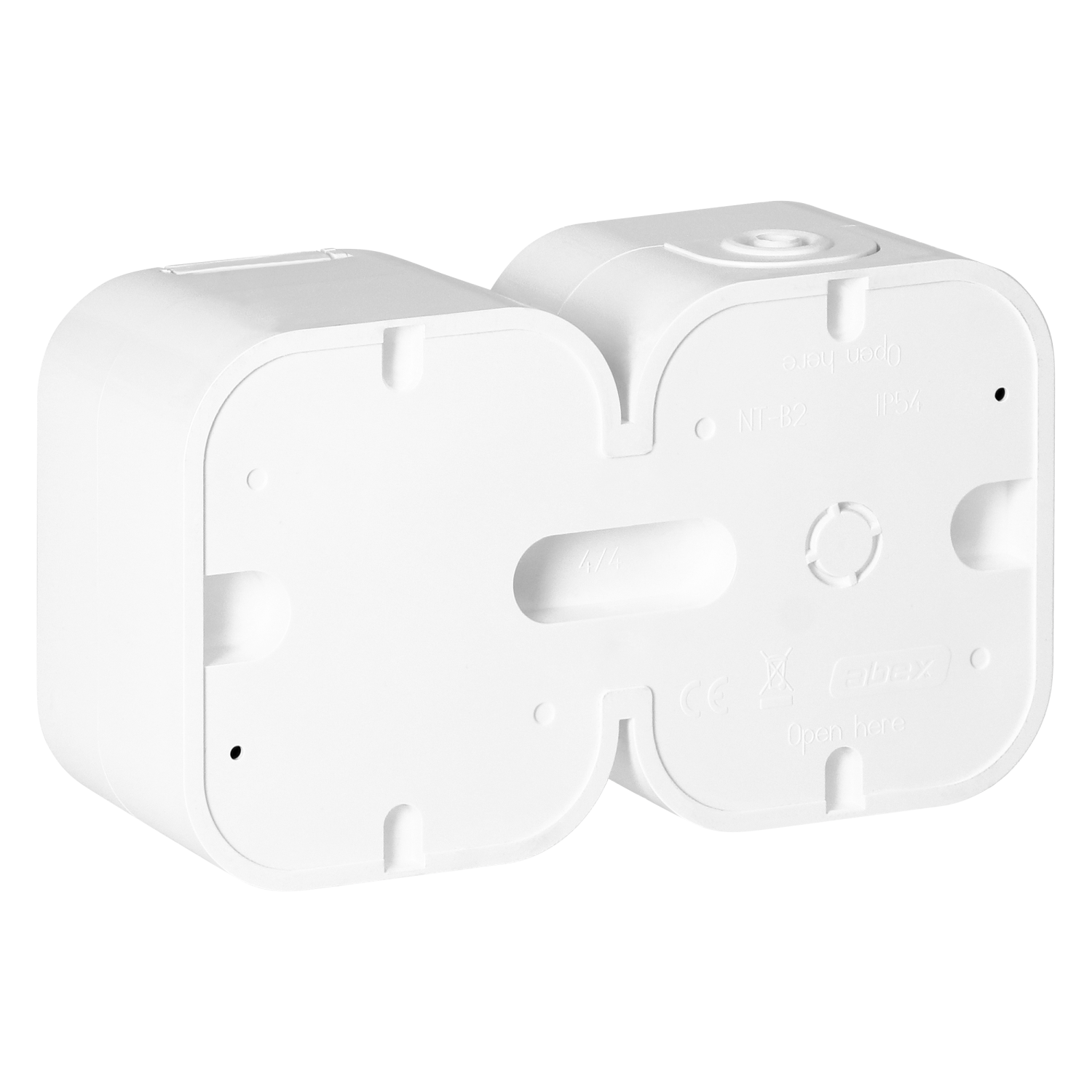

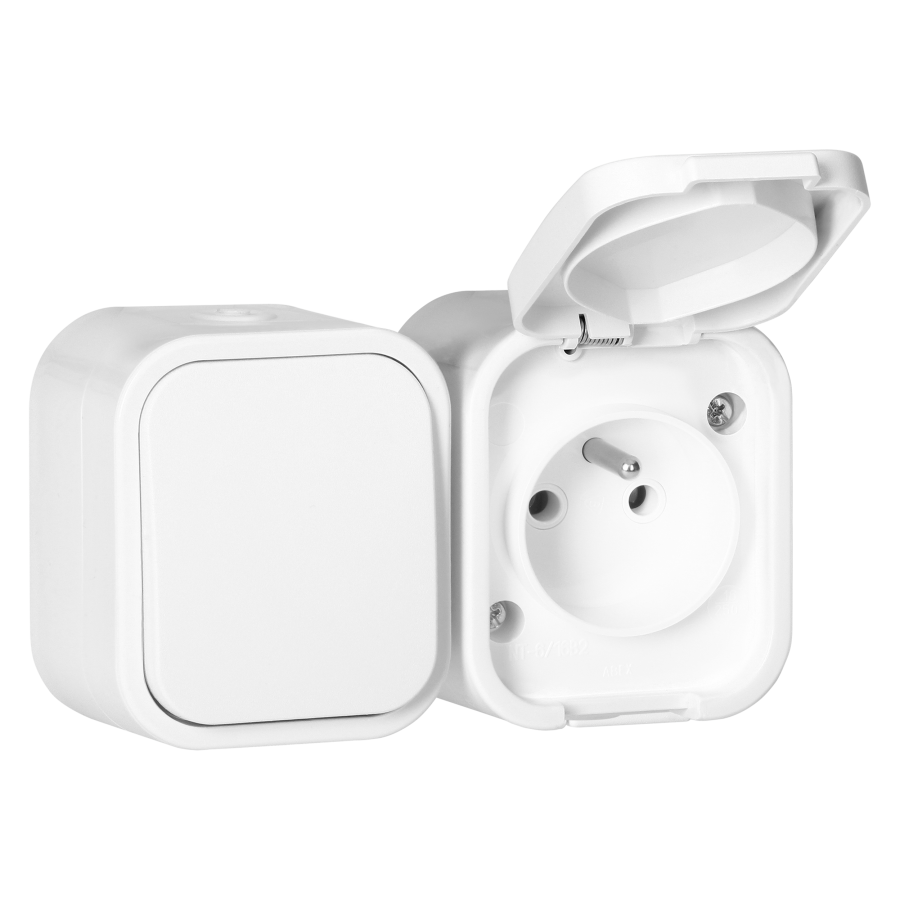

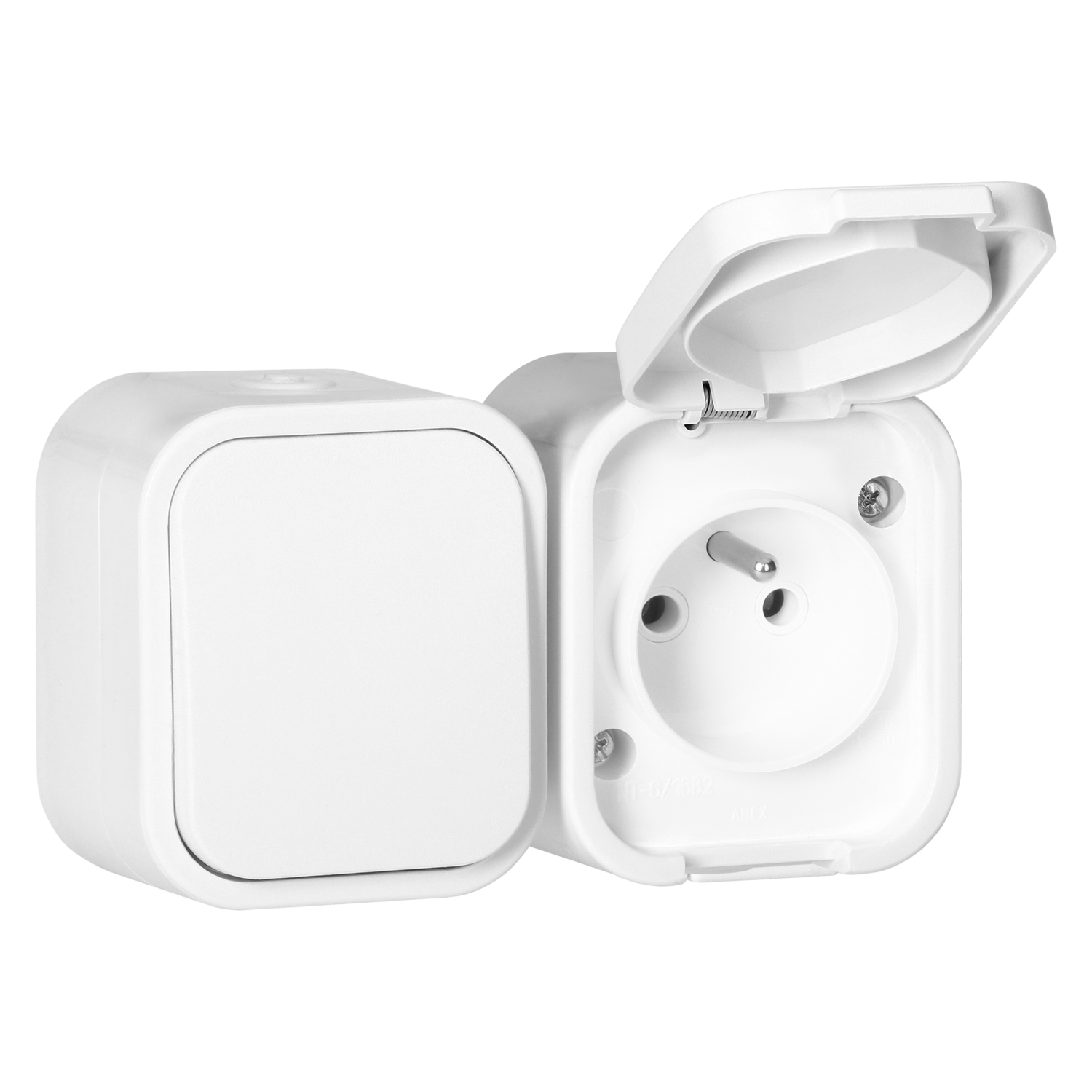

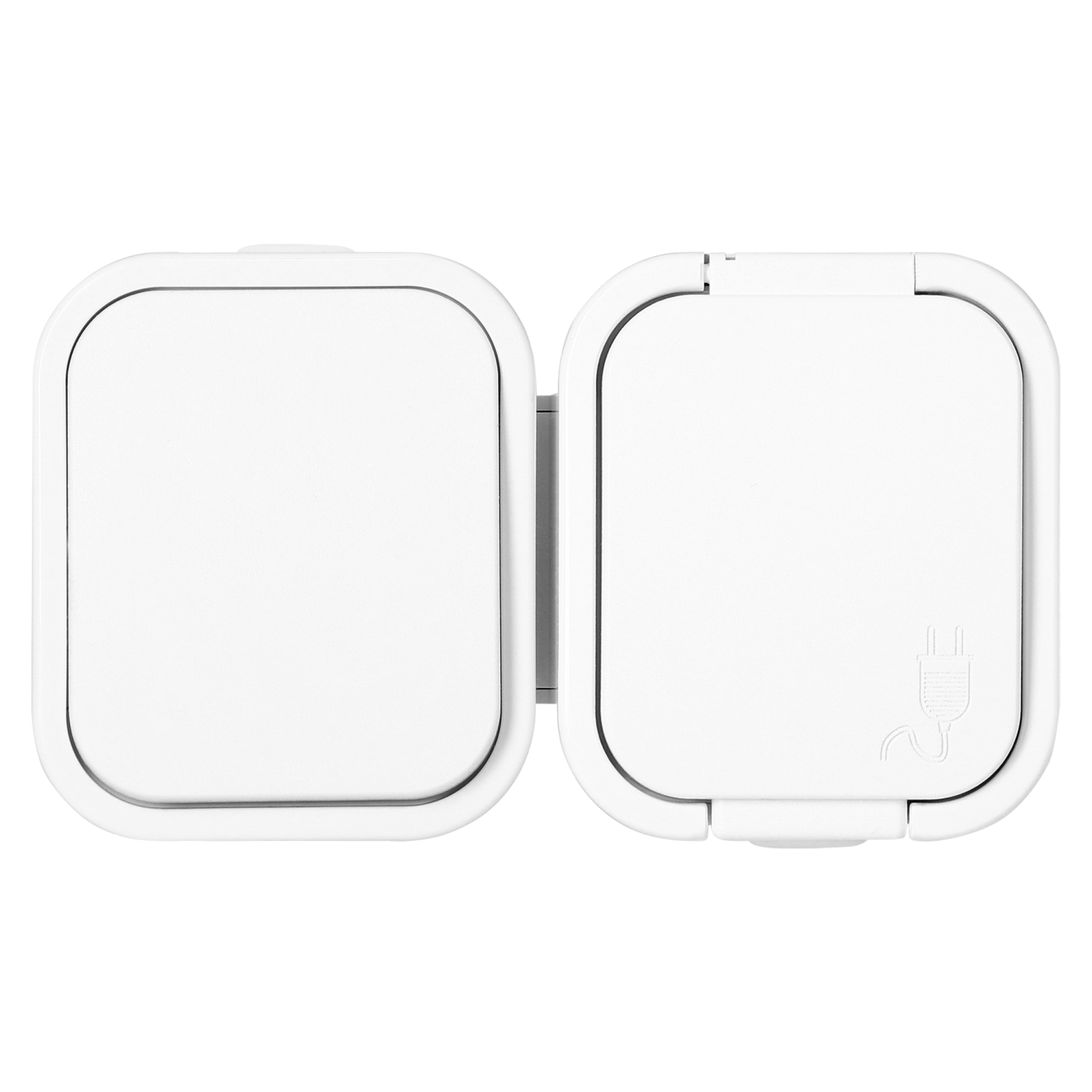

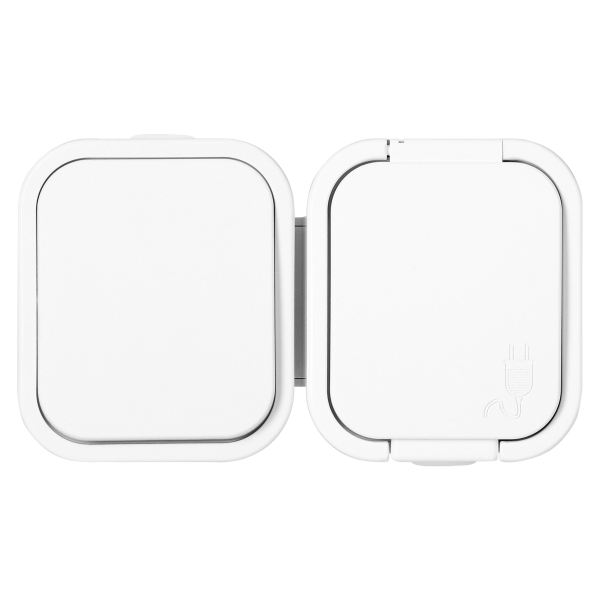

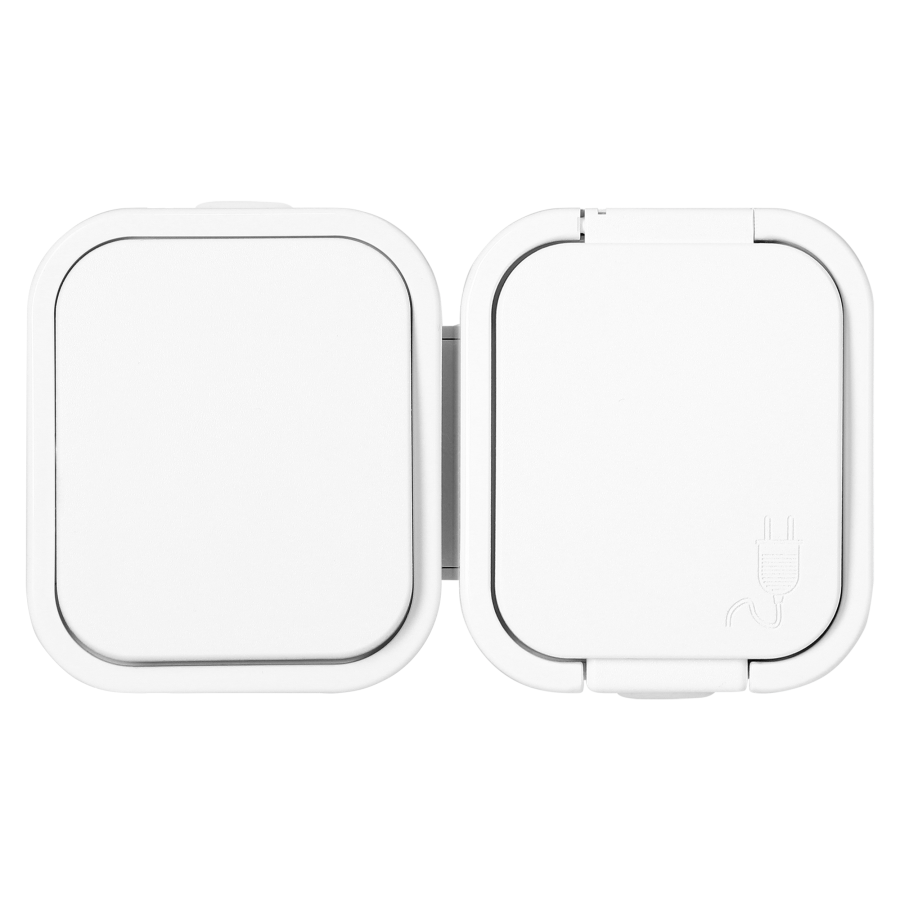

A double accessory composed of an integrated single-pole switch and a French-type socket 2P+E, splash-proof with cover. This is a convenient solution for small areas. It will be suitable wherever protection against dust and water splashes is required (IP54).
The product is available in three colors: white, gray and gray-black. Dimensions 77x133x51mm.
| General information: | |
|---|---|
| Model: | Łącznik jednobiegunowy + Gniazdo ze stykiem ochronnym (bolec) |
| Protective contact: | Okrągły |
| Number of units: | 2 |
| Number of phases: | 1 |
| Connection type: | Zacisk śrubowy |
| With hinged lid: | Tak |
| With enhanced contact protection: | Nie |
| Label space/information surface: | Nie |
| Colour: | Biały |
| Mounting method: | Montaż natynkowy |
| Type of fastening: | Montaż śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Surface protection: | Malowanie |
| Surface finishing: | Błyszczący/Matowy |
| Nominal current [A]: | 16 |
| Nominal voltage [V]: | 250 |
| Frequency [Hz]: | 50 |
| Suitable for degree of protection (IP): | IP54 |
| Device width [mm]: | 133 |
| Device height [mm]: | 77 |
| Device depth [mm]: | 50 |
