Ring terminals
New

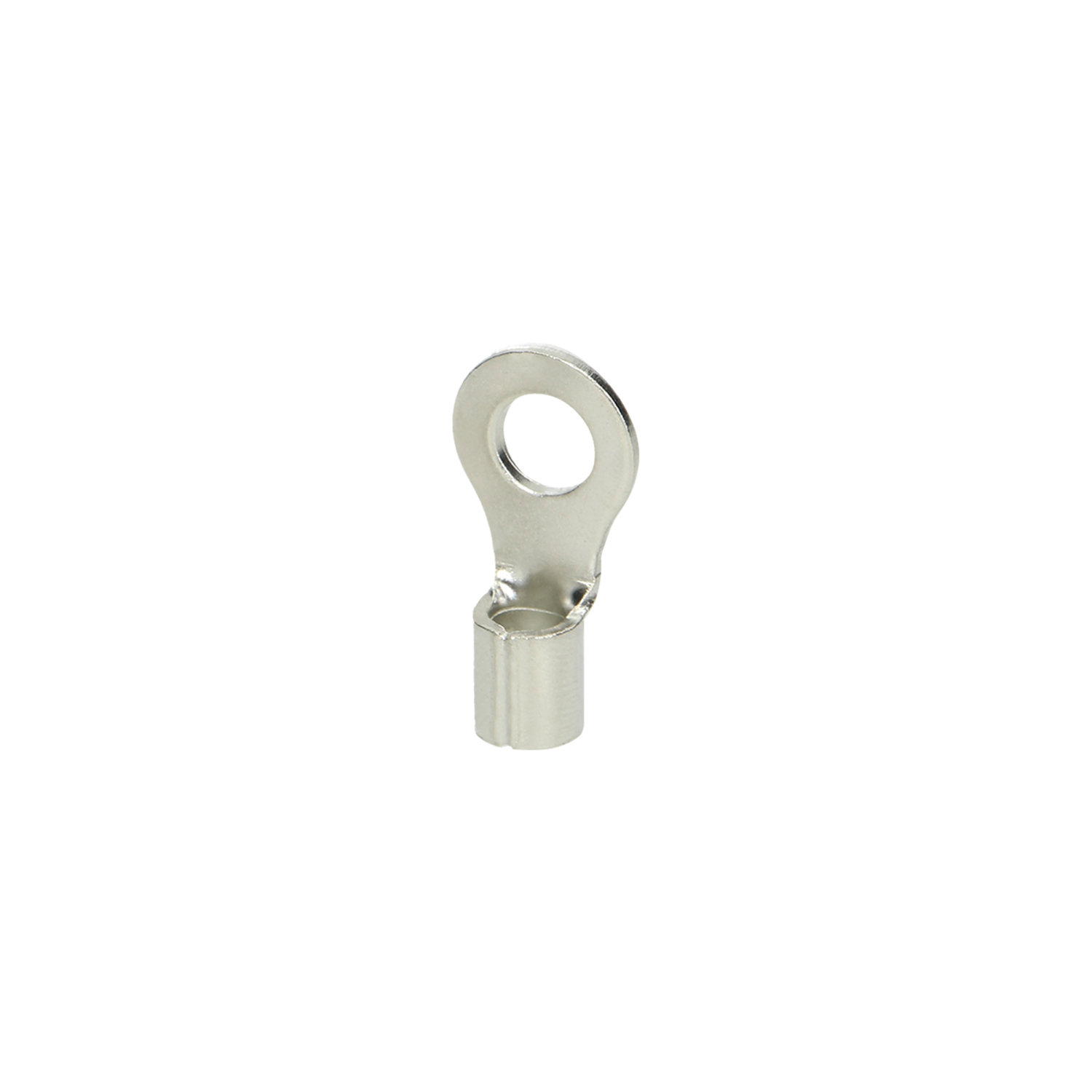

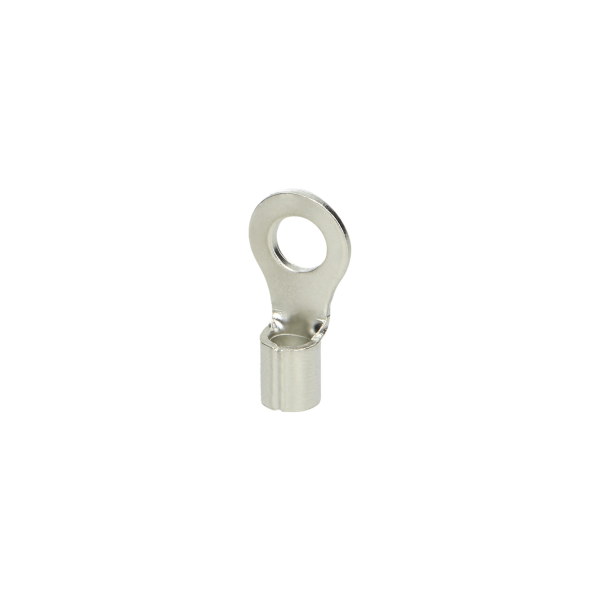

The non-insulated ring terminal is designed for crimping and terminating multicore and flexible cables, ensuring a safe and reliable electrical connection. Its eyelet is suitable for M6 (1/4 inch) screw and a maximum conductor cross-section of 4 mm².
Made of copper and coated with a tin layer, it guarantees high conductivity and corrosion resistance. The thickness of the conductive material measuring 0.8 mm ensures appropriate mechanical resistance.
Complies with EN 60352-2:2006.
The pack contains 100 pcs.
| General information: | |
|---|---|
| Bolt dimension (metric): | M6 |
| Flange shape: | Oczkowy |
| Insulation: | nieizolowany |
| Nominal cross section [mm²]: | 4 |
| Thickness of conductive material [mm]: | 0.8 |
| Suitable for stranded conductors: | Tak |
| Suitable for fine strand conductors: | Tak |
| Material: | Miedź |
| Surface protection: | Cynowanie |
| Stud size (imperial): | 1/4 cala |
| Number of pieces in the package [szt.]: | 100 |
| Compliance with standards: | EN 60352-2:2006 |
