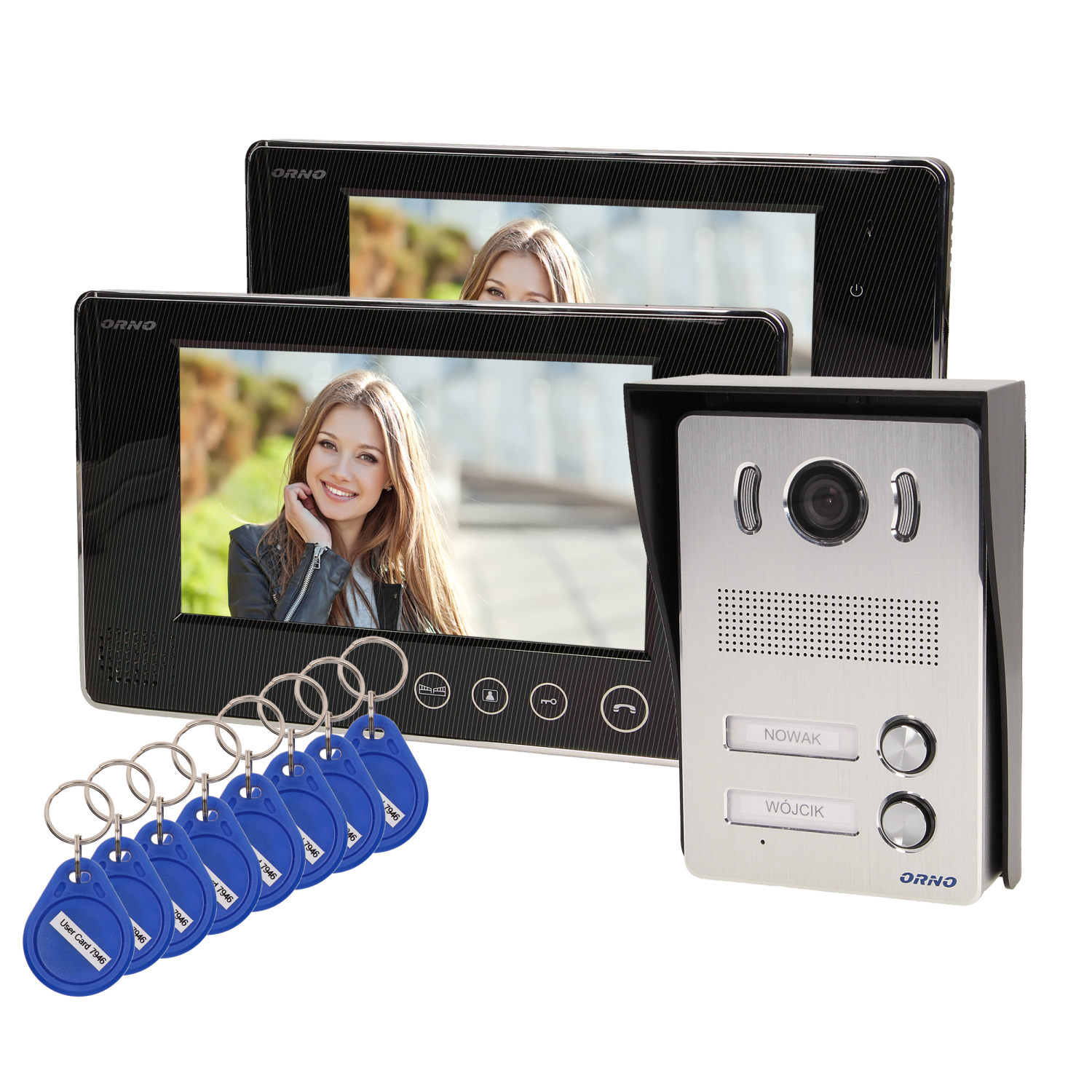

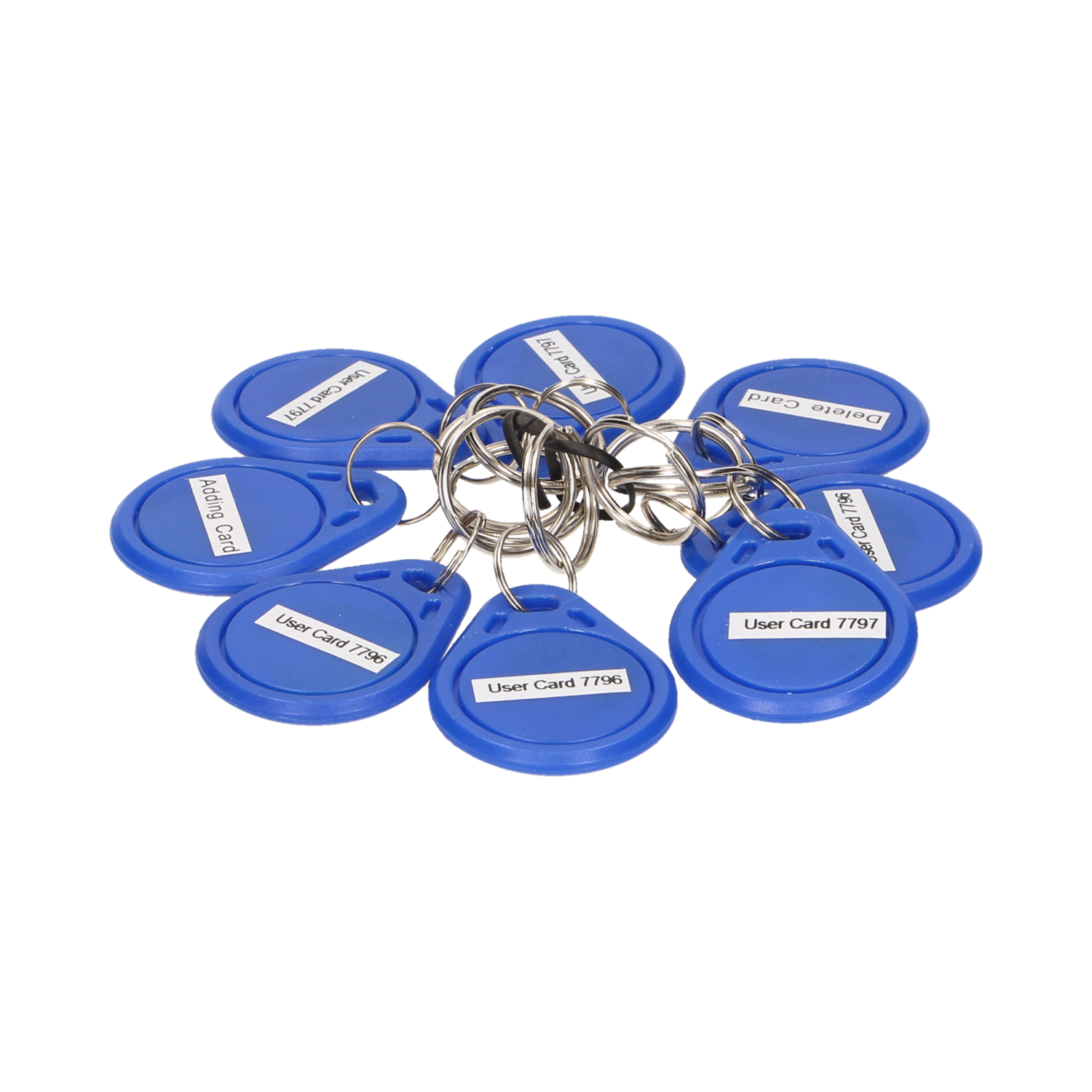

Ultra slim LCD monitor, whith smooth adjustment of parameters (brightness & colour contrast, volume tone & conversation) 14 selectable ringtones A touch panel with backlit buttons External panel with camera requires flush mounting It's equipped with bright LEDs that enable night vision Additional gate control function Electric strike doesn't require additional power supply Easy electric lock opening using the proximity tag.
| General information: |
|---|
| Type: | multi-family |
| Number of wires: | 5+2 |
| Type of power supply: | mains power supply |
| Type of transmission: | wired |
| Possibility of extension by an additional external panel: | No |
| Possibility of extension by an additional monitor: | Yes |
| Possibility of extension by an additional video uniphone: | Yes |
| Gate opening: | Yes |
| Current supply of the electric strike: | power supply from a videodoorphone |
| Connection system: | 5-wire |
| Possibility of extension by an additional cctv camera: | No |

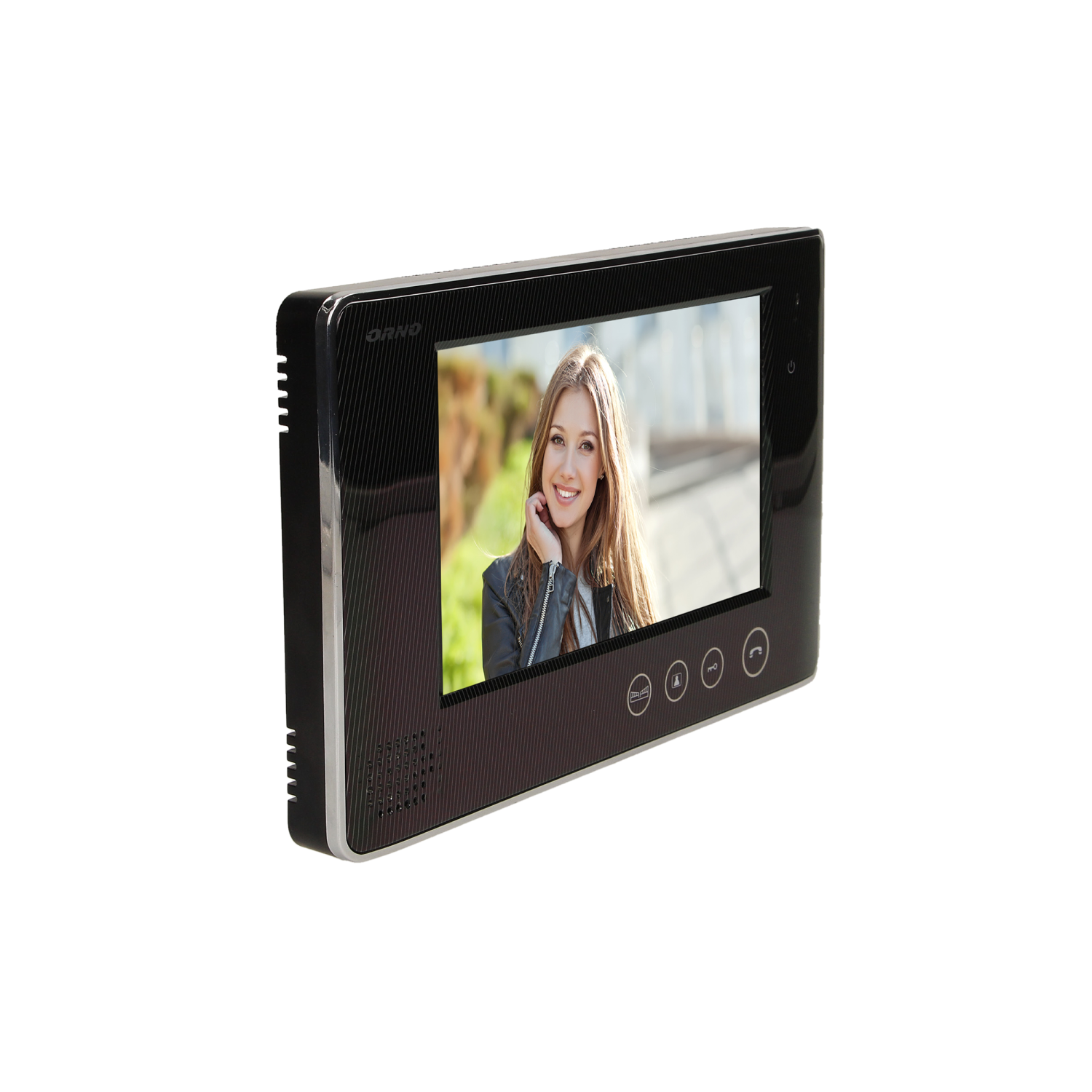

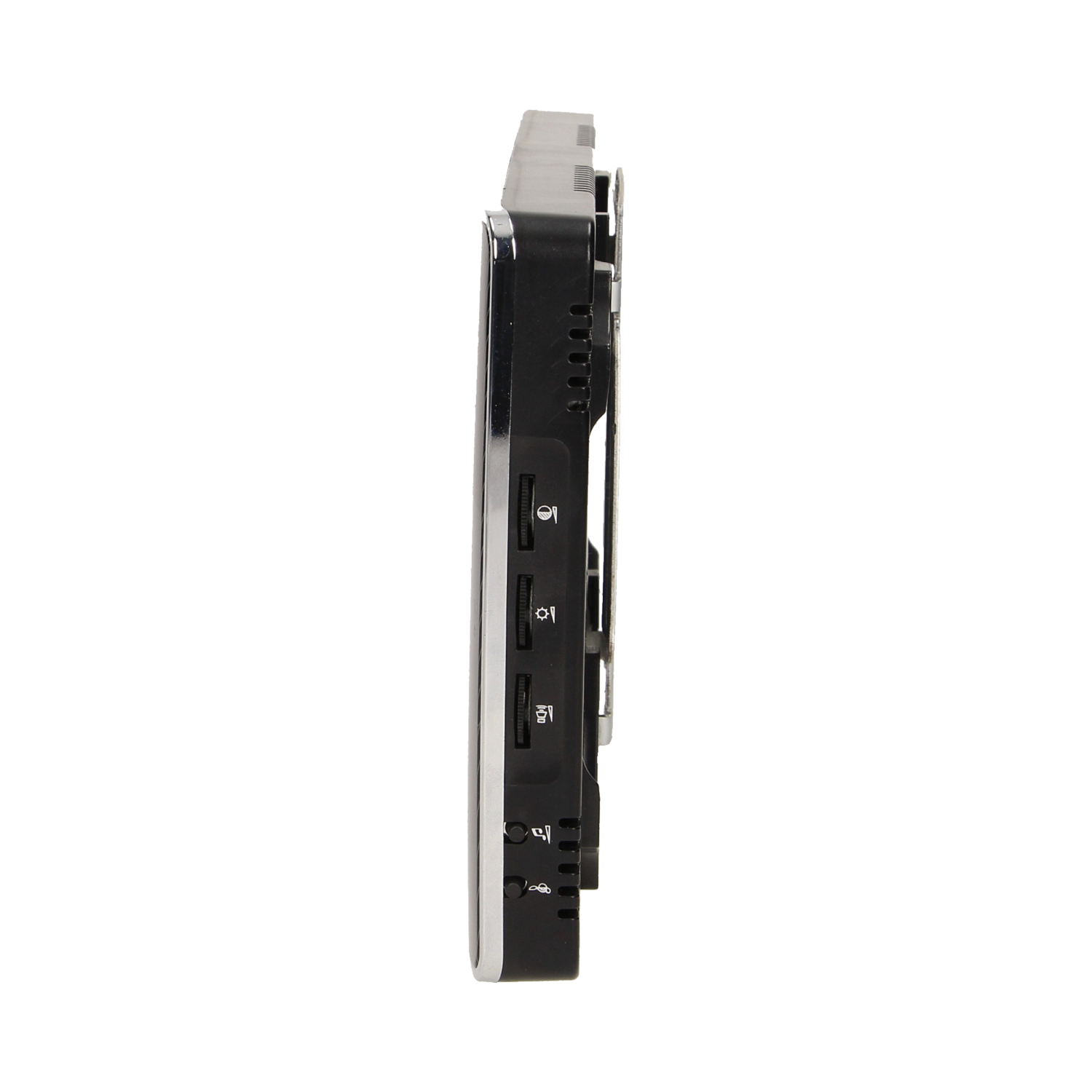

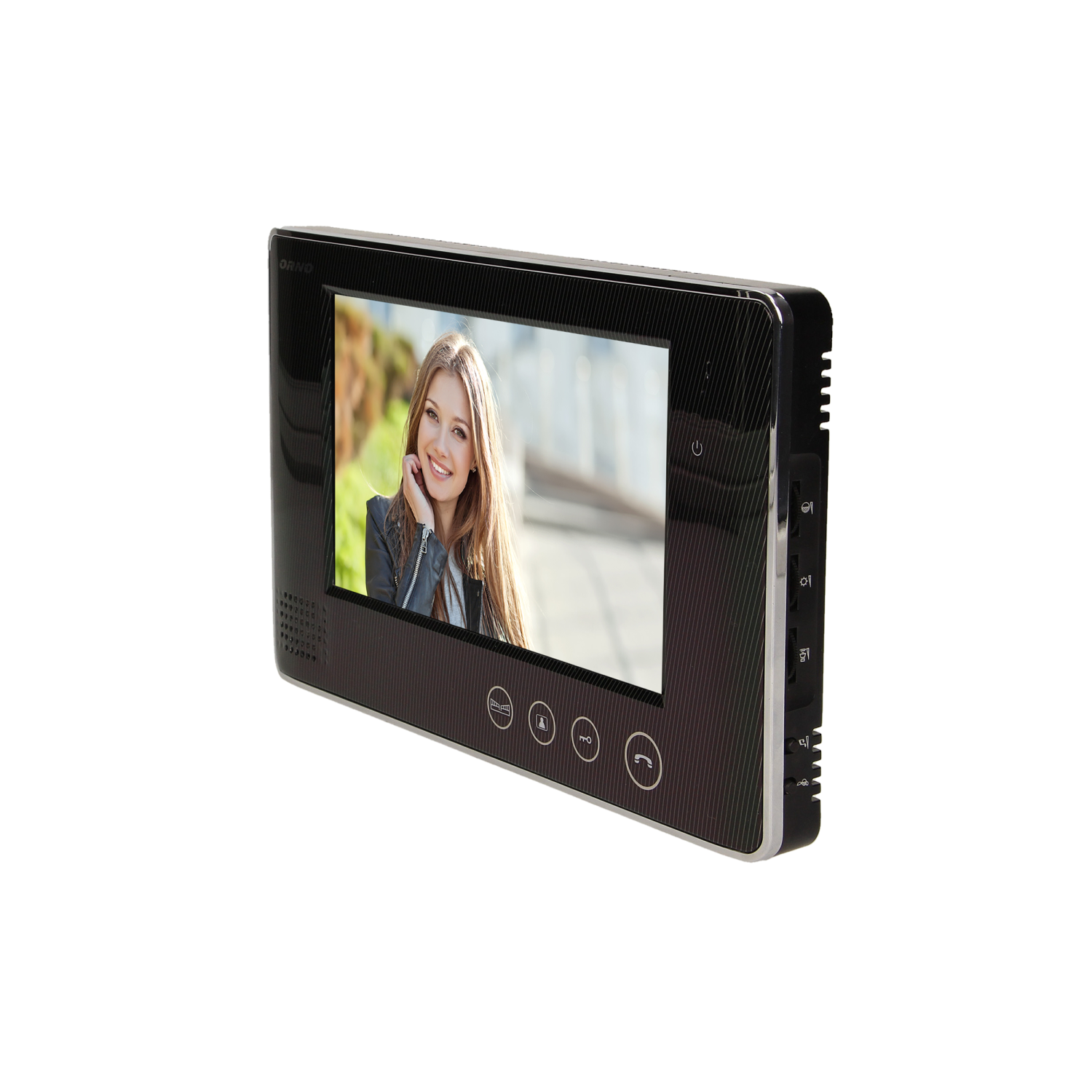

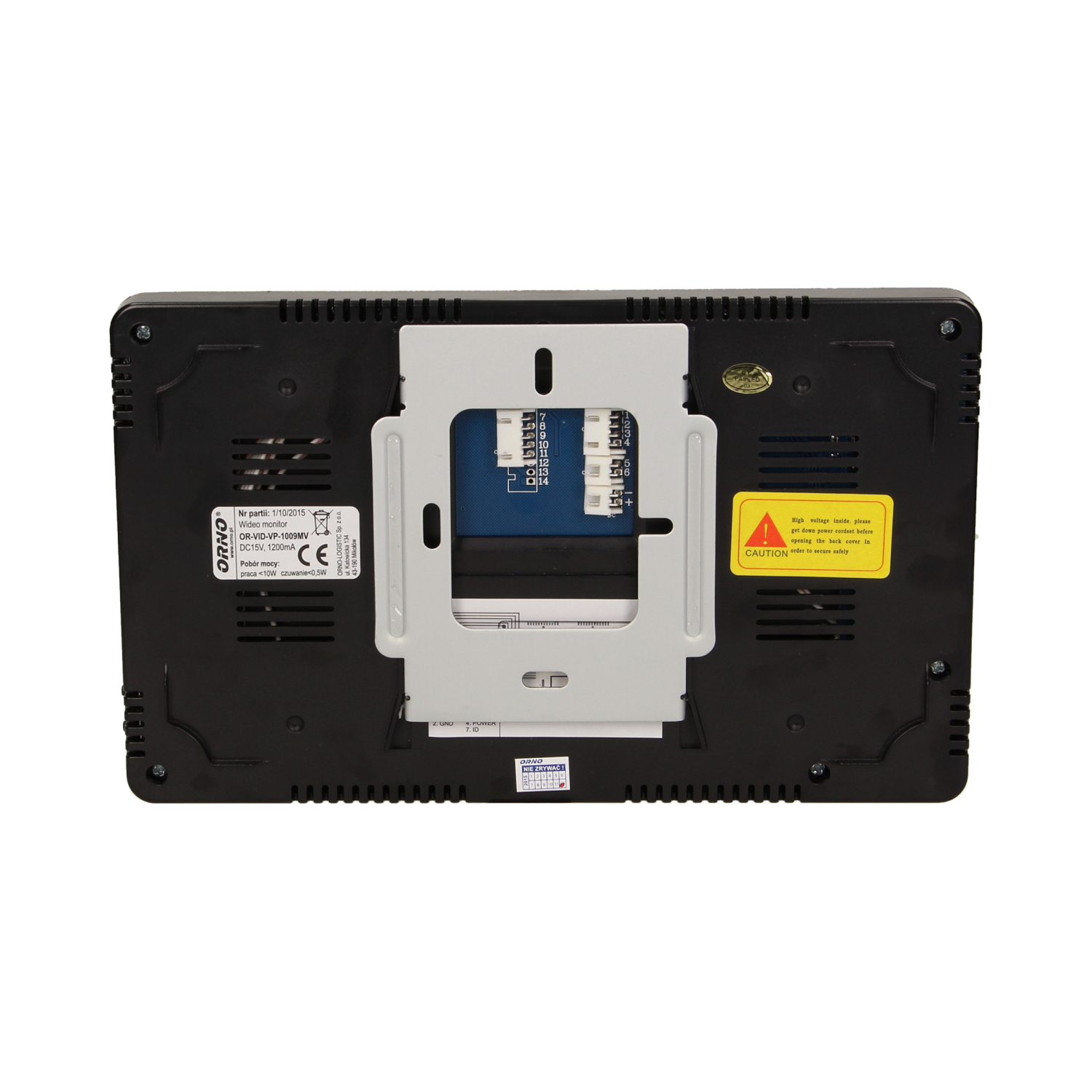

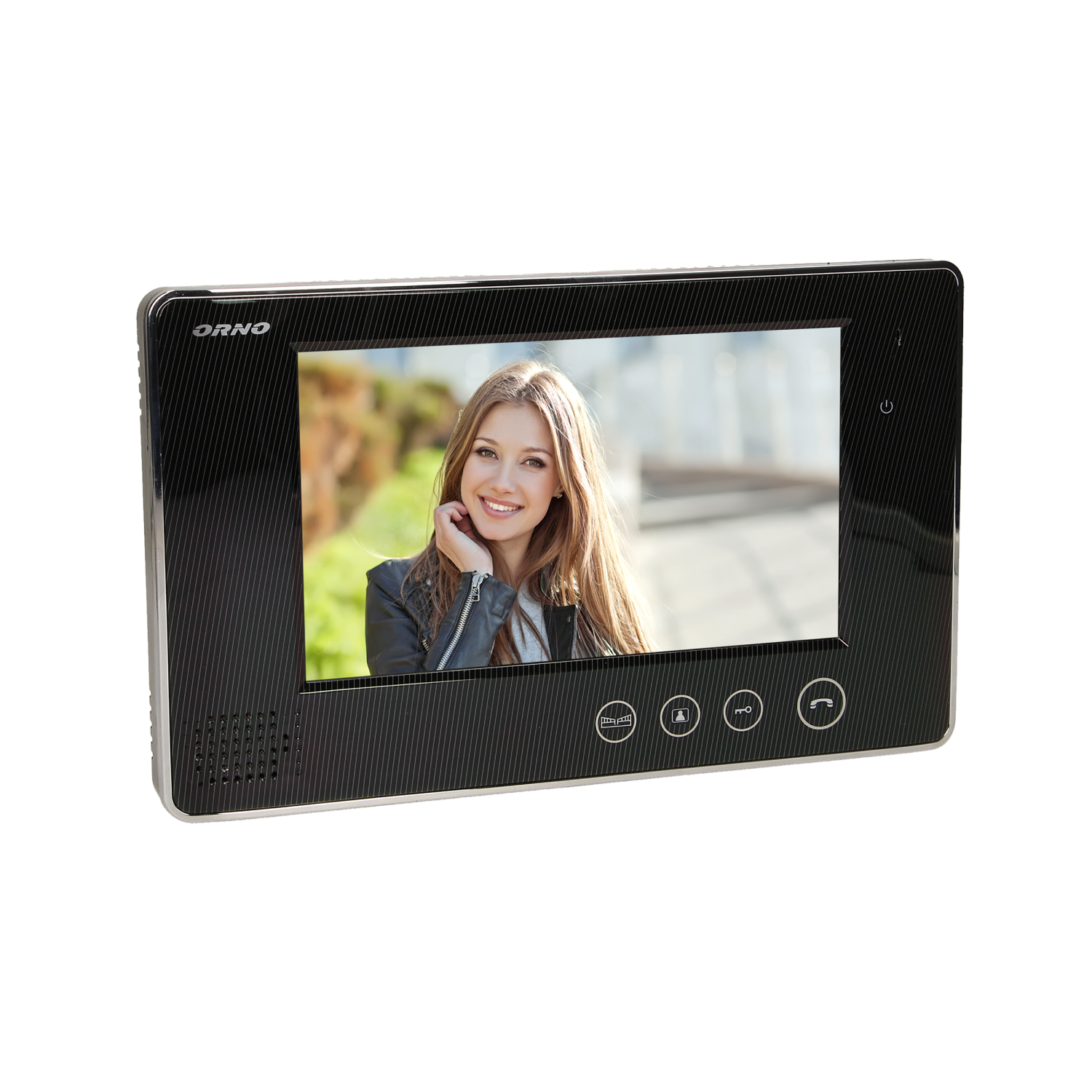

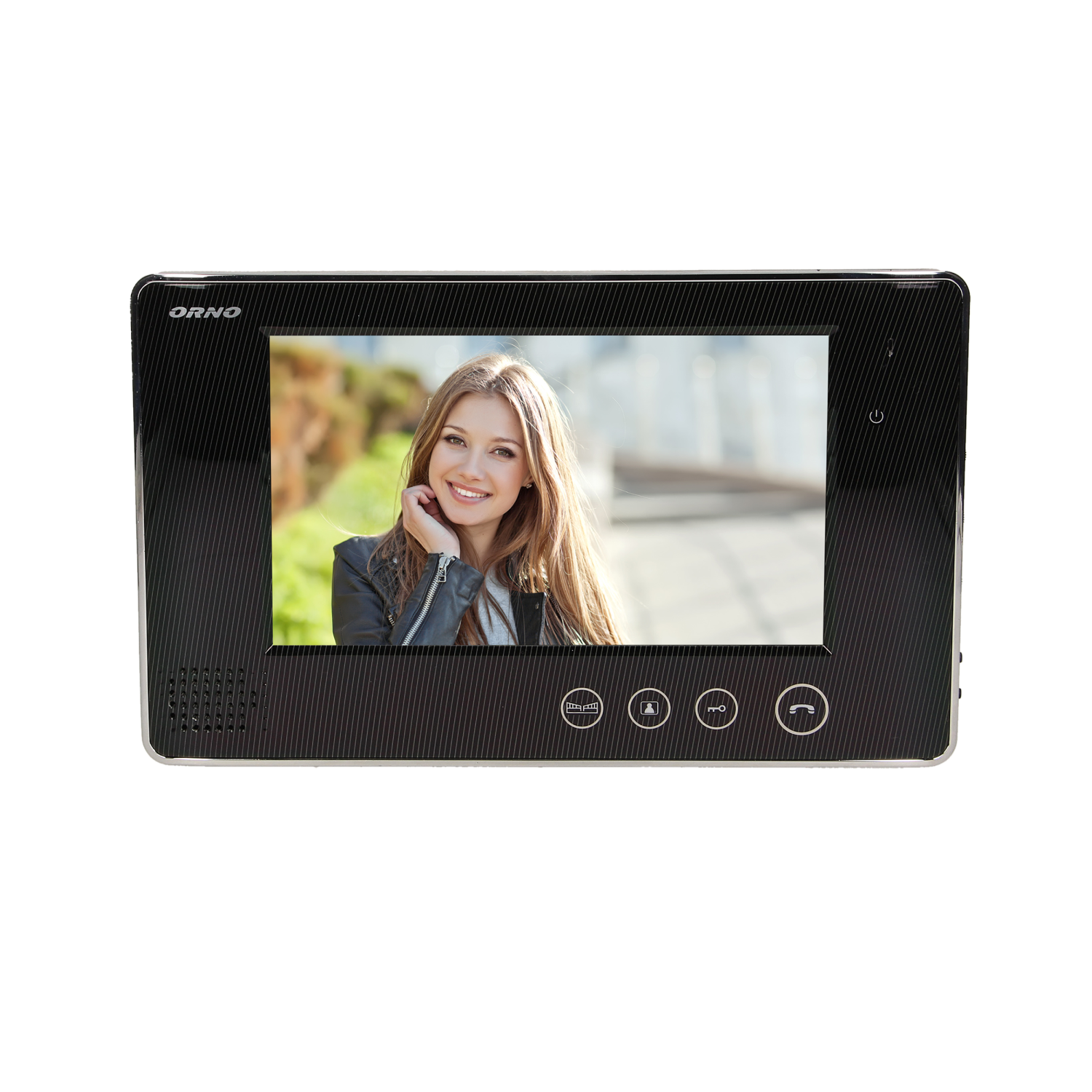

| Monitor: |
|---|
| SD card reader: | No |
| Number of ringtones: | 14 |
| Operation: | via speakerphone |
| Display: | 7 " |
| Resolution of the monitor's screen: | 480/234 |
| Memory: | No |
| Intercom function: | No |
| Touch screen: | No |
| Dimensions of the of the monitor - width (mm): | 232 mm |
| Dimensions of the of the monitor - height (mm): | 140 mm |
| Dimensions of the of the monitor - depth (mm): | 21 mm |

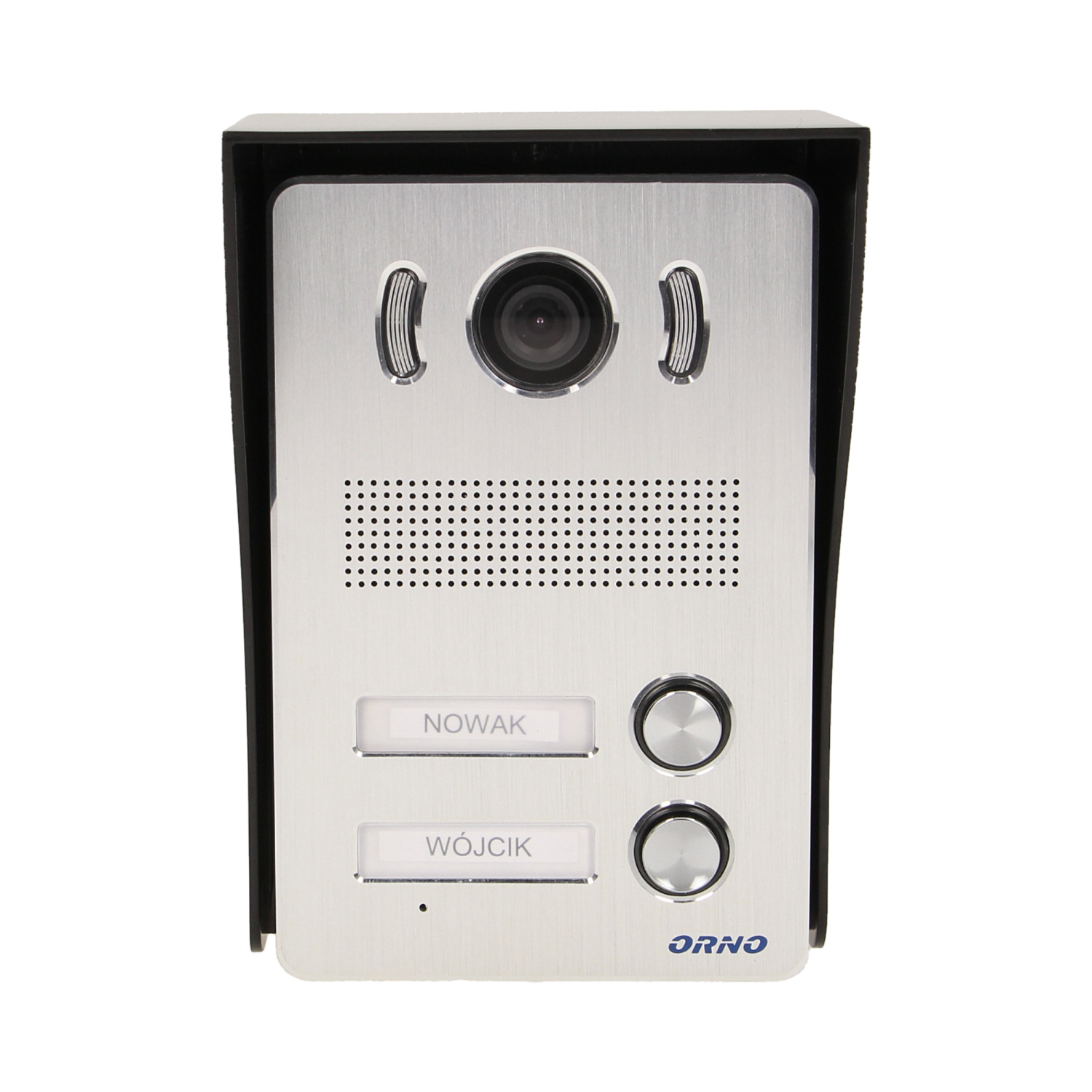

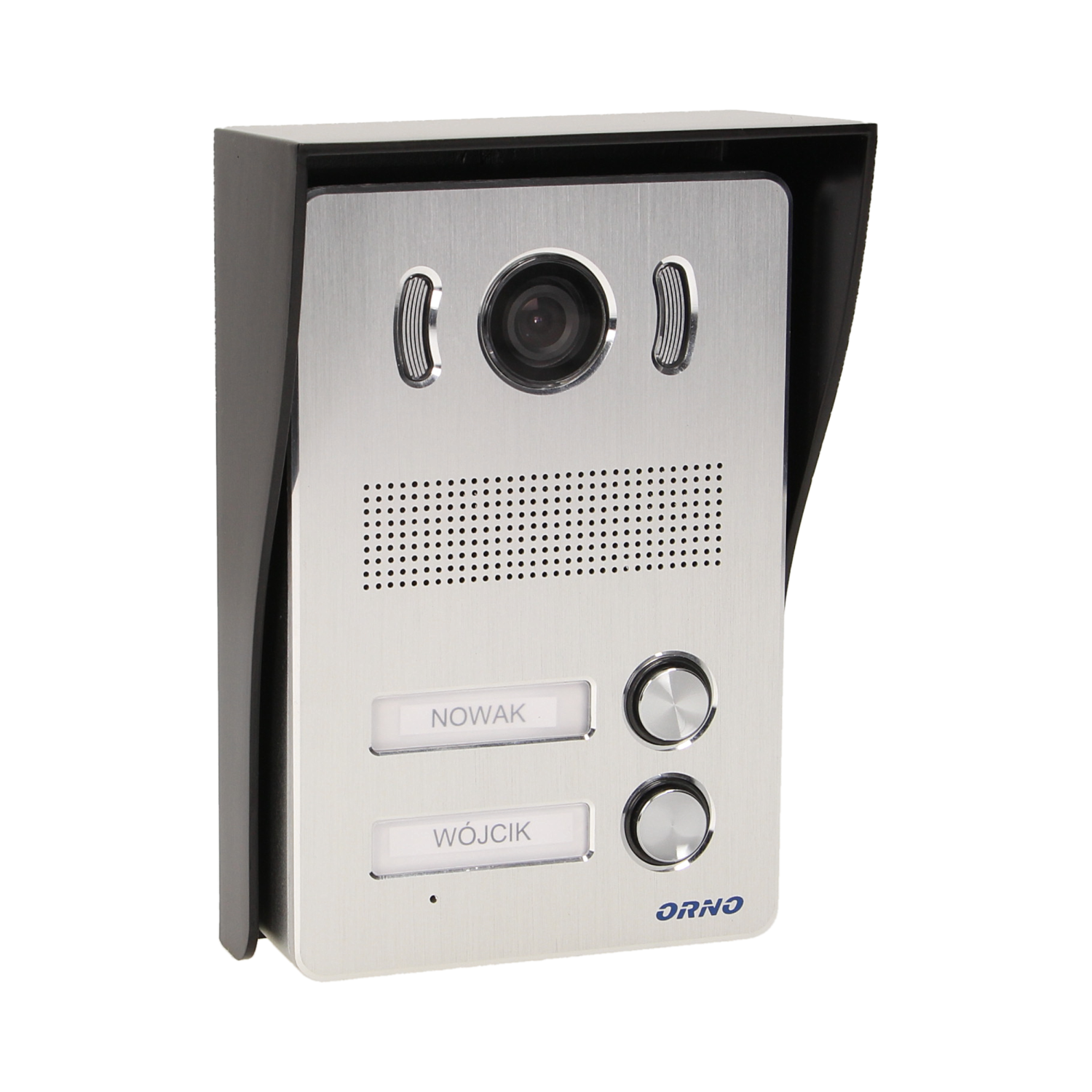

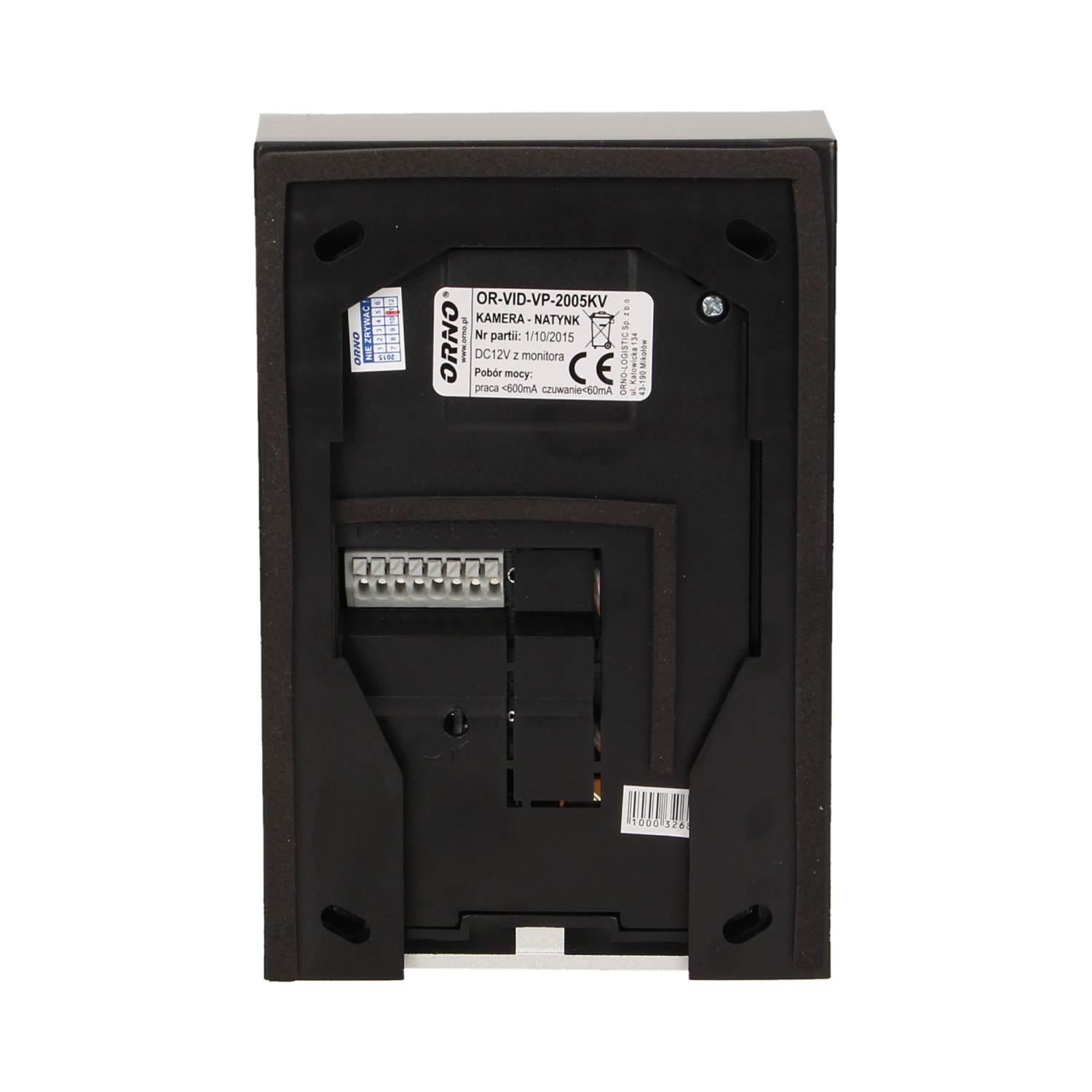

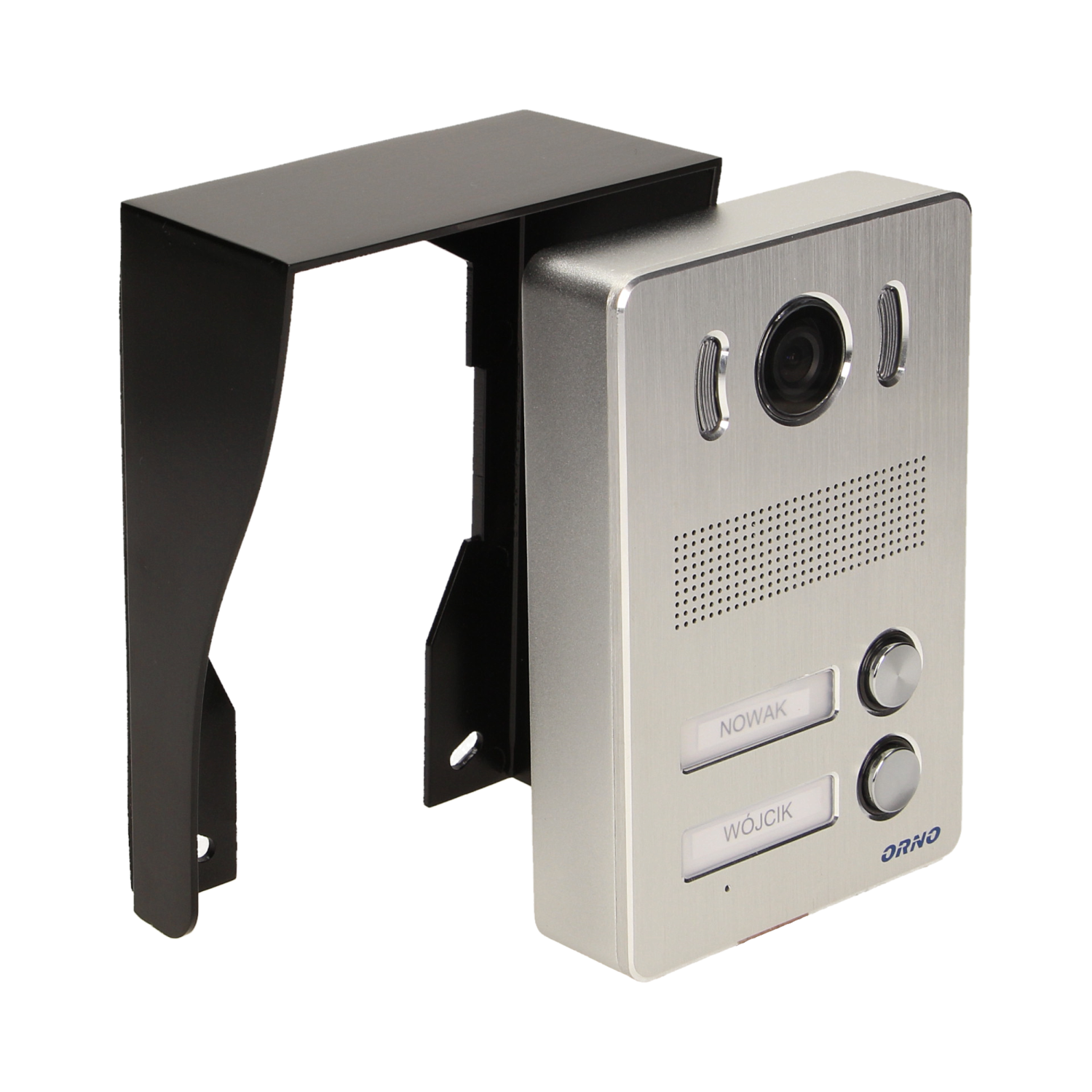

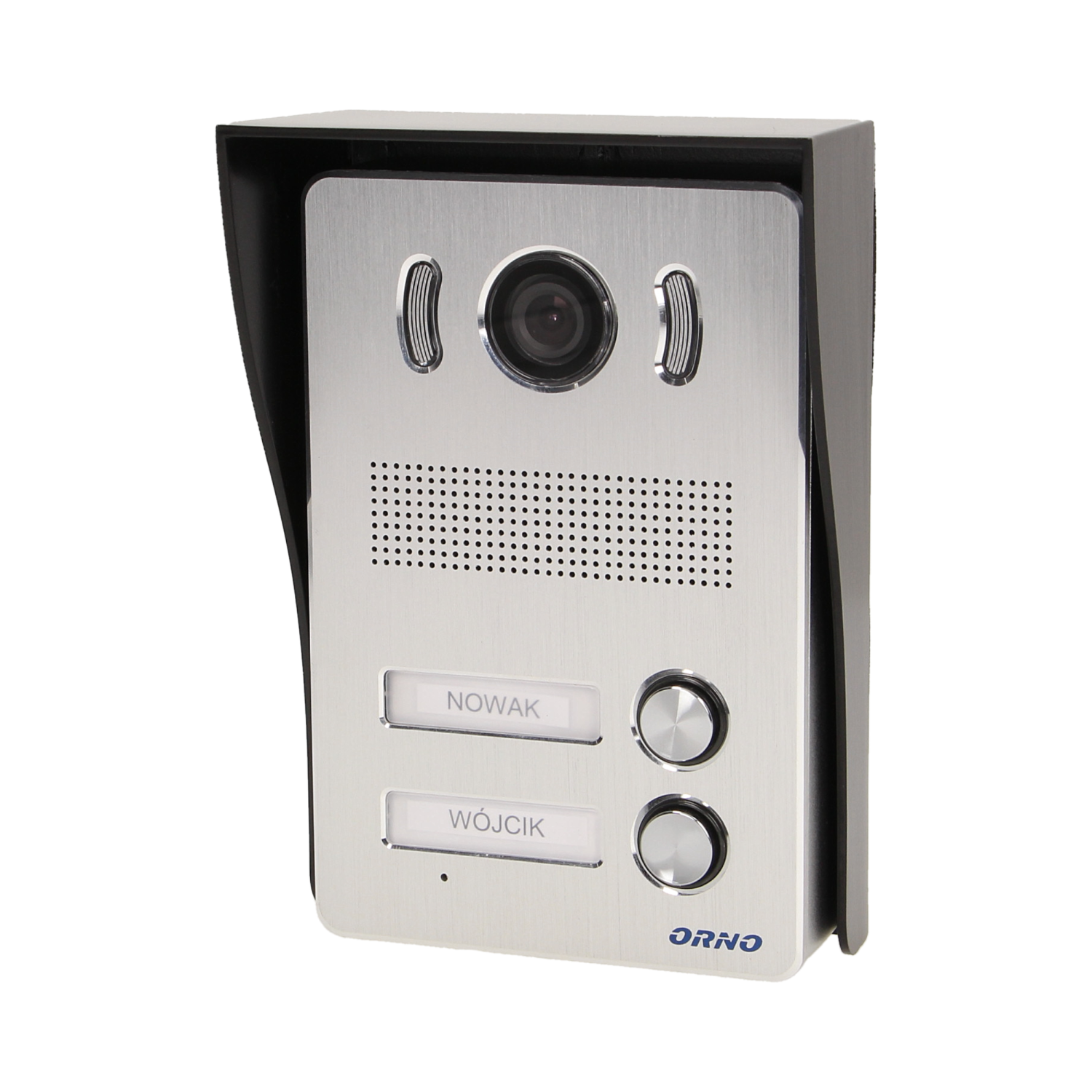

| External panel with a camera: |
|---|
| Resolution of the camera: | 420 TVL |
| Vertical/horizontal camera's view angle: | 65° /90° |
| Card and proximity tags reader: | Yes |
| Type of camera: | traditional lens |
| Keypad: | No |
| Night lighting: | white LEDs |
| Dimensions of the external panel - depth: | 57 mm |
| Dimensions of the external panel - width: | 109 mm |
| Dimensions of the external panel - height: | 158 mm |
