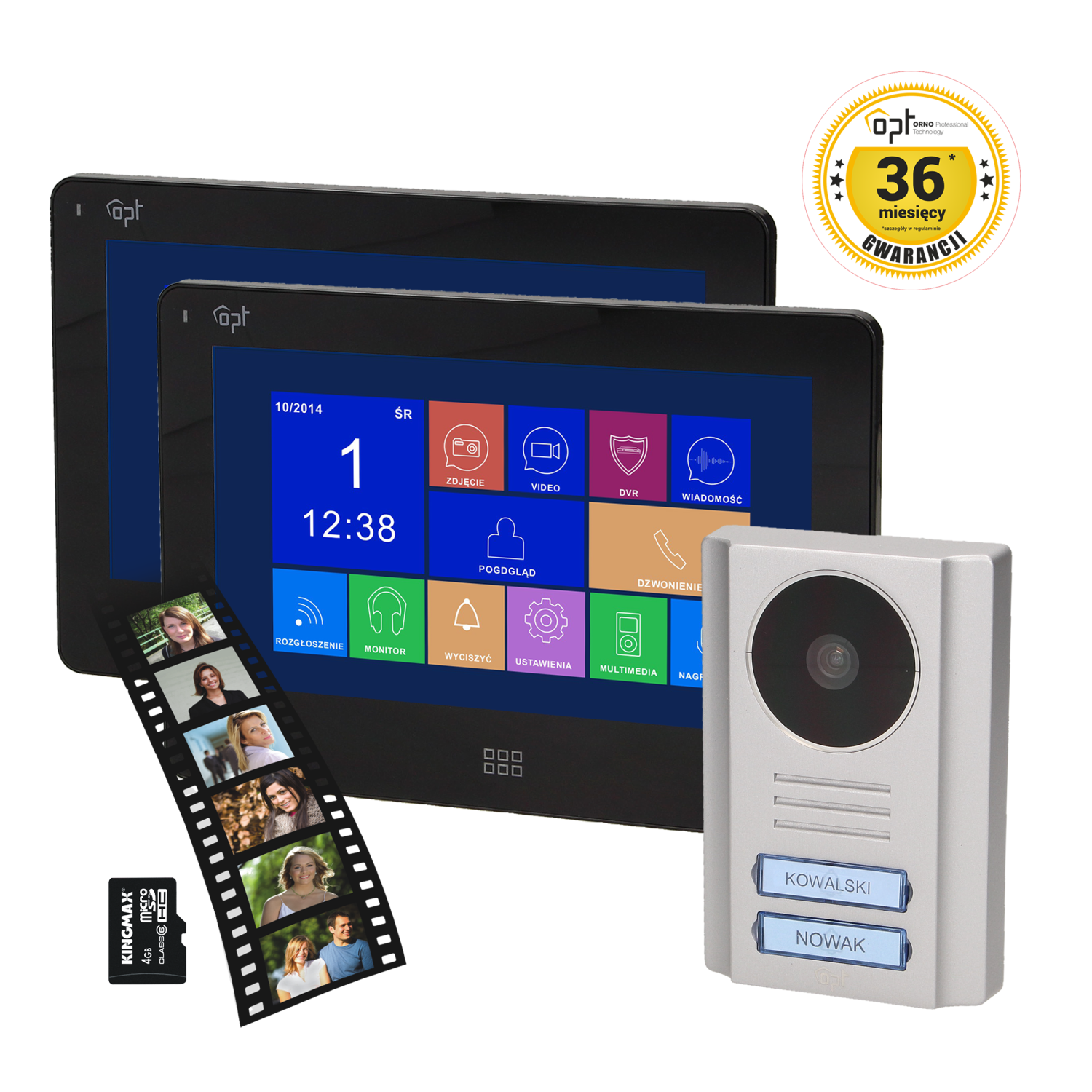

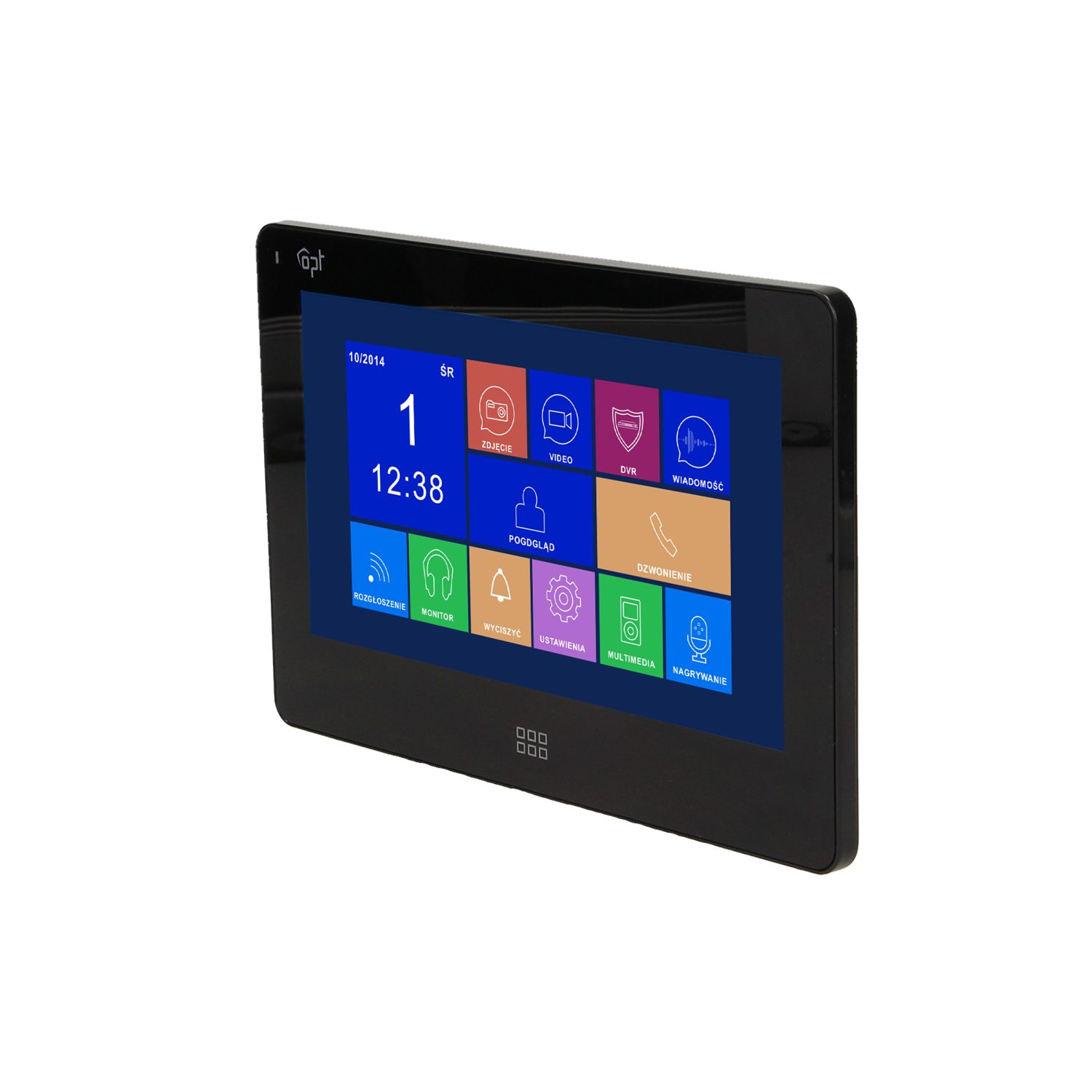

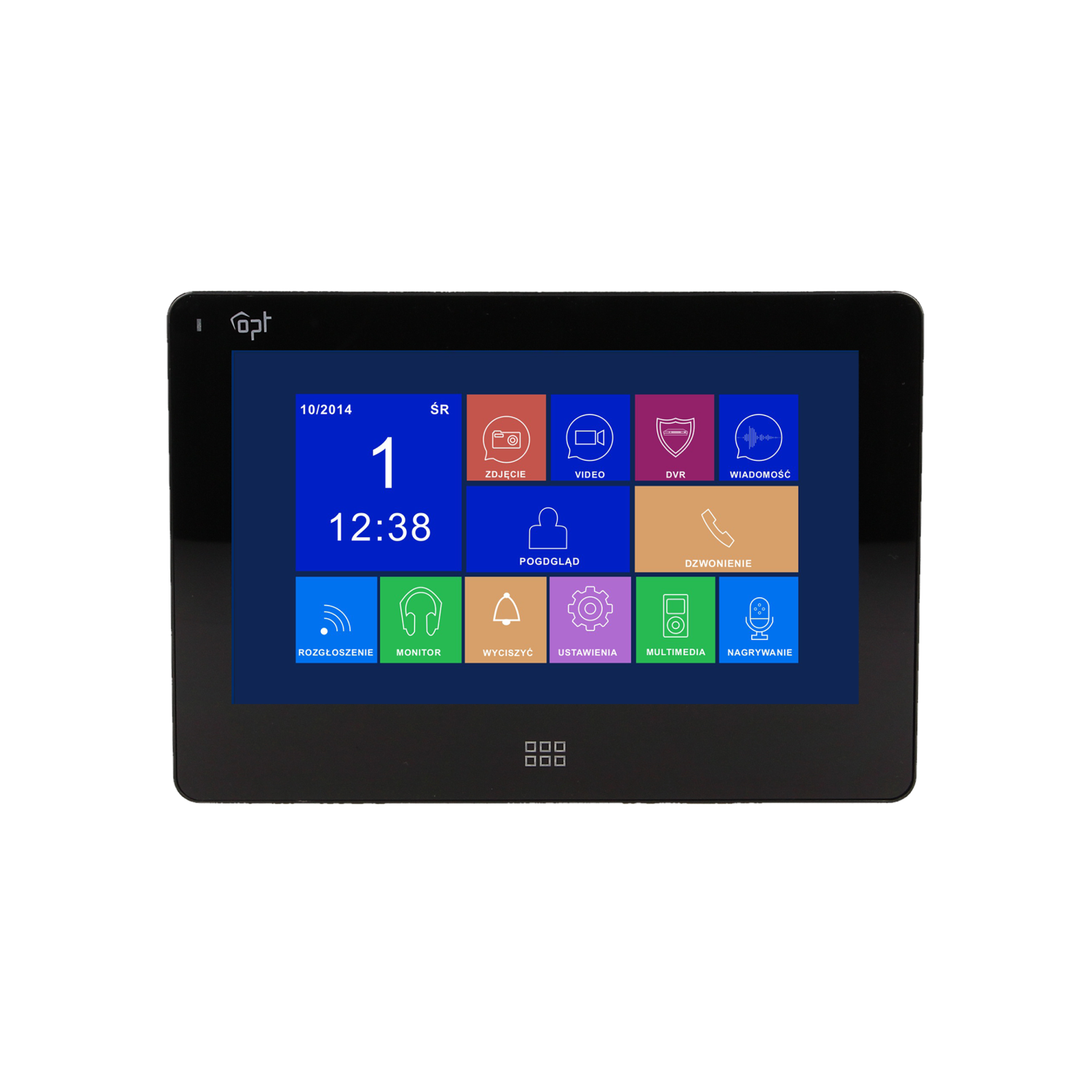

Ultra slim LCD monitor, with smooth adjustment of parameters (brightness, colour & volume), 7 selectable ringtones. Built-in memory unit and slot for SD memory card. Touch screen with OSD menu in Polish and English. External panel with camera requires surface mounting. It is equipped with super-bright LEDs that enable night vision. Electric strike doesn't require additional power supply. The intercom function (after the connection of an additional monitor) enables communication between monitors.
| General information: |
|---|
| Type: | multi-family |
| Number of wires: | 5+2 |
| Type of power supply: | mains power supply |
| Type of transmission: | wired |
| Possibility of extension by an additional external panel: | Yes |
| Possibility of extension by an additional monitor: | Yes |
| Possibility of extension by an additional video uniphone: | No |
| Gate opening: | Yes |
| Current supply of the electric strike: | power supply from a videodoorphone |
| Connection system: | 5-wire |
| Possibility of extension by an additional cctv camera: | Yes |

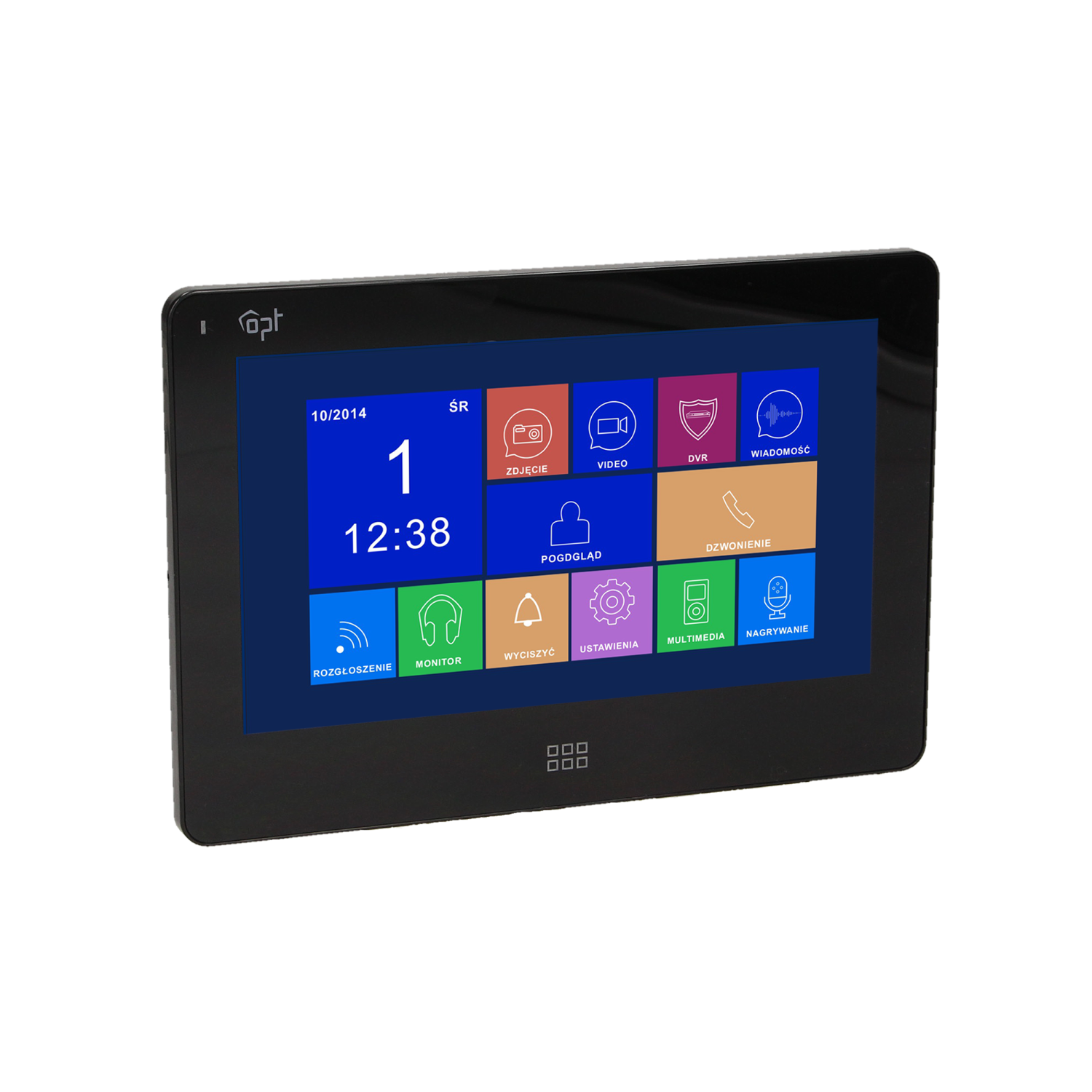

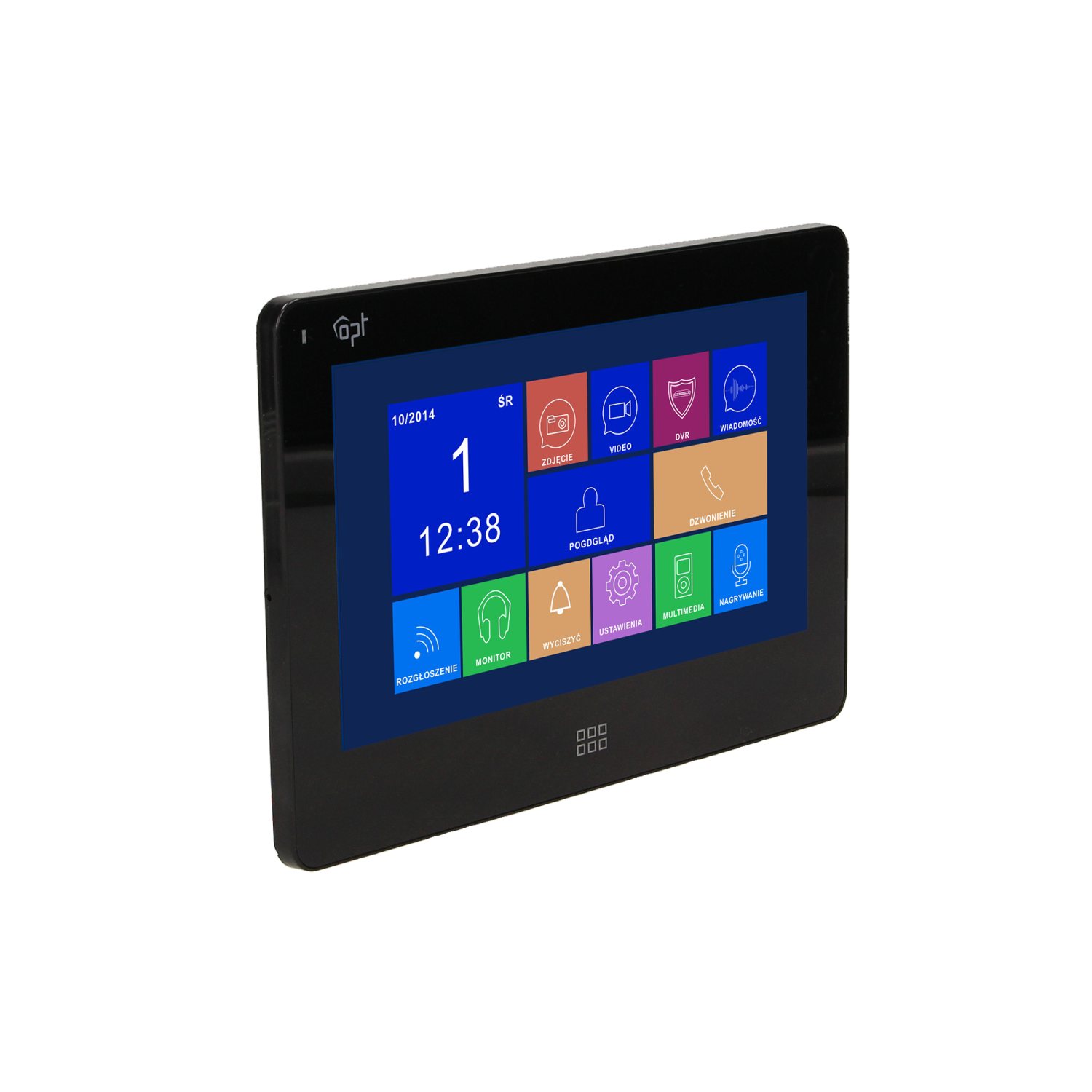

| Monitor: |
|---|
| SD card reader: | Yes |
| Number of ringtones: | 7 |
| Operation: | via speakerphone |
| Display: | 7 " |
| Resolution of the monitor's screen: | 800 / 480 |
| Memory: | Yes |
| Intercom function: | Yes |
| Touch screen: | No |
| Other features of the monitor: | menu in Polish and English |
| Dimensions of the of the monitor - width (mm): | 127 mm |
| Dimensions of the of the monitor - height (mm): | 185 mm |
| Dimensions of the of the monitor - depth (mm): | 17 mm |

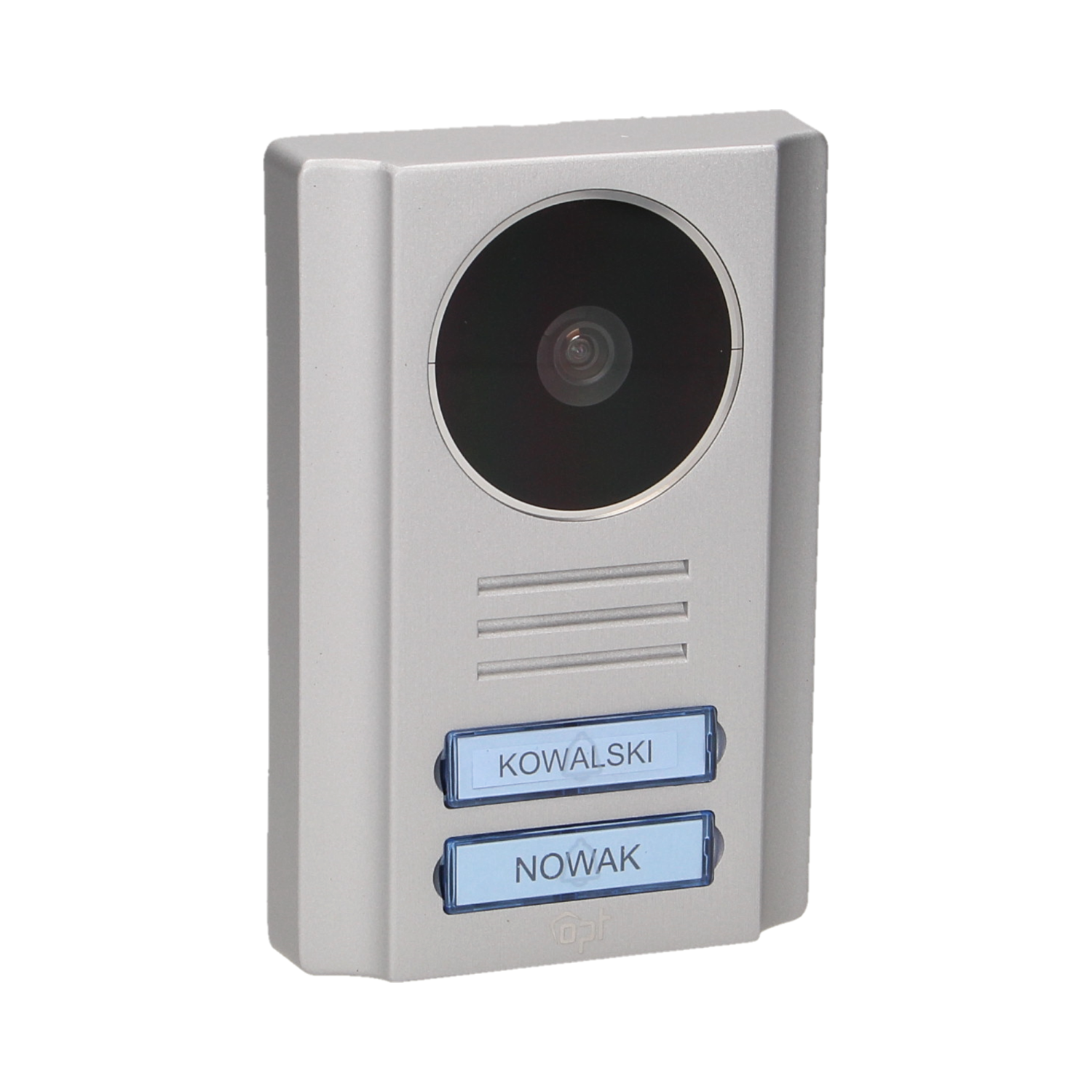

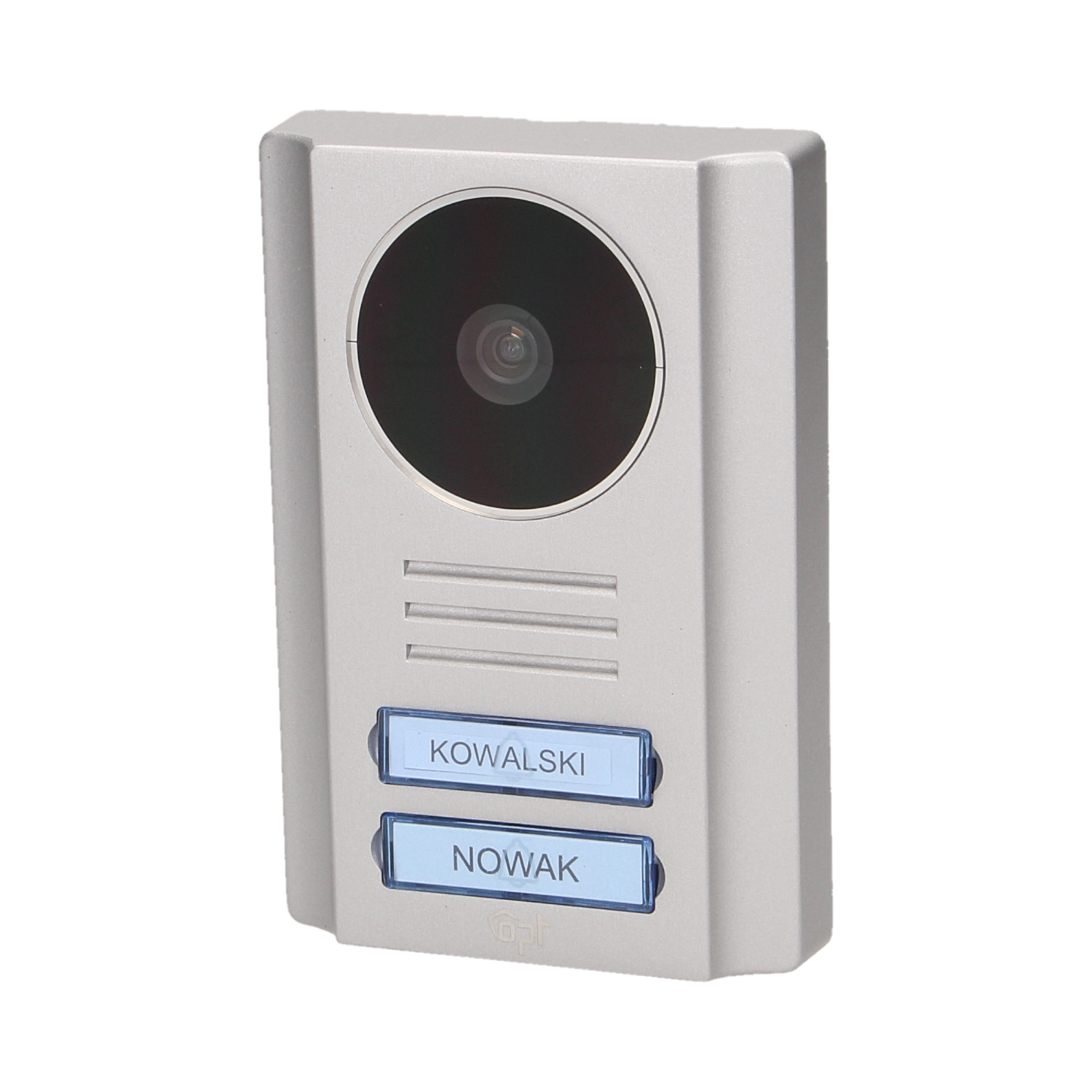

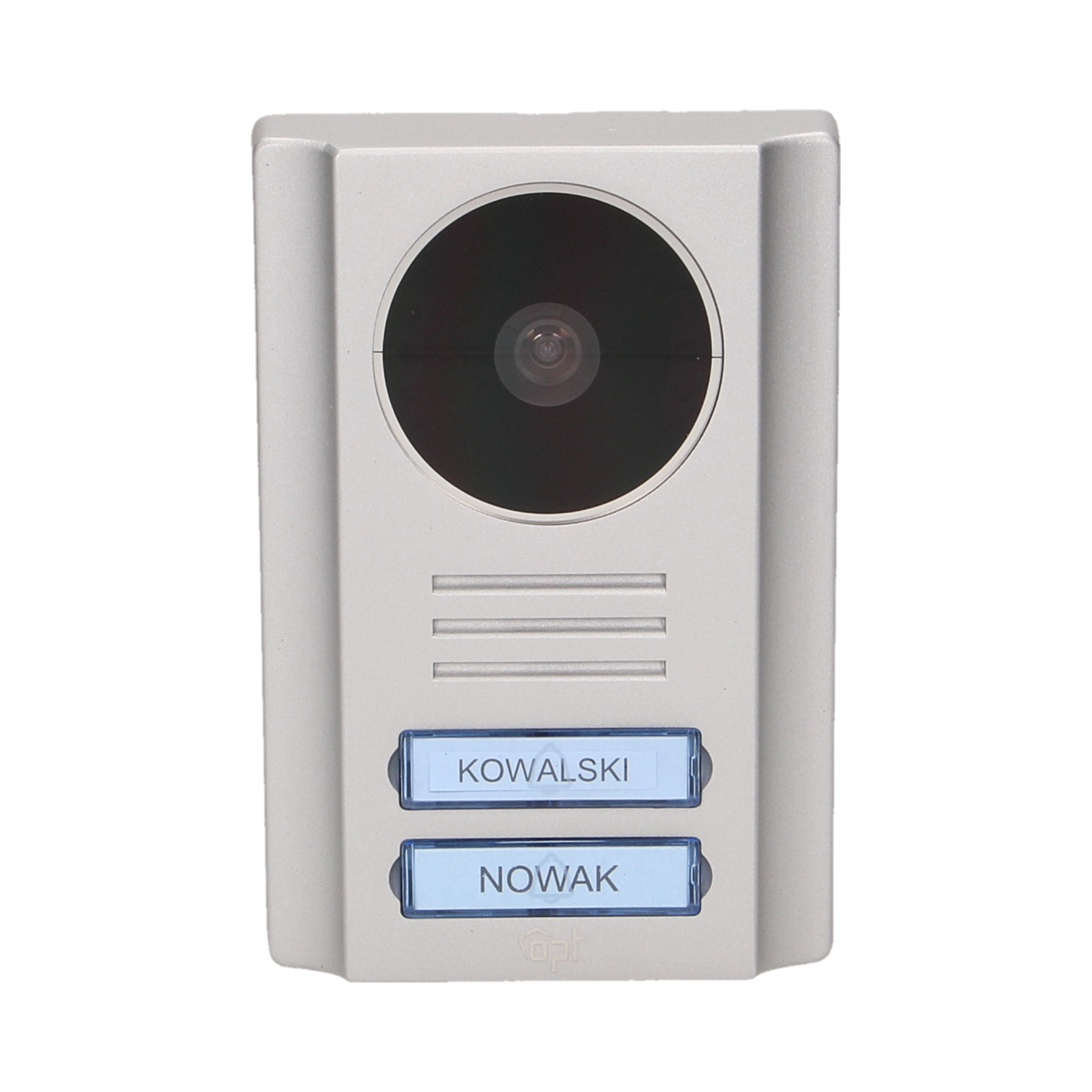

| External panel with a camera: |
|---|
| Resolution of the camera: | 700 TVL |
| Vertical/horizontal camera's view angle: | 96° / 122° |
| Card and proximity tags reader: | No |
| Type of camera: | traditional lens |
| Keypad: | No |
| Night lighting: | white LEDs |
| Dimensions of the external panel - depth: | 24 mm |
| Dimensions of the external panel - width: | 88 mm |
| Dimensions of the external panel - height: | 130 mm |
