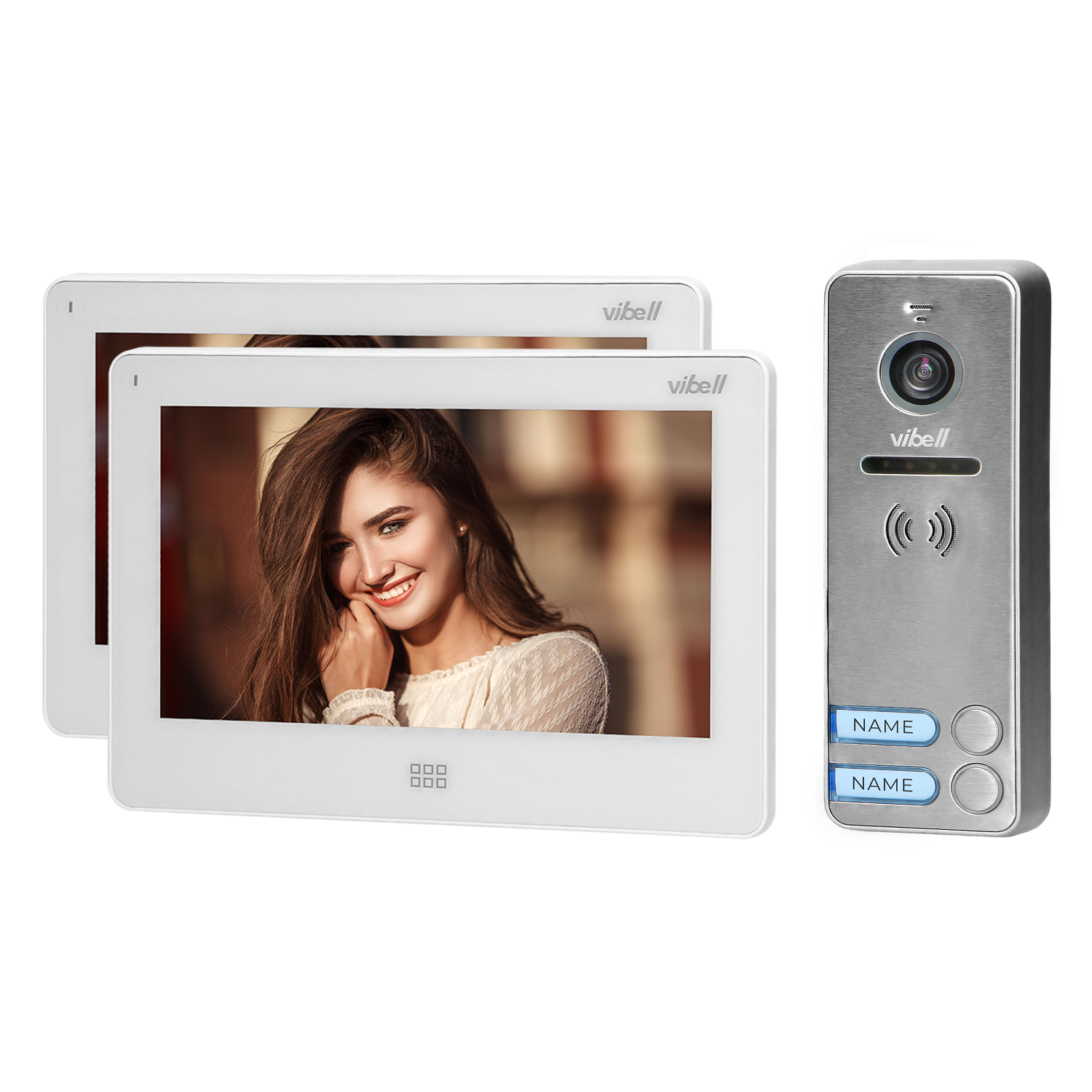

An example of VIBELL set: FELIS MEMO MULTI2 a two-family video door phone set that does not require any uniphone. The set includes a multicolour, ultra-flat 7" LCD touch screen and a very durable, wide-angle video-camera. It has a user-friendly OSD menu, which is used to instantly adjust monitor parameters. The set has a built-in SD and DVR card slots. The set enables gate control function and opening of the door lock output directly from the video-camera panel. Available colours: black and white.
| General information: |
| Type: |
wielorodzinny |
| With video: |
tak |
| Current supply: |
Zasilanie sieciowe |
| Nominal voltage: |
15V DC |
| Type of transmission: |
przewodowy |
| Can be connected to smartphone: |
nie |
| Installation technique: |
System wieloprzewodowy |
| Number of wires (*from outdoor station to electric strike): |
4 (+2)* |
| Number of indoor stations: |
2 |
| Number of outdoor stations: |
1 |
| Expandable to max. number of indoor stations: |
4 |
| Expandable to max. number of outdoor stations: |
2 |
| Expandable to max. number of CCTV cameras: |
8 |
| Operation door lock: |
tak |
| Current supply of the electric strike: |
dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: |
z panelem zewnętrznym |
| With automatic door opener: |
tak |
| With day/night function: |
tak |

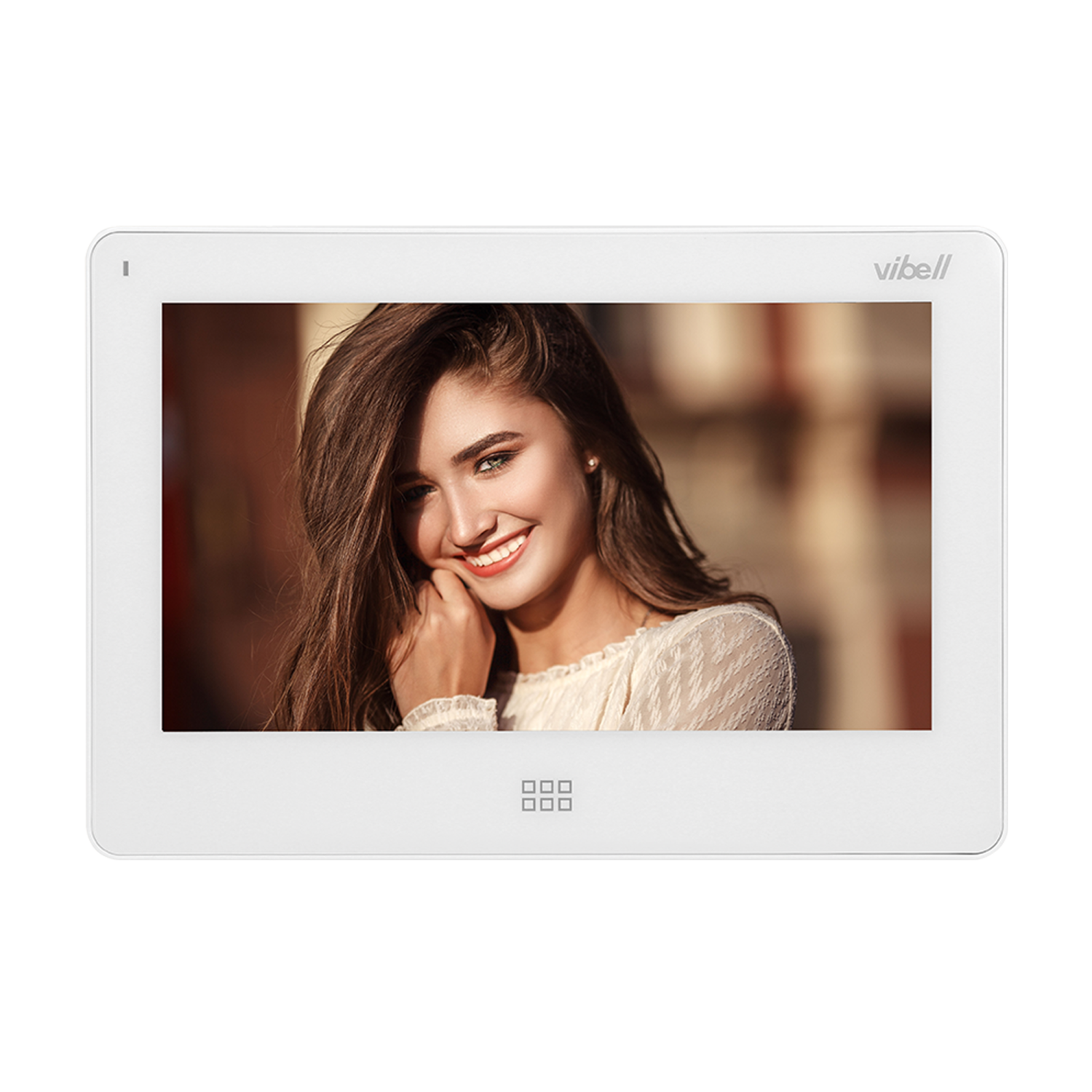

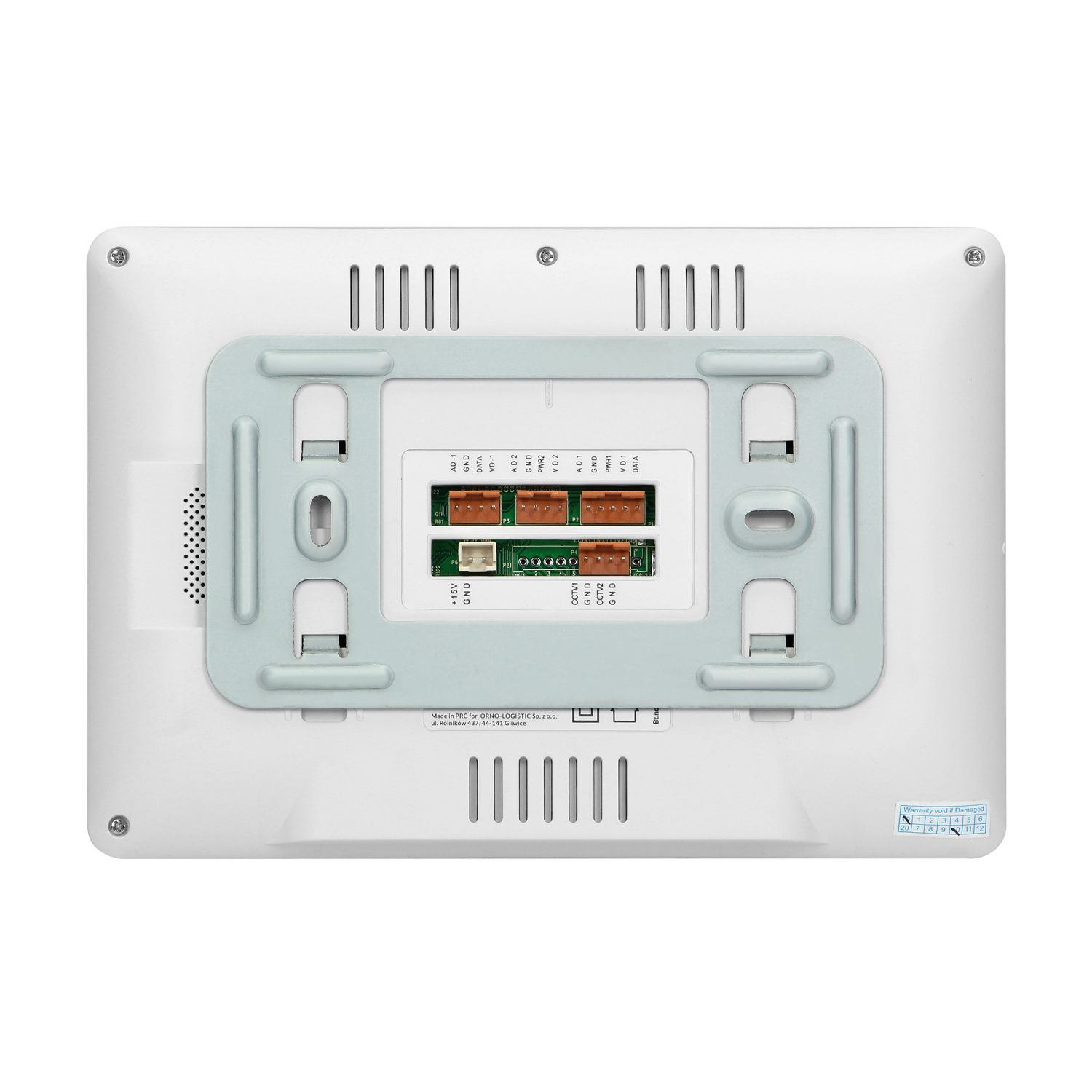

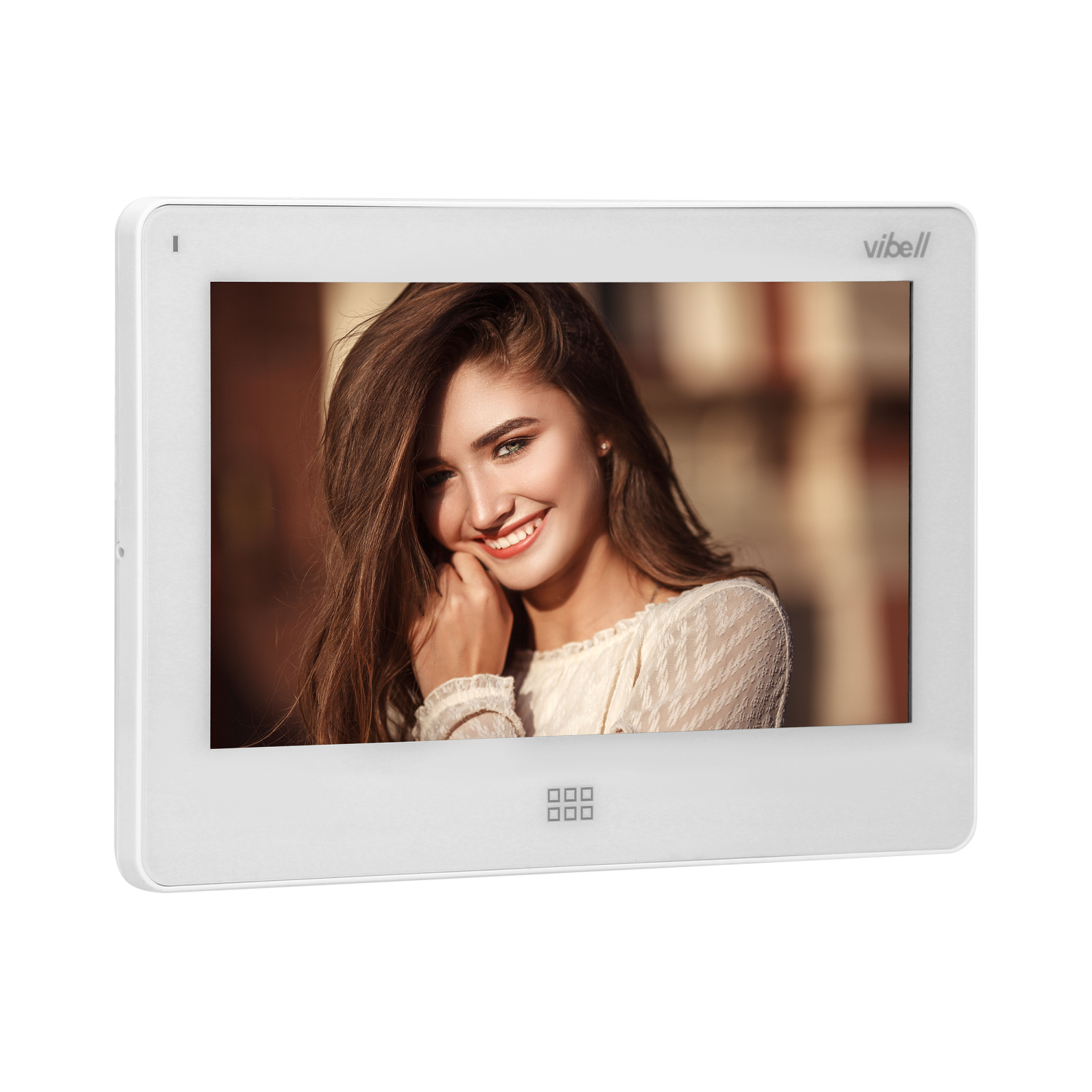

| Monitor: |
| Mounting method indoor station: |
Montaż natynkowy |
| Hands free: |
tak |
| Screen diagonal [inch]: |
7" |
| Screen resolution: |
800x480 |
| Touch screen: |
tak |
| Property picture system: |
Kolor |
| With memory function: |
tak |
| SD card reader: |
tak |
| Internal communication: |
tak |
| Number of ringtones: |
7 |
| Loudness control: |
tak |
| Mutable call tone: |
tak |
| Material indoor station: |
Tworzywo sztuczne |
| Colour indoor station: |
Biały |
| Dimensions of the monitor - Width [mm]: |
185 |
| Dimensions of the monitor - Height [mm]: |
127 |
| Dimensions of the monitor - Depth [mm]: |
17 |
| Other features: |
funkcja rozłoszeniowa i monitorowania dźwięku, kalendarz, budzik, automatyczna sekretarka, ramka cyfrowa |

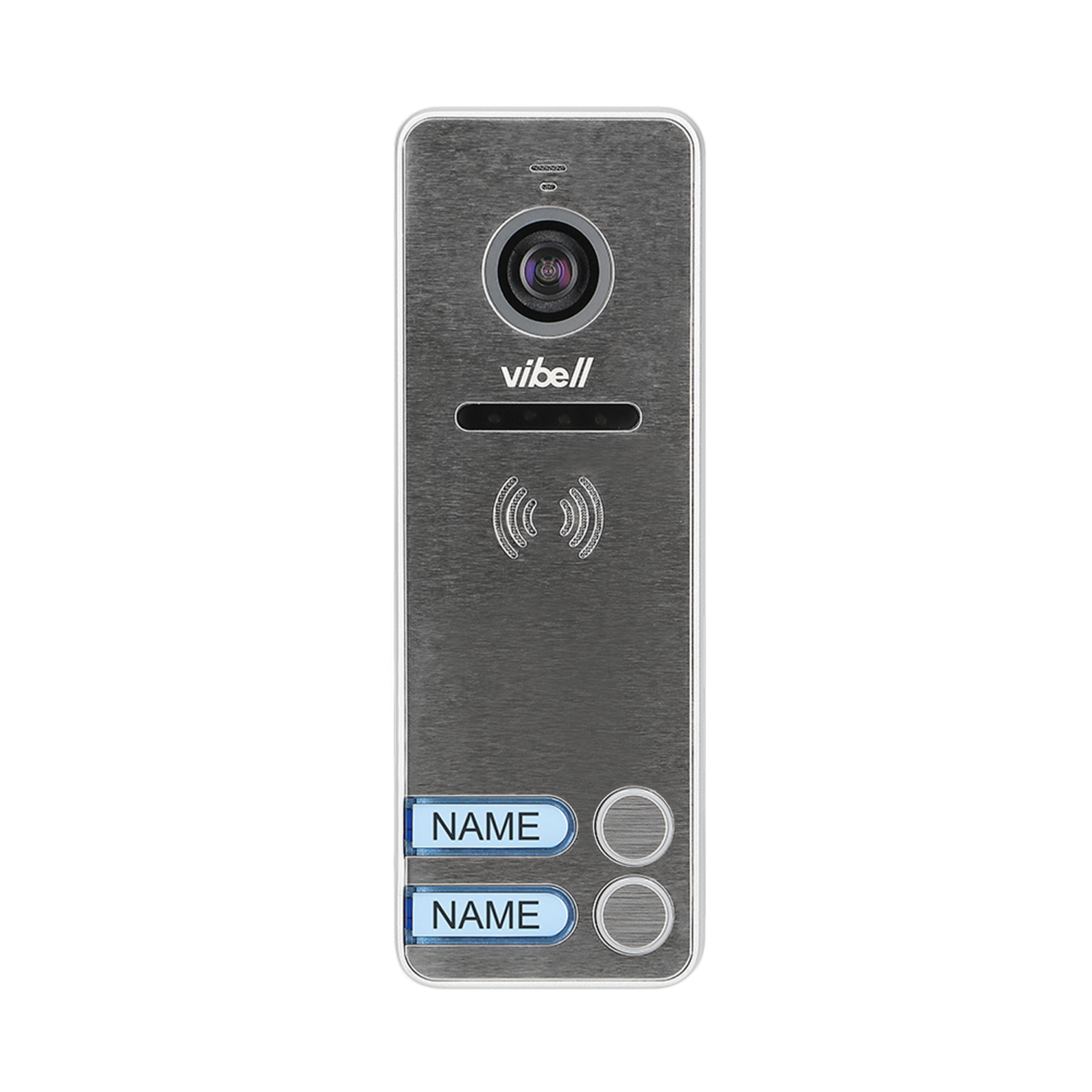

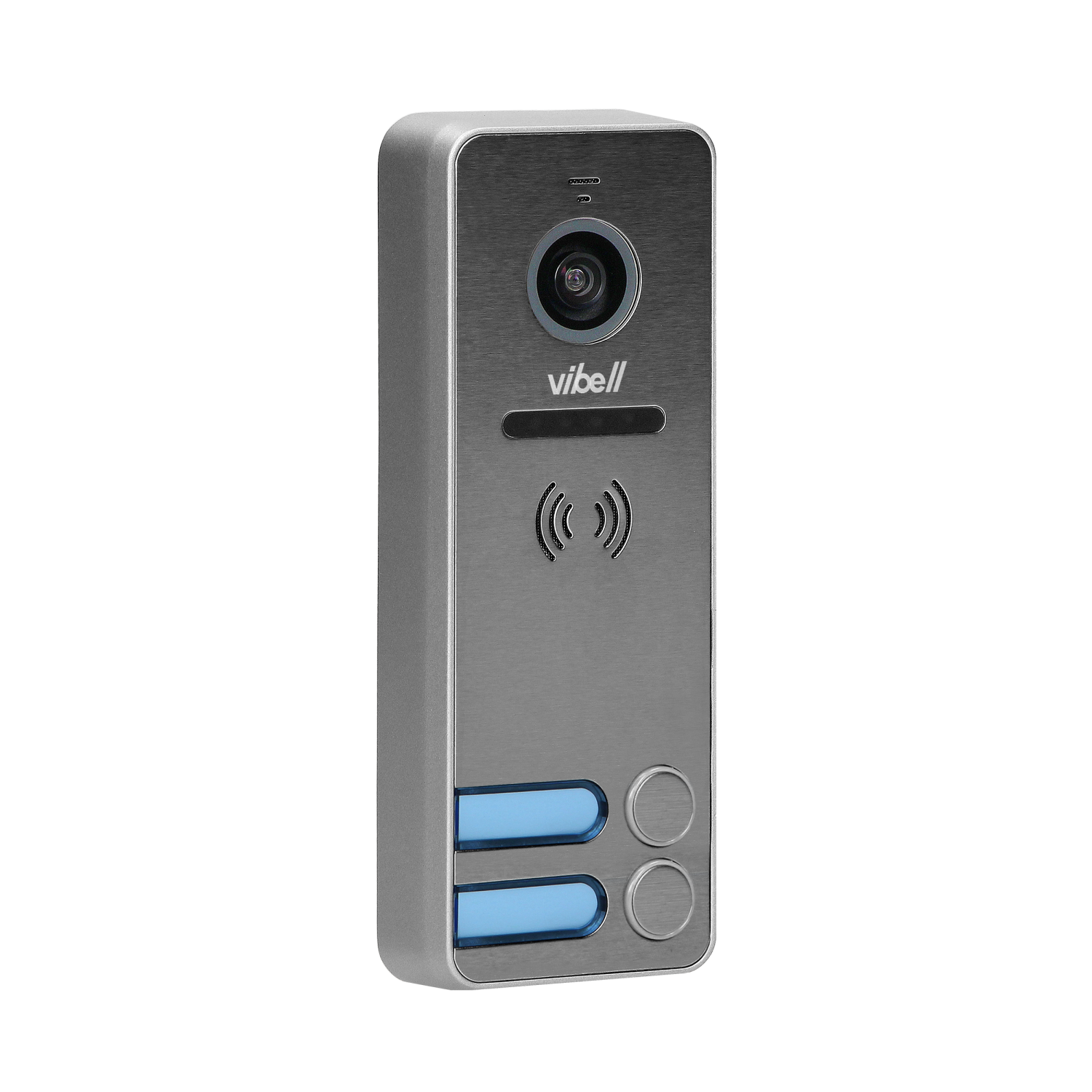

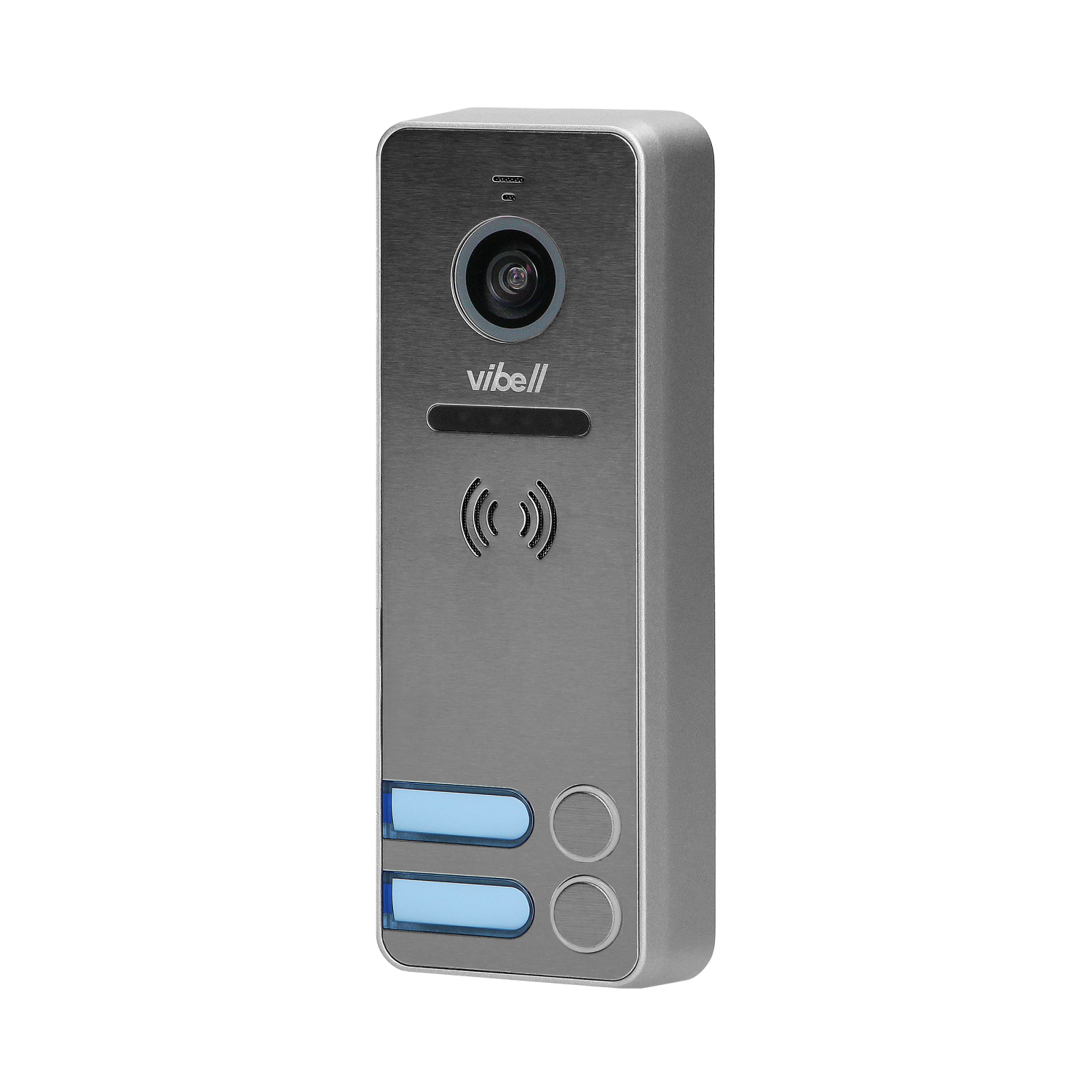

| External panel: |
| Number of call buttons: |
2 |
| Mounting method outdoor station: |
Montaż natynkowy |
| Camera resolution: |
700 TVL |
| Camera view angle (vertical): |
96 ° |
| Camera view angle (horizontal): |
110 ° |
| Night light: |
białe LED |
| With digital door code: |
nie |
| Card and proximity tags reader: |
nie |
| Label space/information surface: |
tak |
| With cover: |
nie |
| Degree of protection (IP): |
IP65 |
| Material outdoor station: |
Aluminium |
| Colour outdoor station: |
Srebrny |
| Width [mm]: |
55 |
| Height [mm]: |
152 |
| Depth [mm]: |
21 |
