Mini alarms

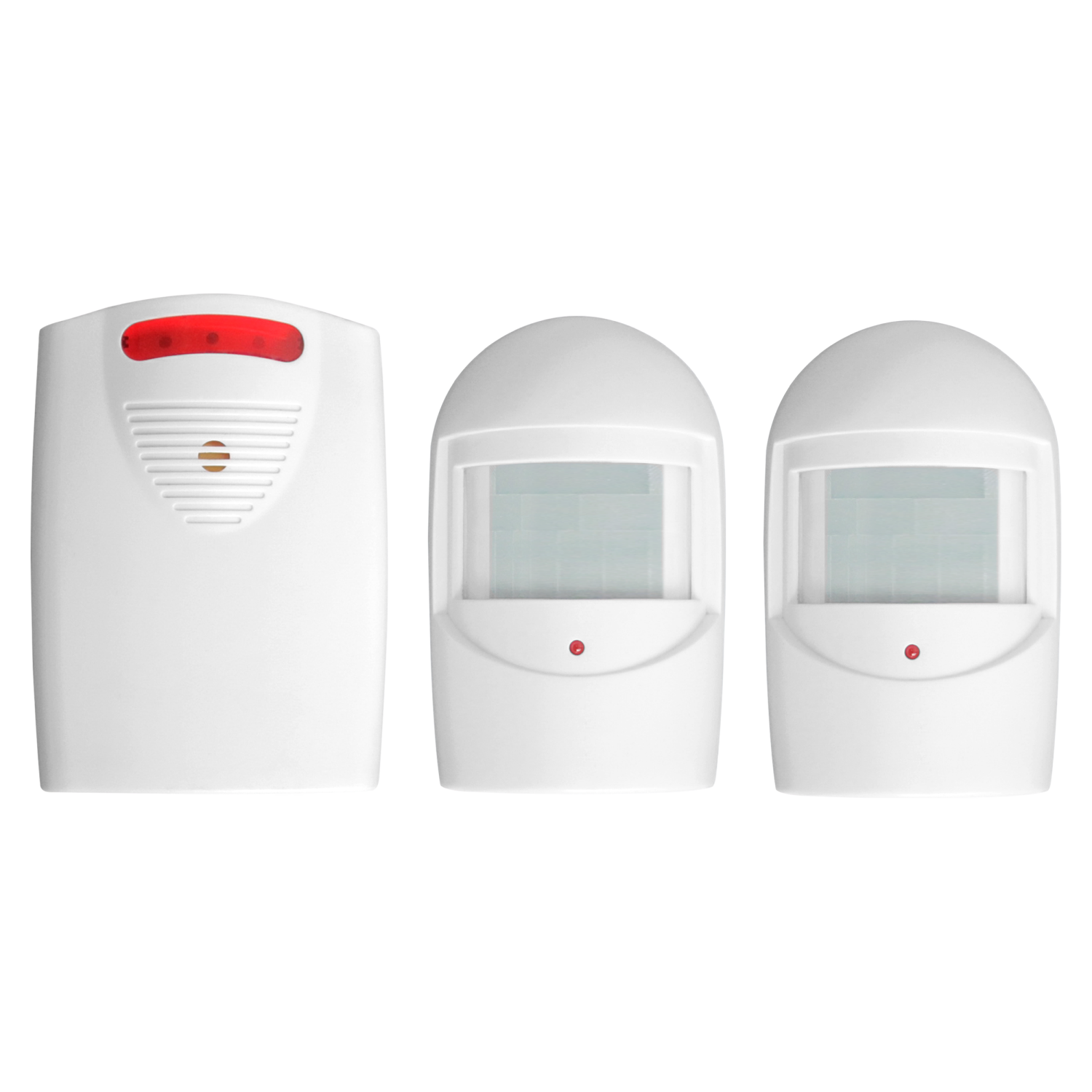

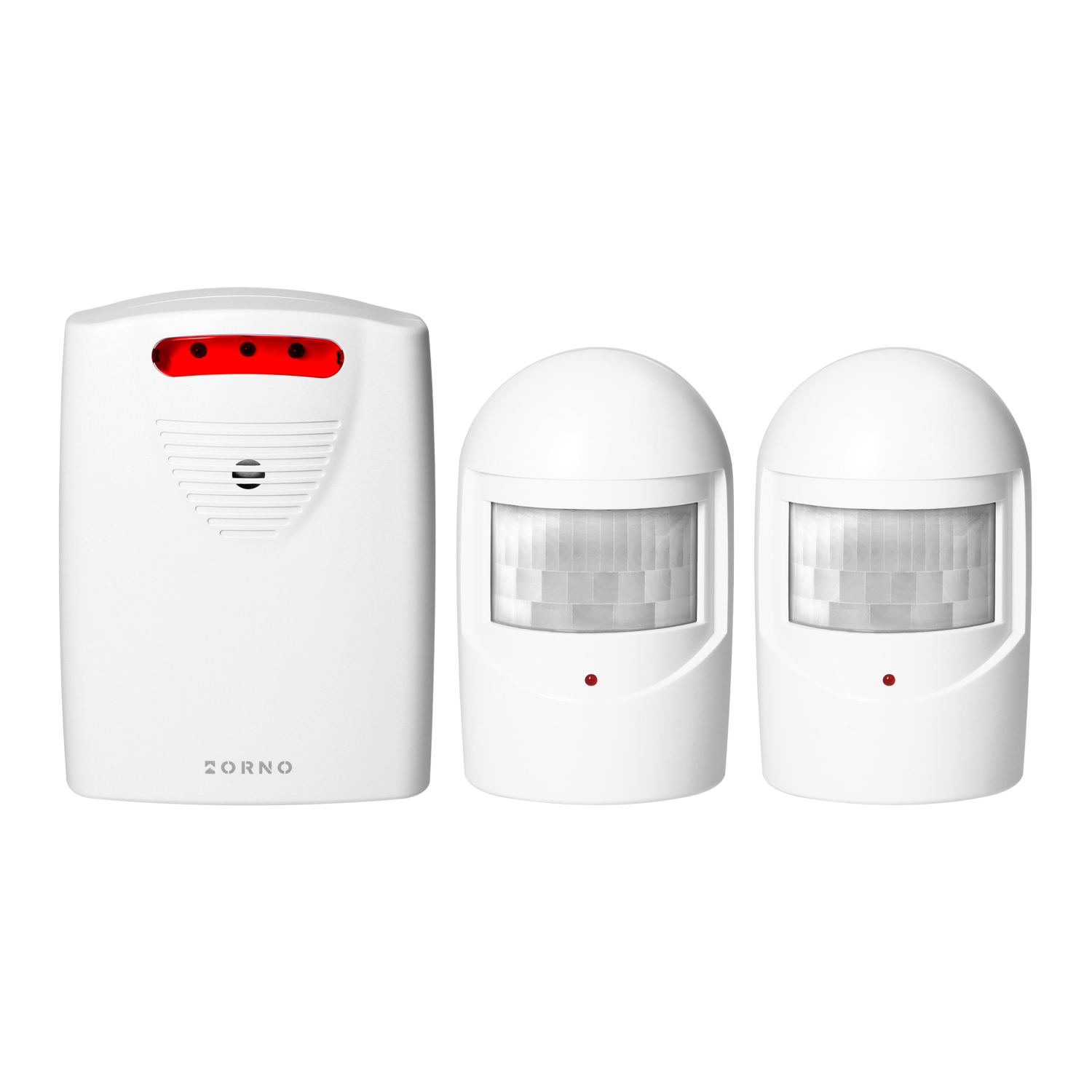

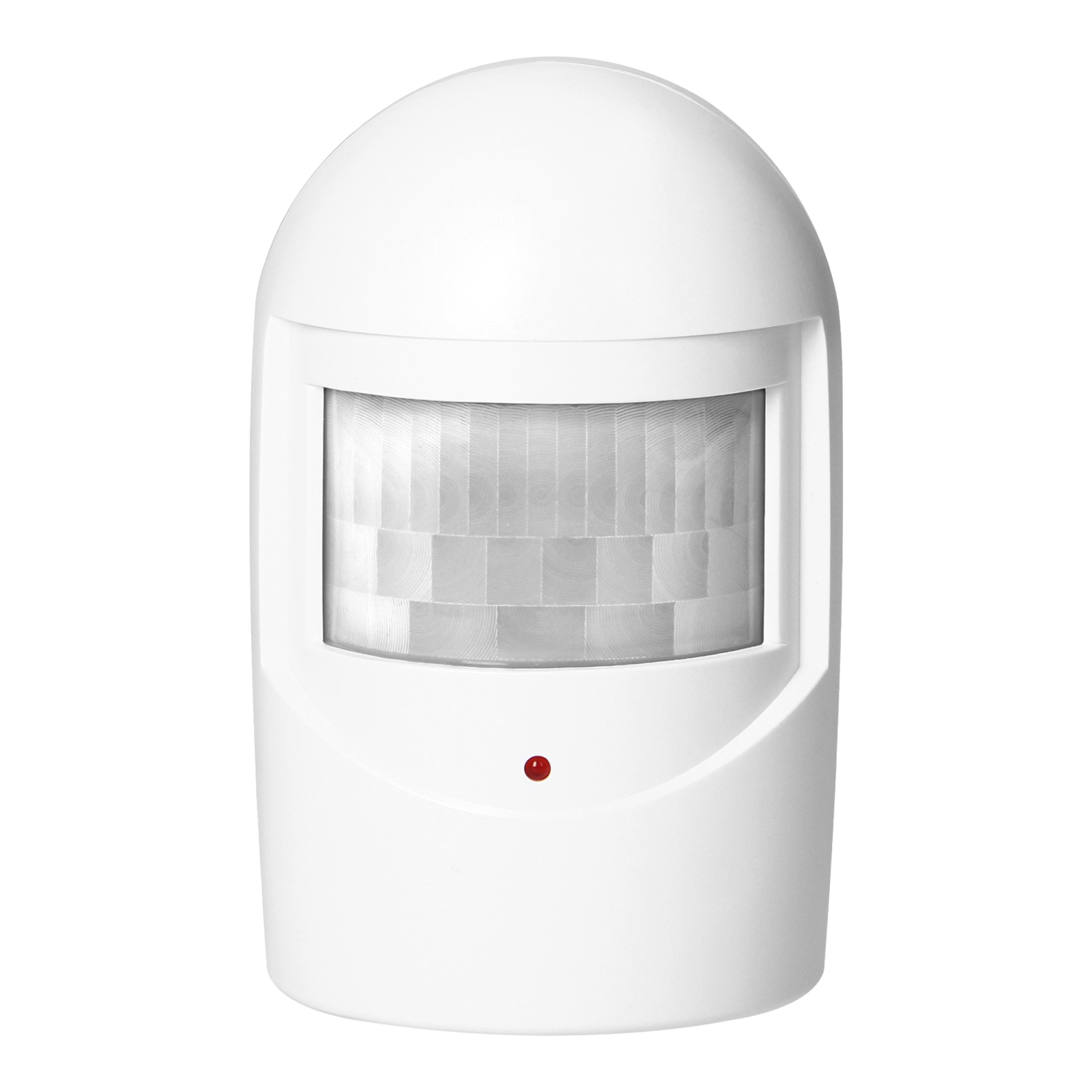

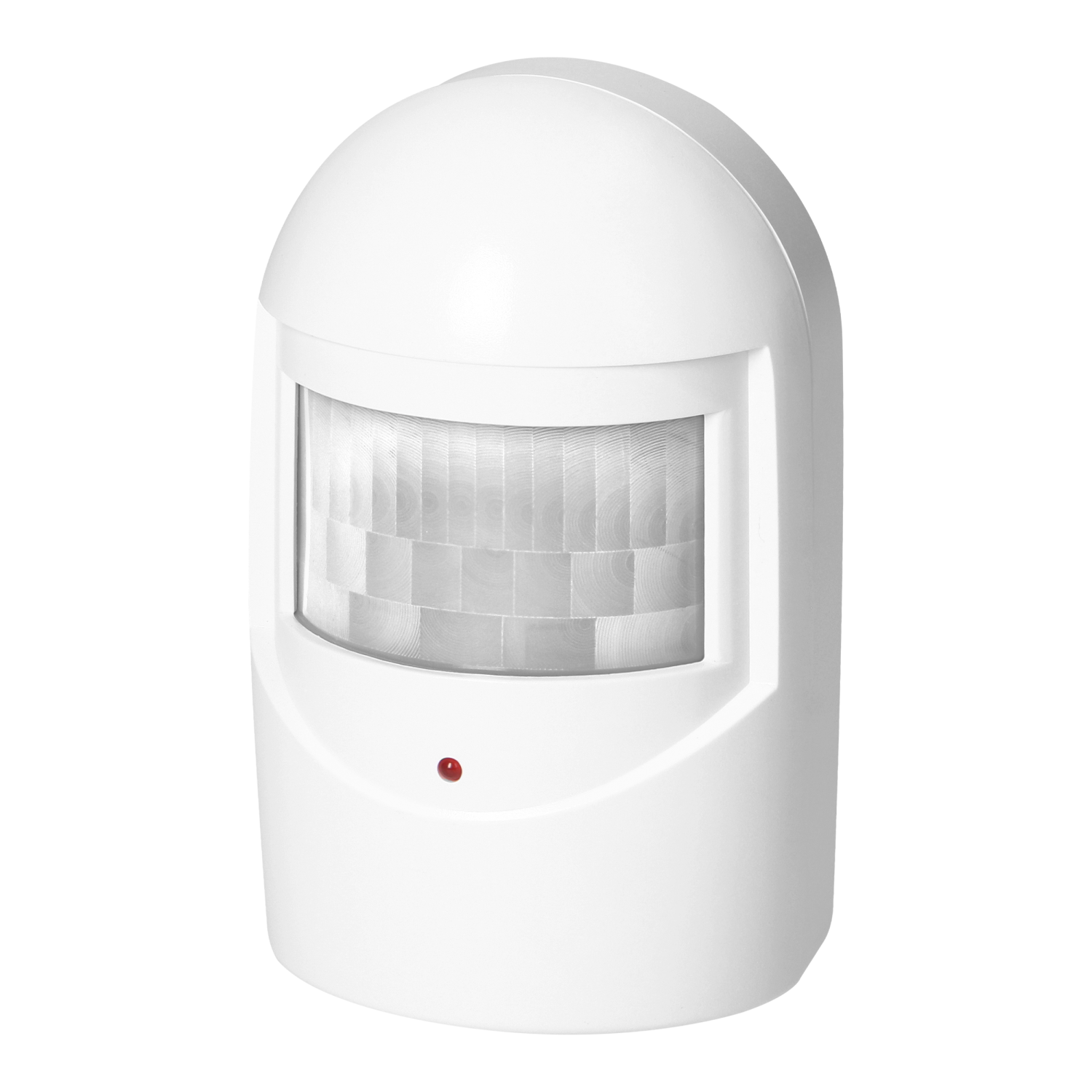

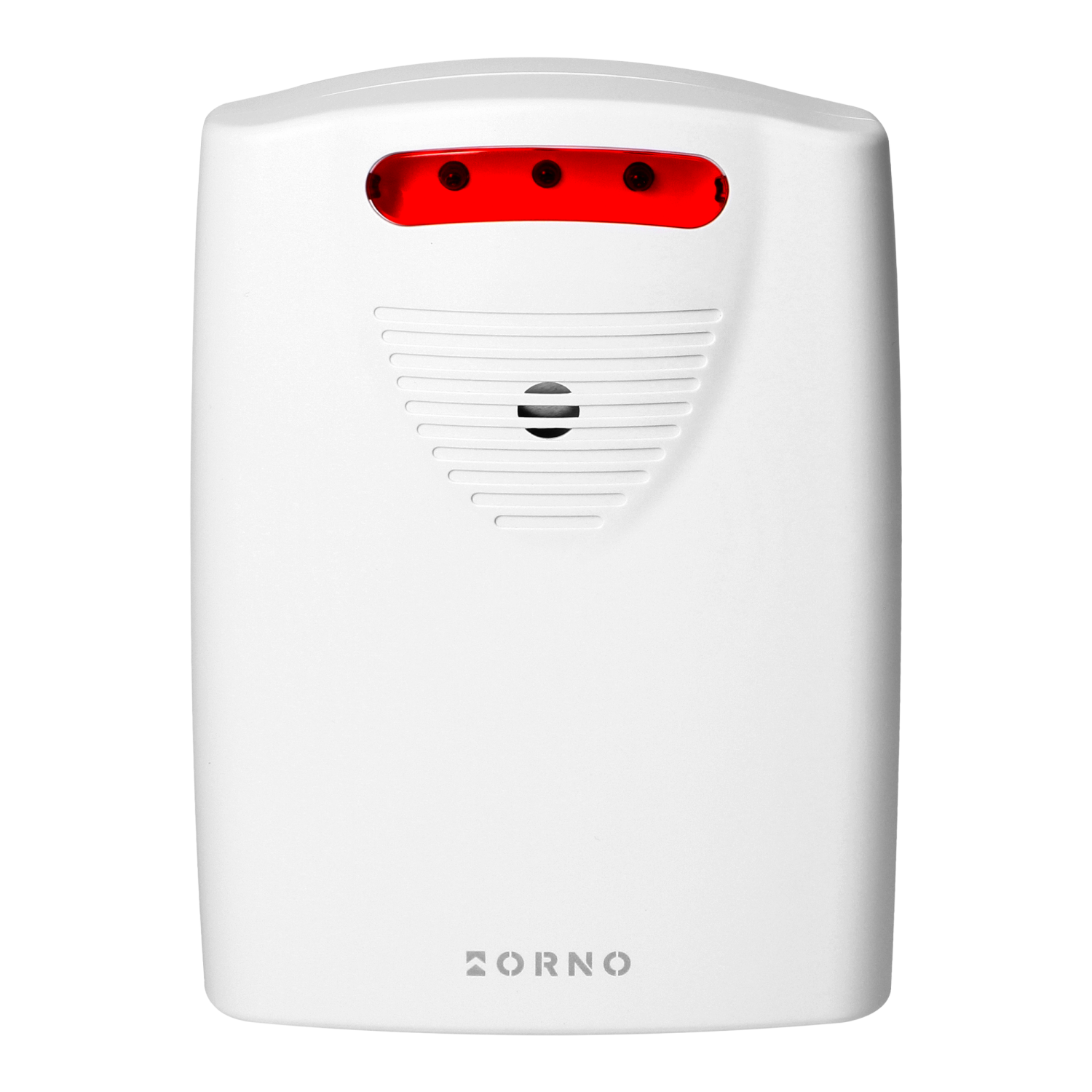

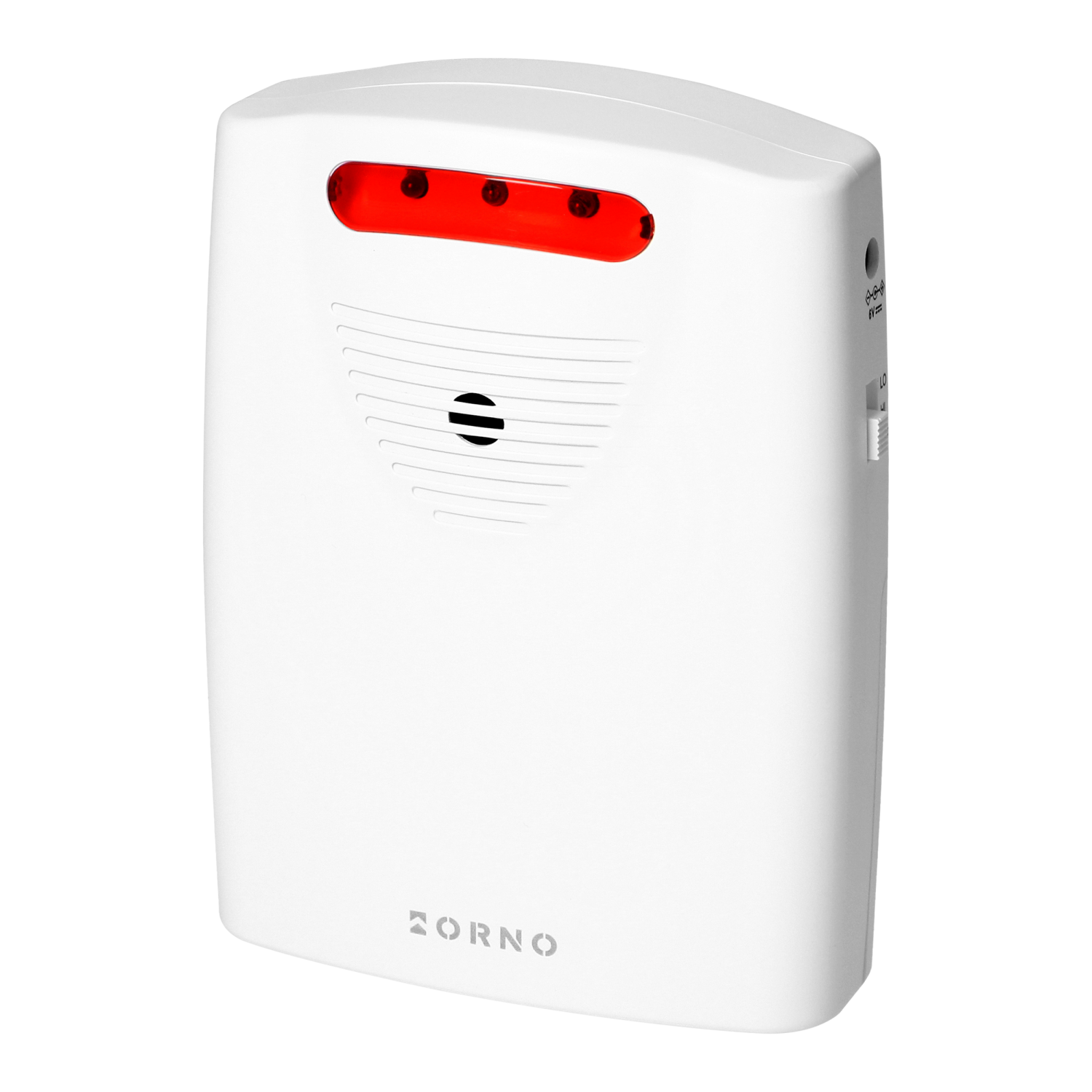

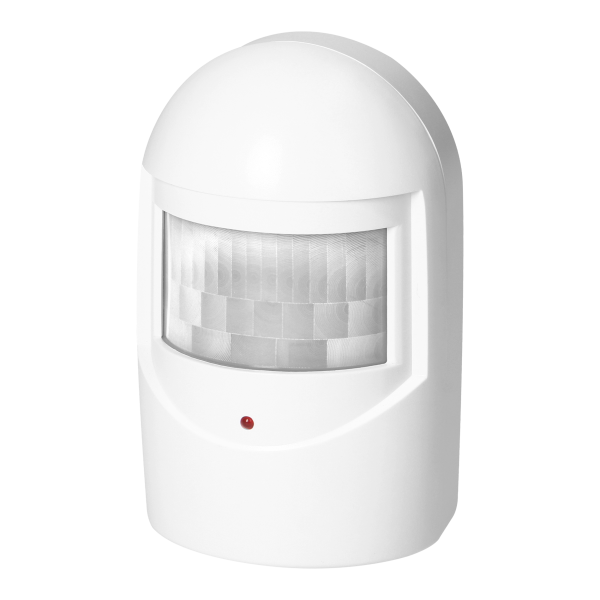

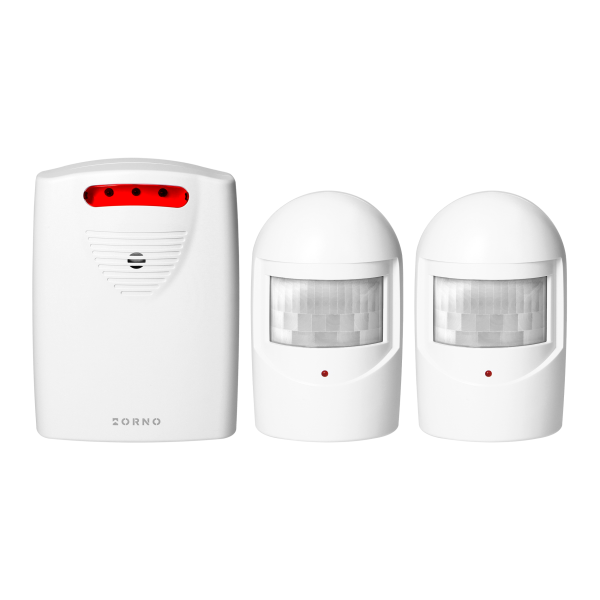

The set of sensor for monitoring entrances, hallways, warehouses, basements, driveways, car parks, etc. Each of the sensor has an indicator (receiver) which notifies, among other things, of detected movement or low batteries. The range in the open field is up to 120 m, while the motion detection range is up to 7 m. The sensor's viewing angle is approximately 75°. The IP44 rate allows to install the sensor outdoors and indoors, in rooms of increased humidity. The sensors are resistant to harsh weather conditions.
| General information: | |
|---|---|
| Type of messaging: | Podczerwień pasywna |
| Mounting method: | Montaż powierzchniowy |
| Optical signaling: | Tak |
| Detection range [m]: | 8 |
| Communication range in open air [m]: | 120 |
| Detection Angle [°]: | 75 |
| Type of supply voltage - transmitter: | DC |
| Power Supply - transmitter [V]: | 9 |
| Battery type - transmitter: | 6F22 |
| Battery included: | Nie |
| Working current - transmitter [mA]: | < 10 |
| Standby Current - transmitter [µA]: | < 20 |
| Transmitter power [mW]: | ≤ 10 |
| Low Voltage Indicator - transmitter [V]: | <6,1 ± 0,1 |
| Wireless Transmitting Frequency [MHz]: | 433,92 ± 100 |

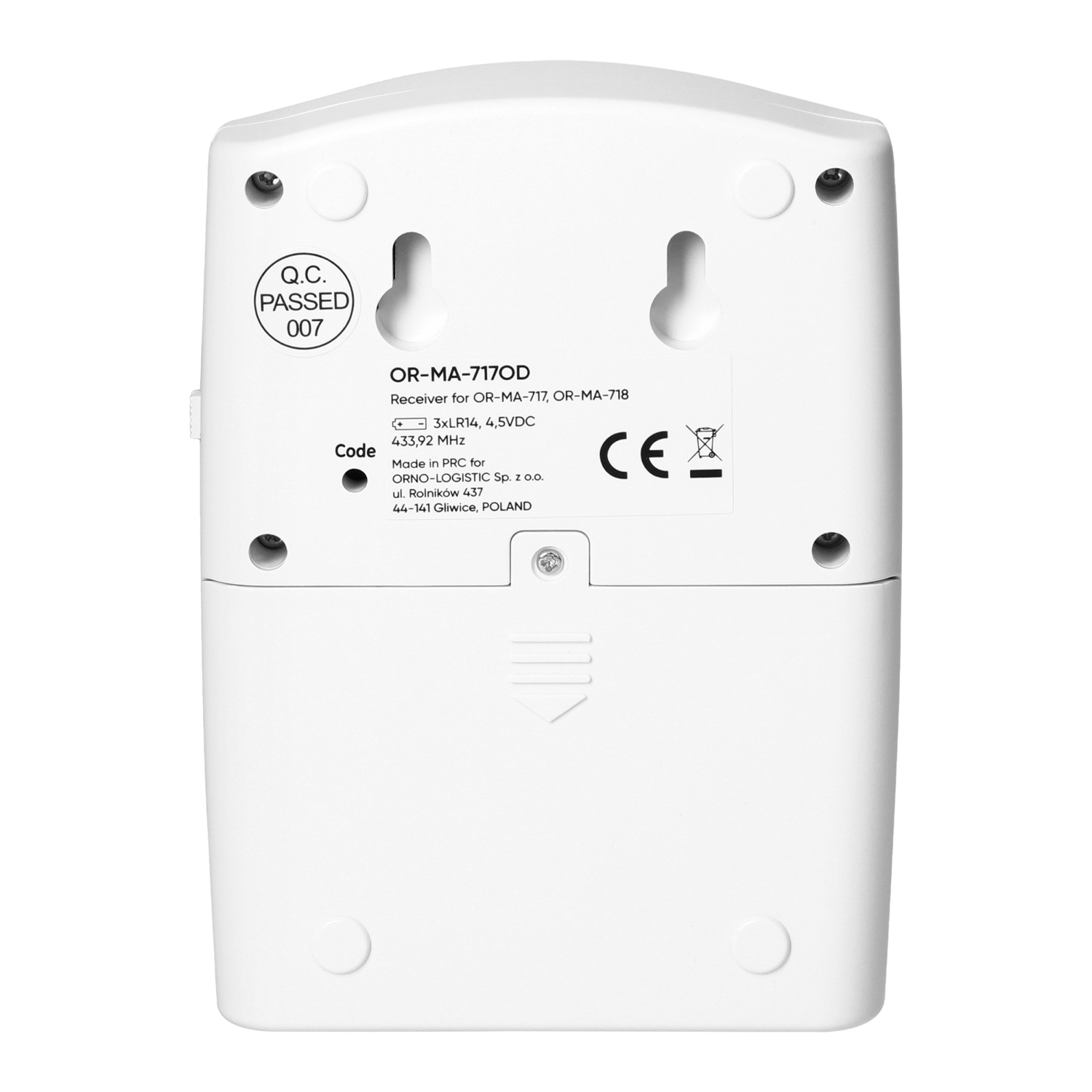

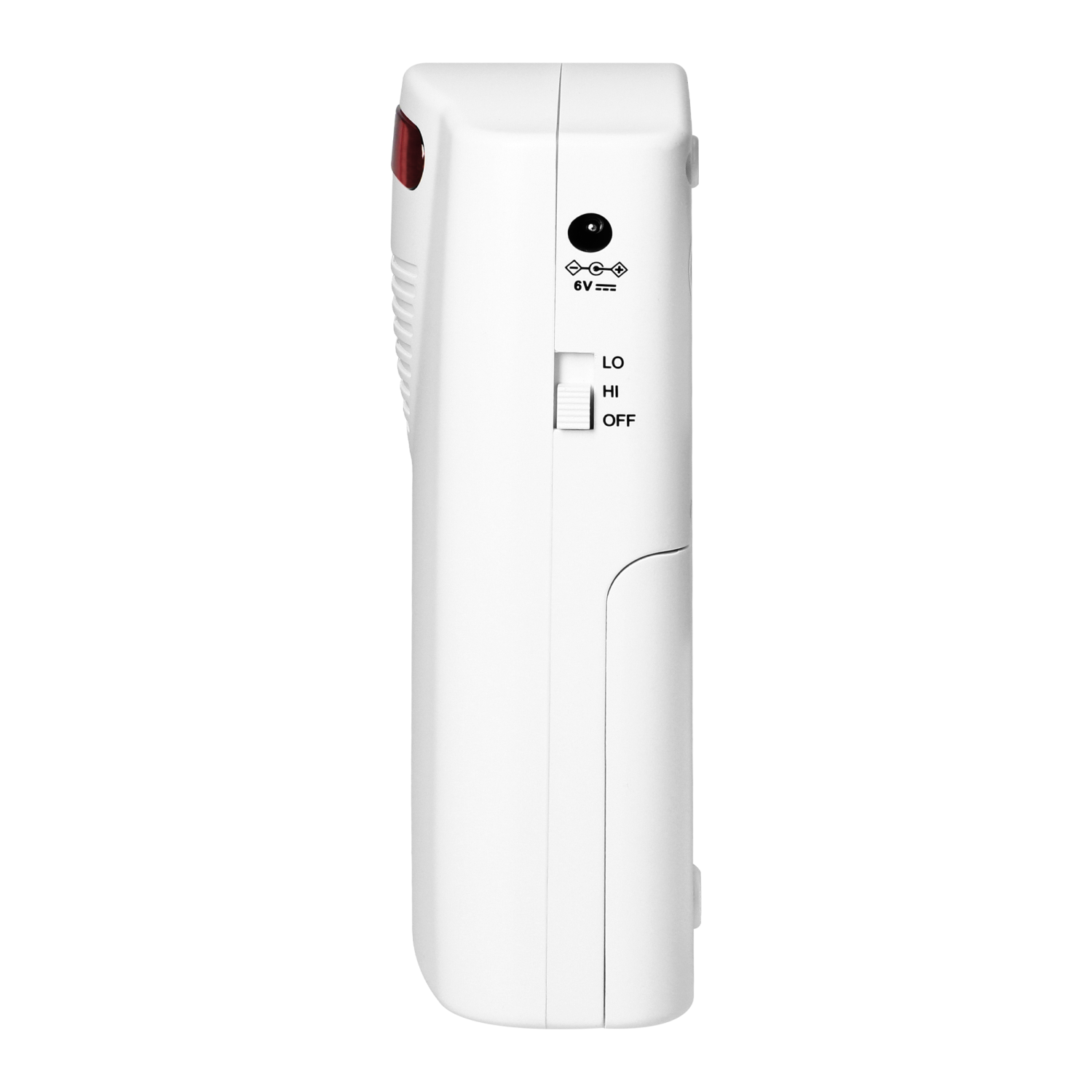

| DC Voltage Input - receiver [V]: | 6 |
| DC Current Input - receiver [µA]: | ≥ 500 |
| Power Supply - receiver [V]: | 4.5 |
| Type of battery - receiver: | LR14 x3 |
| Battery included: | Nie |
| Working current - receiver [mA]: | < 150 |
| Standby Current - receiver [µA]: | < 500 |
| Low Voltage Indicator - receiver [V]: | < 3,5 ± 0,1 |
| Max. Alarm Volume [dB]: | 90 |
| Wireless Receiving Frequency [MHz]: | 433,92 ± 100 |
| Height transmitter [mm]: | 111 |
| Width transmitter[mm]: | 69 |
| Depth transmitter [mm]: | 45 |
| Height receiver [mm]: | 130 |
| Width receiver [mm]: | 95 |
| Depth receiver [mm]: | 42 |
| Colour: | Biały |
| Protection level IP: | IP44 |
