Installation relays

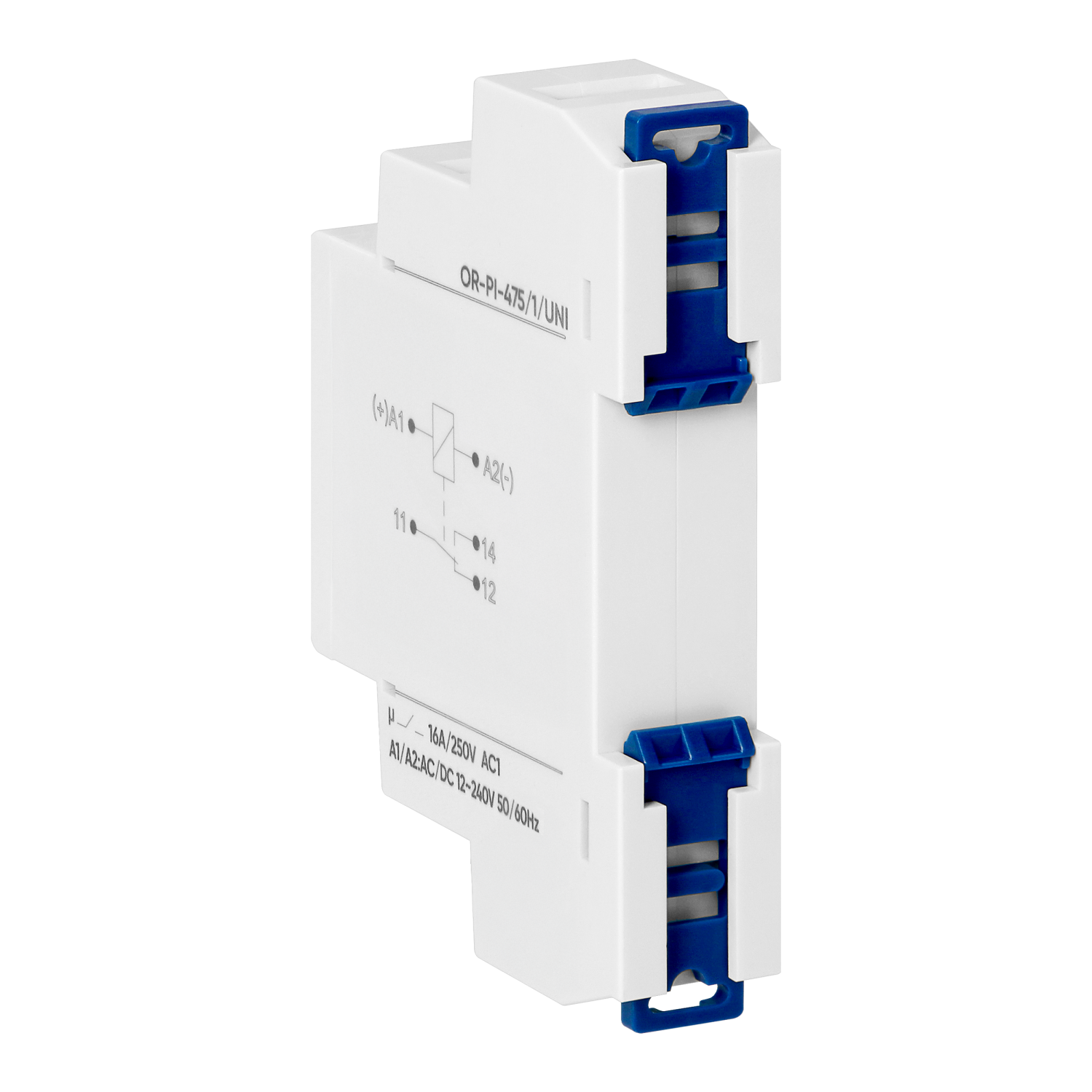

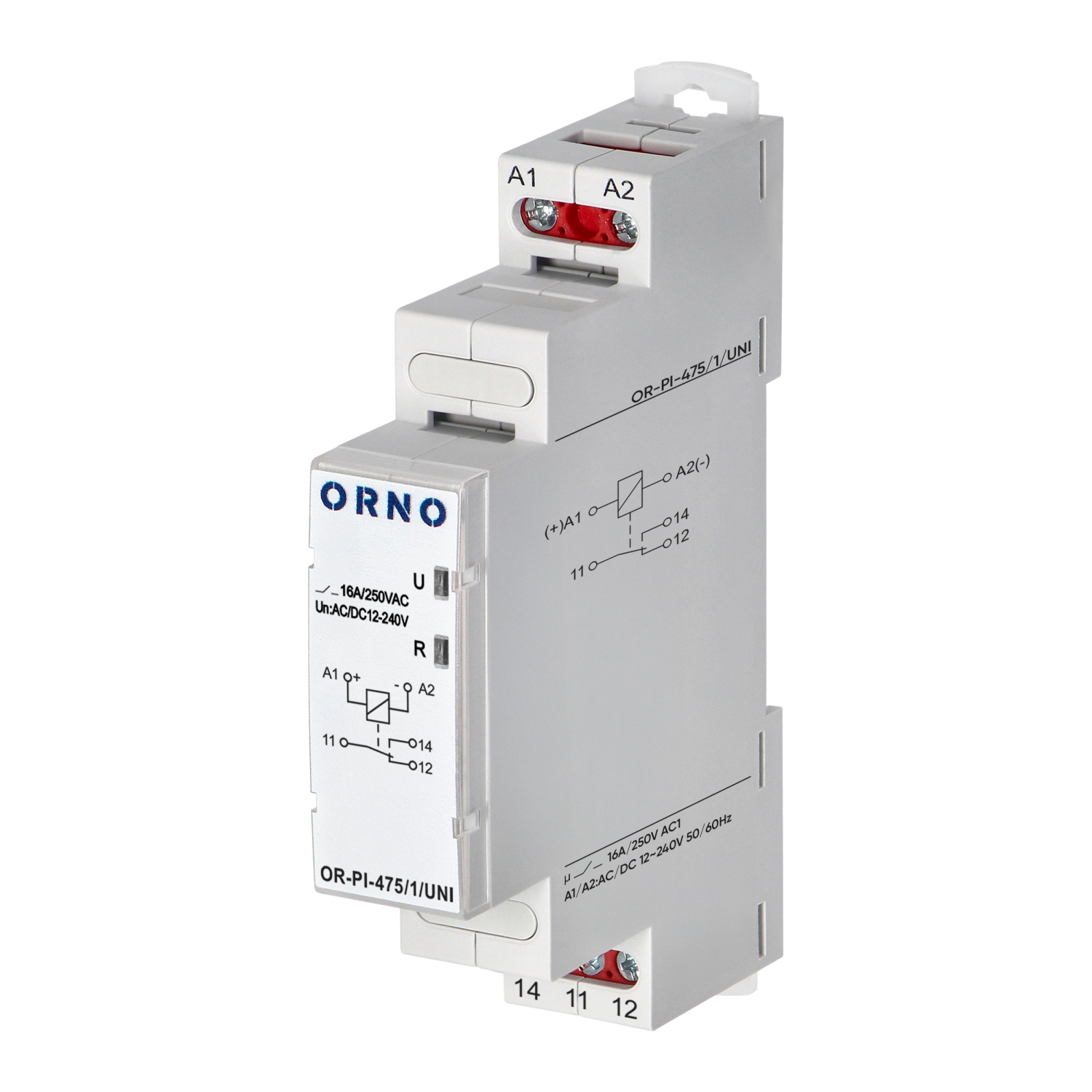

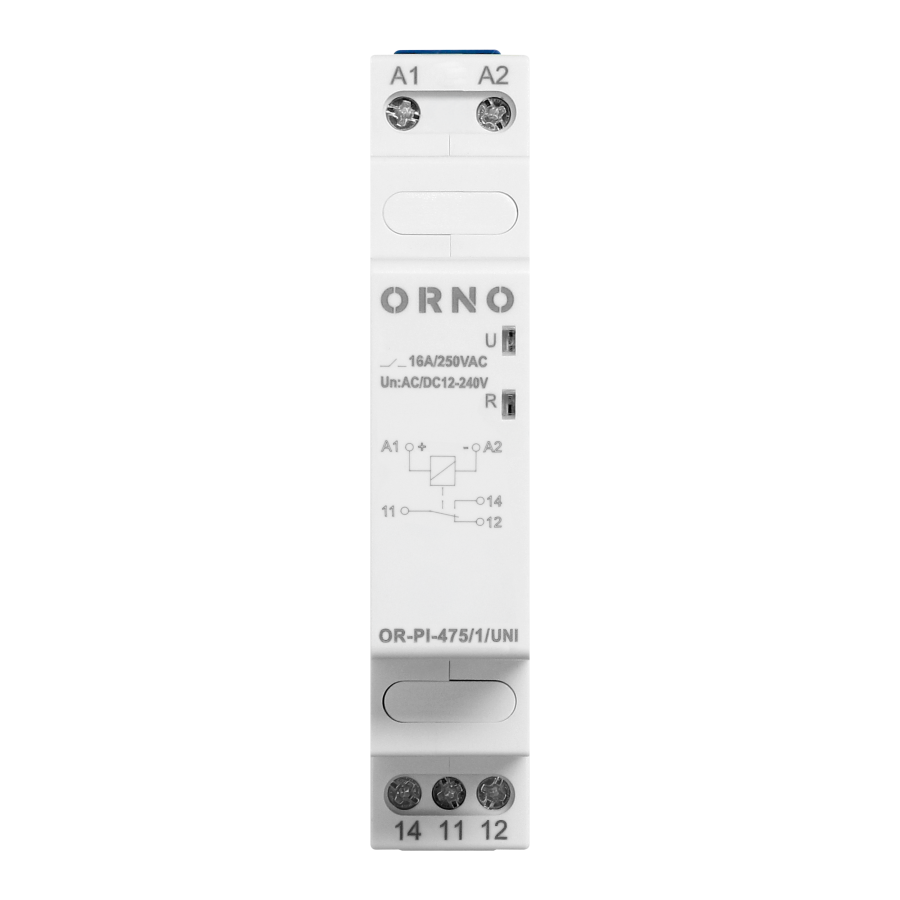

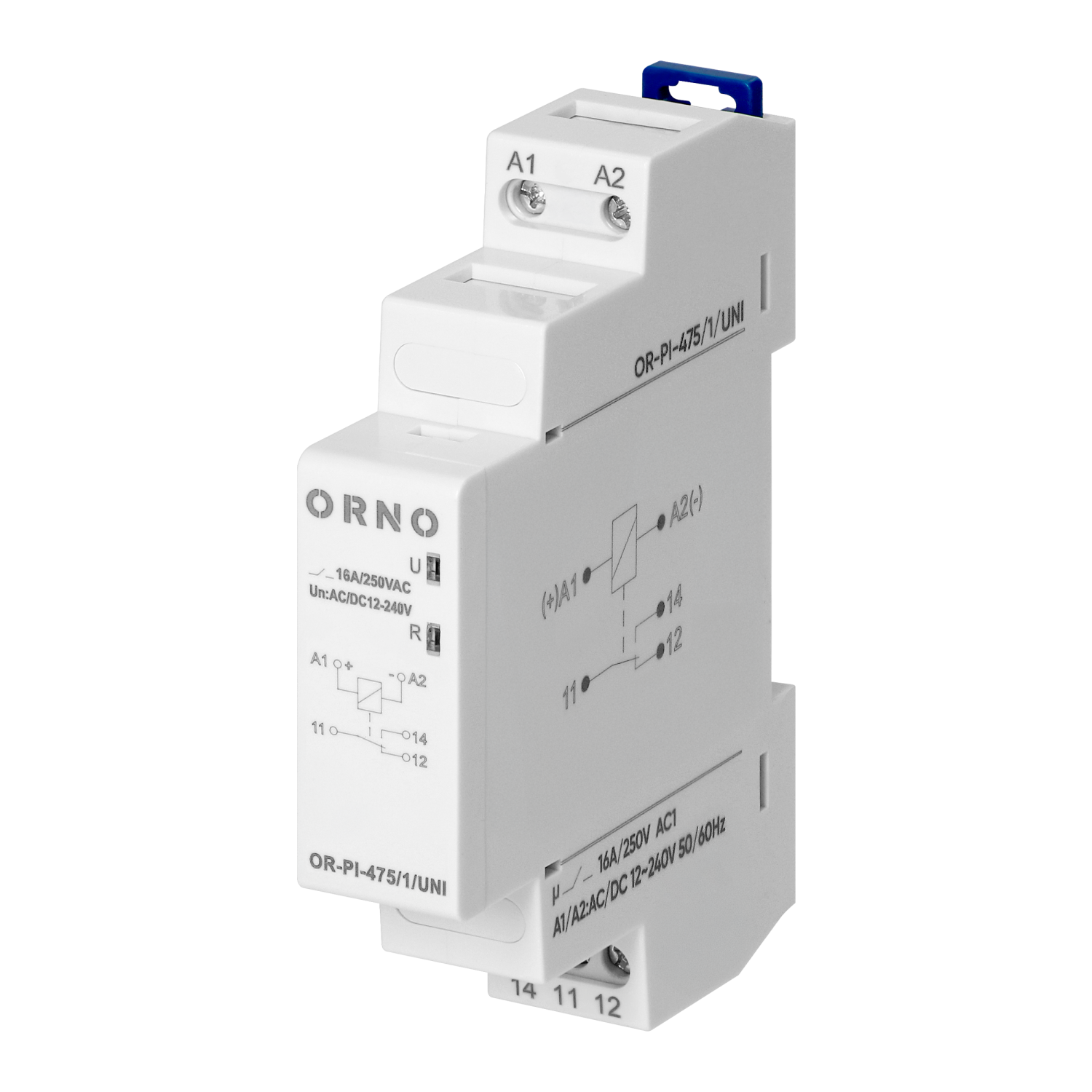

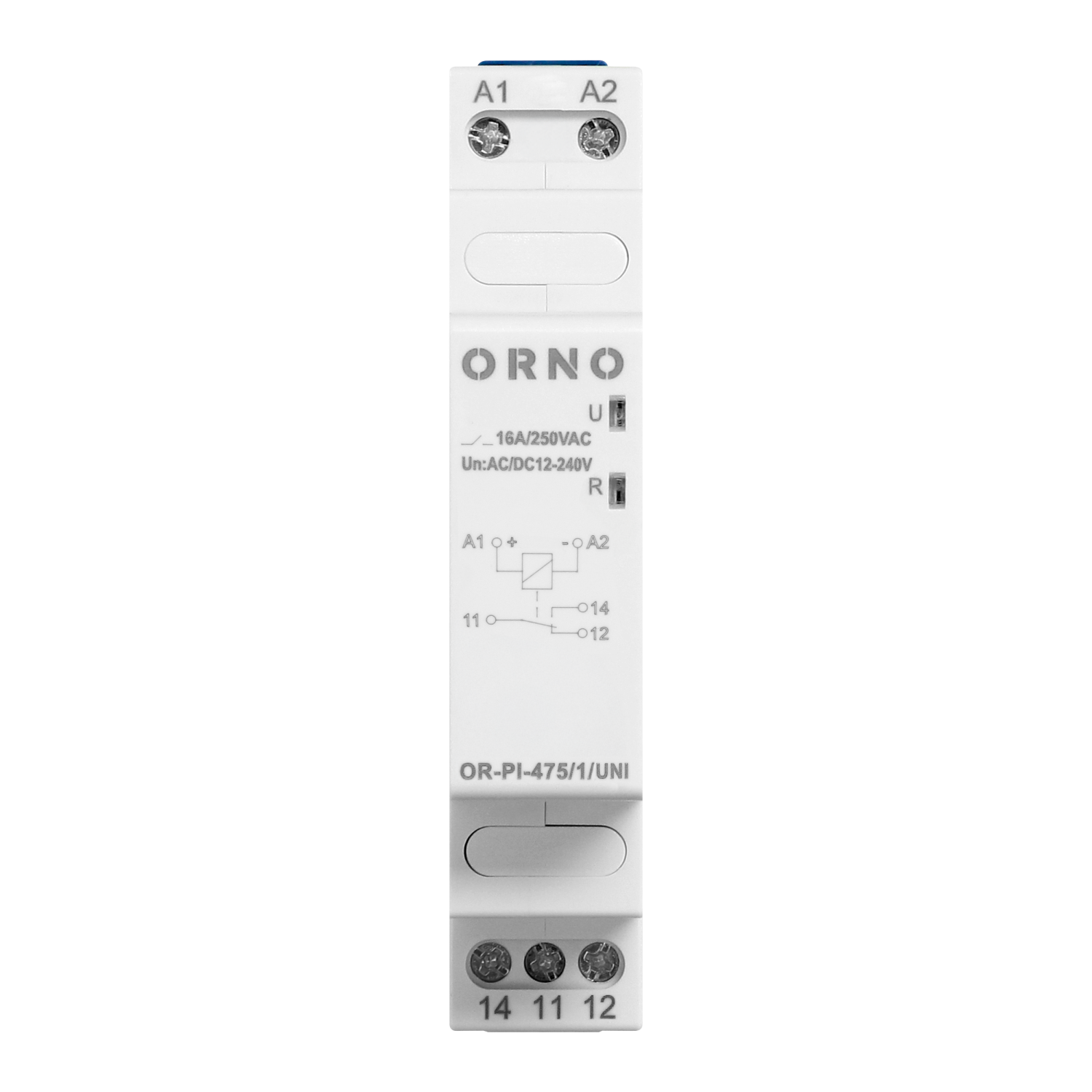

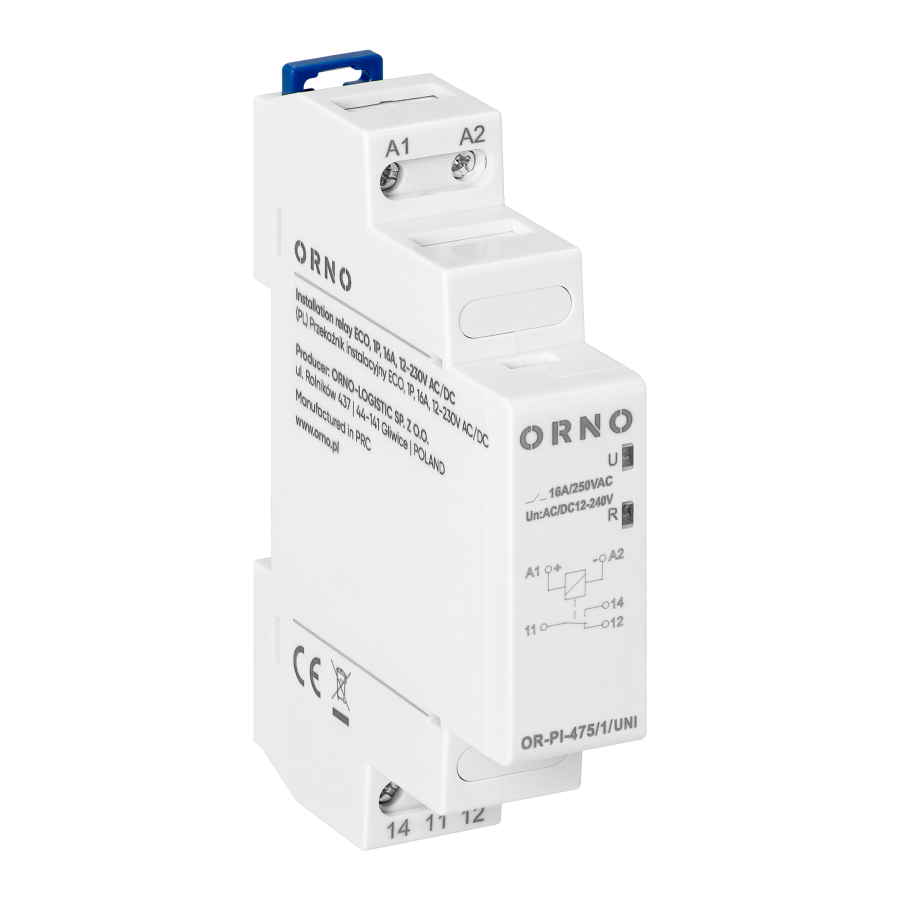

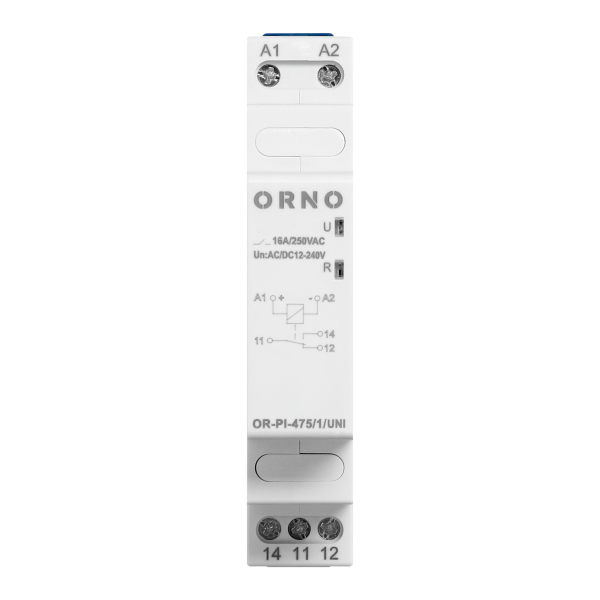

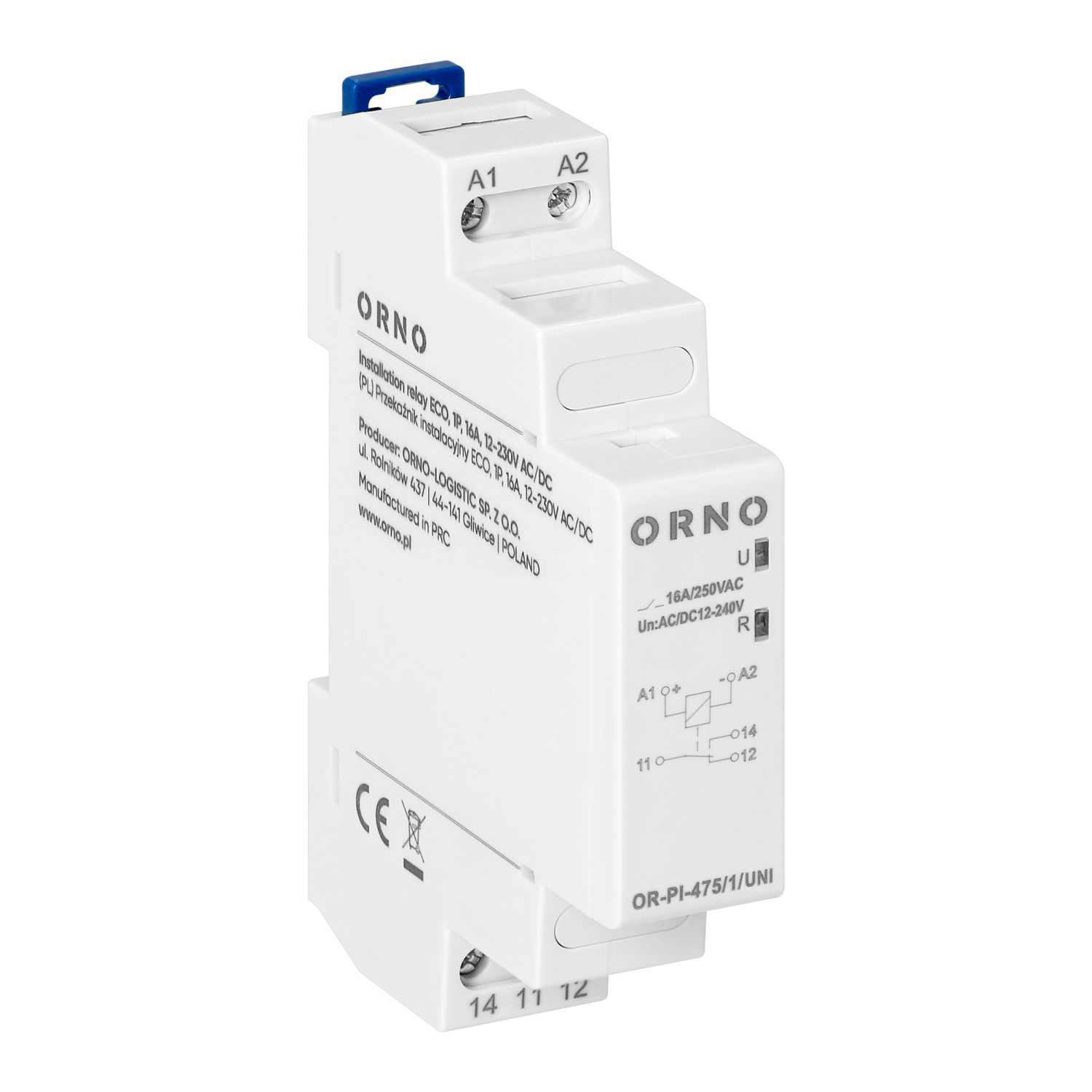

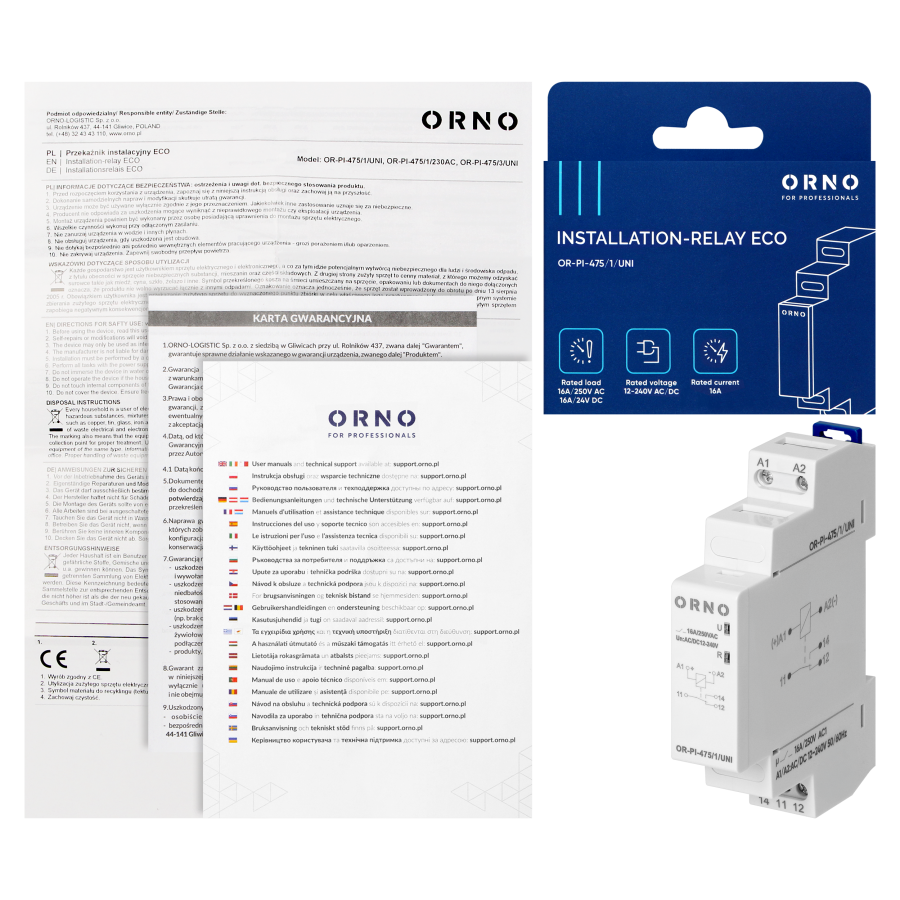

The installation relay Economic is a modular device that is responsible for controlling the operation of another device. It is used in both domestic and industrial installations.
The unit is powered by 12-240V AC at 50/60Hz. It has one switching contact with a rated current of 16A for 250V AC and 24V DC. The maximum load power is 4000VA.
It is designed to be mounted on a 35 mm DIN rail in any position with the help of two catches - top and bottom. The unit has terminals for wires up to 2.5 mm².
The compact dimensions of 65x18x90 mm, the width of one module and the installation depth of 90 mm ensure convenient installation and easy integration into electrical systems.
| General information: | |
|---|---|
| Function: | Mechaniczny |
| Mounting method: | Szyna DIN |
| Width in number of modular spacings: | 1 |
| Built-in depth [mm]: | 90 |

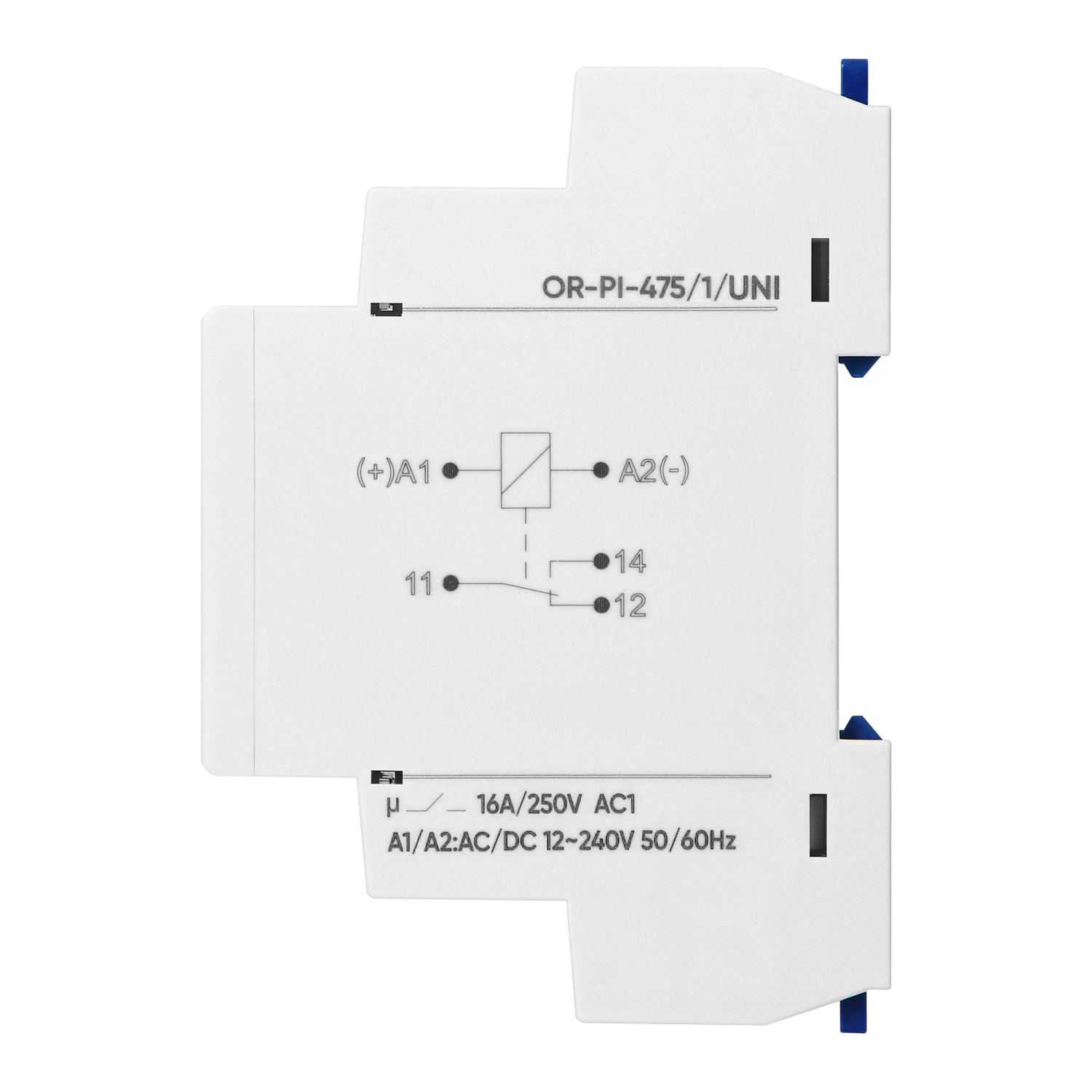

| Number of contacts as change-over contact: | 1 |
| Type contact: | 1P |
| Contact material: | AgSnO2 |
| Control voltage 1 [V]: | 12-240 |
| Type of control voltage 1: | AC |
| Frequency control voltage 1 [Hz]: | 50/60 |
| Rated current [A]: | 16 |
| Rated load AC1 [V]: | 16 A / 250 V AC |
| Rated load DC1 [V]: | 16 A / 24 V DC |
| Max. Breaking capacity AC1 [VA]: | 4000 |
| Contact resistance [mΩ]: | ≤ 100 |
| Max. Part of joining: | 600 cykli/h |
| Operating supply voltage range [Un]: | 0,85-1,1 |
| Max. cross-section of cables [mm2]: | 2.5 |
| Storage temperature [°C]: | od -40°C do +70°C |
| Working temperature [°C]: | od -20°C do +50°C |
| Electrical life AC1: | > 0,5 x 10^5 |
| Protection category: | IP20 |
| Overvoltage category: | III |
| Enclosure flammability class UL94: | VO |
| Storage humidity [%]: | do 85 |
| Impact resistance [g]: | 0.15 |
| Vibration resistance [mm DA]: | 9g/5g |
| Height [mm]: | 64.6 |
| Width [mm]: | 17.5 |
| Depth [mm]: | 90 |
| Weight [g]: | 0.6 |
