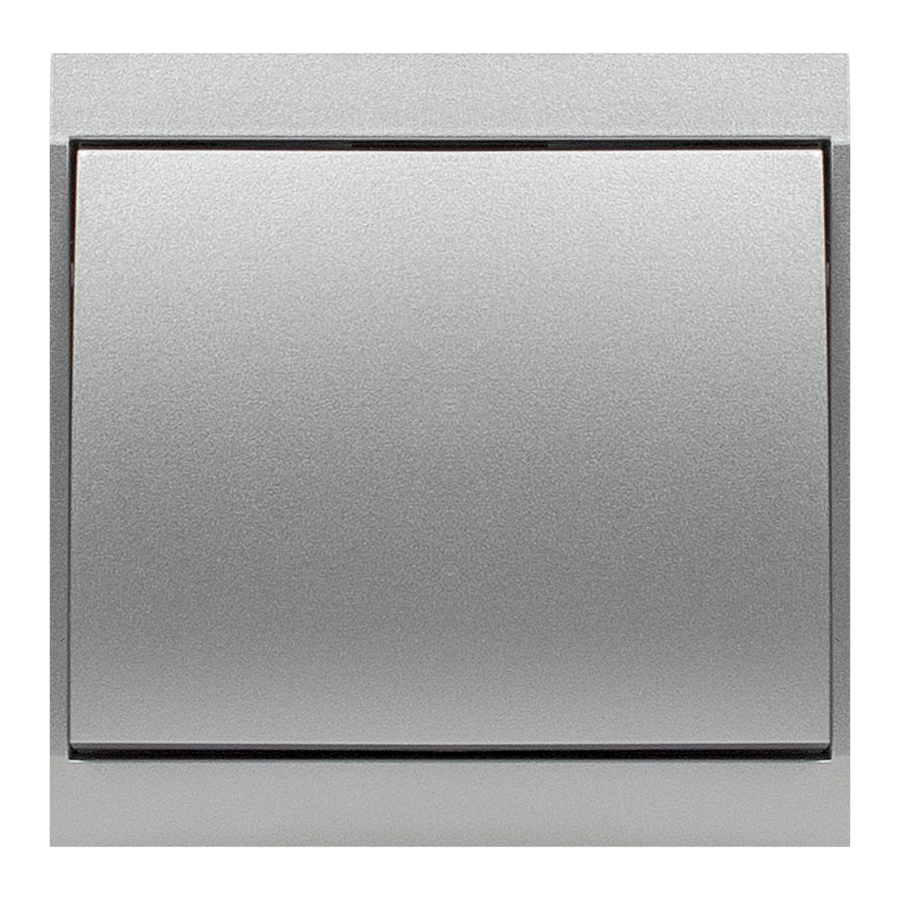

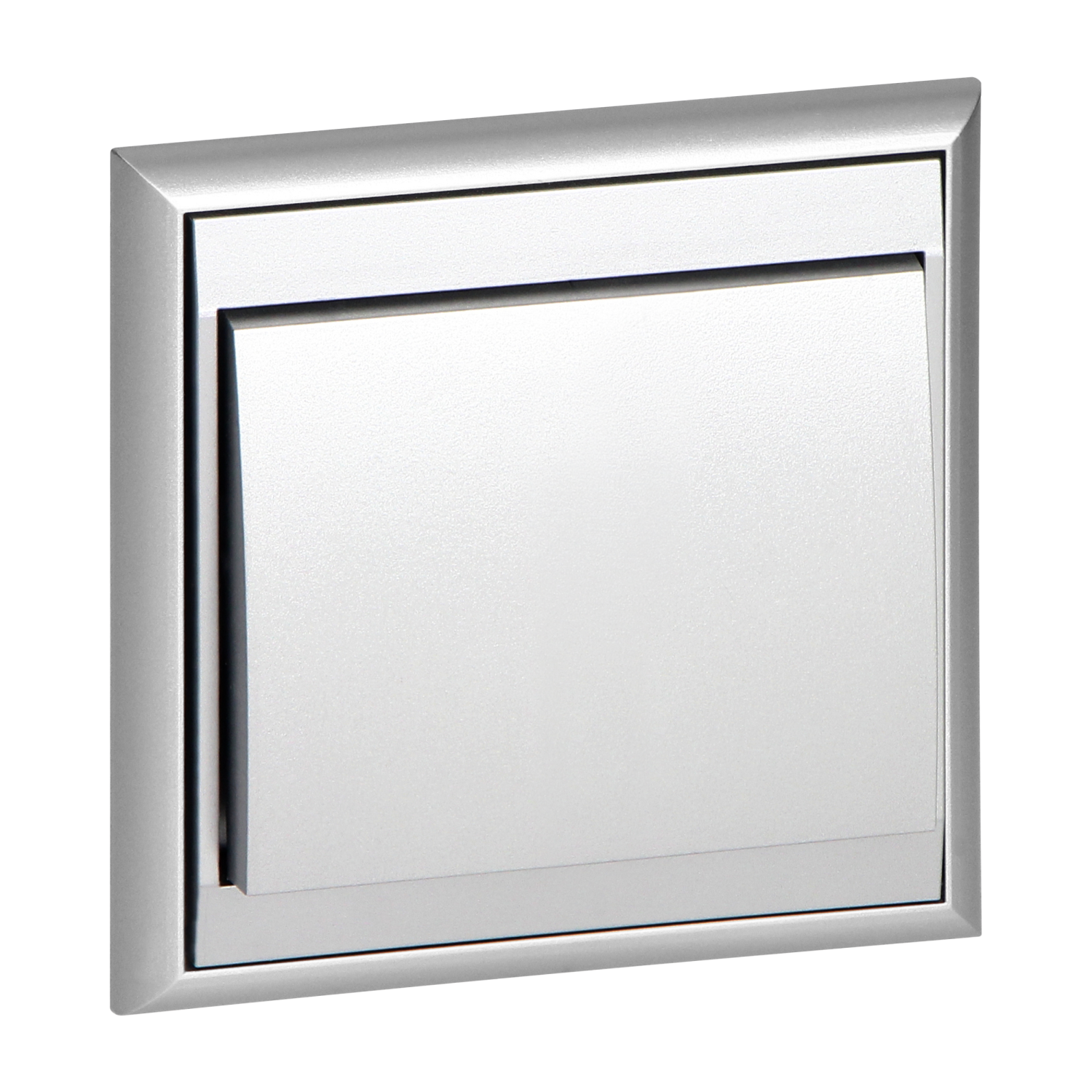

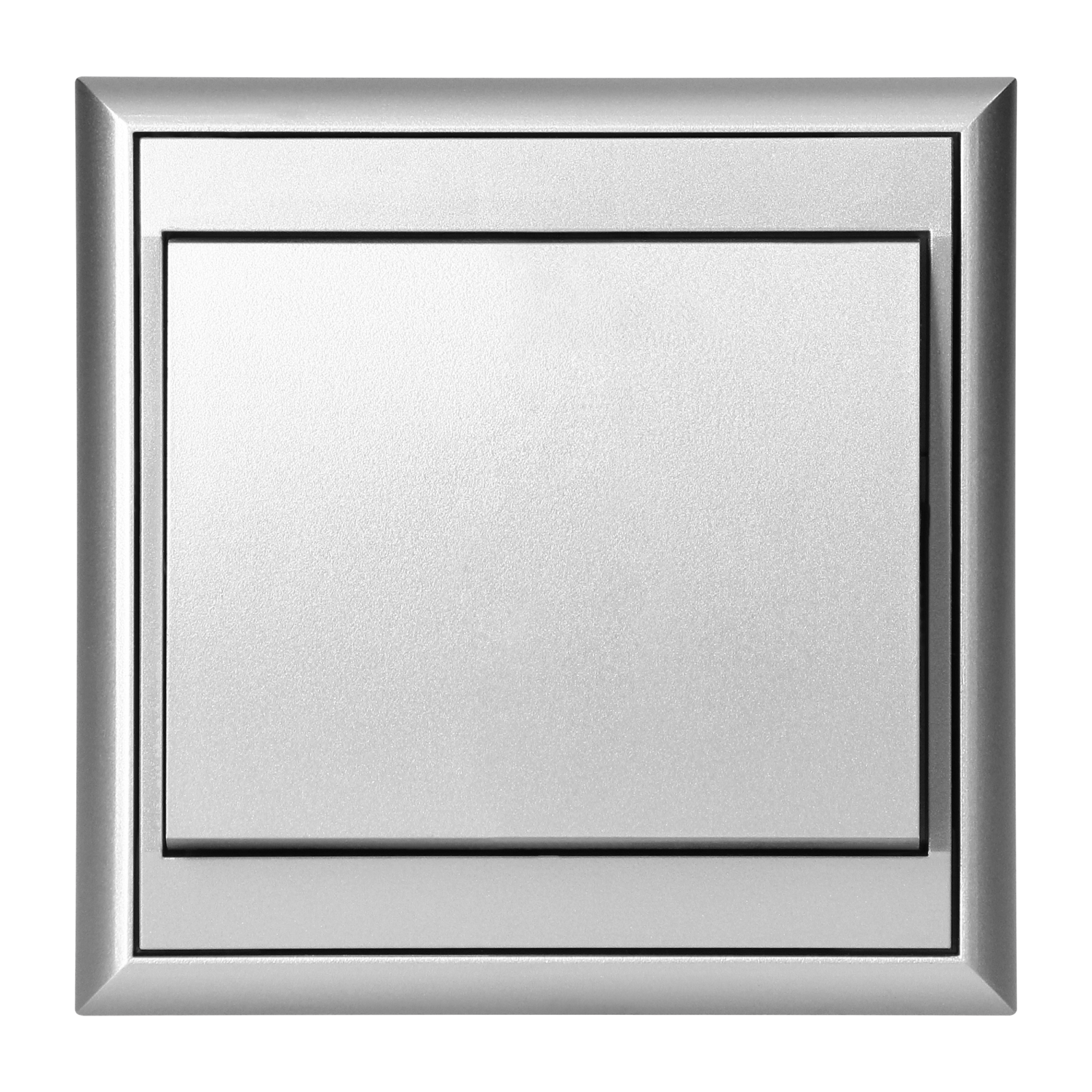

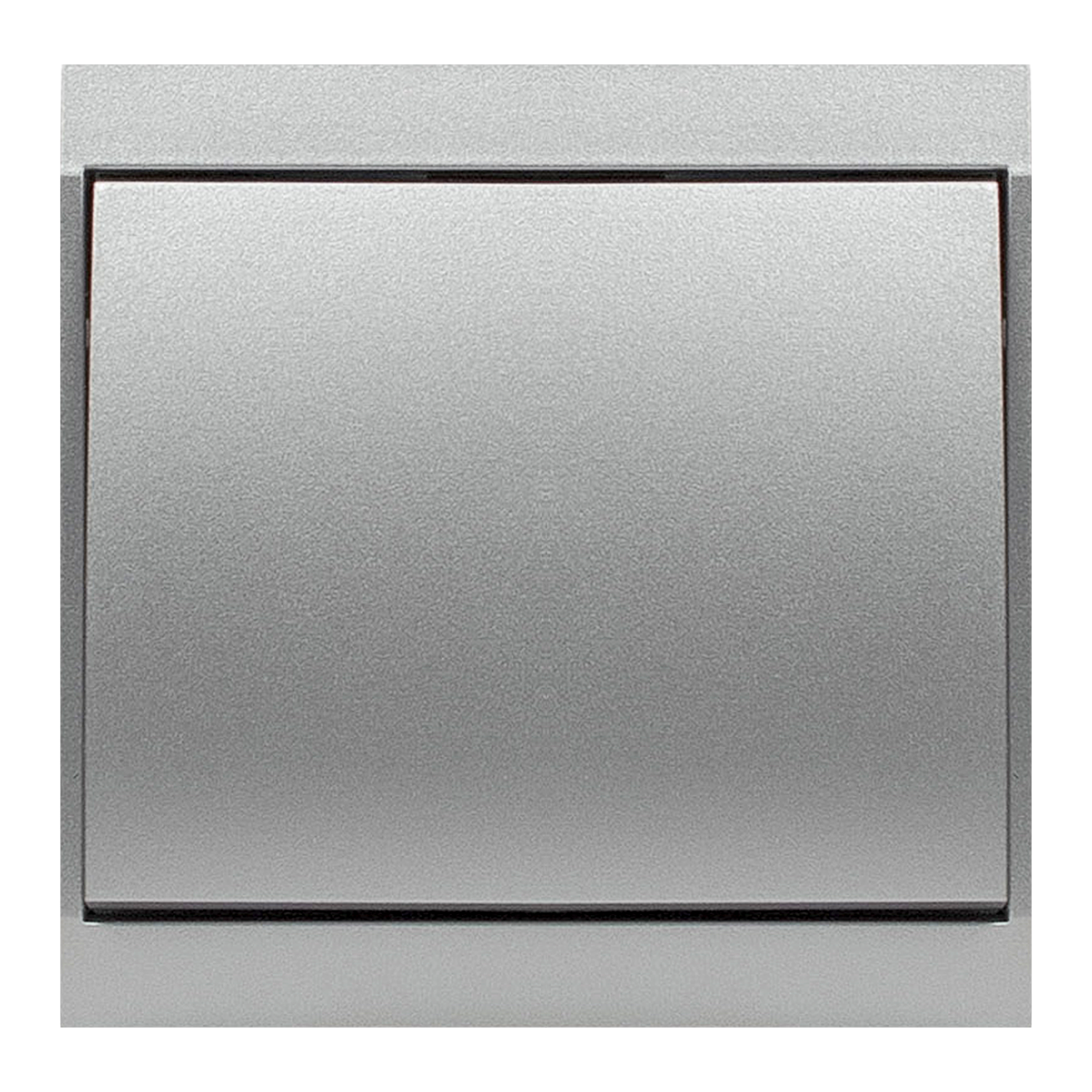

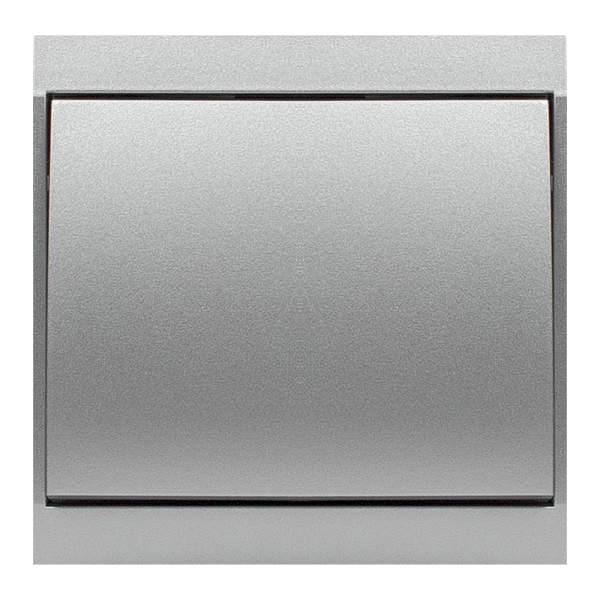

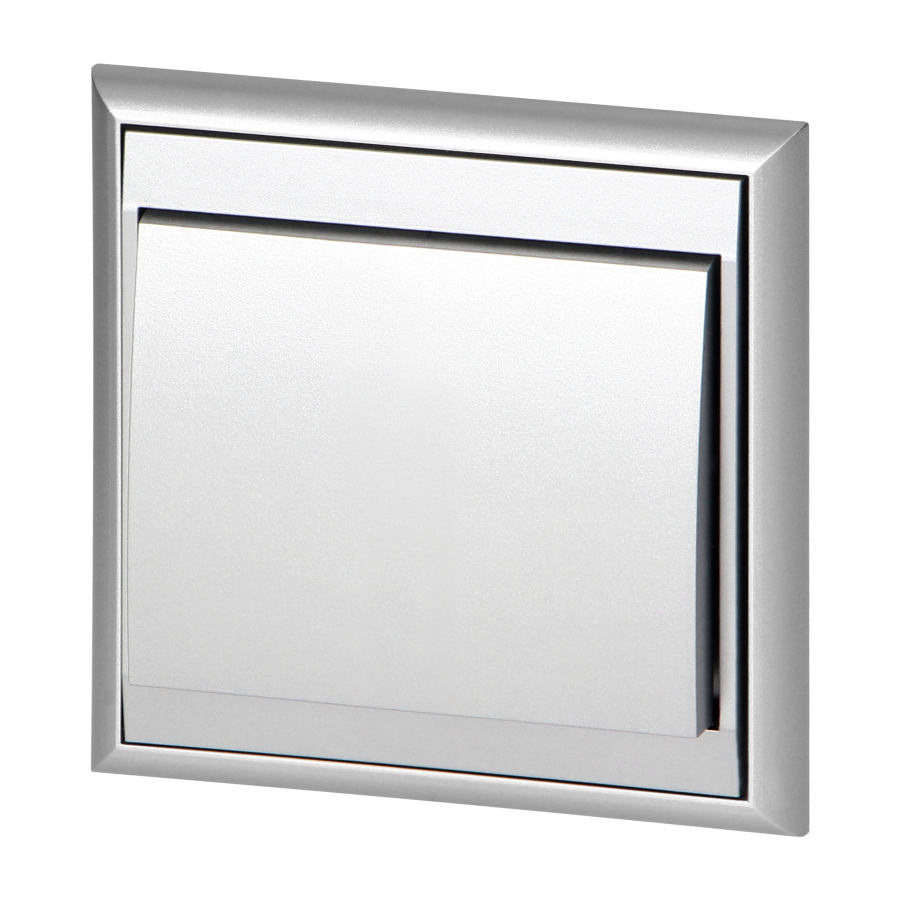

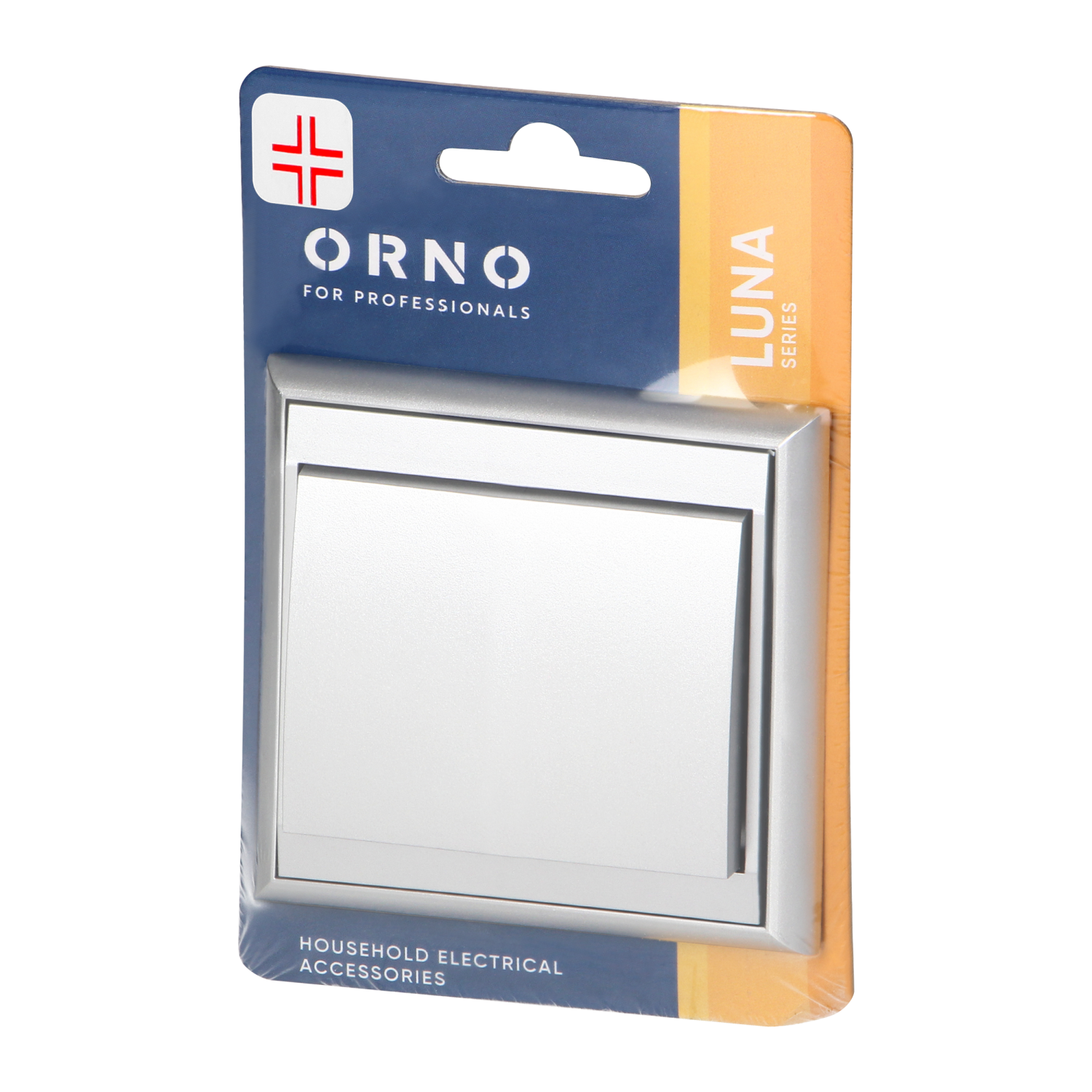

Flush-mounted four-way switch Luna, 10A, 250V, WP-8L, silver
Flush-mounted four-way switch Luna, 10A, 250V, WP-8L, silver
Flush-mounted four-way switch Luna, 10A, 250V, WP-8L, silver
Flush-mounted four-way switch Luna, 10A, 250V, WP-8L, silver
Flush-mounted four-way switch Luna, 10A, 250V, WP-8L, silver
Flush-mounted four-way switch Luna, 10A, 250V, WP-8L, silver
Flush-mounted four-way switch Luna, 10A, 250V, WP-8L, silver
Flush-mounted four-way switch Luna, 10A, 250V, WP-8L, silver
Flush-mounted four-way switch Luna, 10A, 250V, WP-8L, silver
Flush-mounted four-way switch Luna, 10A, 250V, WP-8L, silver

Flush-mounted four-way switch Luna, 10A, 250V, WP-8L, silver

OR-OE-7603/G
New

Description


Do you have lighting controlled from three locations? The Luna WP-8L model allows you to switch the light on and off from several points – e.g. from the beginning, middle and end of a hallway or from different levels of a staircase. It will be useful in a multi-story house, for example when you are upstairs and want to turn off the lights on the ground floor.

The orientation light gently indicates the location of the switch after dark, so you don't have to run your hand along the entire wall to turn on the light.

The rocker switch operates smoothly and precisely – one movement and the light is on.

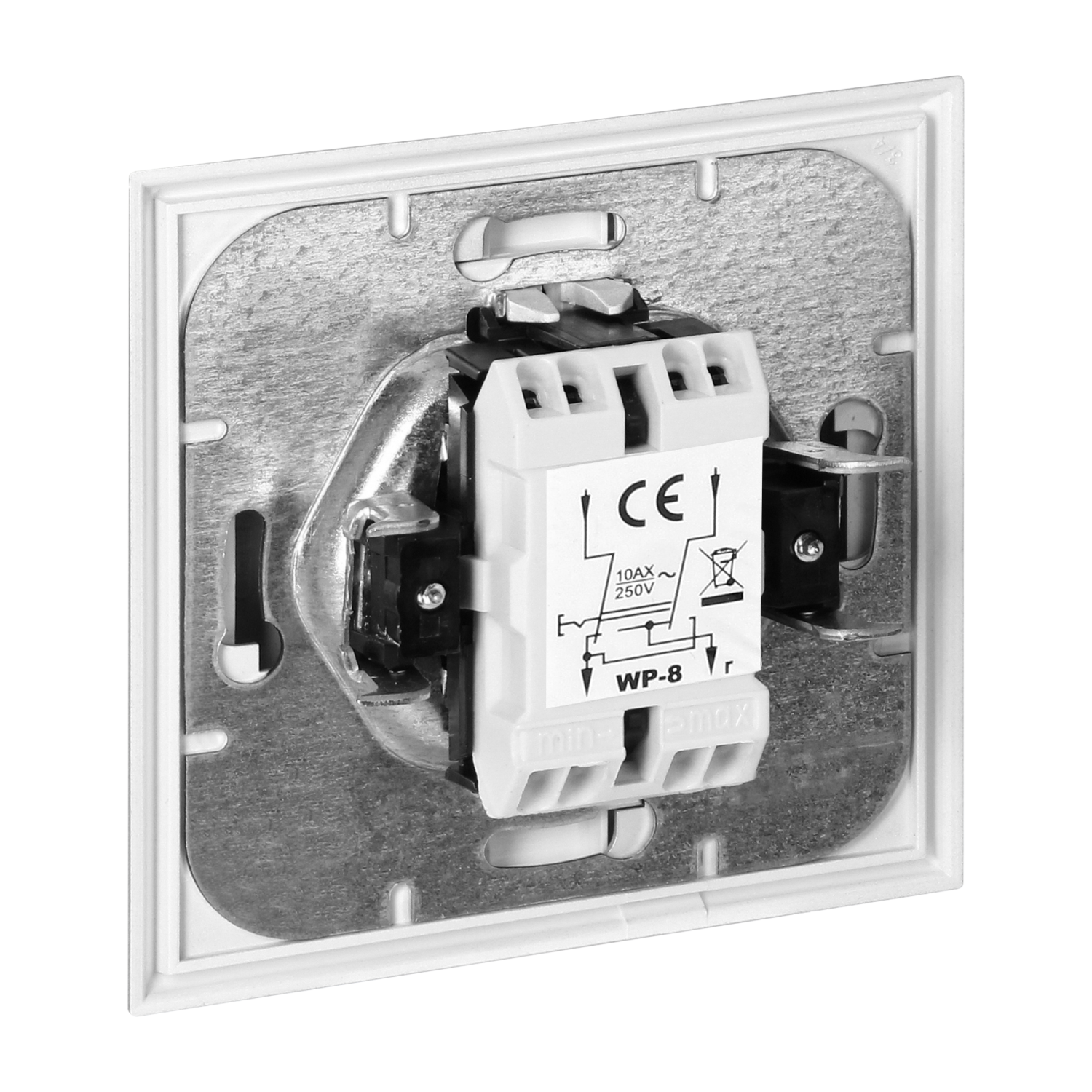

The switch is flush-mounted with screws or claws in a standard box. Minor scratches resulting from everyday use are almost invisible on its silver surface.

The WP-8L connector, together with other Luna elements, creates a coherent line of accessories that corresponds with modern interior.

Why choose the Luna four-way connector:

control lighting from three or more locations,

orientation lighting makes it easy to find the button after dark,

silver painted finish,

easy installation in a standard box,

part of the Luna system – match with other elements in the same style.

General information:
Wiring system: Łącznik krzyżowy
Method of operation: Przycisk wahadłowy
Assembly arrangement: Element systemu modułowego do osprzętu elektroinstalacyjnego
Number of rockers: 1
Mounting method: Montaż podtynkowy
Type of fastening: Montaż pazurkowy /-śrubowy
Material: Tworzywo sztuczne
Material quality: Tworzywo termoplastyczne
Surface protection: Malowanie
Colour: Srebrny
Label space/information surface: Nie
Illumination: Tak
Function lighting: Orientacyjne
Suitable for degree of protection (IP): IP20
Nominal voltage [V]: 250
Frequency [Hz]: 50
Rated current [A]: 10
Connection type: Zacisk śrubowy
Device width [mm]: 81
Device height [mm]: 81
Device depth [mm]: 13
Built-in depth [mm]: 27
Min. depth of built-in installation box [mm]: 27

Files to download

File category File language File type File update date
Product data sheetPLpdf2026-03-04 08:38:28Download
Product data sheetENpdf2026-03-04 08:50:28Download
