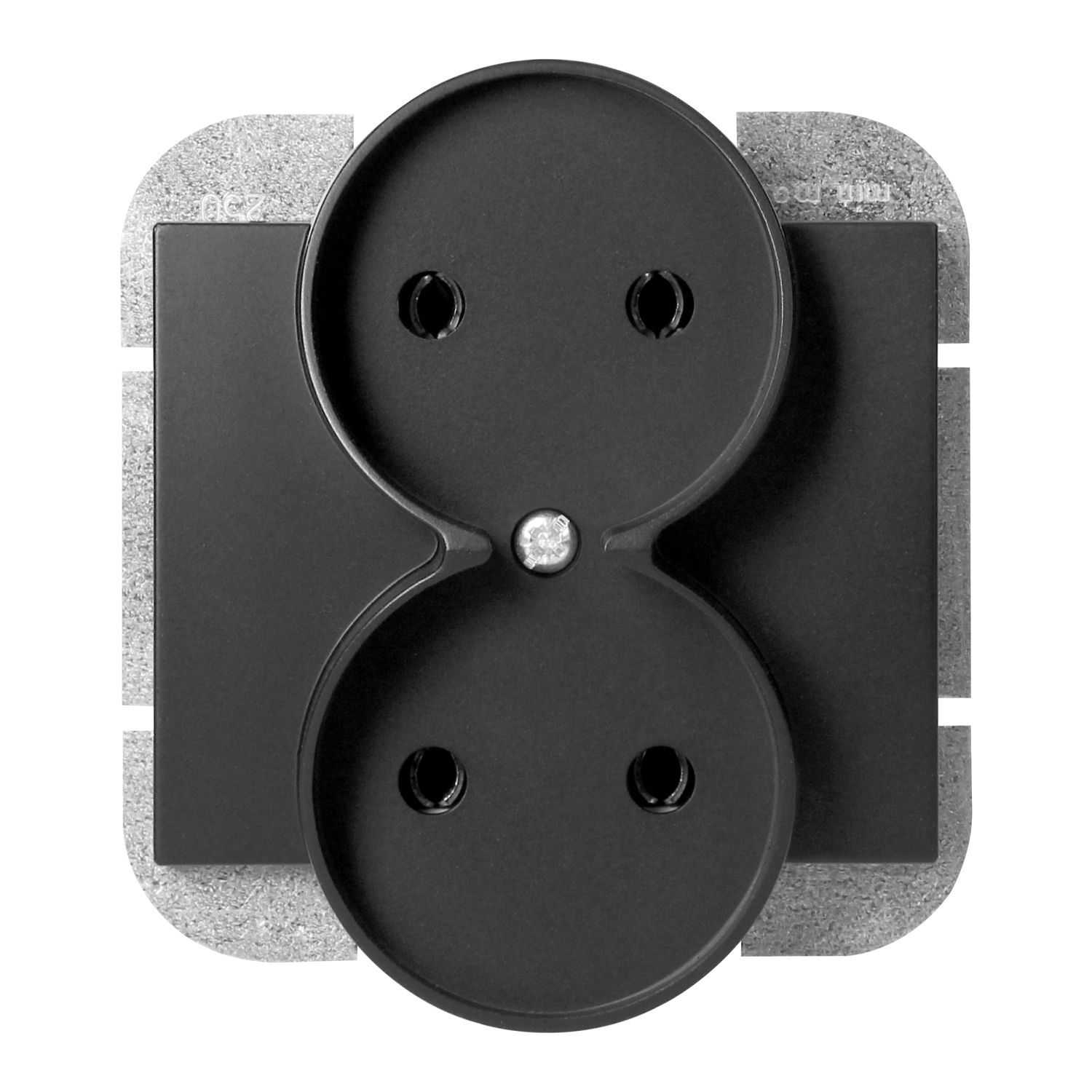

Flush-mounted sockets
<
Need two sockets but still want the wall to look neat? The double socket allows you to connect two devices at once: a charger and a night light, a desk fan and a Bluetooth speaker, an electronic alarm clock and a radio – without additional splitters and cables hanging from the socket.
Installation is simple: flush-mounted with screws or claws in a standard box. You only need to connect the wires once. The screw terminals hold securely, so the socket does not require any adjustments.
The matte, painted surface is non-shiny, does not collect fingerprints and fits perfectly into modern interiors.
For the black double socket, choose switches and frames from the same Onyx series.
Why you need a PT-5OR socket:
two sockets in one place,
simple installation in a standard box,
matte surface without fingerprints,
part of the Onyx system, which can be easily combined with other modules.
| General information: | |
|---|---|
| Model: | CEE 7/1 bez uziemienia |
| Protective contact: | Brak |
| Number of units: | 2 |
| Number of modules (module system): | 1 |
| Number of phases: | 1 |
| Connection type: | Zacisk śrubowy |
| With enhanced contact protection: | Nie |
| Label space/information surface: | Nie |
| Colour: | Czarny |
| Mounting method: | Montaż podtynkowy |
| Type of fastening: | Montaż pazurkowy /-śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Surface protection: | Malowanie |
| Surface finishing: | Matowy |
| Nominal current [A]: | 16 |
| Nominal voltage [V]: | 250 |
| Frequency [Hz]: | 50 |
| Suitable for degree of protection (IP): | IP20 |
| Device width [mm]: | 98 |
| Device height [mm]: | 82 |
| Device depth [mm]: | 11 |
| Built-in depth [mm]: | 30 |
| Min. depth of built-in installation box [mm]: | 30 |
