Flush-mounted junction boxes

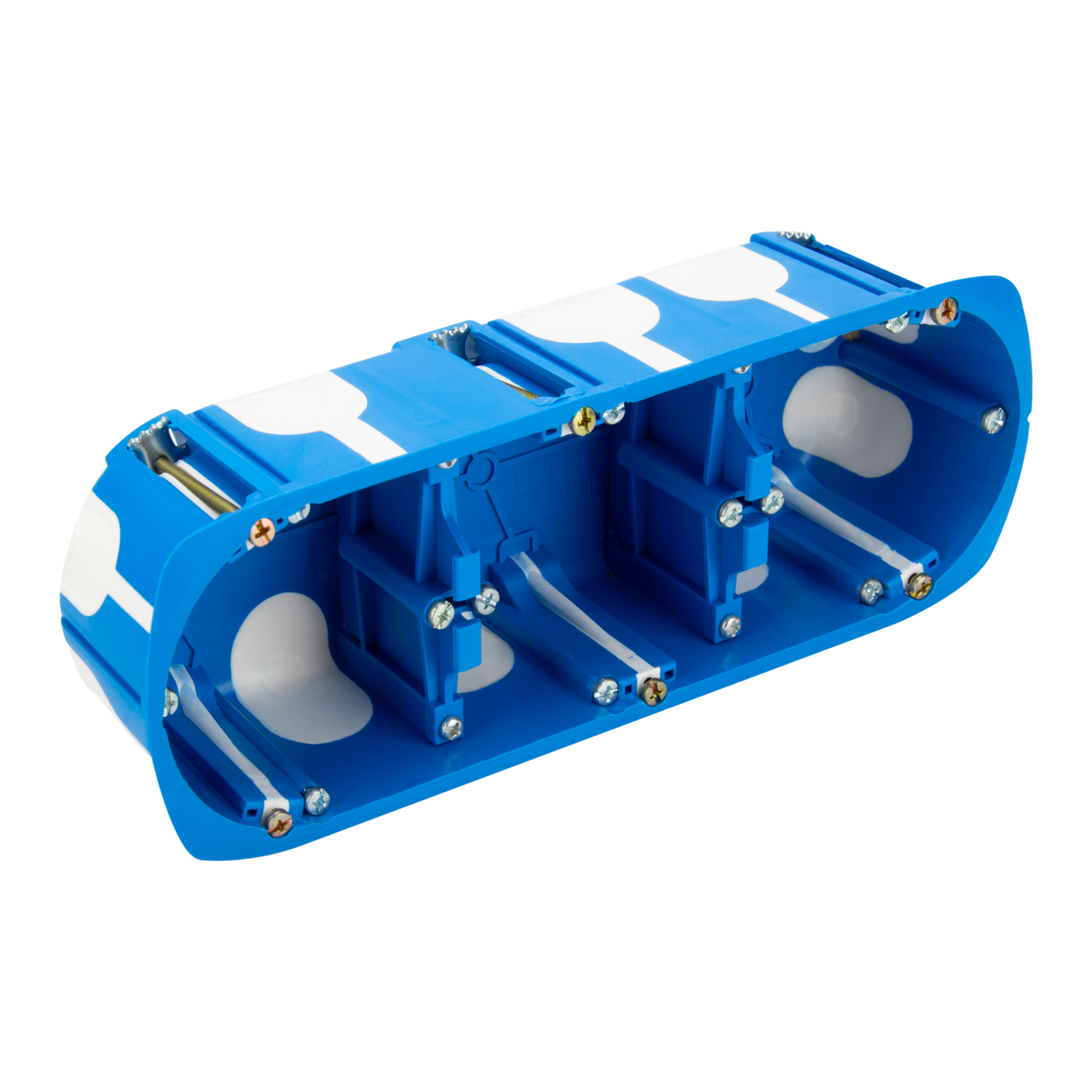

The triple windproof in-wall junction box is a functional solution for installing sockets in the wall. It has an oval shape and is equipped with 8 grooves enabling easy installation of sockets.
The tubular cable grommets and a membrane gland are suitable for 16x20 mm and 20/25 mm diameter pipes. Additionally, it is equipped with an internal partition and windproof elements, ensuring effective protection of the installation. The box has outlets at the back, which facilitate its installation and ensure stability.
Made of blue plastic. Designed for wall mounting. Dimensions: 200x67x50 mm.
| General information: | |
|---|---|
| Mounting method: | Montaż podtynkowy |
| Shape: | Owalny |
| Construction type: | Puszka elektroinstalacyjna |
| Model: | Potrójny |
| Width [mm]: | 200 |
| Heigh [mm]: | 67 |
| Depth [mm]: | 50 |
| With screws: | Tak |
| Housing feed-through by nozzle: | Tak |
| Housing feed-through by step membrane: | Tak |
| For tube diameter [mm]: | 16/20; 20/25; |
| Inlet from the rear: | Tak |
| Number of inlets: | 8 |
| Material: | Tworzywo sztuczne |
| Colour: | Niebieski |
| Air tight: | Tak |
| With partition panel: | Tak |
