External panels

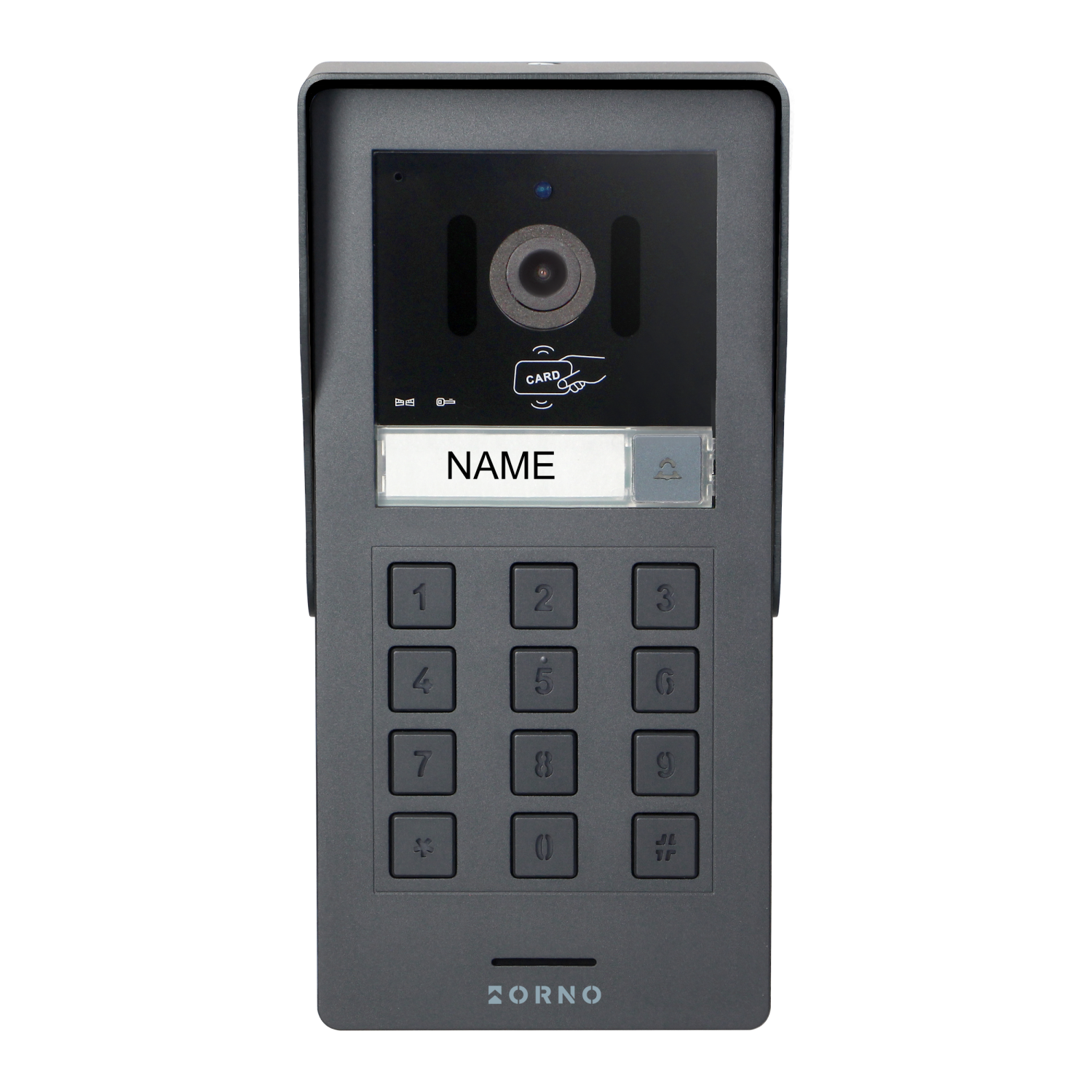

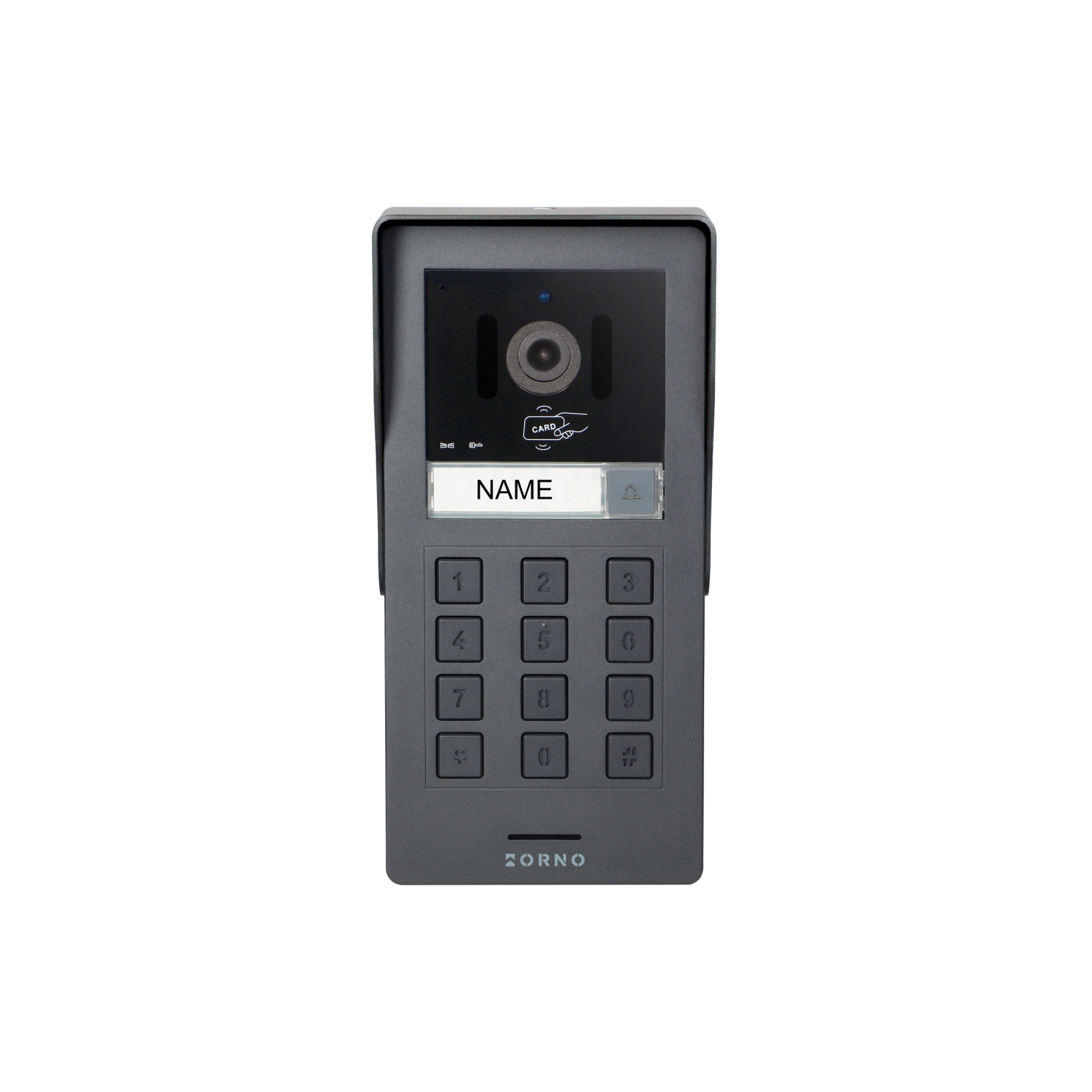

The outdoor unit to extend GADI and GAYD sets is equipped with a 2MP camera that both takes photos and records very good video in Full HD quality. A wide viewing angle of 52° vertically and 105° horizontally provides a full image in front of the gate.
Additionally, IR lighting guarantees visibility at night, without blinding the guest (range up to 1 m).
The built-in motion sensor records photos and videos when a movement is detected (it may detect an intruder and alert about this event). The data is then recorded on a microSD card installed in the monitor
.
The aluminium outdoor unit has an IP65 rating and a rain cover, thus guaranteeing durability. The built-in code lock and 125 kHz RFID card and key tag reader facilitate entry for authorized persons, and the name tag allows guests to easily find the right property without the risk of confusion. The set includes 5 key tags.
Possibility of expanding the sets with additional outdoor unit (max. 2 in the set).
The outdoor unit is anthracite with dimensions of 91x184x43 mm. It may be surface of flush mounted which is a universal solution.
| General information: | |
|---|---|
| Installation technique: | Dwużyłowe |
| Number of wires: | 2 |
| Mounting method: | Montaż natynkowy lub podtynkowy |
| Number of call buttons: | 1 |
| Operation mode: | Przycisk |
| With camera: | tak |
| Resolution of the camera: | 2MP, 1920x1080, 1080p |
| View angle (horizontal): | 105° |
| View angle (vertical): | 52° |
| Night lighting: | IR |
| With digital door code: | tak |
| Card and proximity tags reader: | tak |
| RFID tags frequency: | 125kHz |
| Label space/information surface: | tak |
| With cover: | tak |
| Degree of protection (IP): | IP65 |
| Material front: | Aluminium |
| Colour: | Antracyt |
| Width [mm]: | 91 |
| Height [mm]: | 184 |
| Depth [mm]: | 43 |
| Built-in width [mm]: | 83 |
| Built-in height [mm]: | 183 |
| Built-in depth [mm]: | 35 |
| Other features: | RFID - max. 200 użytkowników (5 breloków w zestawie) |
