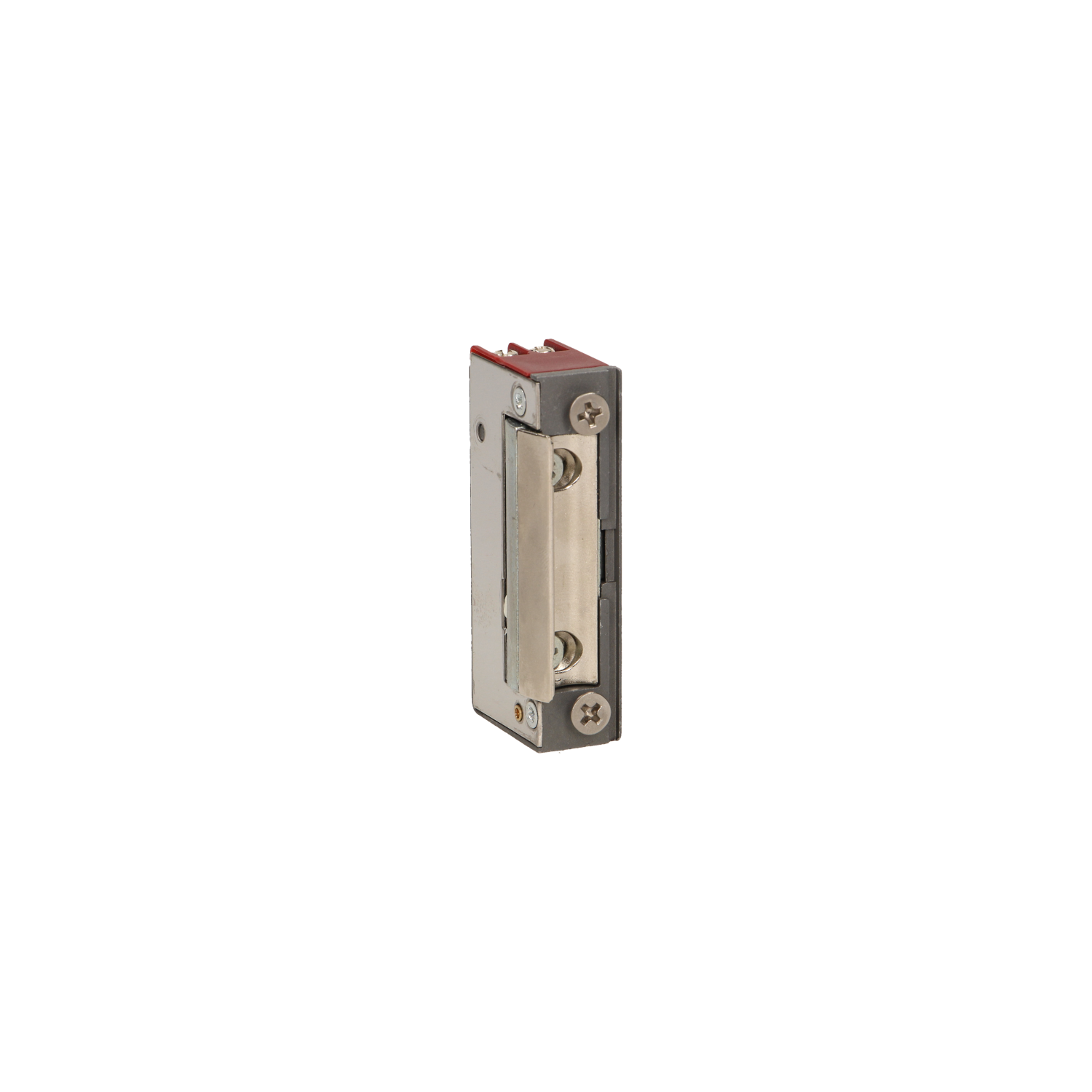

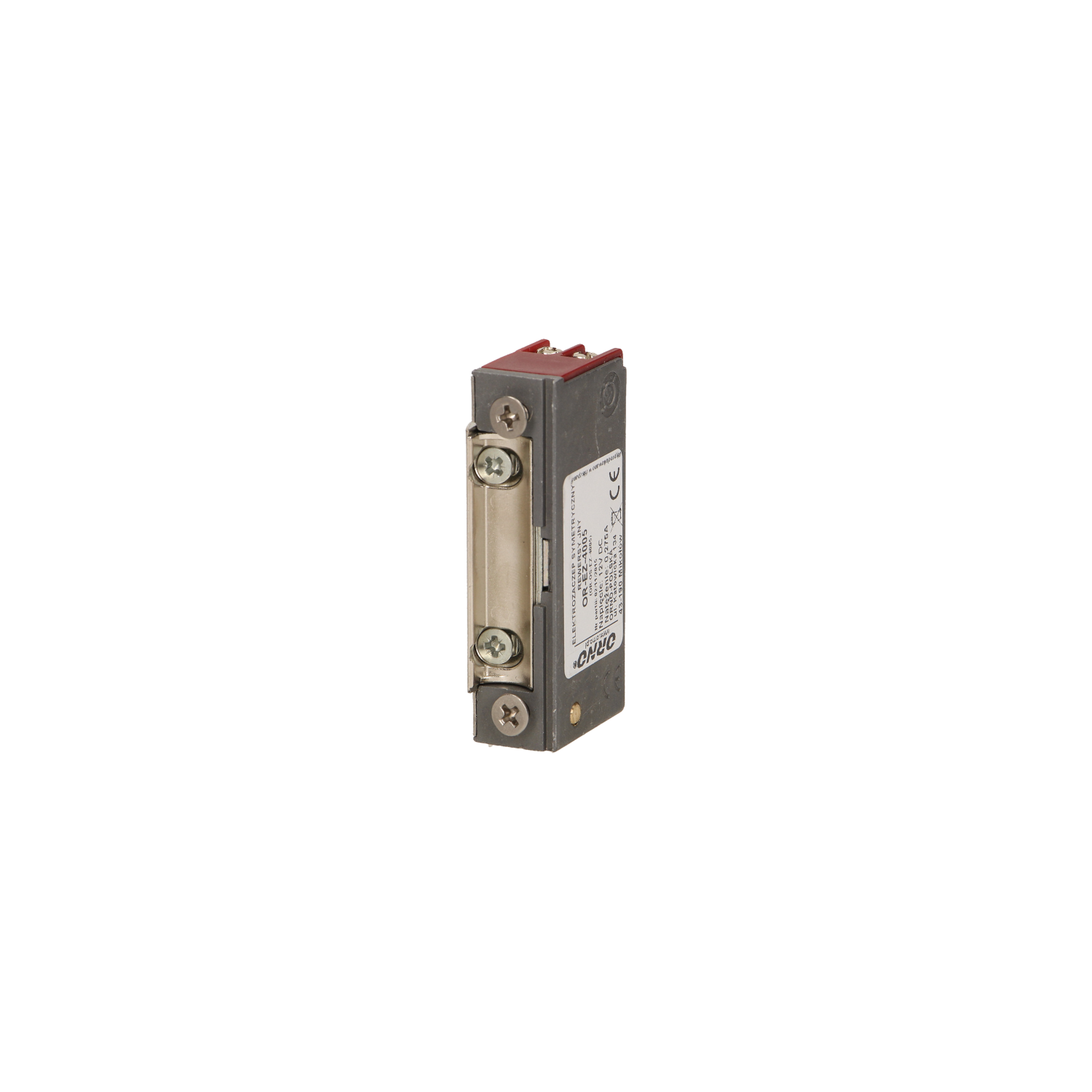

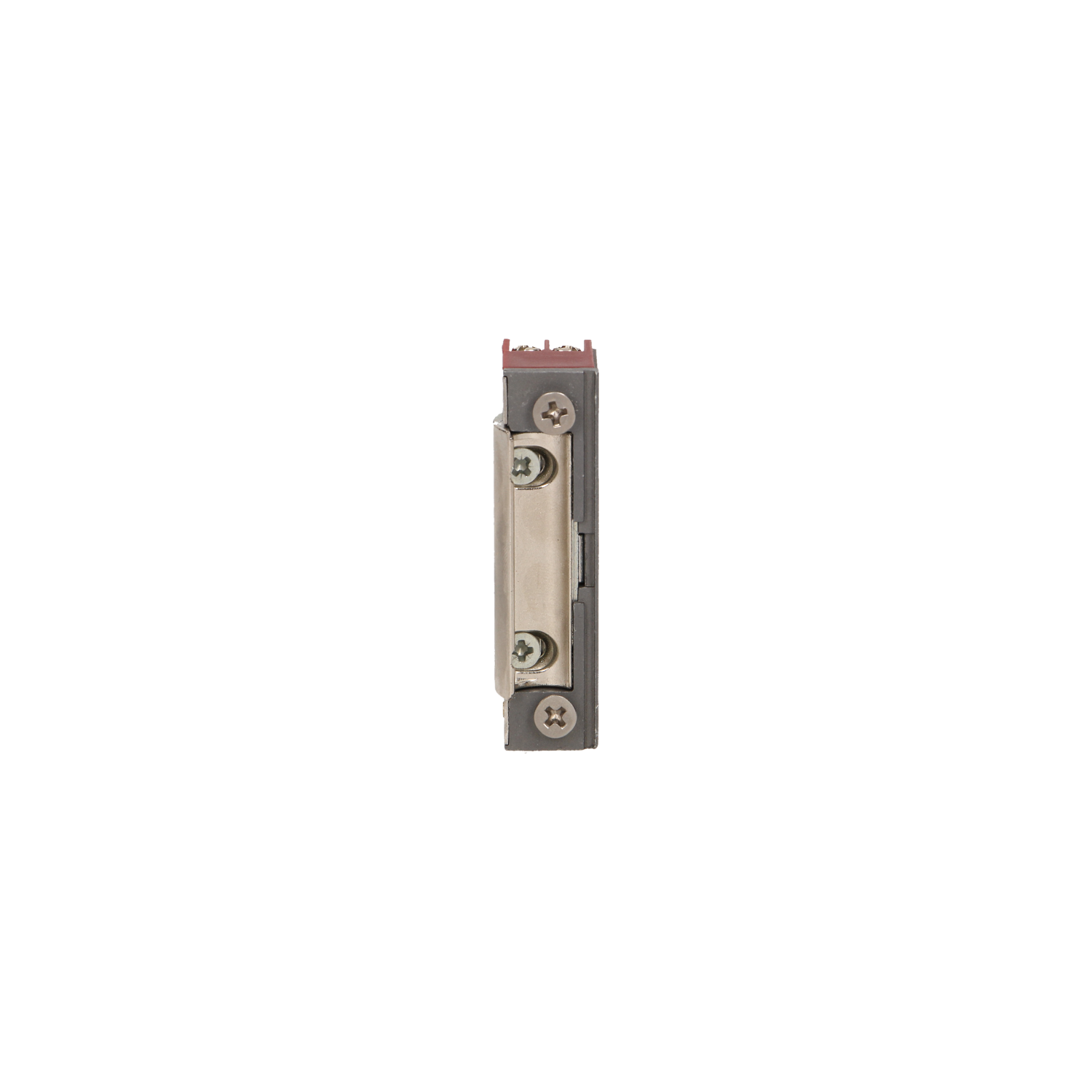

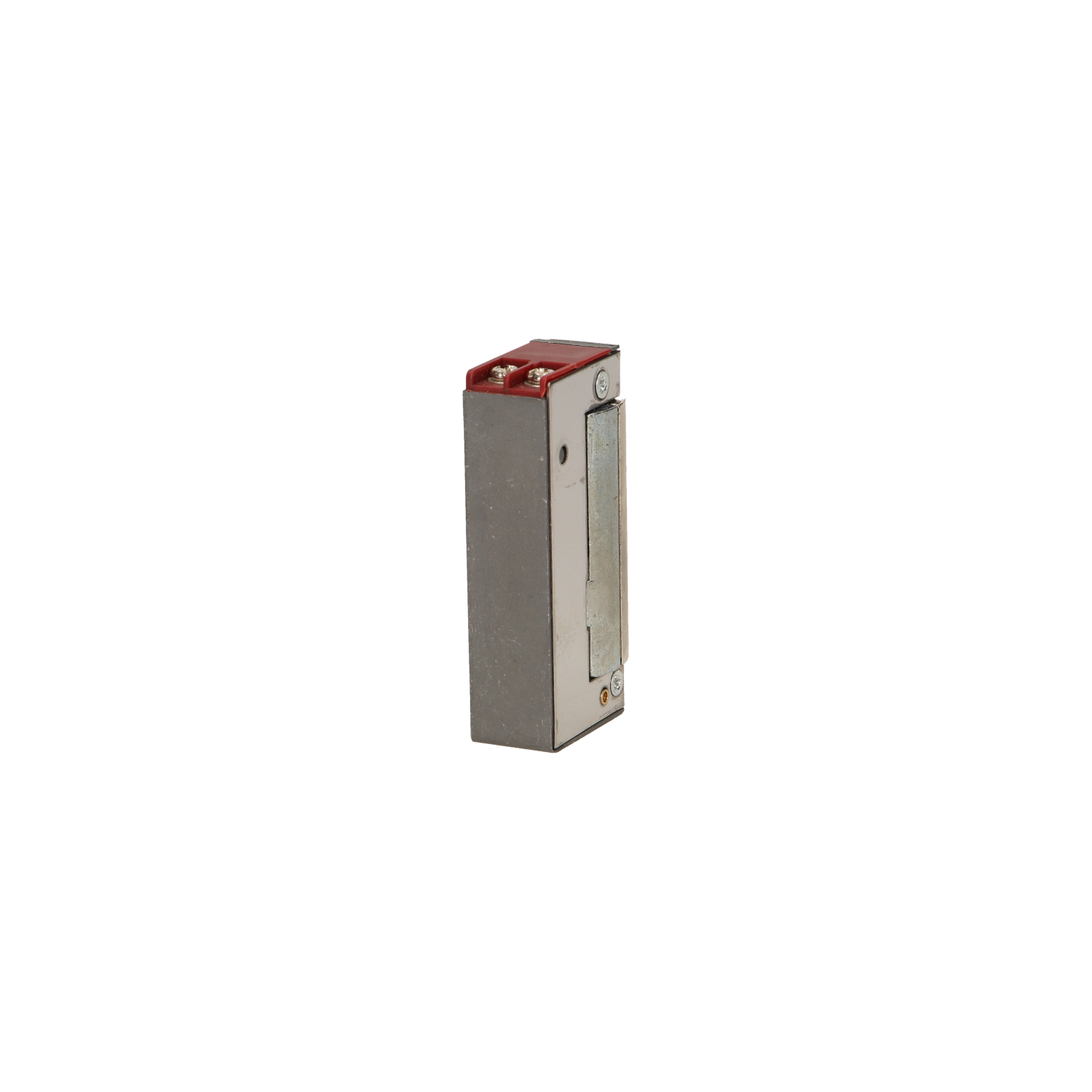

Symmetric electric strike, reversible, MINI
Symmetric electric strike, reversible, MINI
Symmetric electric strike, reversible, MINI
Symmetric electric strike, reversible, MINI
Symmetric electric strike, reversible, MINI
Symmetric electric strike, reversible, MINI
Symmetric electric strike, reversible, MINI
Symmetric electric strike, reversible, MINI
Symmetric electric strike, reversible, MINI
Symmetric electric strike, reversible, MINI

Symmetric electric strike, reversible, MINI

OR-EZ-4005
Archived product

Description

The smallest electric strike available on the market It can work with the doorphones, video doorphones installation and code locks in the front of single- and multi-family doors It can be mounted on the outside of the standard faceplate Symmetrical design and small dimensions enable the use in sliding gates systems, narrow pots and door frames Made of corrosion resistant materials (aluminum and zinc alloy) Equipped with: safe, patented and adjustable latch keeper mechanism.

General information:
Power consumption during operation: 270 mA
Direction of opening: right/left
Latch adjustment: No
Door open indicator: No
Latch guide: No
Mechanical unlocking: No
Dimensions - depth: 28.1 mm
Dimensions - height: 65.6 mm
Other features: mini size
Memory: No

Files to download

File category File language File type File update date
Product data sheetPLpdf2025-05-07 12:45:19Download
Product data sheetENpdf2025-05-07 12:58:19Download
