Electric strikes

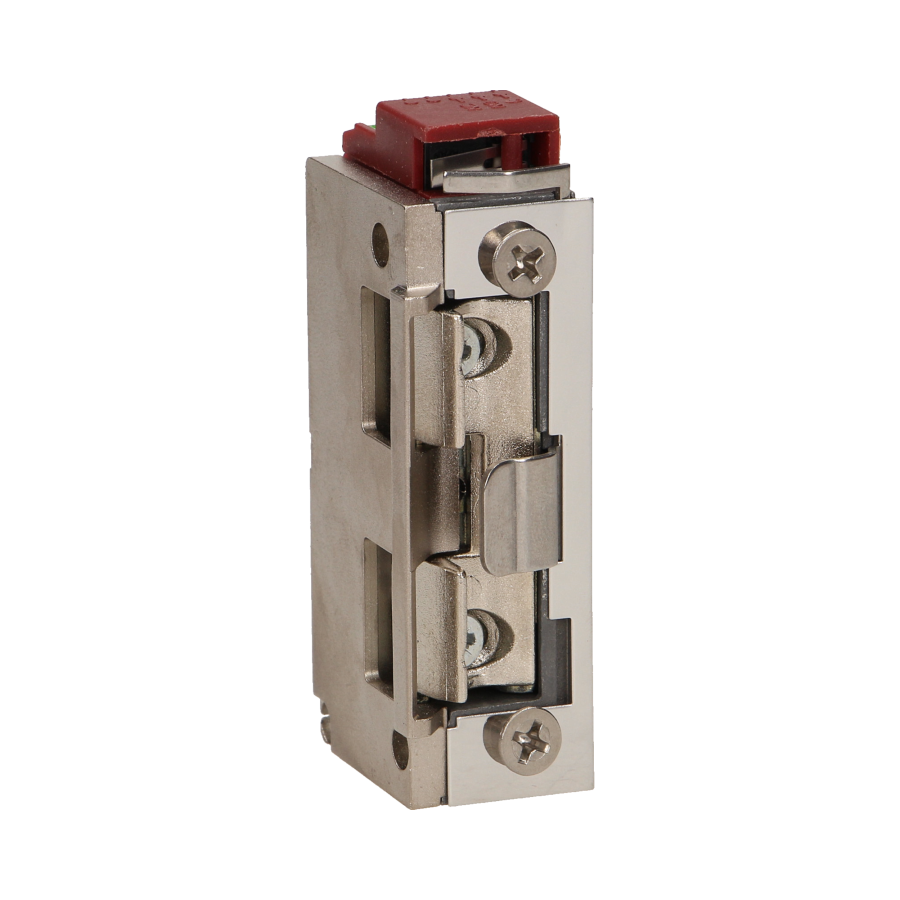

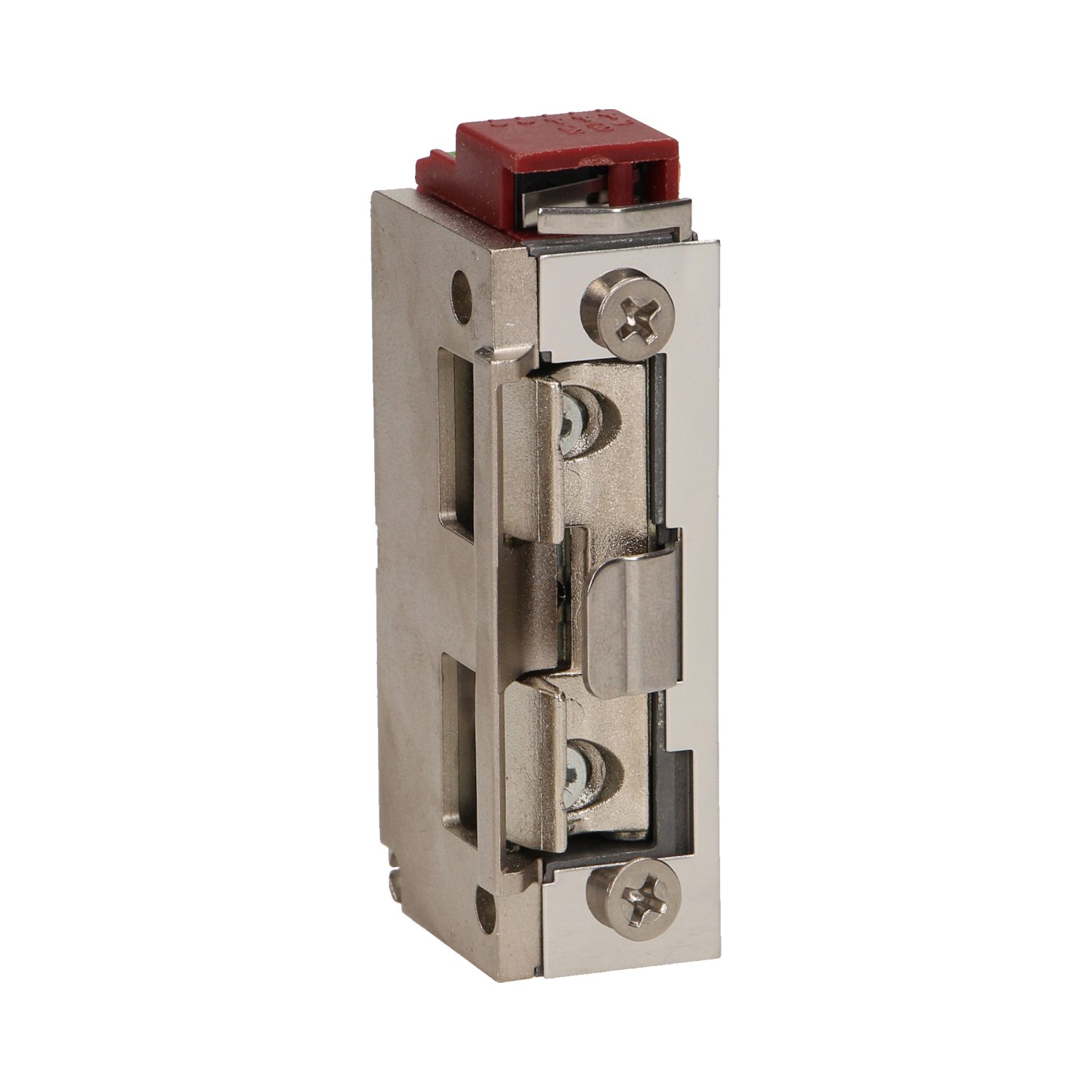

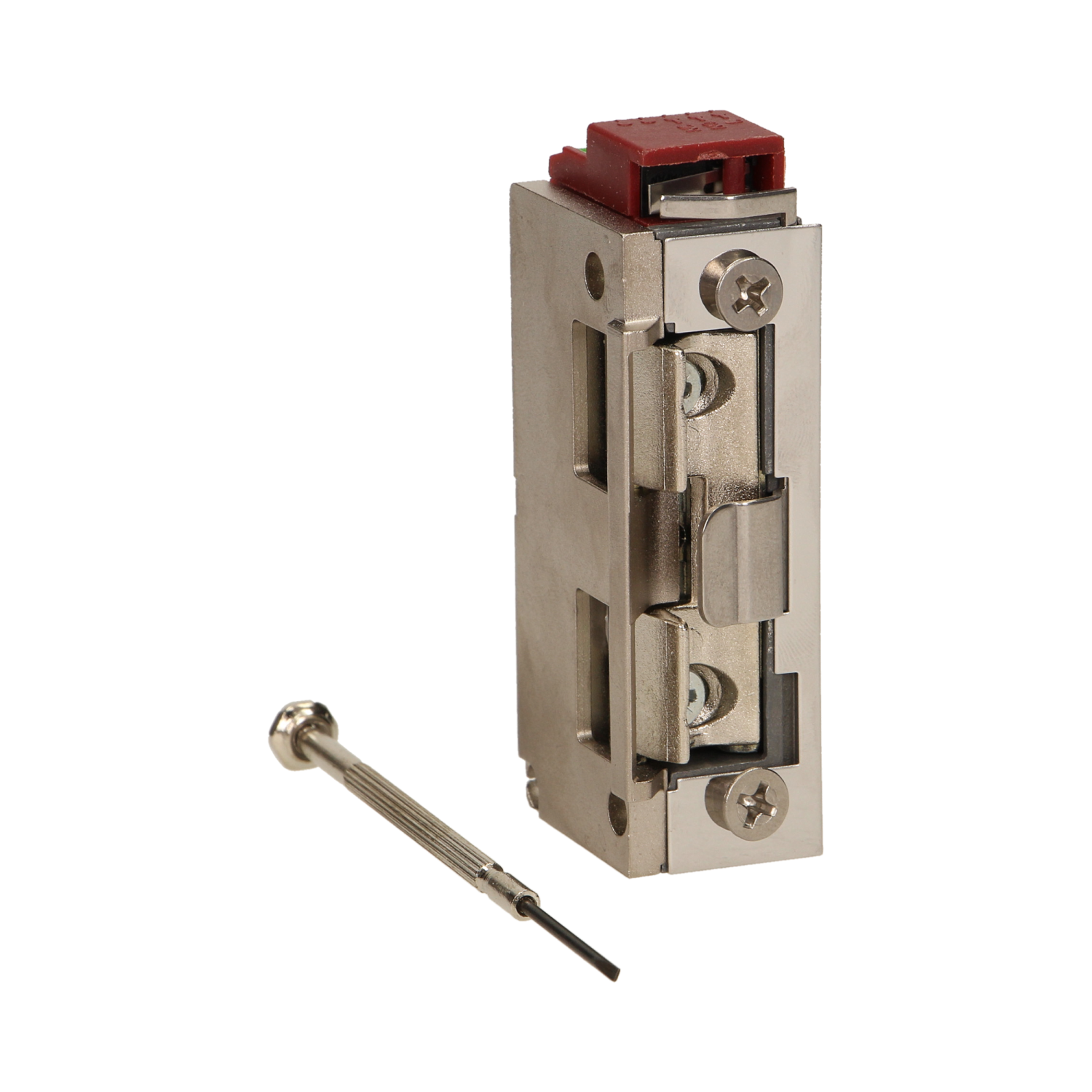

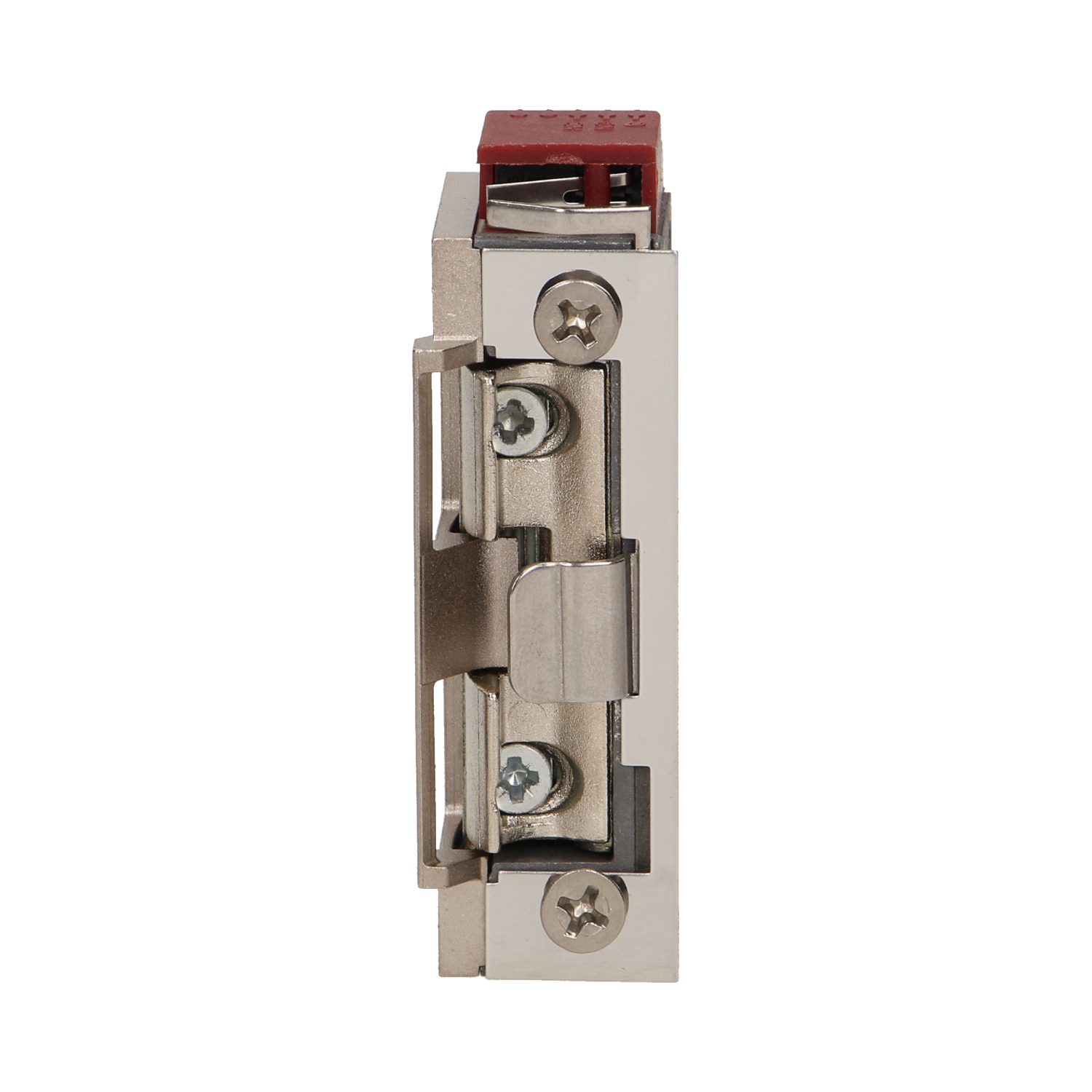

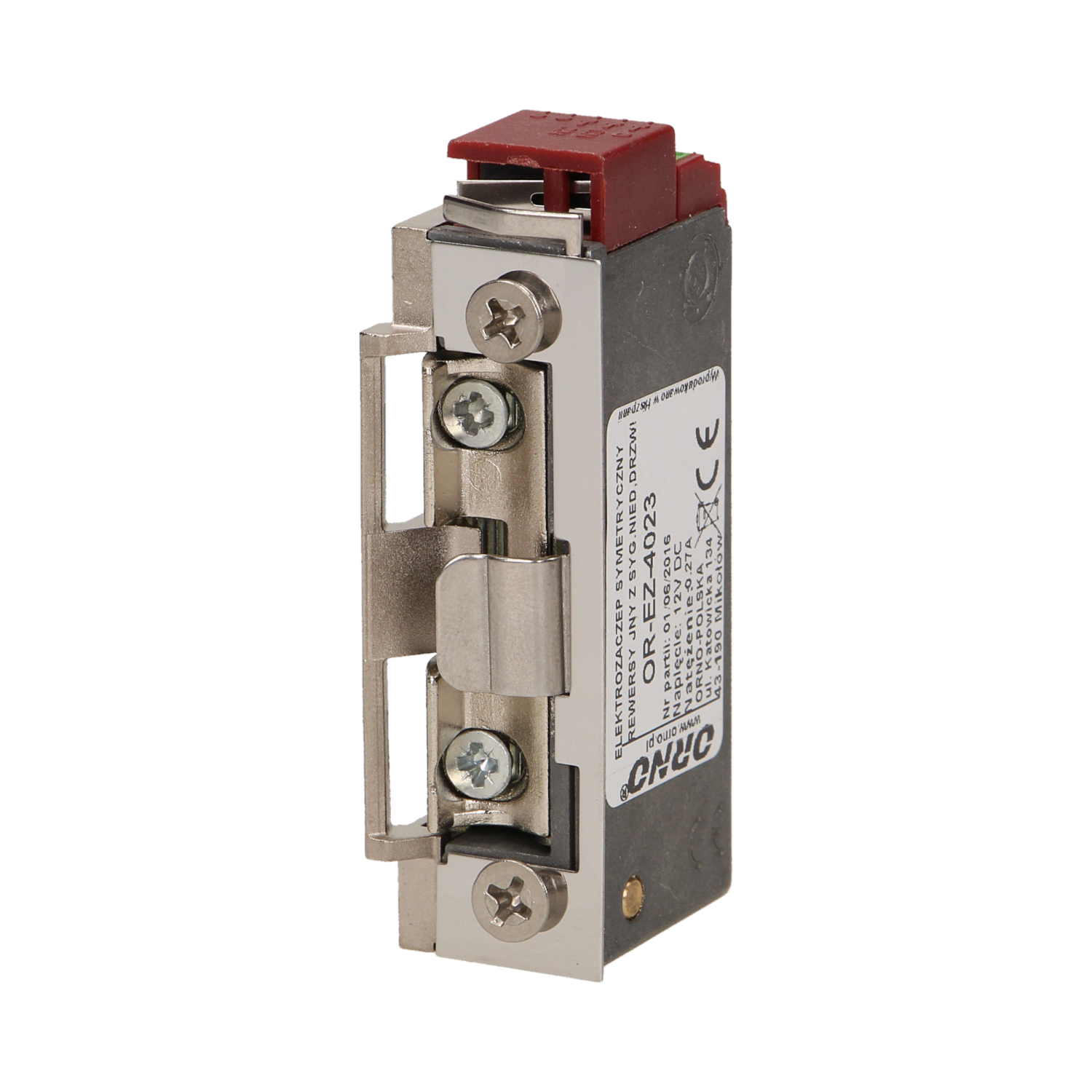

Small symmetrical electric strike with the latch guide and adjustable ratchet It is used in door entry systems, video doorphones, locks, at the front door of single- and multi-family Recommended for large faceplates, mounted in wooden door frames Made from Alloy Zamak, which is extremely durable and resistant to corrosion Equipped with: safe, patented and adjustable latch keeper mechanism (2mm) Continuous supply of power locks the latch It is equipped with a microswitch through which we can control the buzzer or siren, which can signal the not properly closed door.
| General information: | |
|---|---|
| Power consumption during operation: | 290mA 12V AC |
| Direction of opening: | right/left |
| Nominal voltage: | 12V DC |
| Door open indicator: | Yes |
| Latch guide: | Yes |
| Mechanical unlocking: | No |
| Dimensions - depth: | 28.1 mm |
| Dimensions - width: | 21,2 mm |
| Dimensions - height: | 65.6 mm |
| Other features: | signalisation of a half-closed door |
| Memory: | No |
