Distribution blocks
New

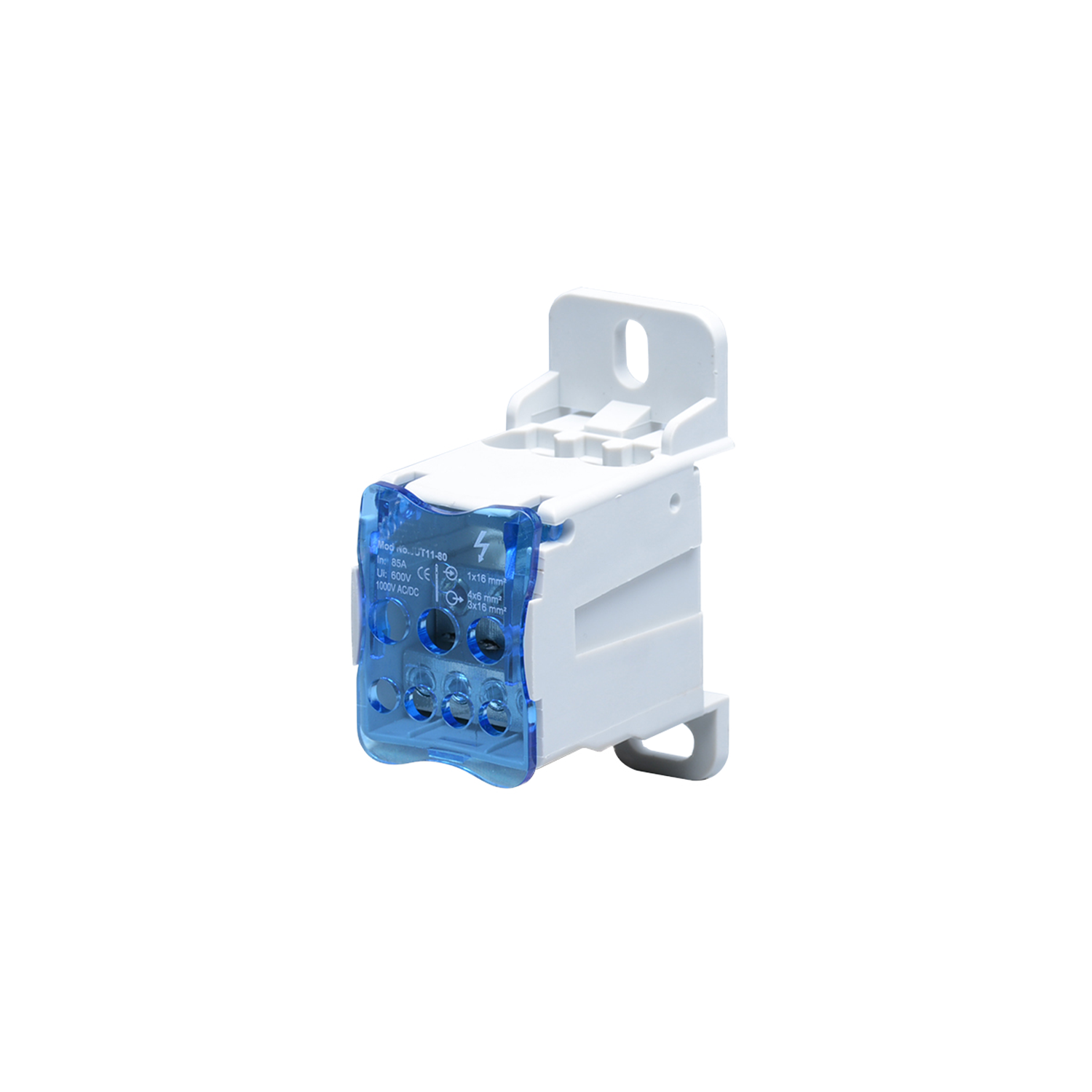

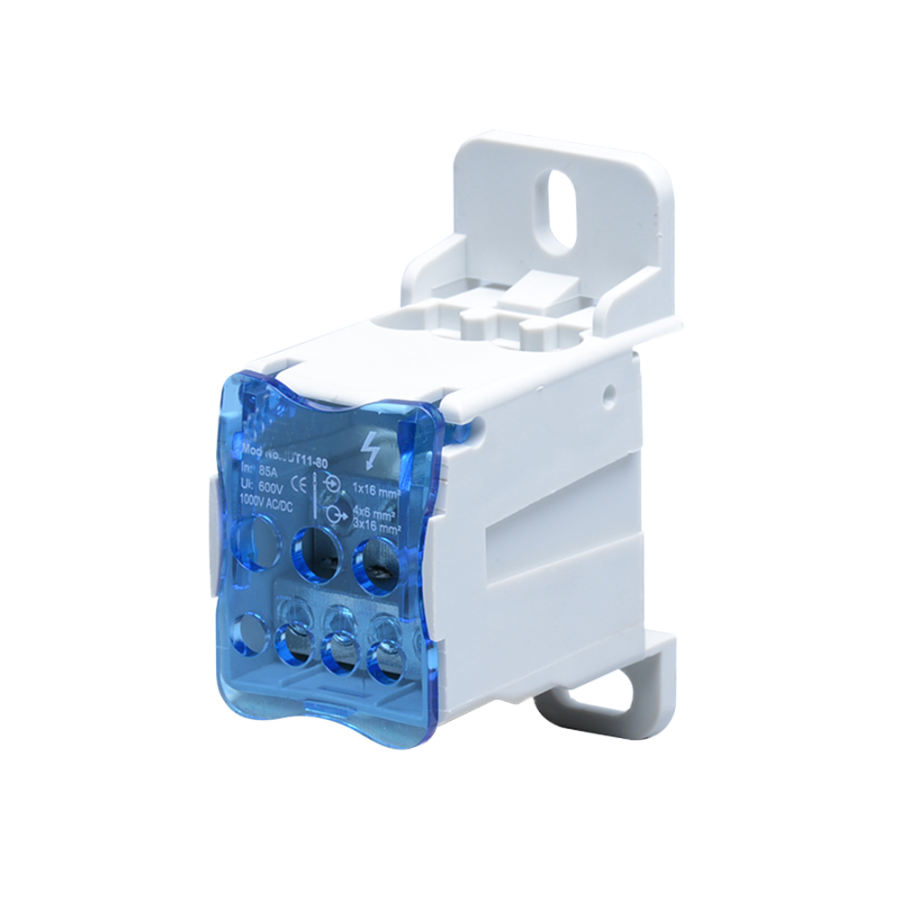

Power distribution blocks, suitable for DIN rail or mounting on a plate, help to connect heavy section cables. These blocks are used in electric switchboards and industrial casings for energy distribution.
| General information: | |
|---|---|
| Type: | distribution block |
| Input screw terminals: | 1x 6-16 |
| Current: | 80 A |
| Output terminals: | 4x 2,5-6; 2x 2,5-16 mm² |
| Installation: | DIN rail / mounting plate |
| Degree of protection (IP): | 20 |
| Insulation voltage Ui acc. to IEC: | 1000 V |
| Insulation voltage Ui acc. to UL: | 600 V |
| Rated short-time withstand current Icw: | 3 kA |
| Peak short-circuit withstand current Ipk: | 22 kA |
| Colour: | blue |
| Possibility of extension: | Yes |
| Compliance with standards: | IEC 60998-1, IEC 60998-2-1, IEC 60947-7-1, IEC 60947-7-1, UL 1059, UL 486E, CSA22.2 158-1987, GB 13140.1, GB 13140.2 |
| Dimensions - depth: | 65 mm |
| Dimensions - width: | 30 mm |
| Mounting holes spacing: | 54 mm |
| Dimensions - height: | 46 mm |
| Screw tightening torque: | Input: 3,5 Output: 1 ; 3,5 Nm |
