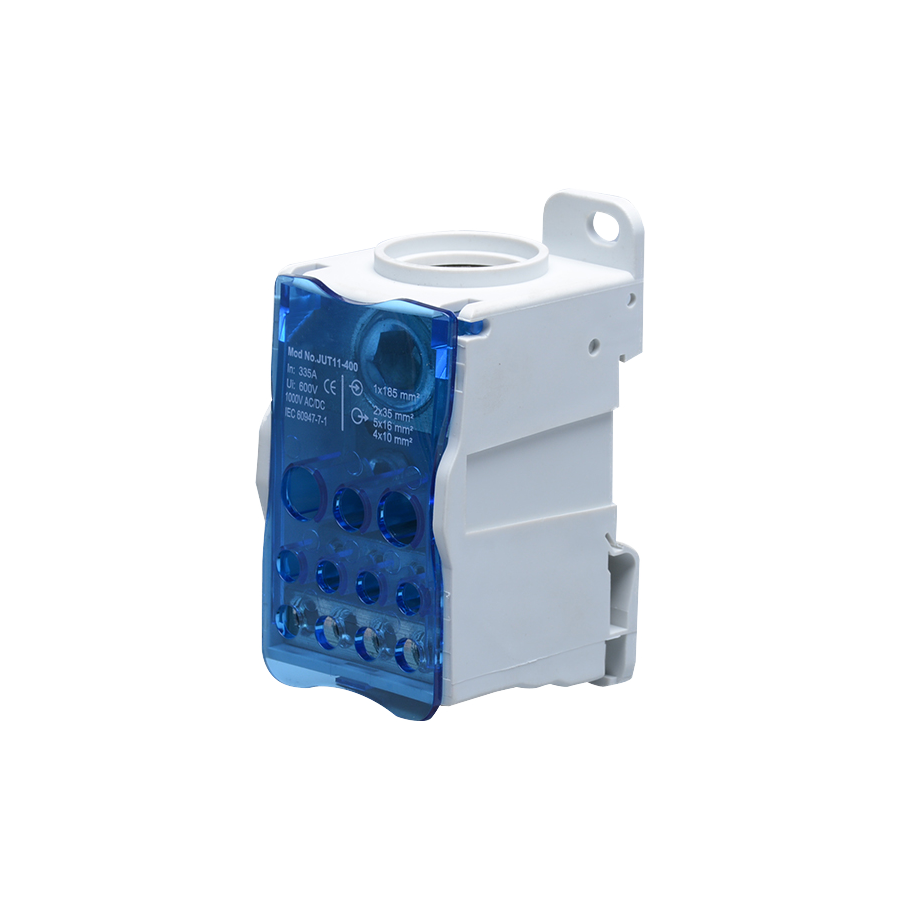

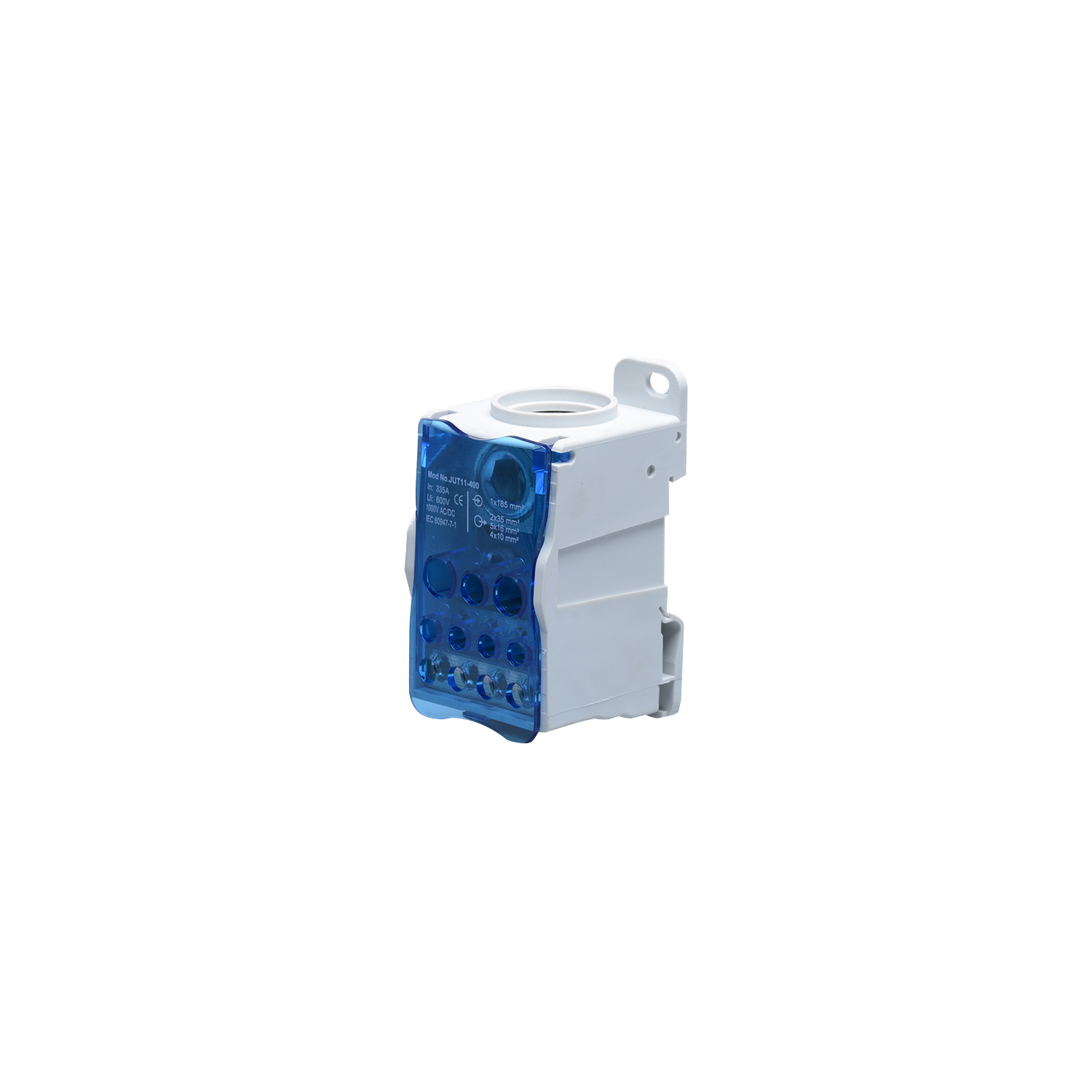

Distribution blocks
Power distribution blocks, suitable for DIN rail or mounting on a plate, help to connect heavy section cables. These blocks are used in electric switchboards and industrial casings for energy distribution.
| General information: | |
|---|---|
| Type: | distribution block |
| Input screw terminals: | 1x 95-185 |
| Current: | 400 A |
| Output terminals: | 2x 6-35; 5x 2,5-16; 4x 2,5-10 mm² |
| Installation: | DIN rail / mounting plate |
| Degree of protection (IP): | 20 |
| Insulation voltage Ui acc. to IEC: | 1000 V |
| Insulation voltage Ui acc. to UL: | 600 V |
| Rated short-time withstand current Icw: | 24.5 kA |
| Peak short-circuit withstand current Ipk: | 51 kA |
| Colour: | blue |
| Possibility of extension: | Yes |
| Compliance with standards: | IEC 60998-1, IEC 60998-2-1, IEC 60947-7-1, IEC 60947-7-1, UL 1059, UL 486E, CSA22.2 158-1987, GB 13140.1, GB 13140.2 |
| Dimensions - depth: | 96 mm |
| Dimensions - width: | 49 mm |
| Mounting holes spacing: | 85x29 mm |
| Dimensions - height: | 50 mm |
| Screw tightening torque: | Input: 25 Output: 4,4 ; 2,7 ; 2,7 Nm |
