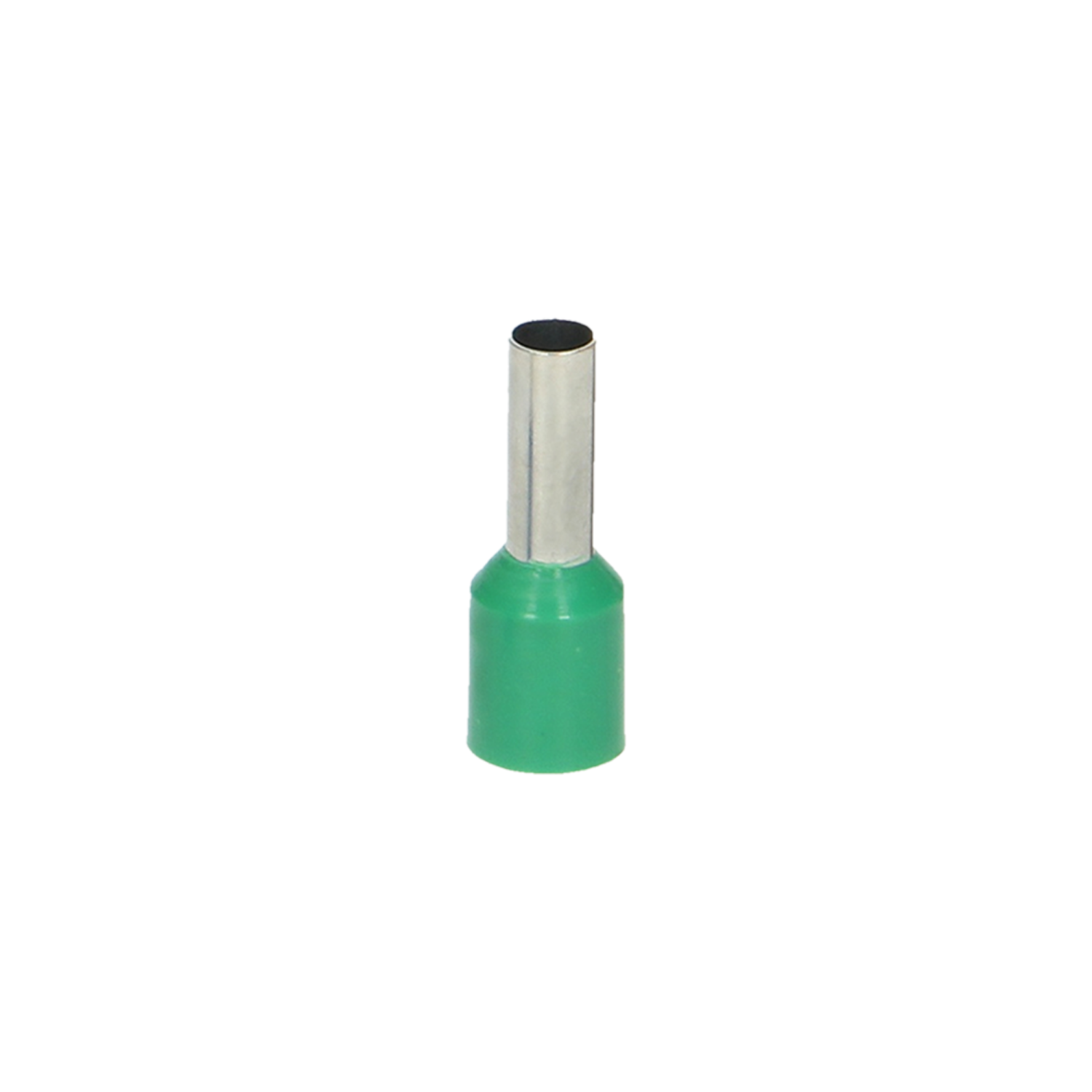

Cord end terminals
Insulated end terminals that can be clenched on cable ends. They help to join cables in a neat and fixed manner. Thanks to the use of an end terminal, stranded wires can be entered to push-in connectors and they help to increase the quality of screw connection. Our offer includes insulated end terminals of many different max. section parameters and different sleeve lengths. Blister pack: 25 pcs.
| General information: | |
|---|---|
| Flange shape: | Tulejka |
| Insulation: | Polipopylen (PP) |
| Colour insulation: | Zielony |
| Nominal cross section [mm²]: | 6 |
| Thickness of conductive material [mm]: | 0.2 |
| Suitable for stranded conductors: | Tak |
| Suitable for fine strand conductors: | Tak |
| Material: | Miedź |
| Surface protection: | Cynowanie |
| Pin length (pin shape terminal) [mm]: | 10 |
| Number of pieces in the package [szt.]: | 25 |
| Compliance with standards: | EN 60352-2:2006 |
