Brass busbars

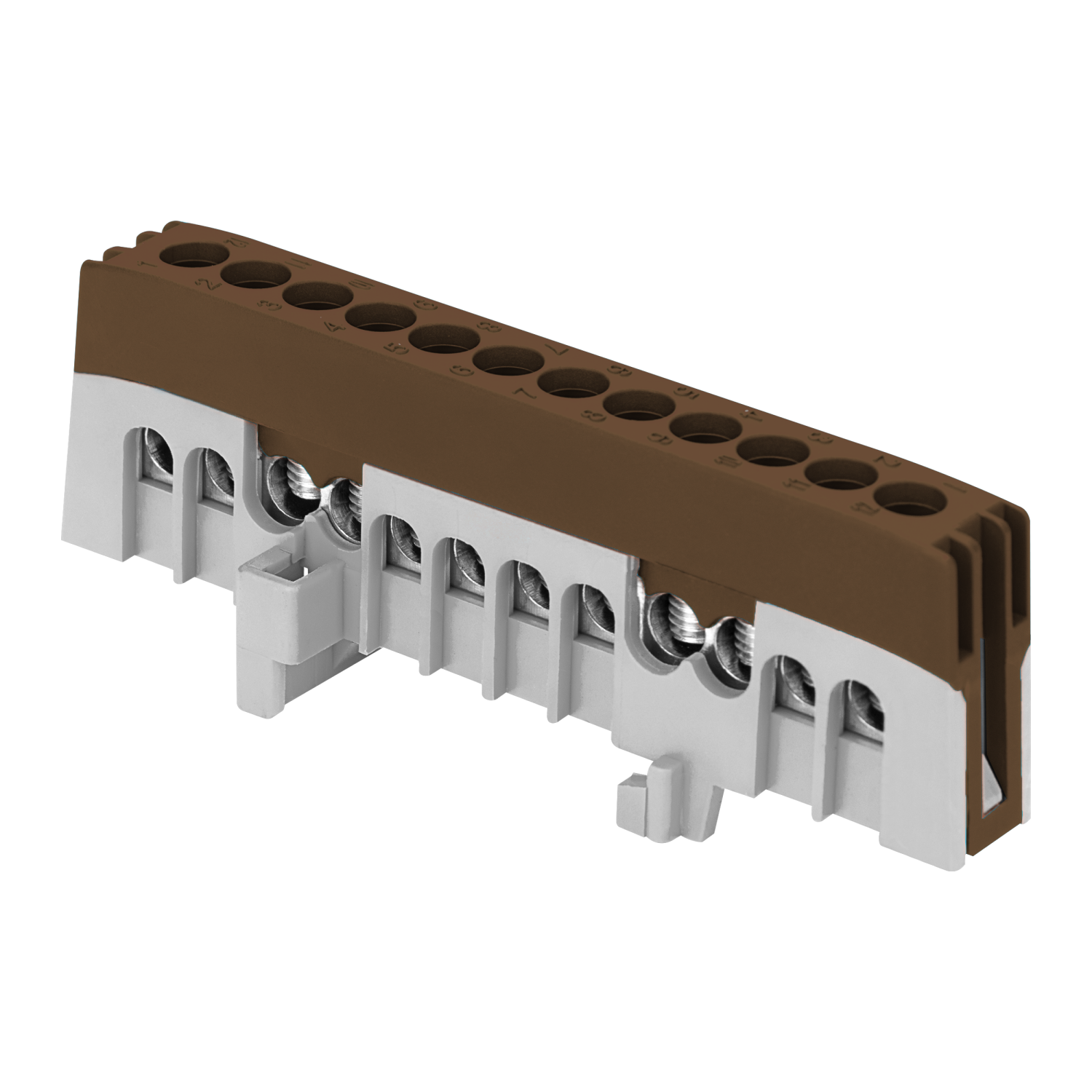

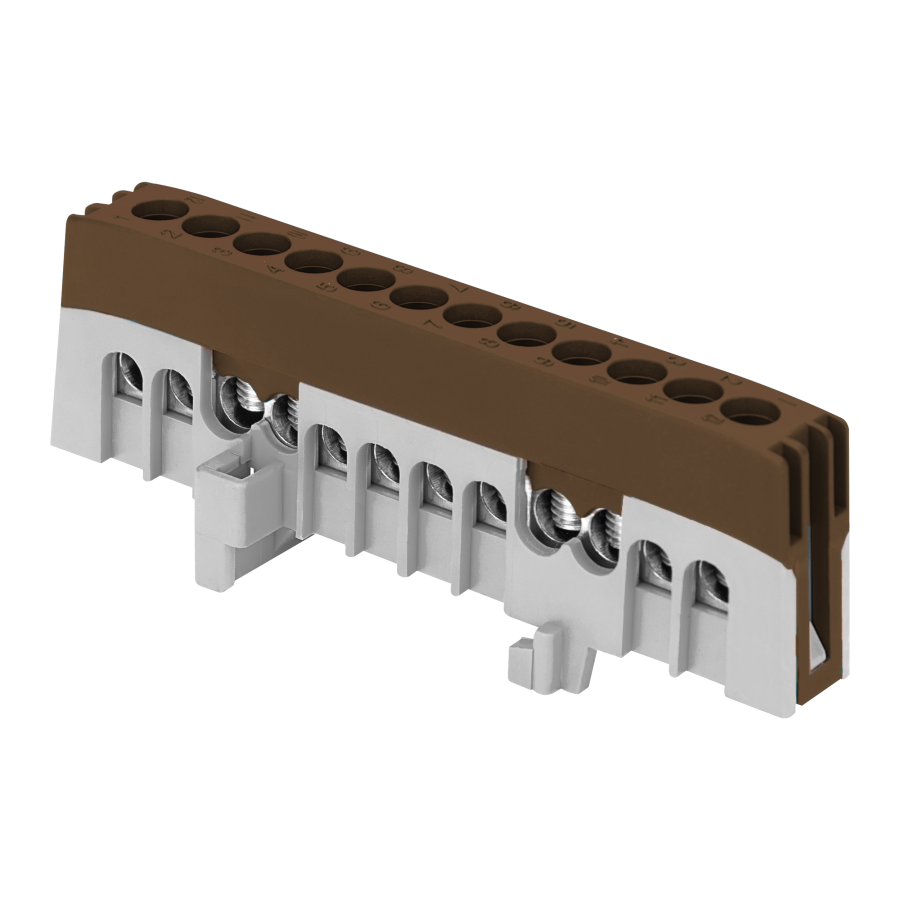

The insulated distribution busbar is a high-quality electrical component that is used to connect phase cables (L) in a safe and orderly manner. The cables are fixed with screws to ensure permanent connection.
Equipped with 12 screw terminals, it allows the connection of 12 cables with a cross-section of 2.5 to 16 mm², ensuring reliable electrical connection. It is designed to operate at a maximum voltage of 690V, as well as an insulation voltage of 1000V and a current of 63A.
The compact dimensions of the distribution busbar (91x34x18 mm) and the IP20 protection rate allow the product to be safely integrated next to installed devices. A torque of 1.2Nm ensures a durable and solid connection. It is mounted on a DIN TH-35 rail or may be screwed to the mounting plate. The brown colour is commonly used to indicate the phase cables.
The product meets the standards: EN 60998-1 and EN 60998-2-1.
| General information: | |
|---|---|
| Core cross section [mm²]: | 2,5 - 16 |
| Number of poles: | 12 |
| Max. current [A]: | 63 |
| Max. voltage [V]: | 690 |
| Max. voltage of isolation [V]: | 1000 |
| Torque [Nm]: | 1.2 |
| Colour: | Brązowy |
| Width [mm]: | 91 |
| Height [mm]: | 34 |
| Depth [mm]: | 18 |
| Compliance with the standard: | EN 60998-1, EN 60998-2-1 |
