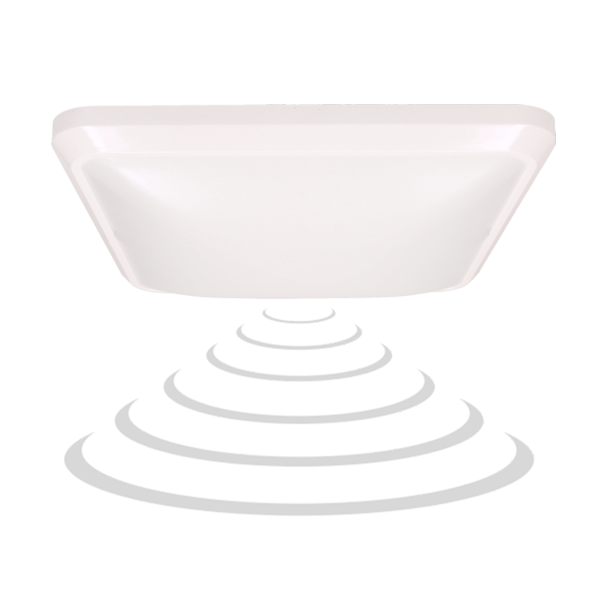

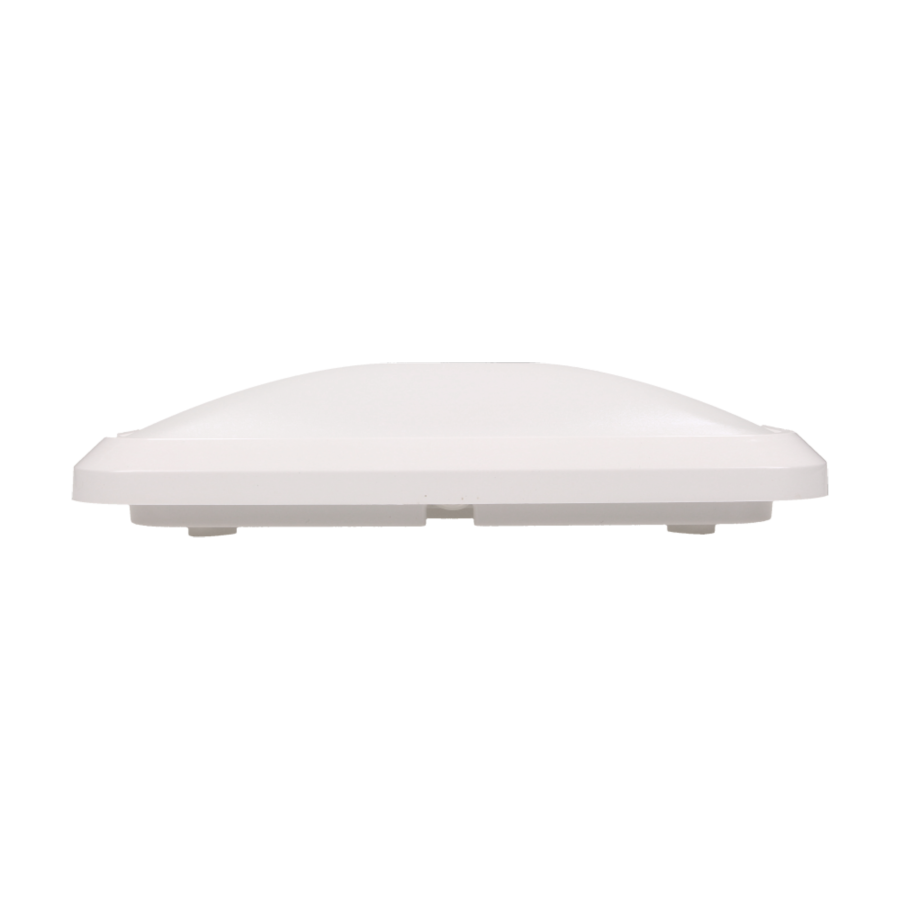

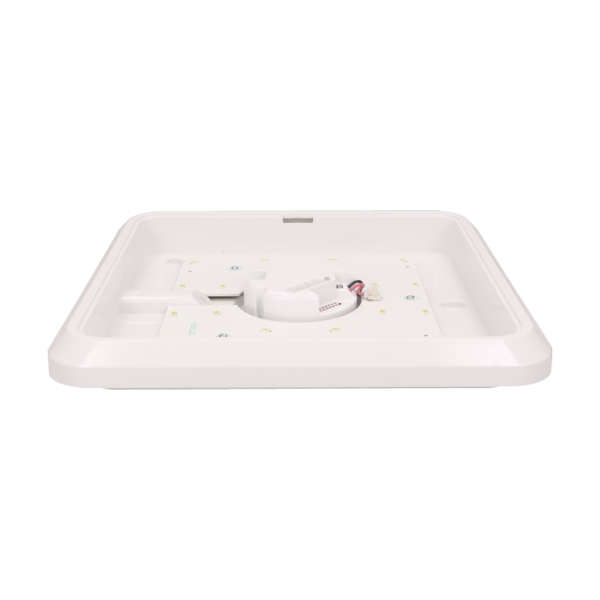

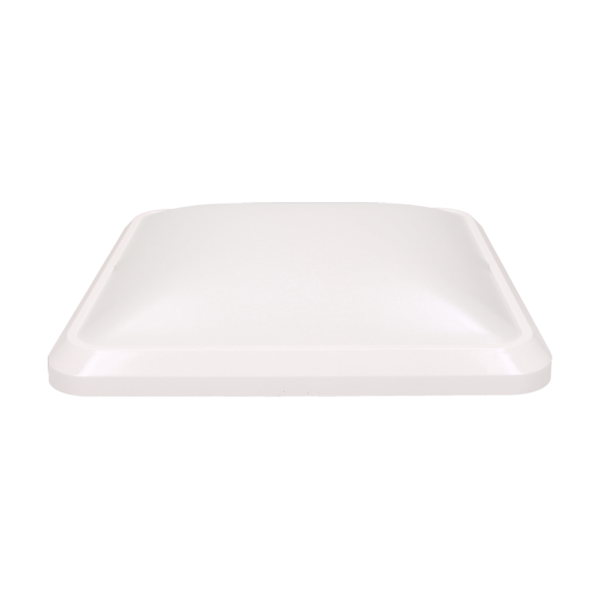

LED lighting fixture NYK with microwave sensor, 12W
LED lighting fixture NYK with microwave sensor, 12W
LED lighting fixture NYK with microwave sensor, 12W
LED lighting fixture NYK with microwave sensor, 12W
LED lighting fixture NYK with microwave sensor, 12W
LED lighting fixture NYK with microwave sensor, 12W
LED lighting fixture NYK with microwave sensor, 12W
LED lighting fixture NYK with microwave sensor, 12W
LED lighting fixture NYK with microwave sensor, 12W
LED lighting fixture NYK with microwave sensor, 12W
LED lighting fixture NYK with microwave sensor, 12W
LED lighting fixture NYK with microwave sensor, 12W

LED lighting fixture NYK with microwave sensor, 12W

OR-PL-6092WLPMM4
Archived product

Description

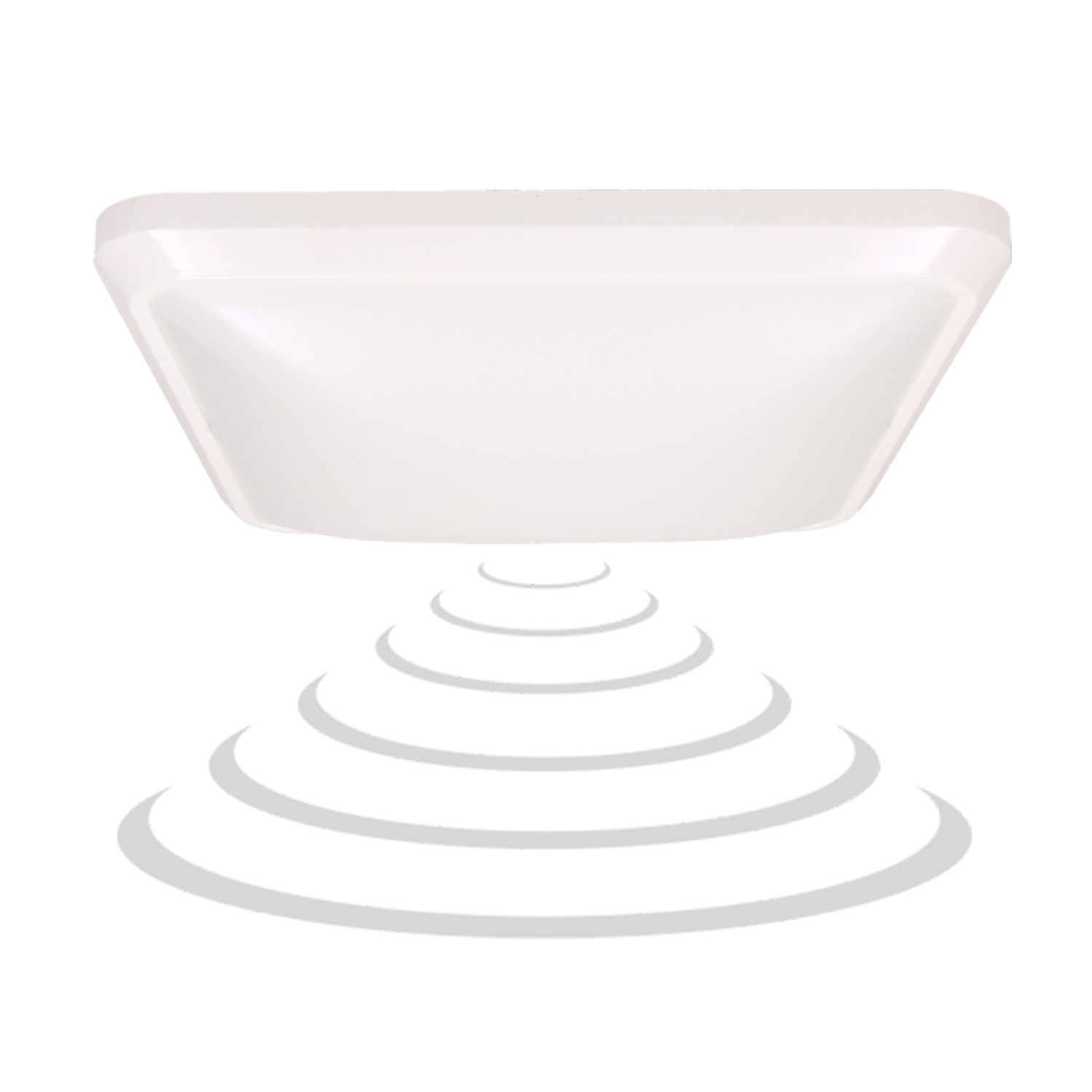

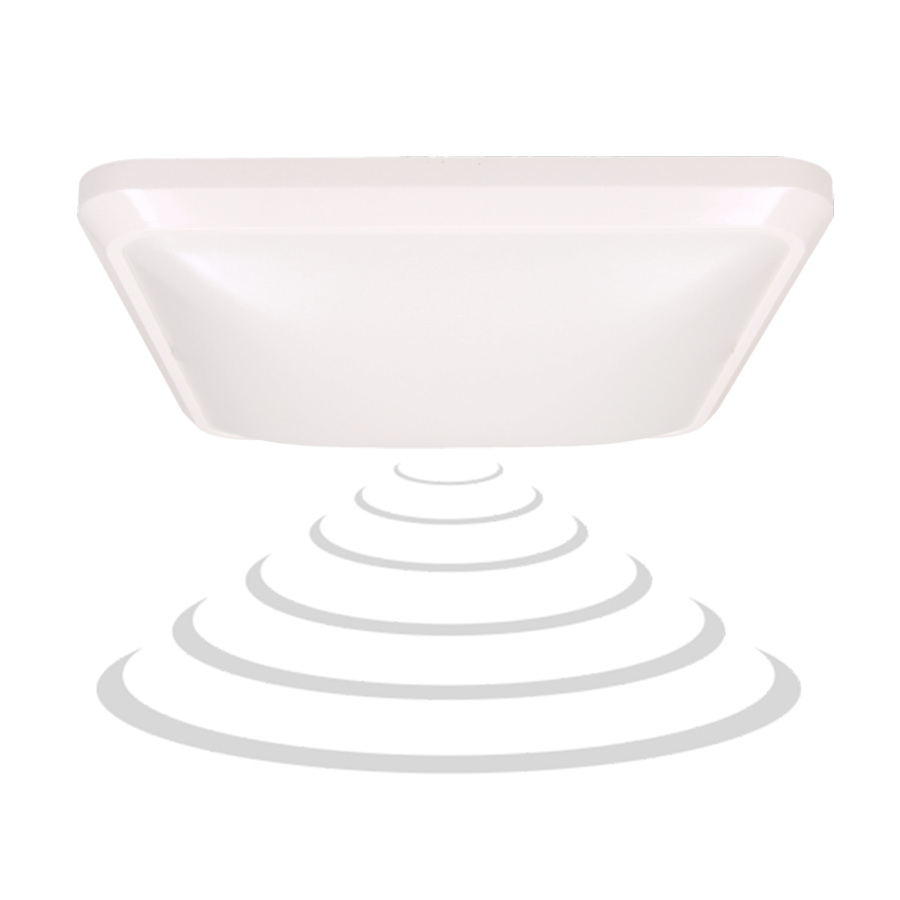

LED fixture is designed for the illumination of interior parts of the premises such as stairwells, hallways, porches, basements, garages, utility rooms, locker rooms etc. Use of the LED SMD technology guarantees high energy efficiency and long life of the fixture. Twilight sensor (depending on the settings) switches on the lighting only if necessary. Regulation: lighting time (TIME) and the sensitivity of the light intensity (LUX). Material: milk, unbreakable lampshade made of polycarbonate (PC).

General information:
Luminous flux: 850 lm
Rated power: 12 W
Light source: LED SMD
Degree of protection (IP): 20
Colour temperature: 4000
Nominal voltage: 230V~, 50Hz
Colour: white
Dimensions - depth: 58.2 mm
Dimensions - width: 250 mm
Dimensions - height: 250 mm
Other features: Dimming time adjustment: 0 sec., 90 sec., 5 min., 10 min., 30 min.,
Colour rendering index CRI: >80
Detection angle: 360°/180°
Material of the lampshade: polycarbonate
Control of the motion sensor: Yes
Type of sensor: microwave
Detection range: 4-16 m
Adjustable daylight sensor (LUX): Yes
Daylight sensor adjustment range (LUX): 5lux, 15lux, 50lux, 2000lux
Adjustable time setting (TIME): Yes
Lighting time adjustment range (TIME): 0 sek, 30 sek., 10 min.
Adjustment of motion detection range (SENS): Yes

Files to download

File category File language File type File update date
Product data sheetPLpdf2025-07-16 16:57:17Download
Product data sheetENpdf2025-07-16 17:07:58Download
User manualPLpdf2025-06-25 15:28:55Download
