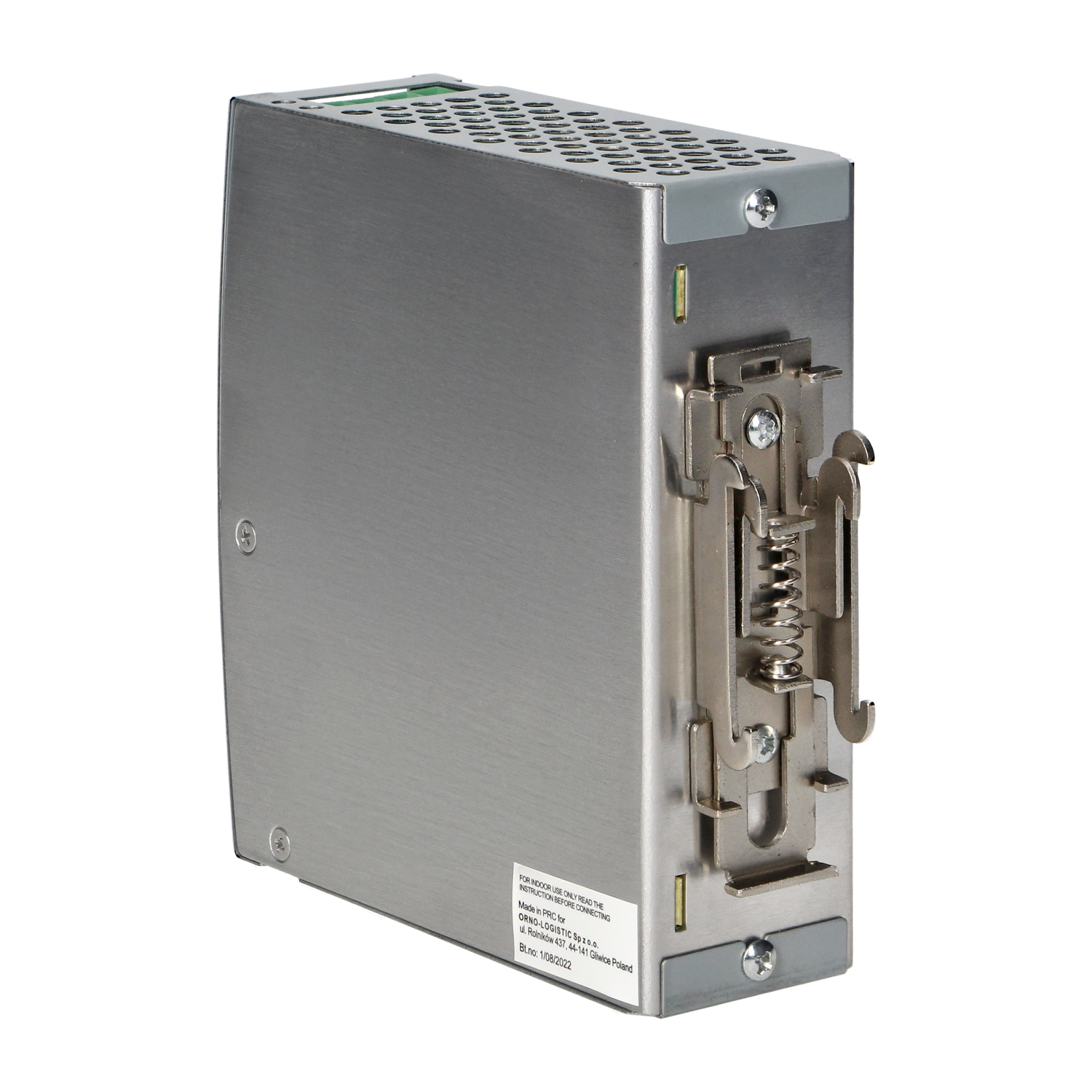

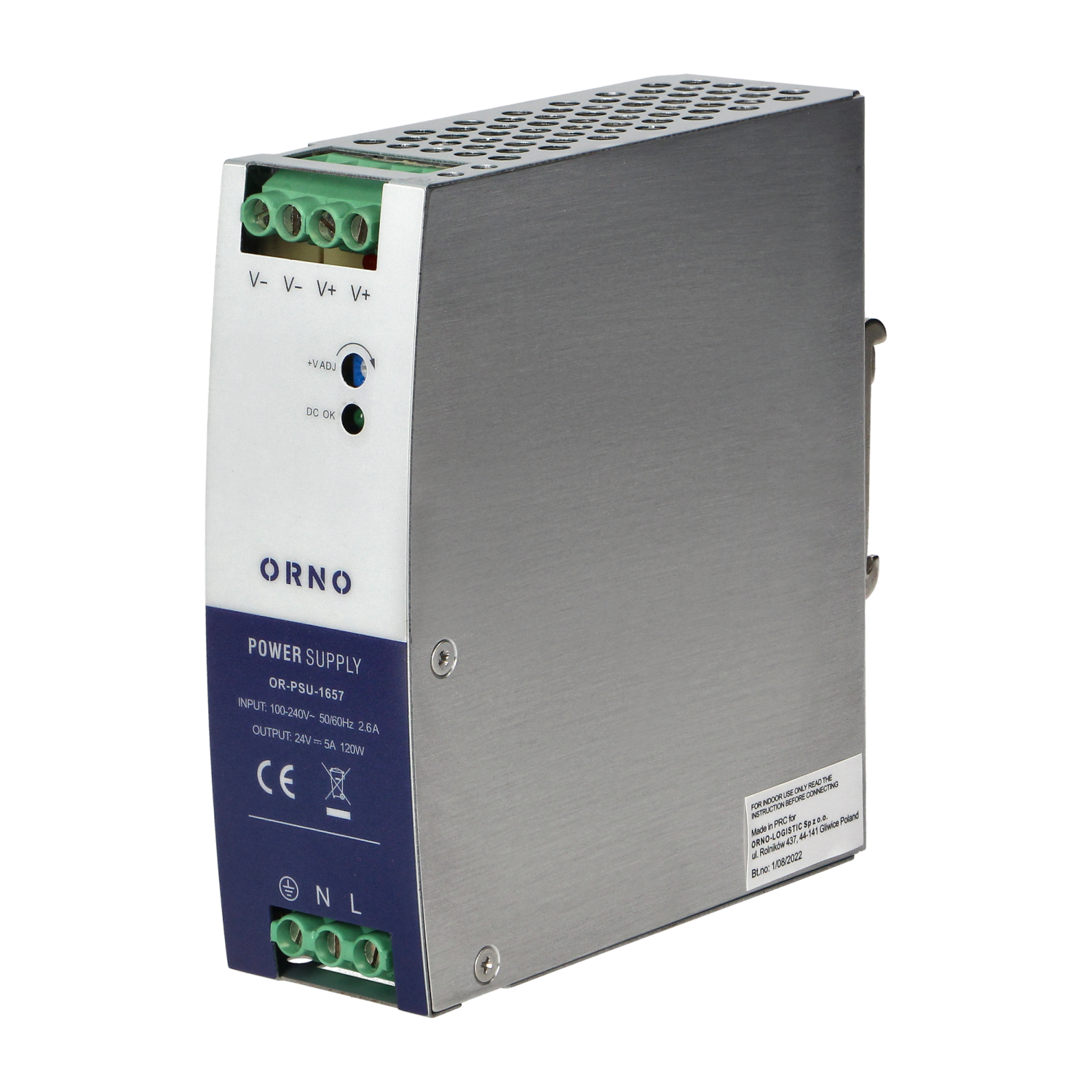

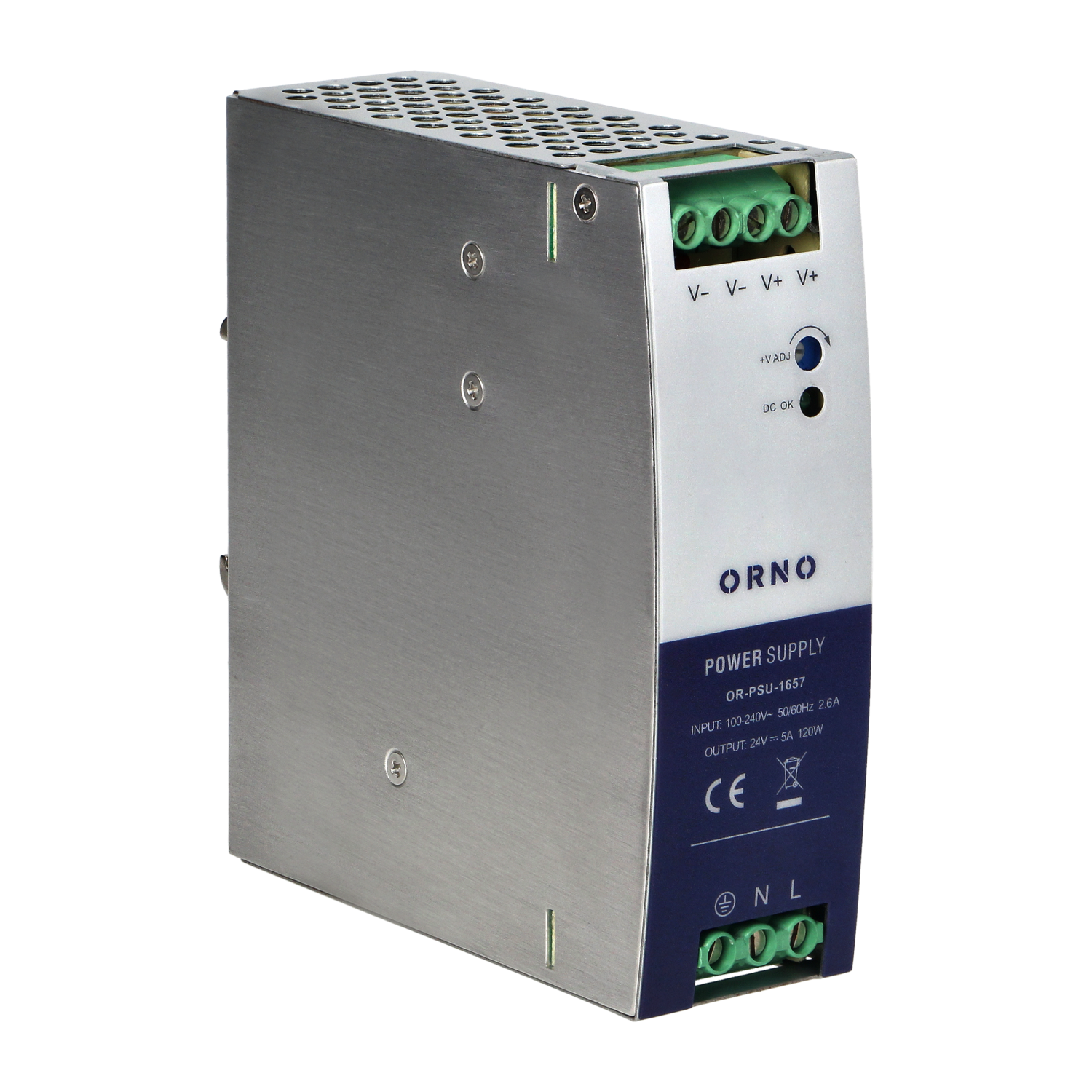

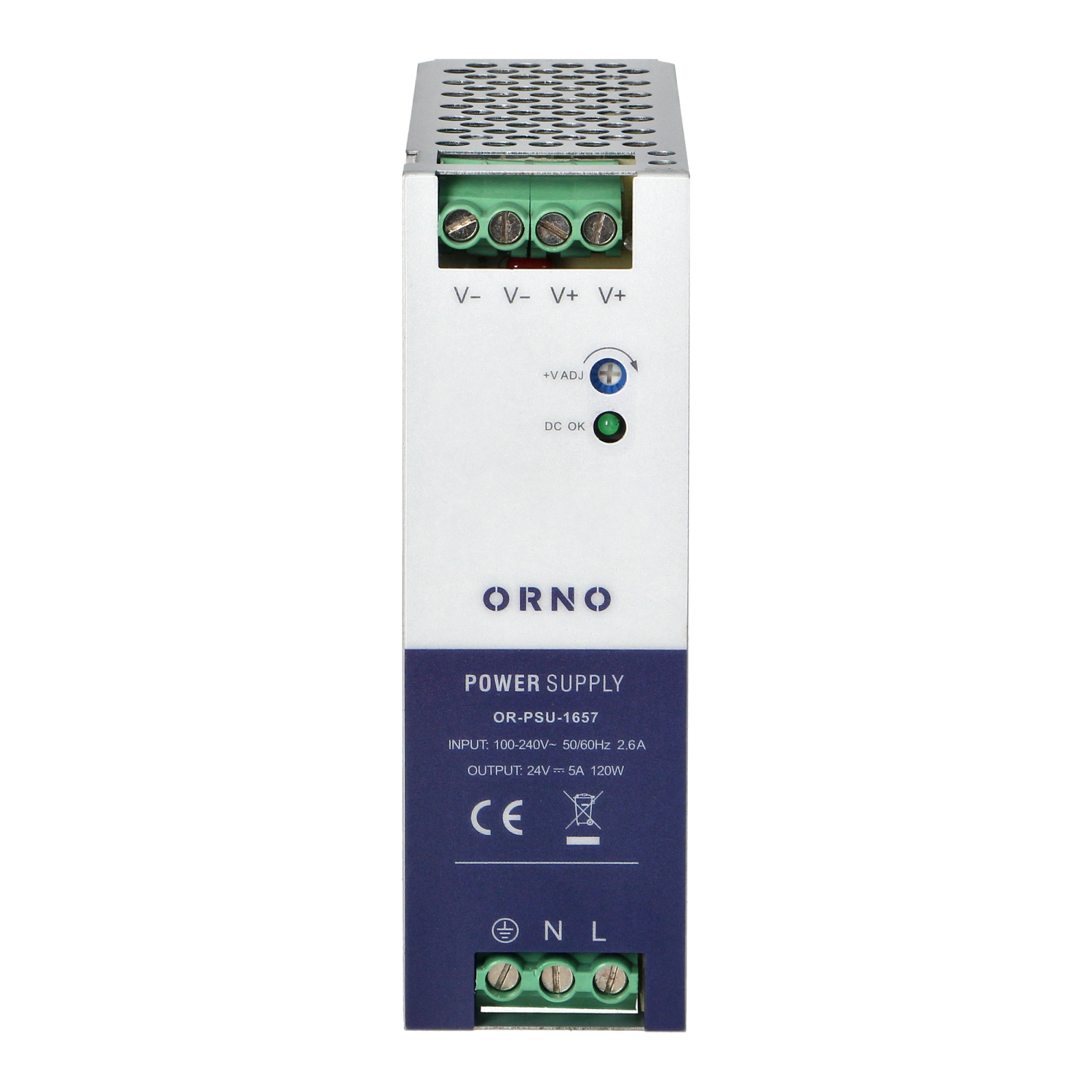

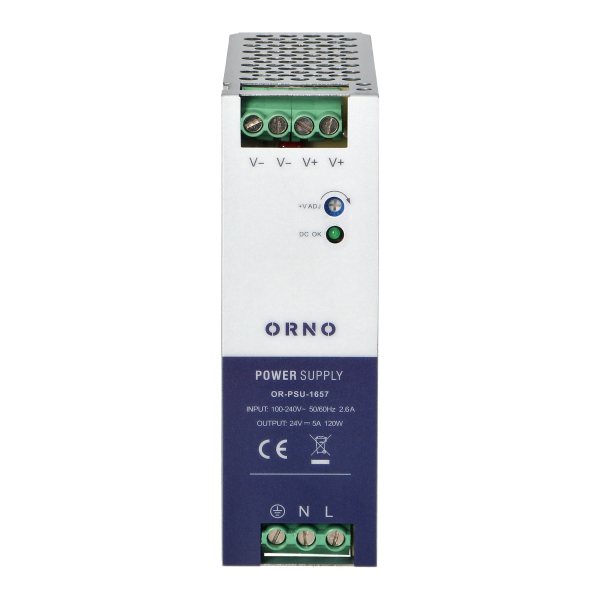

An industrial power supply unit suitable for mounting on a DIN TS-35/7.5 or 15 rail. The product is housed in a metal enclosure that provides resistance to low and high temperatures. The device is suitable for use in harsh industrial environments. It is primarily used to supply power to industrial automation, machine control and is responsible for the failure-free operation of industrial systems. It is characterised by class III voltage protection and additional current and short-circuit protection. Openings in the power supply housing allow air to flow freely, so that the device is constantly cooled. This is particularly important for continuous operation of the device and significantly increases its service life.
| General information: | |
|---|---|
| Voltage type of supply voltage: | AC |
| 1st secondary output voltage at DC [V]: | 24 |
| Max. output current 1 [A]: | 5 |
| Max. Overload [%]: | 160 |
| Max. Overcurrent [V]: | 240 |
| Secondary voltage adjustable [V]: | 12-48 |
| Short-circuit-proof: | Tak |
| Rated supply voltage at AC 50 Hz [V]: | 90-264 |
| Rated supply voltage at AC 60 Hz [V]: | 90-264 |
| Output voltage stabilized: | Tak |
| Line Regulation: | ±0,5% |
| Power output [W]: | 120 |
| Efficiency: | 88 |
| Stabilized: | Tak |
| Type of electric connection: | Połączenie Śrubowe |
| Rail mounting possible: | Tak |
| Wall mounting possible: | Nie |
| Direct mounting possible: | Nie |
| Width [mm]: | 64 |
| Height [mm]: | 125 |
| Depth [mm]: | 114 |
| Degree of protection (IP): | IP20 |
| Operating Temperature: | [-20 do +70] |
| Storage Temp: | [-40 do +85] |
| Storage Humidity(RH):: | [10 do 95%] |
| Working Humidity(RH): / wilgotność podczas pracy (bez kondensacji): | [20 do 90%] |
| Compliance with standards: | EN55032, EN61204-3, EN61000-3-2,-3, EAC TP TC 020, UL508, EN62368-1, EAC TP TC 004,BSMI CNS14336-1 |
