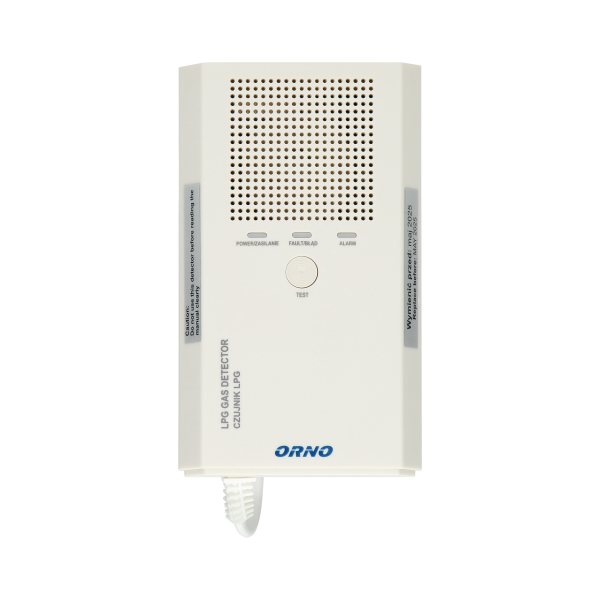

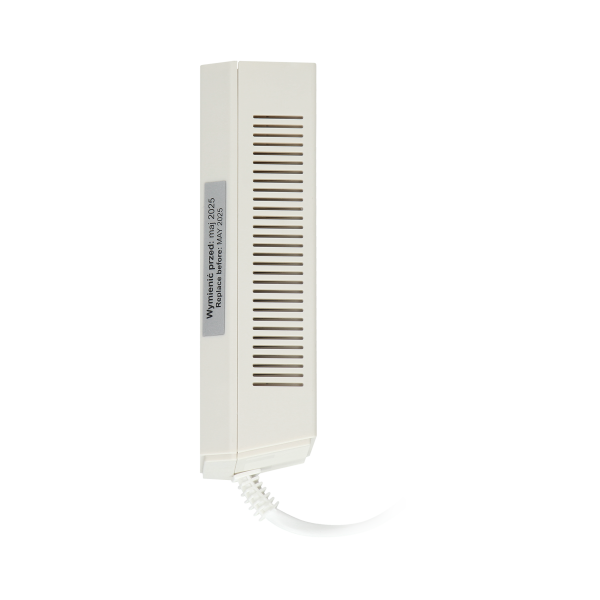

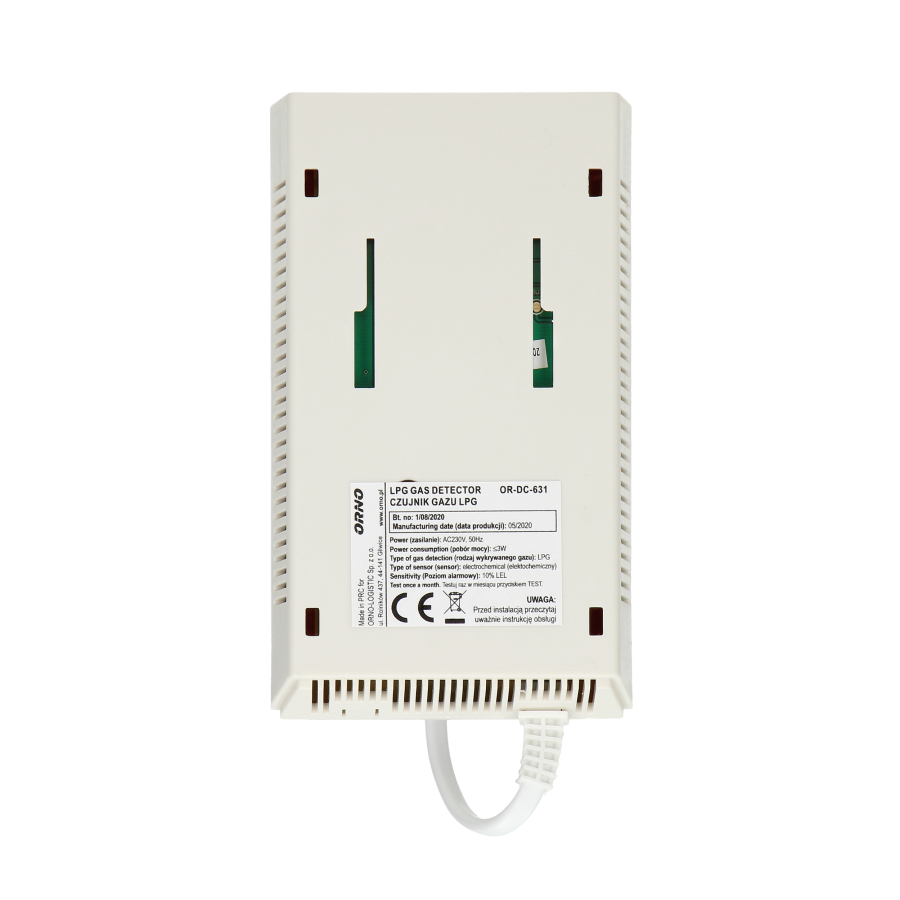

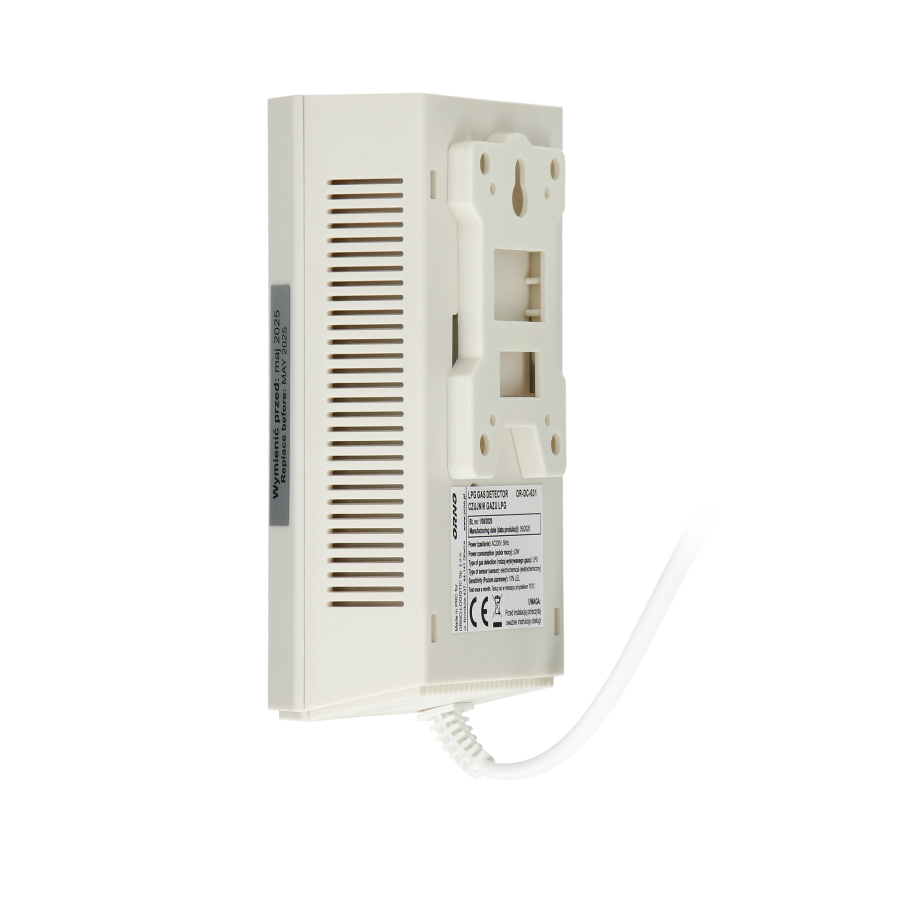

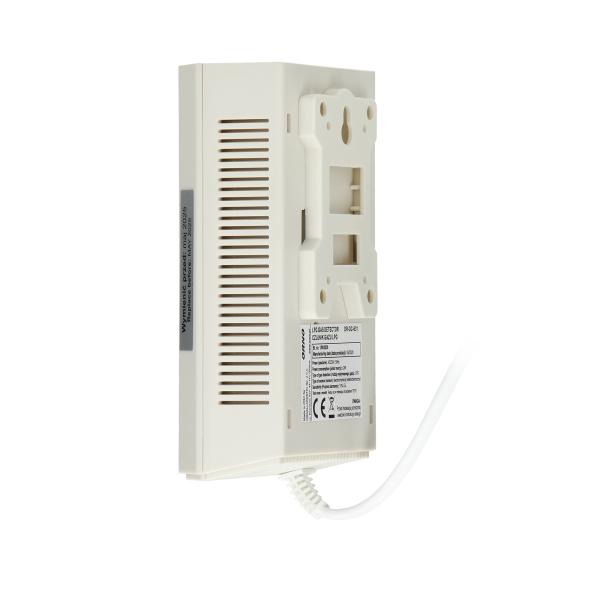

The OR-DC-631 sensor is a modern LPG gas detector for indoor use. It is used for continuous monitoring of the presence and detection of LPG gas escaping from leaks. The device uses a high-quality electrochemical sensor to achieve a high detection rate. When a gas leak reaching the set alarm threshold is detected, the detector will emit a signal and a red LED will be activated.
| General information: | |
|---|---|
| Nominal voltage: | 230V~, 50Hz |
| Types of detected threats: | propane-butane |
| Type of power supply: | directly to 230V |
| Alarm volume (db): | ≥85 |
| Test button: | Yes |
| Hush button: | No |
| Failure indication: | Yes |
| End of life indication: | Yes |
| Dimensions - depth: | 51 mm |
| Life time of the sensor: | 5 years |
| Dimensions - width: | 102 mm |
| Dimensions - height: | 170 mm |
| Compliance with standards: | EN50194-1:2009 |
| Type of sensor: | semiconductor |
