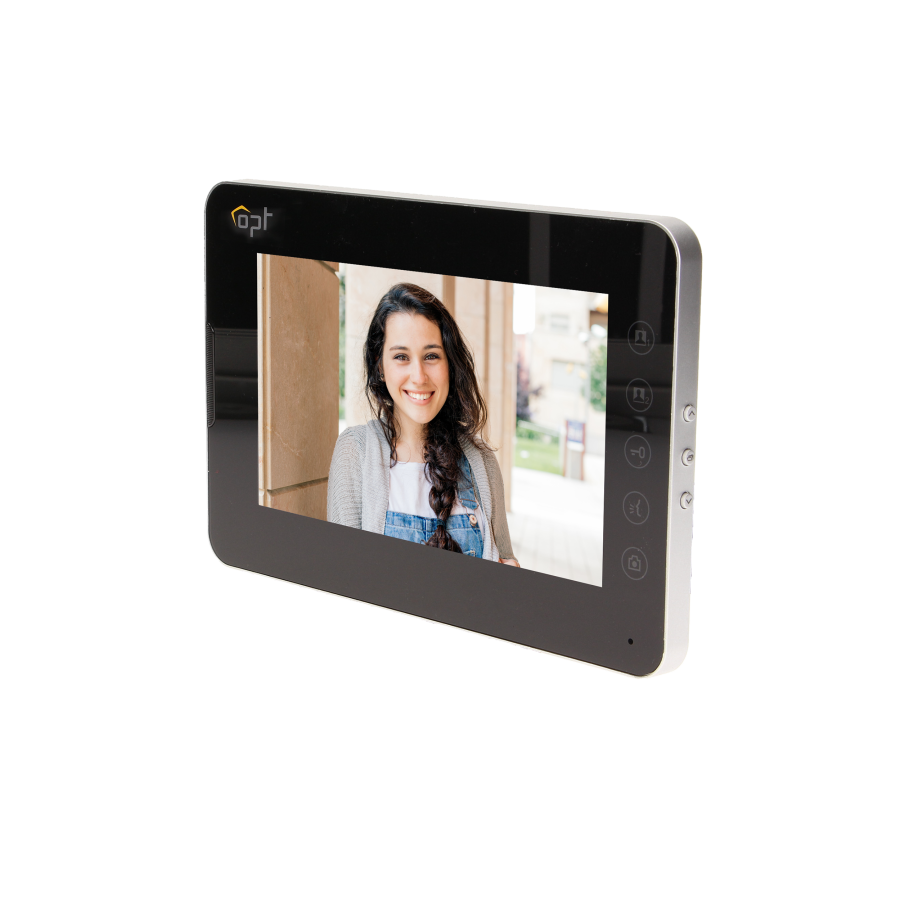

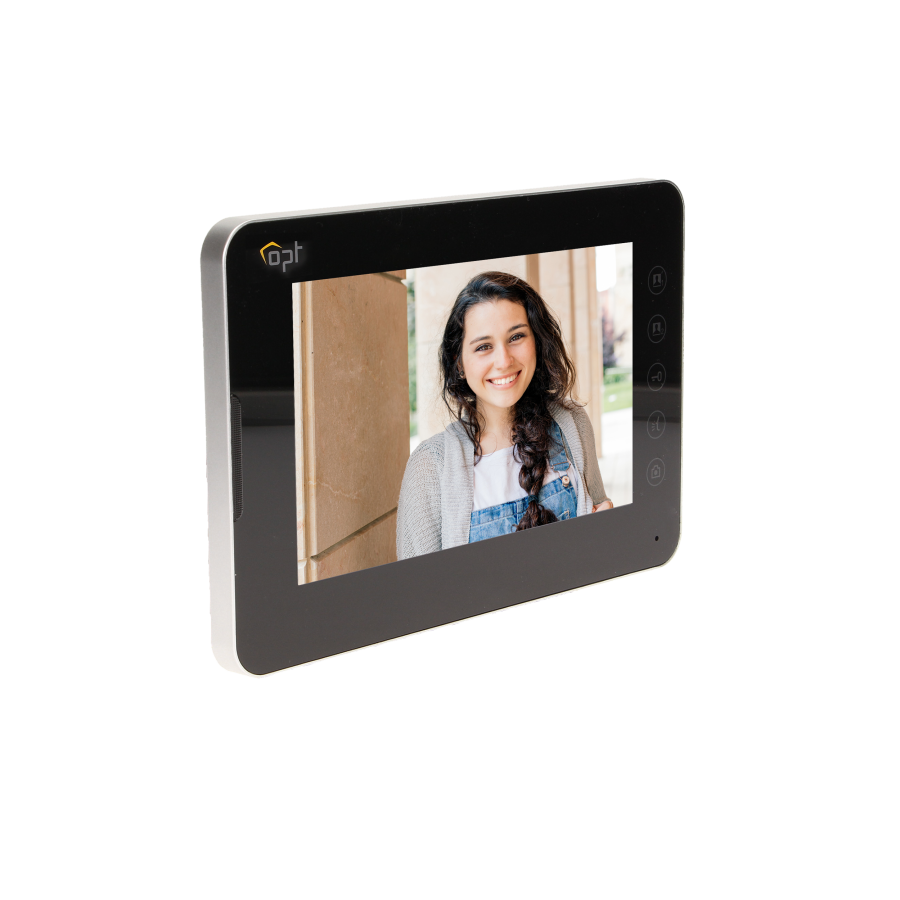

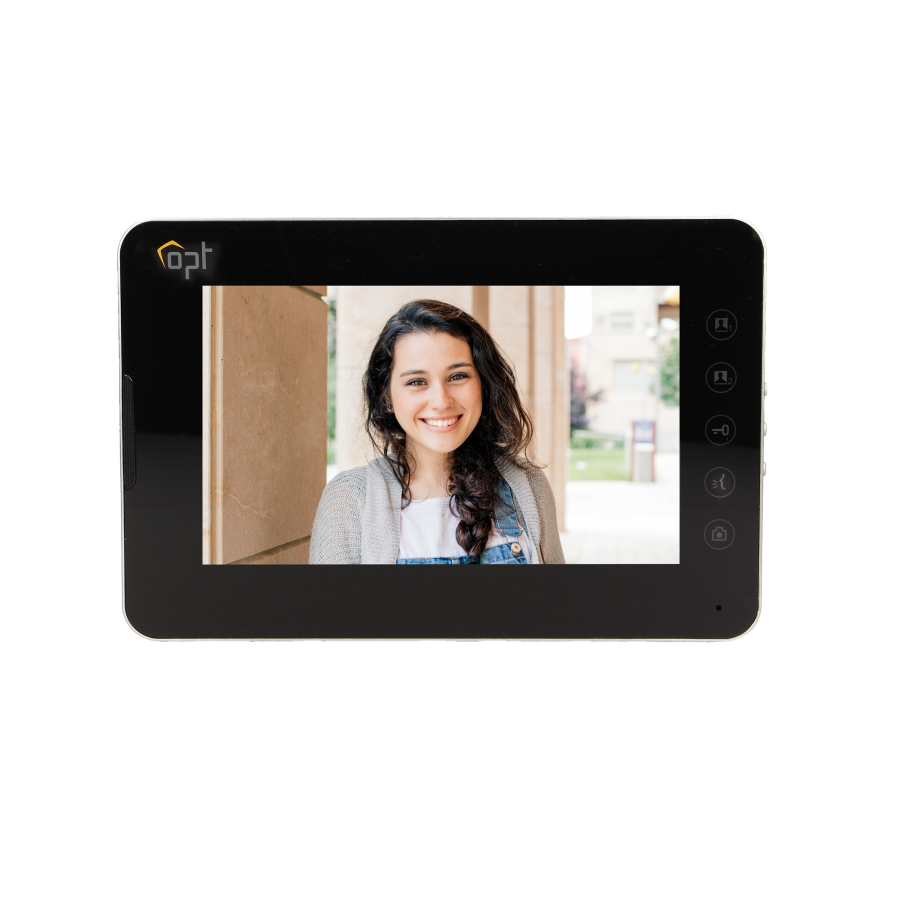

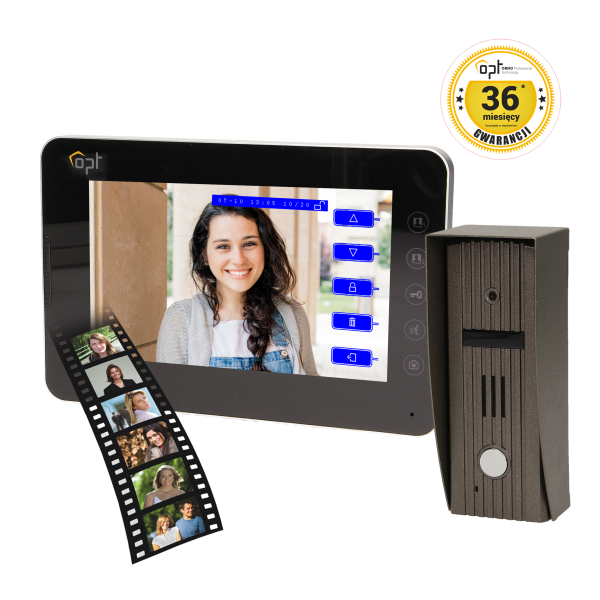

Ultra slim LCD monitor, with smooth adjustment of parameters (brightness, color, volume & conversation) and 9 selectable ringtones. Built-in memory unit. A touch panel with backlit buttons. External panel with camera can be surface or flush mounted. It's equipped with infrared lighting that enables night vision. Electric strike requires a 12VDC power supply (not included).
| General information: | |
|---|---|
| Type: | single-family |
| Number of wires: | 4+2 |
| Type of power supply: | mains power supply |
| Type of transmission: | wired |
| Possibility of extension by an additional external panel: | Yes |
| Possibility of extension by an additional monitor: | Yes |
| Possibility of extension by an additional video uniphone: | No |
| Gate opening: | No |
| Current supply of the electric strike: | from the external power supply |
| Connection system: | 4-wire |
| Possibility of extension by an additional cctv camera: | No |

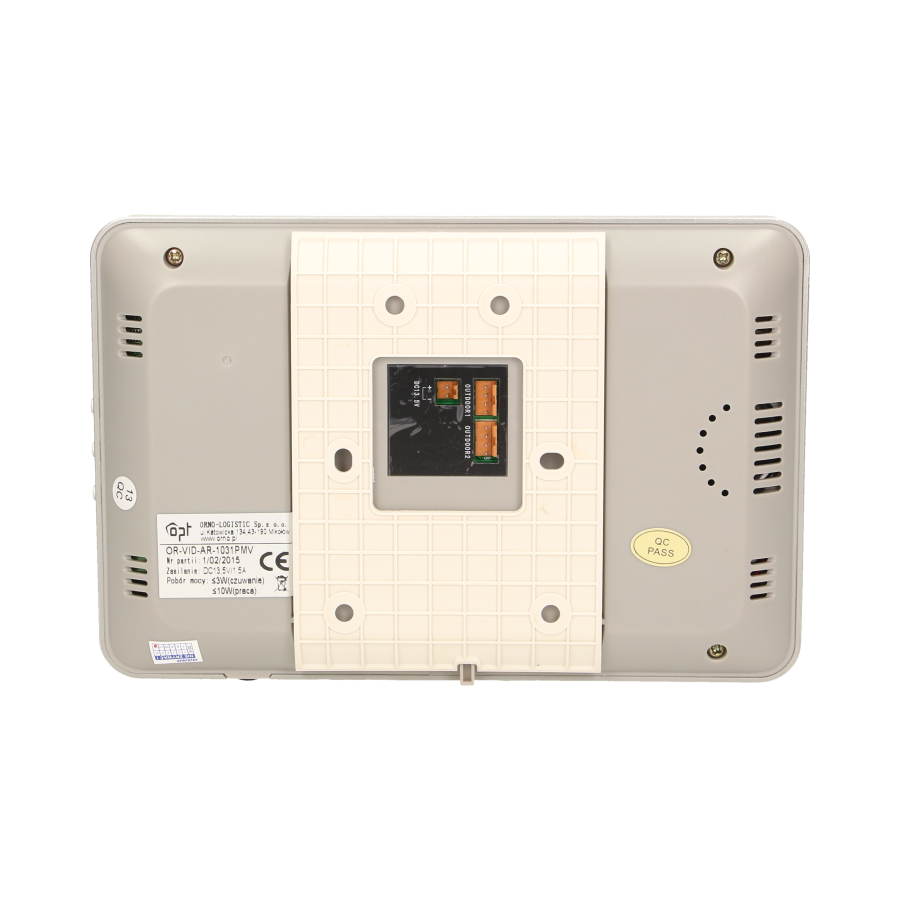

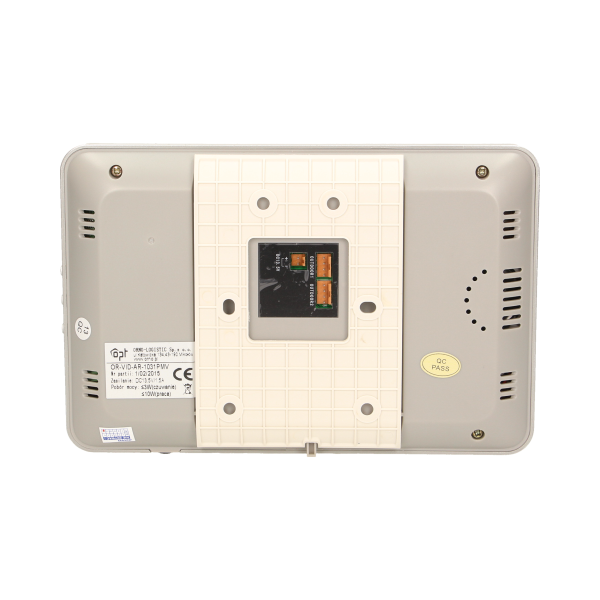

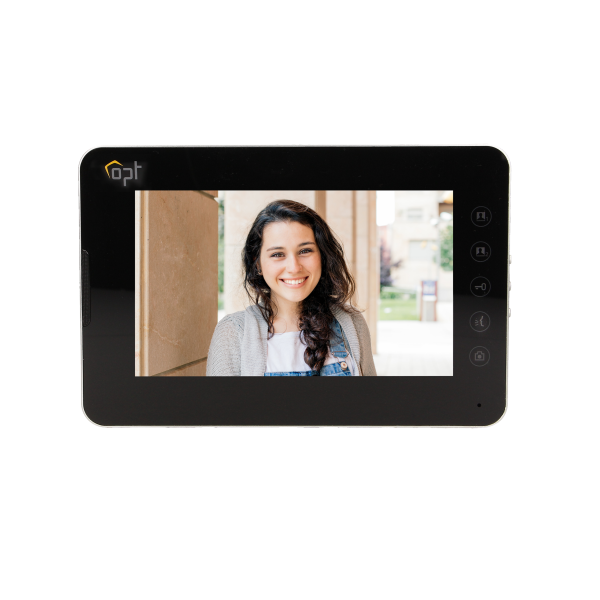

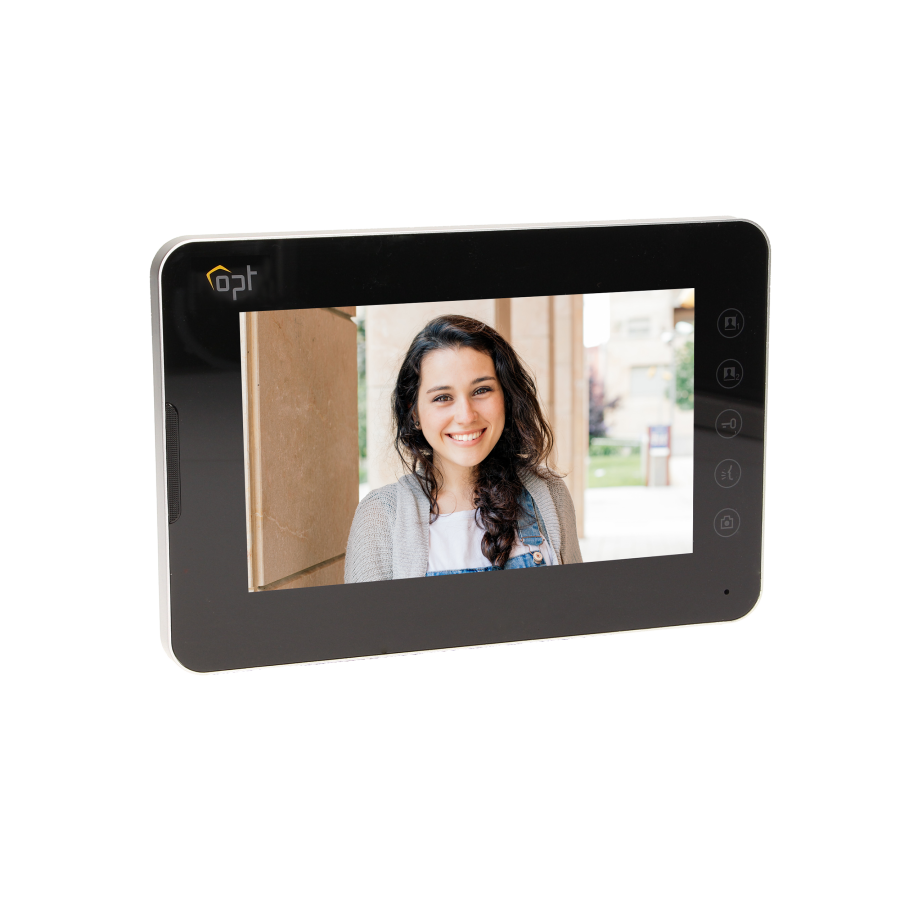

| Monitor: | |
|---|---|
| SD card reader: | No |
| Number of ringtones: | 9 |
| Operation: | hands-free |
| Display: | 7 " |
| Resolution of the monitor's screen: | 800 / 600 |
| Colour of the monitor: | black |
| Memory: | Yes |
| Intercom function: | No |
| Touch screen: | No |
| Dimensions of the of the monitor - width (mm): | 208 mm |
| Dimensions of the of the monitor - height (mm): | 138 mm |
| Dimensions of the of the monitor - depth (mm): | 22 mm |

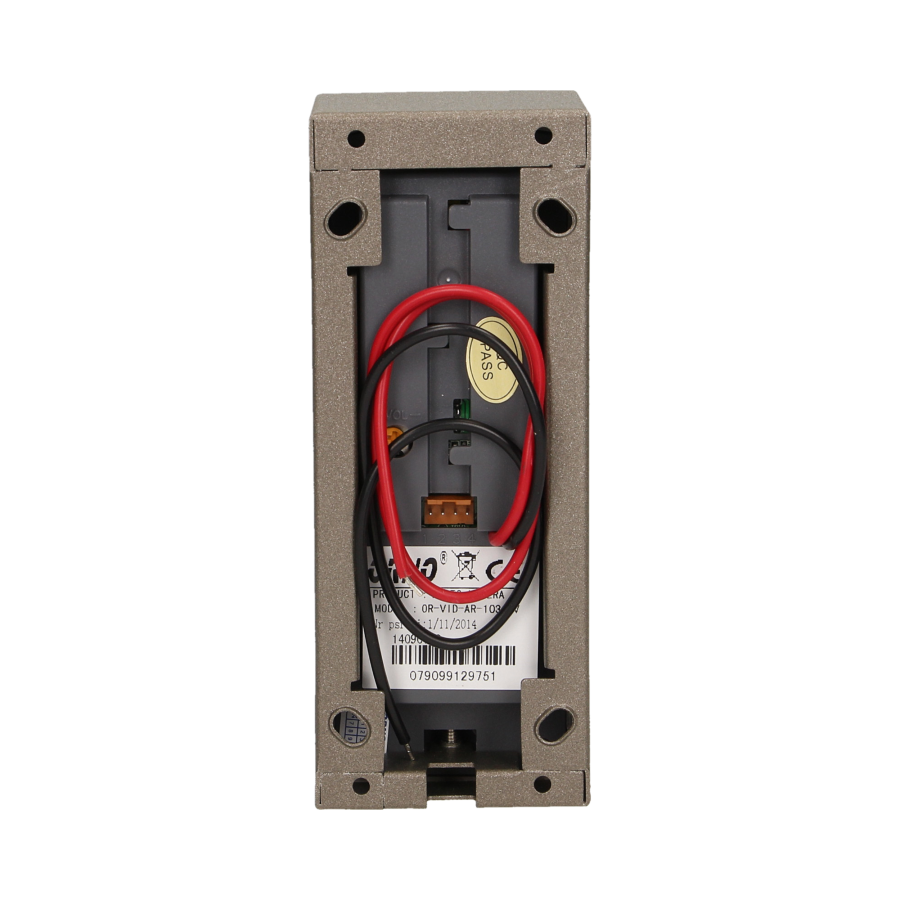

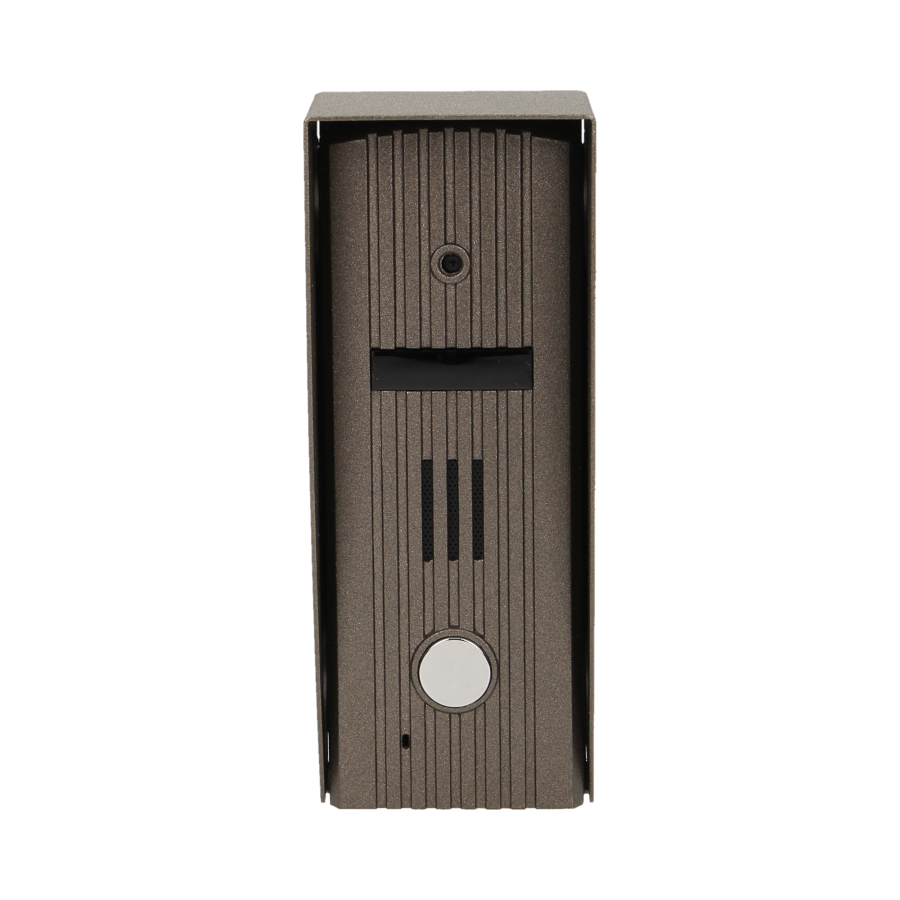

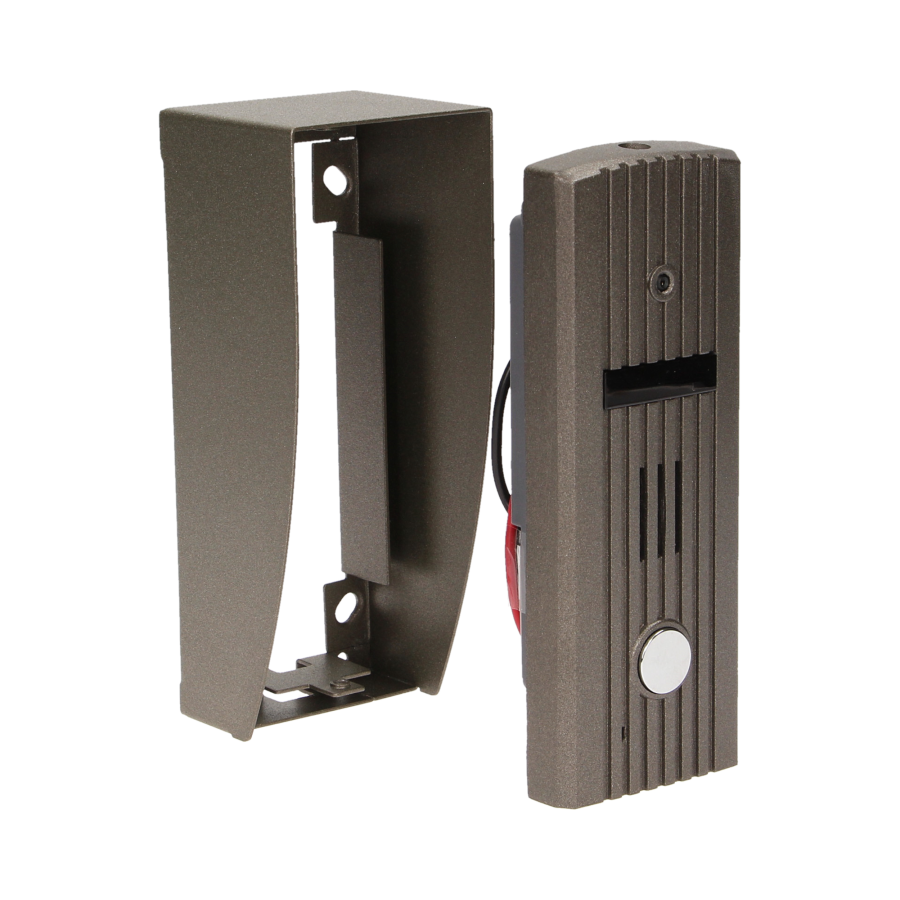

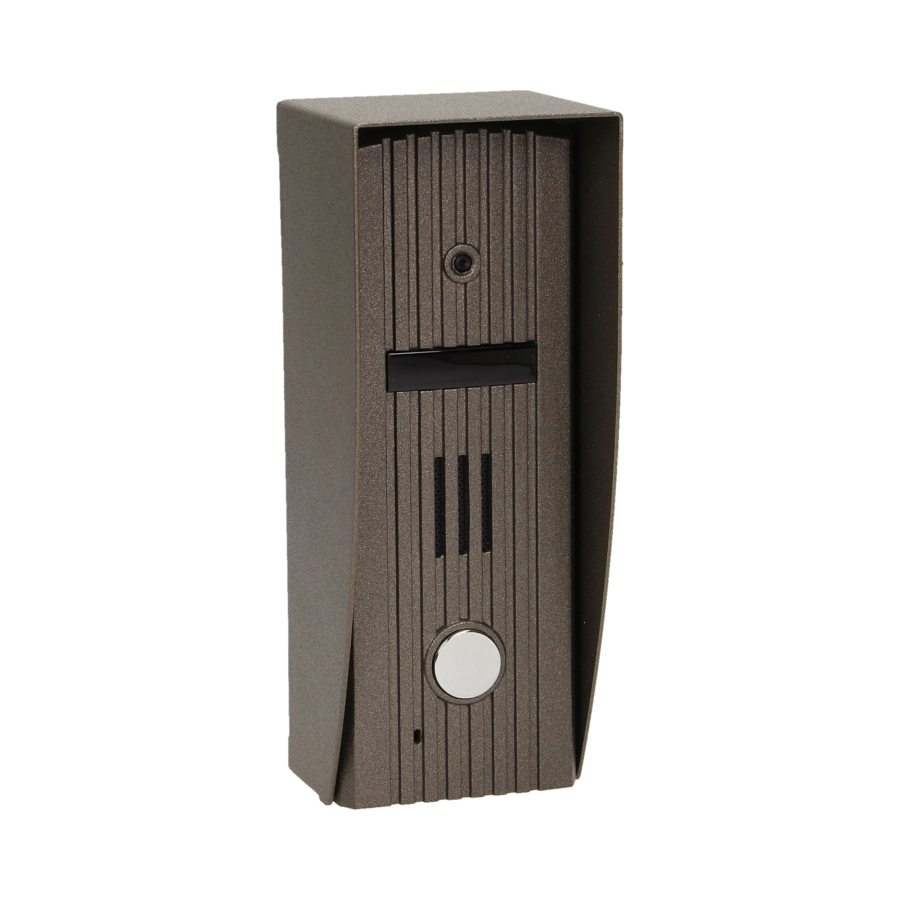

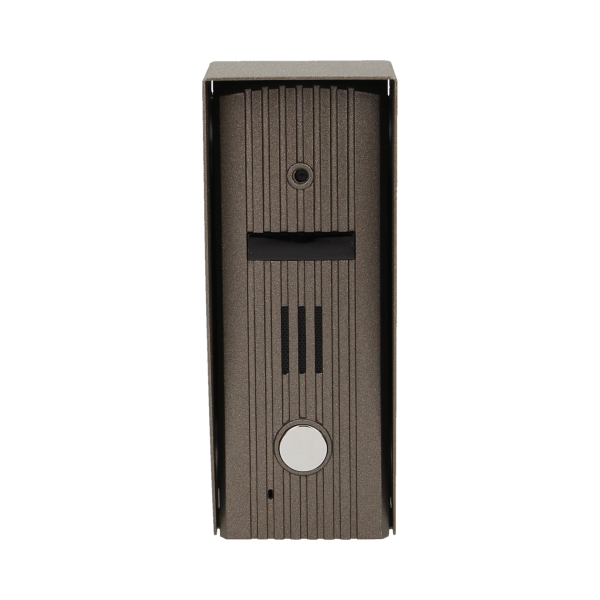

| External panel with a camera: | |
|---|---|
| Resolution of the camera: | 420 TVL |
| Vertical/horizontal camera's view angle: | 32° / 43° |
| Card and proximity tags reader: | No |
| Type of camera: | pin-hole |
| Installation: | surface mounting/ flush mounting |
| Keypad: | No |
| Night lighting: | infrared |
| Dimensions of the external panel - depth: | 51 mm |
| Dimensions of the external panel - width: | 142.5 mm |
| Dimensions of the external panel - height: | 56 mm |
