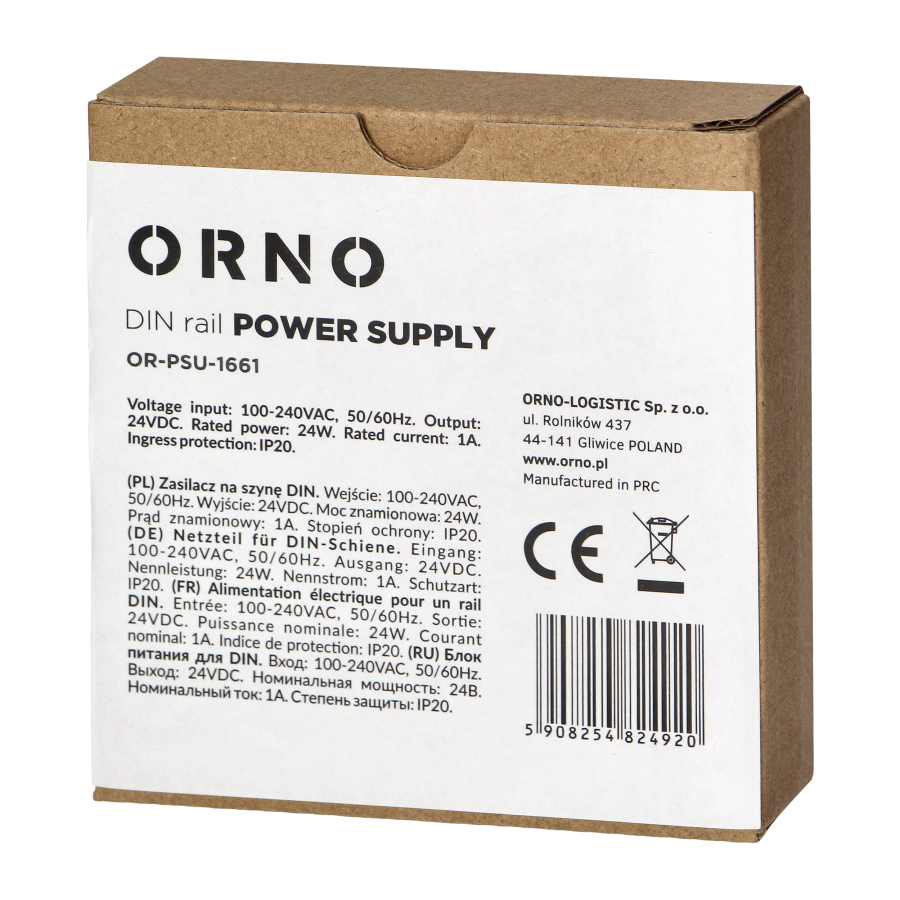

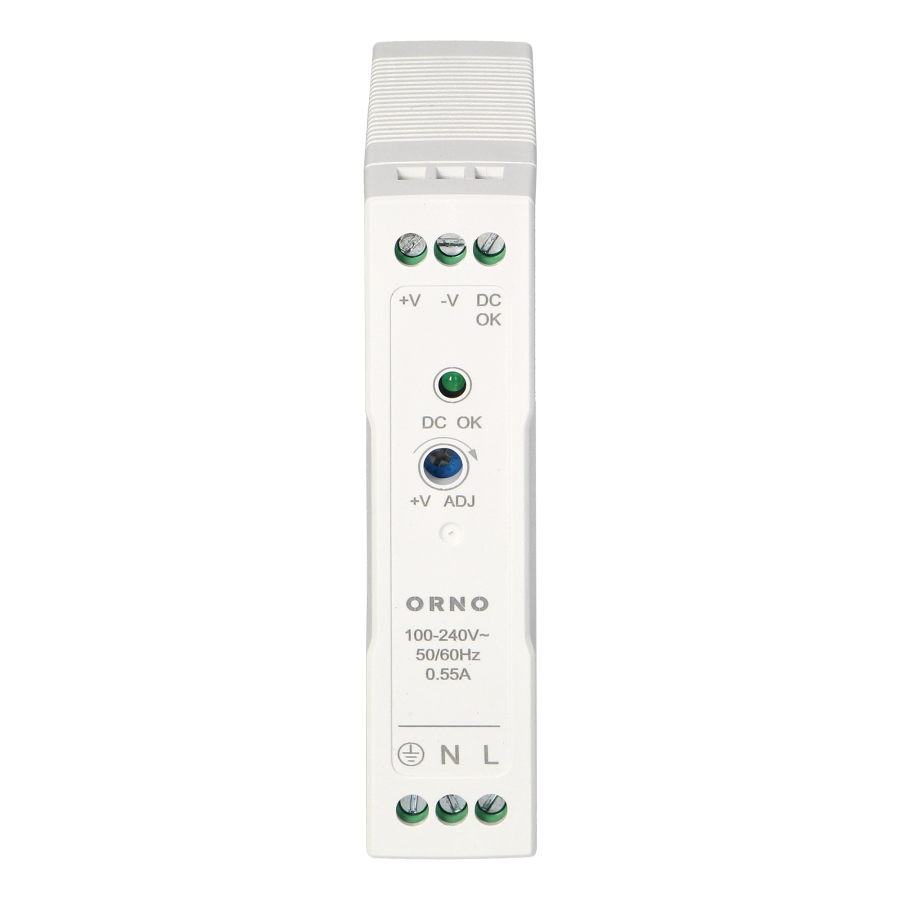

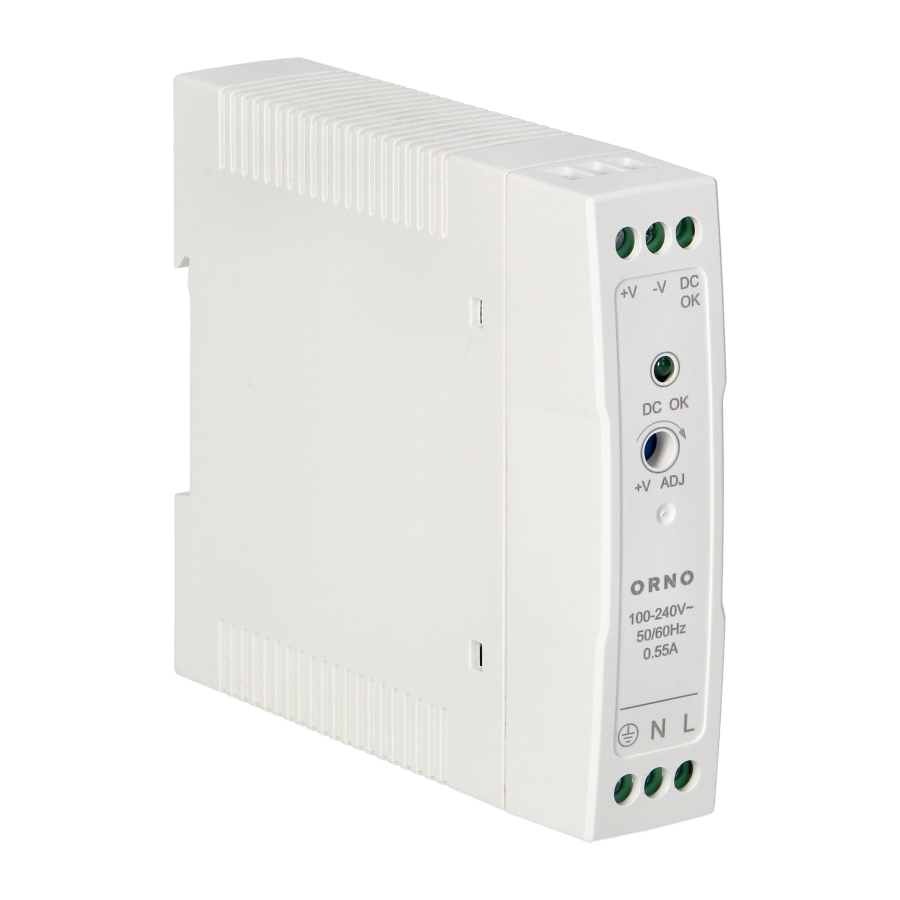

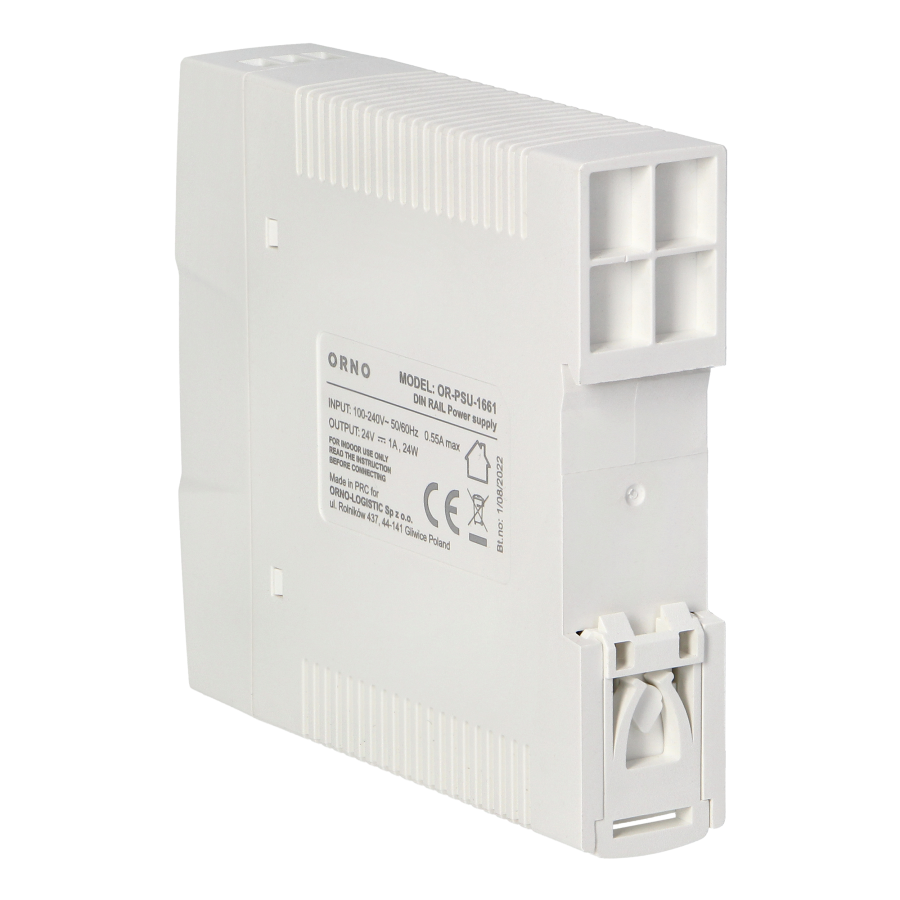

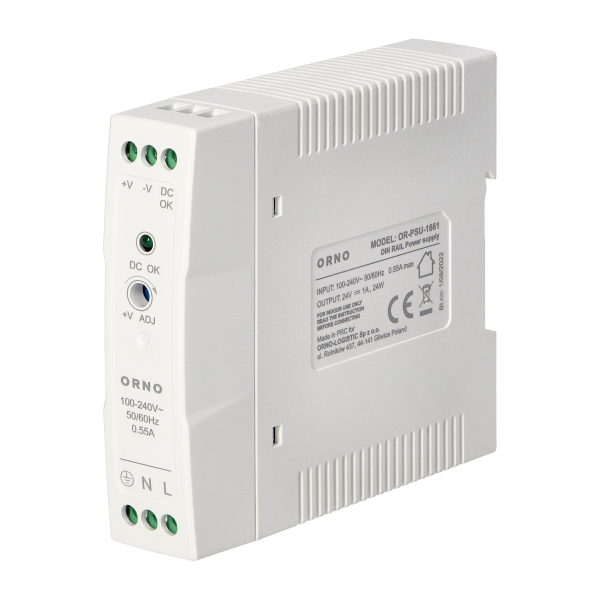

Industrial power supply for a DIN rail, 24VDC, 1A, 20W, plastic housing
| General information: | |
|---|---|
| Voltage type of supply voltage: | AC |
| 1st secondary output voltage at DC [V]: | 24 |
| Max. output current 1 [A]: | 1 |
| Max. Overload [%]: | 150 |
| Max. Overcurrent [V]: | 180 |
| Secondary voltage adjustable [V]: | 5-24 |
| Short-circuit-proof: | Tak |
| Rated supply voltage at AC 50 Hz [V]: | 85-264 |
| Rated supply voltage at AC 60 Hz [V]: | 85-264 |
| Output voltage stabilized: | Tak |
| Line Regulation: | ±1% |
| Power output [W]: | 20 |
| Efficiency: | 81 |
| Stabilized: | Tak |
| Type of electric connection: | Połączenie Śrubowe |
| Rail mounting possible: | Tak |
| Wall mounting possible: | Nie |
| Direct mounting possible: | Nie |
| Width [mm]: | 23 |
| Height [mm]: | 92 |
| Depth [mm]: | 100 |
| Degree of protection (IP): | IP20 |
| Operating Temperature: | [-20 do +60] |
| Storage Temp: | [-40 do +85] |
| Storage Humidity(RH):: | [10 do 95%] |
| Working Humidity(RH): / wilgotność podczas pracy (bez kondensacji): | [20 do 95%] |
| Compliance with standards: | EN55032 (CISPR32), EN61204-3, EN61000-3-2,-3, EAC TP TC 020,CNS1348, UL508, EN62368-1, EAC TP TC 004, CNS14336-1 AS/NZS 62368.1 |
