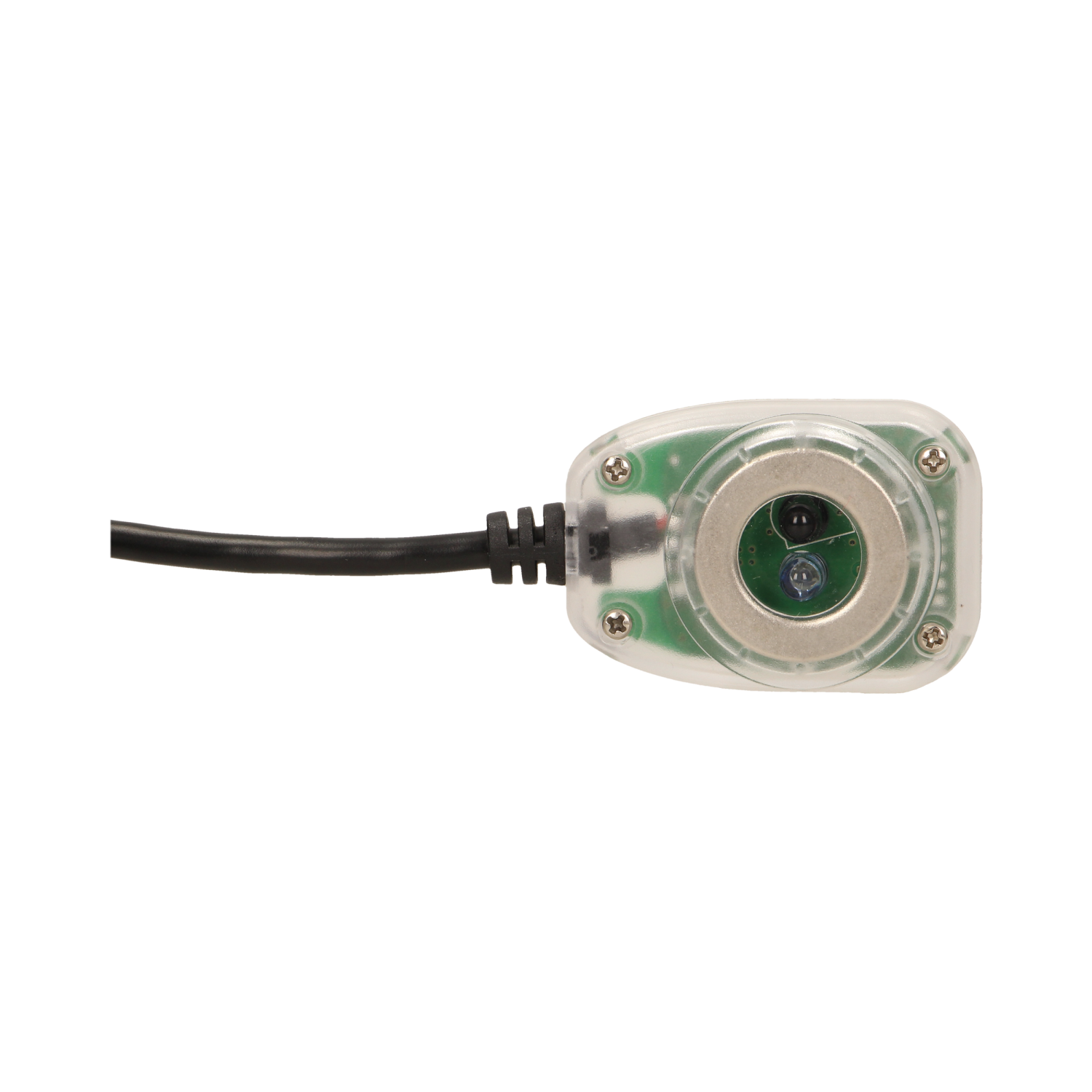

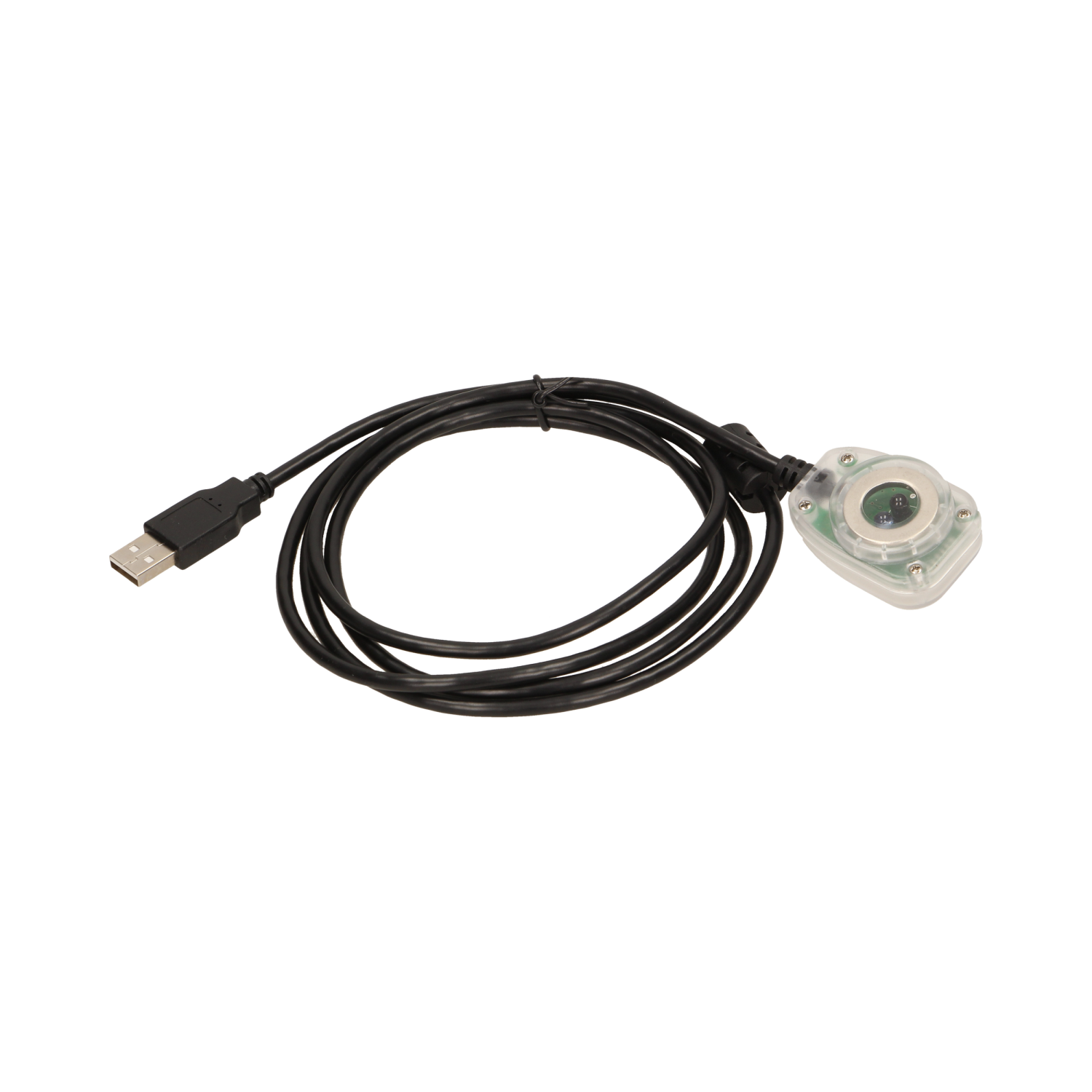

The head enables communication between a PC (Windows) and electricity meters equipped with IR optical ports. A simple application allows you to download data from the meter and program it. Baud rate: 300, 600, 1200, 2400, 4800, 96600, 19200 Bit/sec. Operates in accordance with IEC 62056-21 (IEC1107). Compatible with meters: OR-WE-513, OR-WE-516, OR-WE-517, OR-WE-528, OR-WE-529, OR-WE-530, OR-WE-531. To use the adapter, you need to install the device drivers available on the ORNO website, and to communicate with the meter dedicated meter software is required to communicate with the meter.
| General information: | |
|---|---|
| Backlight: | No |
| Colour: | transparent + black |
| Dimensions - depth: | 47 mm |
| Dimensions - width: | 33 mm |
| Dimensions - height: | 22 mm |
| Material: | plastic |
