Ring terminals
New

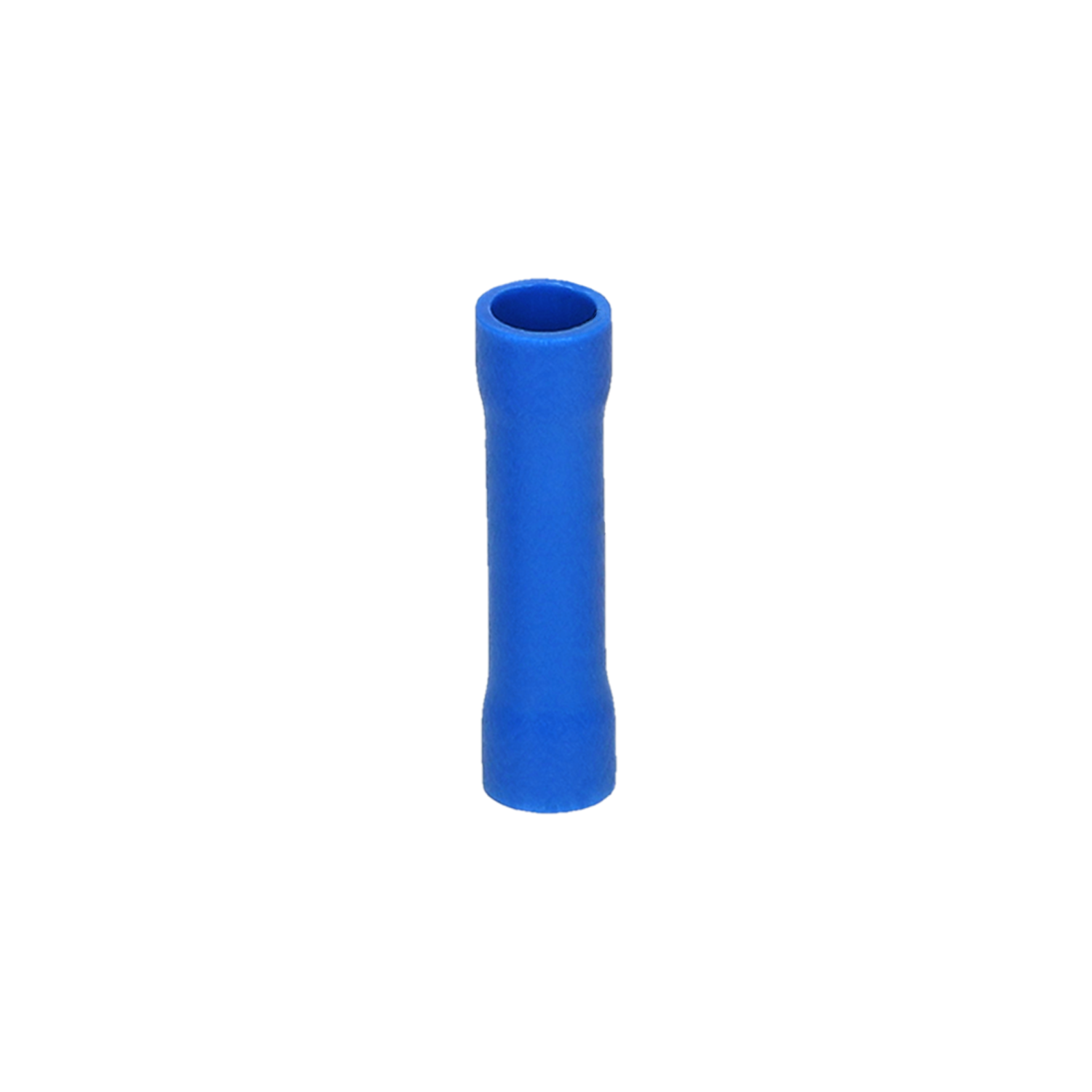

The insulated butt joint is designed for permanent connection of multicore and flexible cables, ensuring a safe and reliable electrical connection.
Made of copper and coated with a tin layer, it guarantees high conductivity and corrosion resistance. The PVC insulation in blue increases protection against mechanical damage and external factors.
The nominal cross-section of a conductor is 2.5 mm² and the thickness of the conductive material is 0.7 mm. The total length of the butt joint is 25mm.
Complies with EN 60352-2:2006.
The pack contains 100 pcs.
| General information: | |
|---|---|
| Flange shape: | Mufa zaciskowa |
| Insulation: | Polichlorek winylu (PVC) |
| Colour insulation: | Niebieski |
| Nominal cross section [mm²]: | 2.5 |
| Thickness of conductive material [mm]: | 0.7 |
| Suitable for stranded conductors: | Tak |
| Suitable for fine strand conductors: | Tak |
| Material: | Miedź |
| Surface protection: | Cynowanie |
| Total length [mm]: | 25 |
| Number of pieces in the package [szt.]: | 100 |
| Compliance with standards: | EN 60352-2:2006 |
