Ring terminals
New

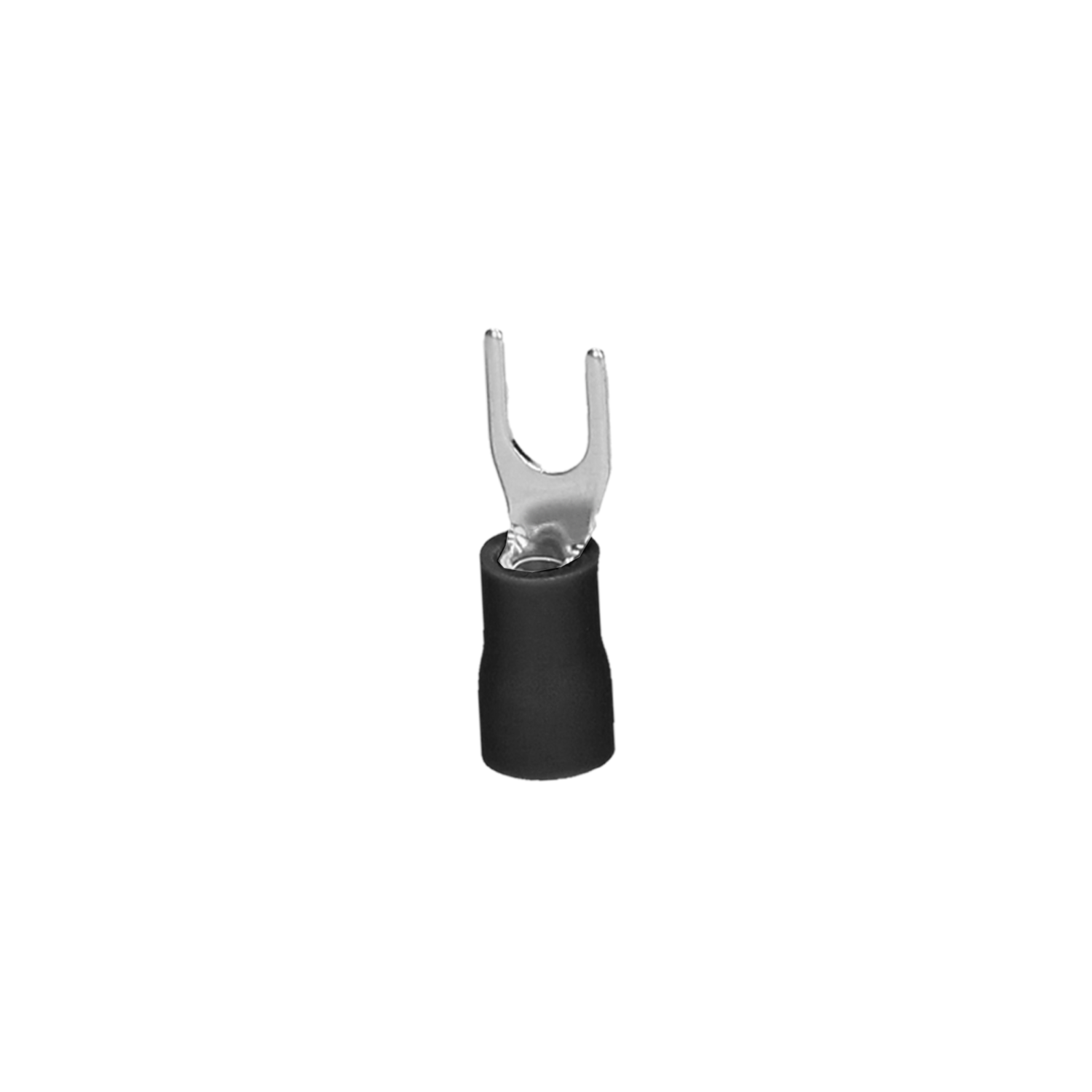

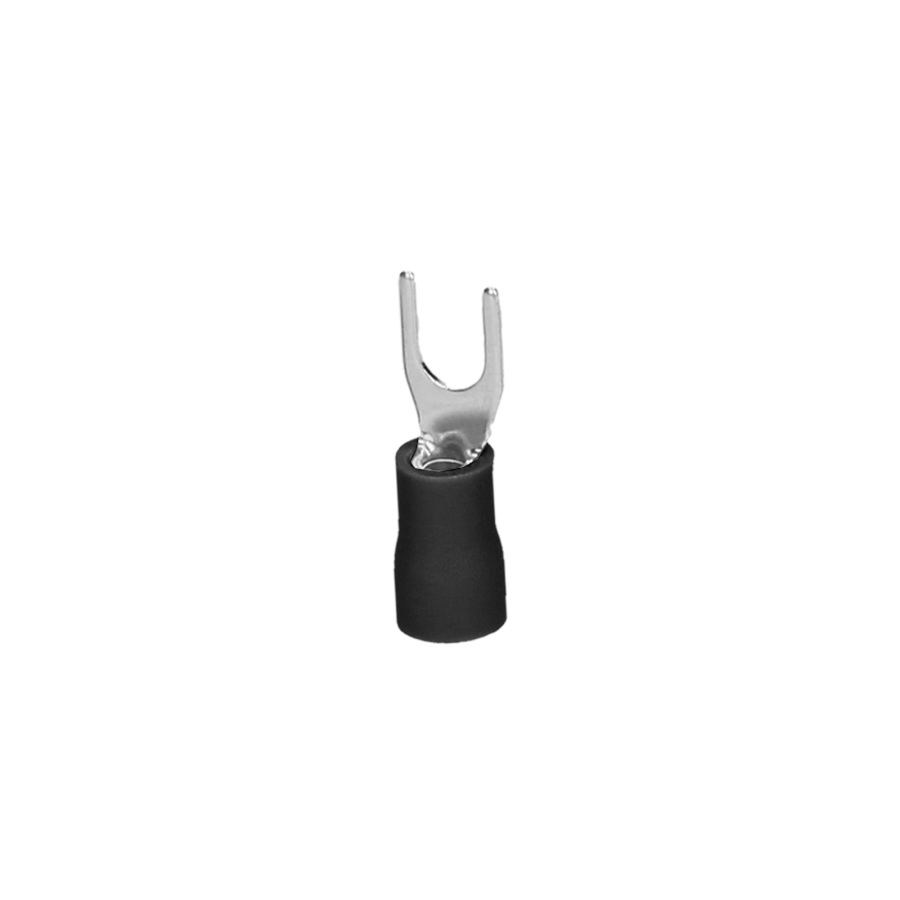

The insulated spade terminal is designed for crimping and terminating multicore and flexible cables, ensuring a safe and reliable electrical connection. Its spade shape is suitable for M6 (1/4 inch) screw and a maximum conductor cross-section of 2.5 mm².
Made of copper and coated with a tin layer, it guarantees high conductivity and corrosion resistance. The thickness of the conductive material measuring 0.8 mm ensures appropriate mechanical resistance. The PVC insulation is black.
Complies with EN 60352-2:2006.
The pack contains 100 pcs.
| General information: | |
|---|---|
| Bolt dimension (metric): | M6 |
| Flange shape: | Widełkowy |
| Insulation: | Polichlorek winylu (PVC) |
| Colour insulation: | Czarny |
| Nominal cross section [mm²]: | 2.5 |
| Thickness of conductive material [mm]: | 0.8 |
| Suitable for stranded conductors: | Tak |
| Suitable for fine strand conductors: | Tak |
| Material: | Miedź |
| Surface protection: | Cynowanie |
| Stud size (imperial): | 1/4 cala |
| Number of pieces in the package [szt.]: | 100 |
| Compliance with standards: | EN 60352-2:2006 |
