OR-ZL-1650

Description

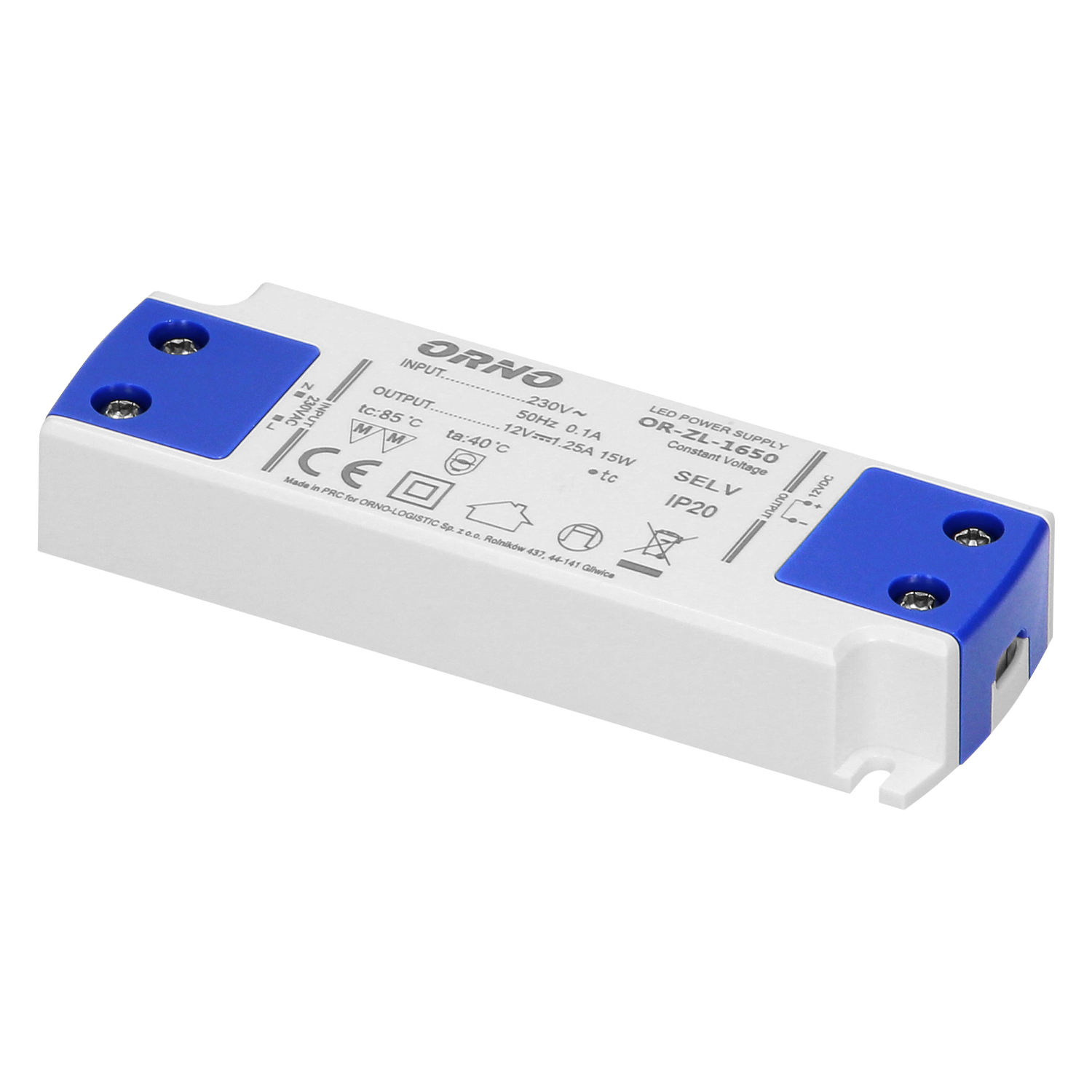

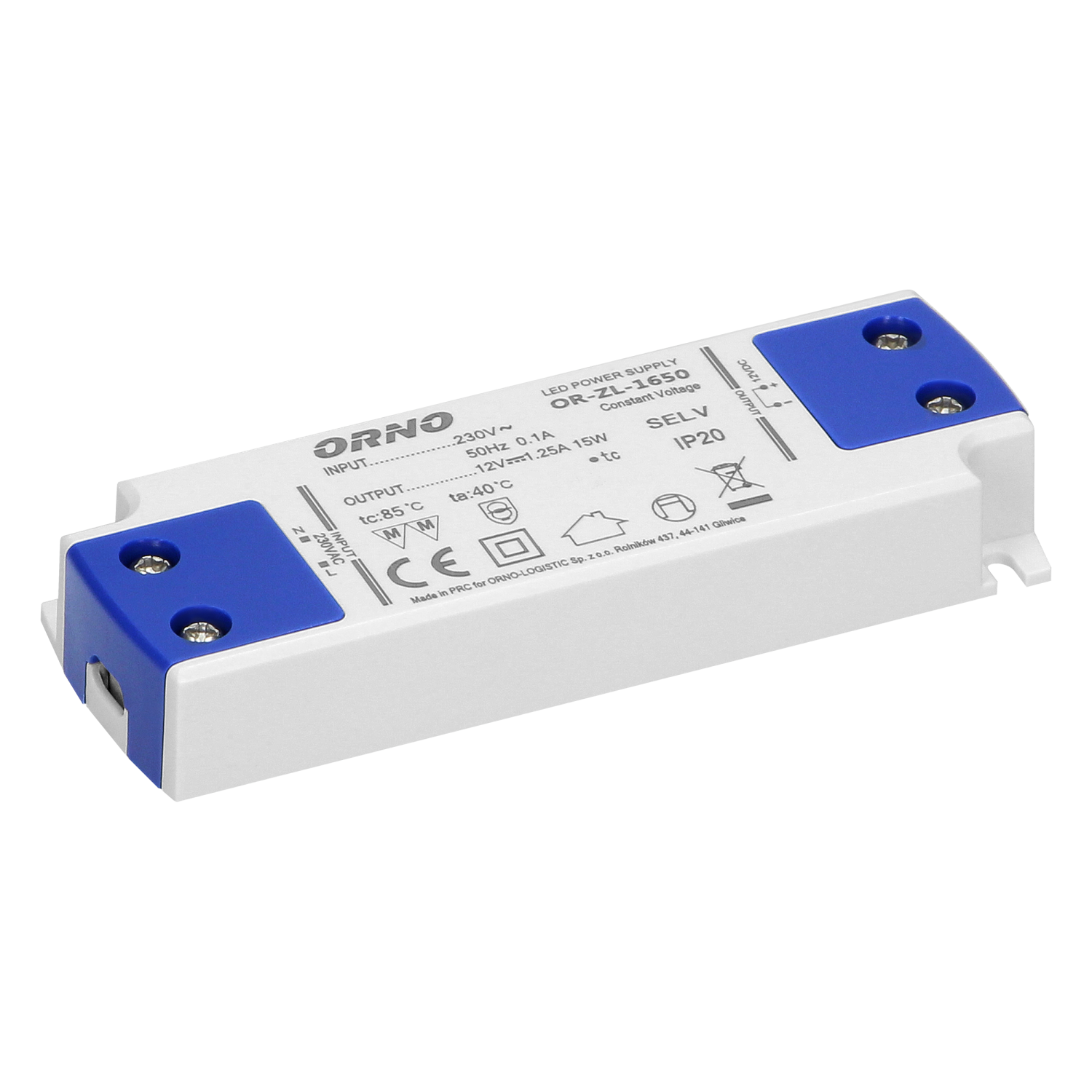

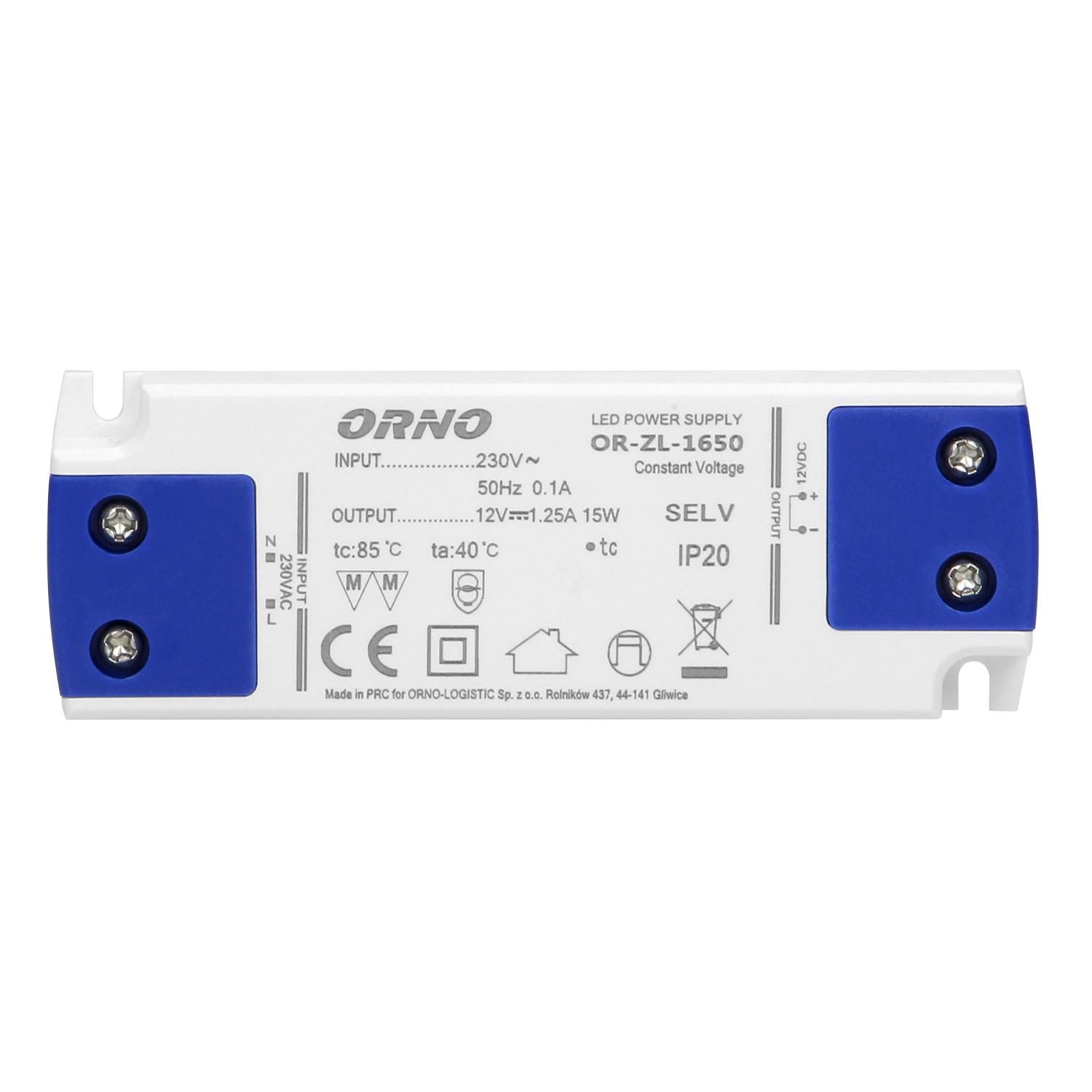

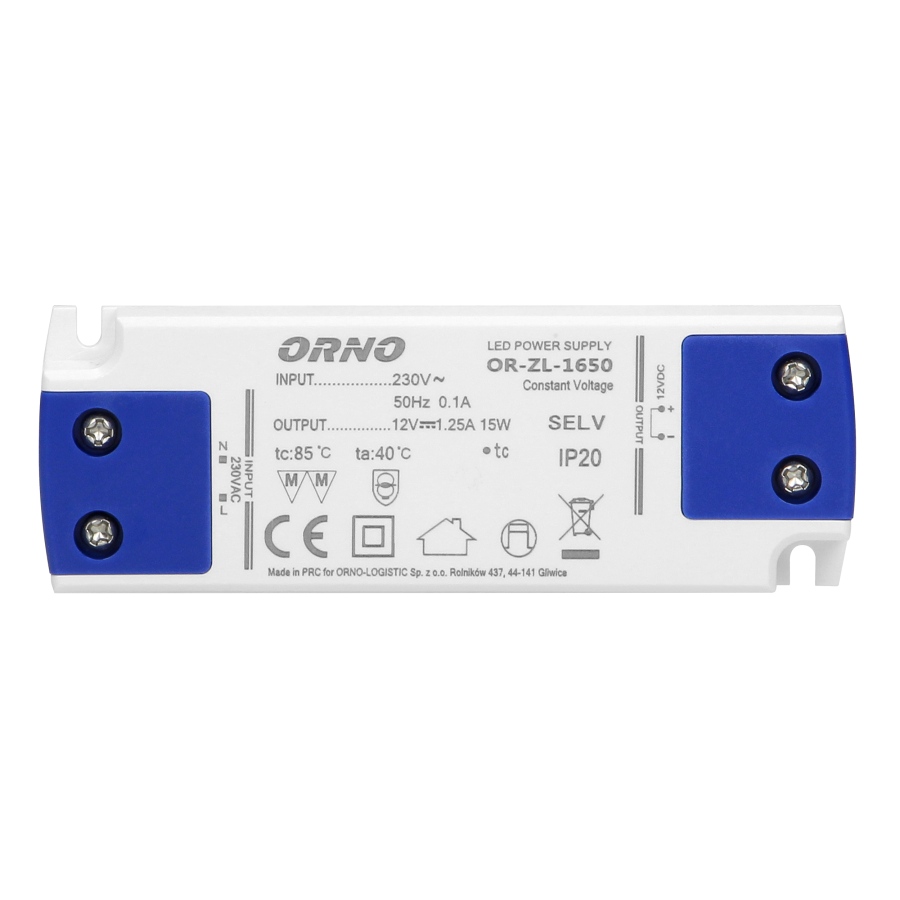

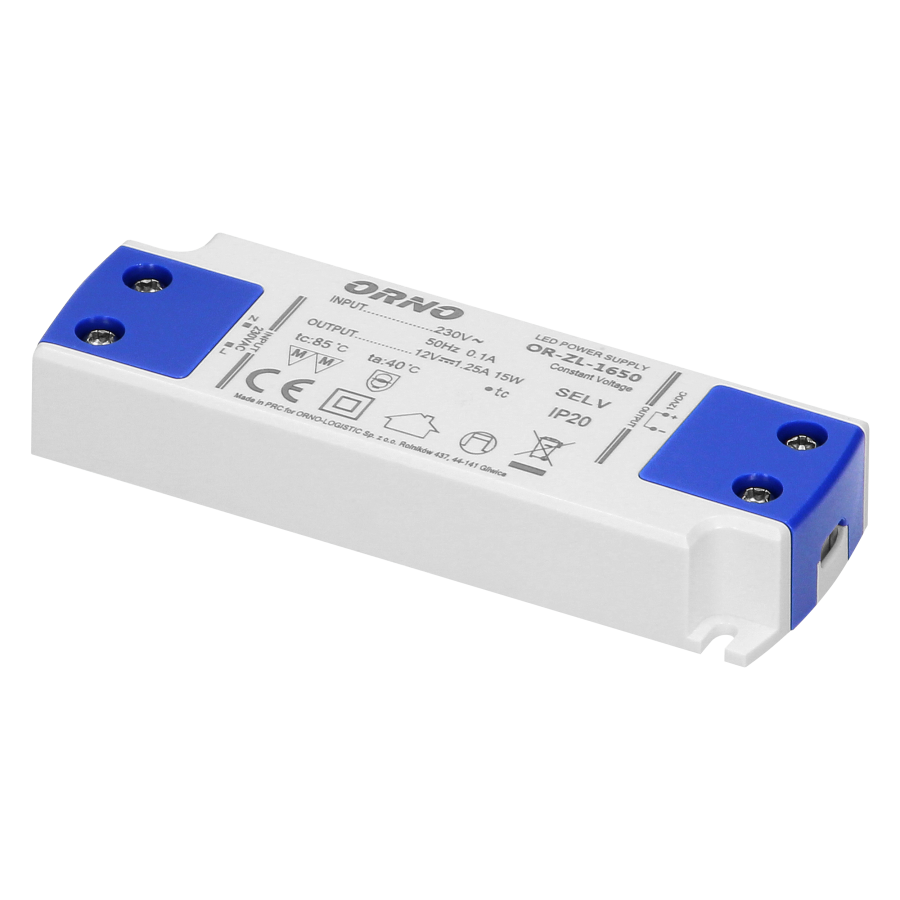

Flat power adaptor of 12V DC output voltage and 15W max. load. It supplies power to LED lighting in a dry environment. Its insulated housing is made of plastic. This power adaptor has got both input and output connection terminals. Wires are not included. Height: 16.5mm.

General information:
Rated power: 15 W
Output voltage: 12V DC V
Input voltage: 230V ~
Degree of protection (IP): 20
Output current: 1.25 A
Installation: surface /in a furniture board
Dimensions - depth: 16.5 mm
Dimensions - width: 103 mm
Dimensions - height: 35.5 mm

Files to download

File category File language File type File update date
Product data sheetPLpdf2025-05-07 12:48:20Download
Product data sheetENpdf2025-05-07 13:01:21Download
User manualPL, EN, DEpdf2025-01-21 13:39:23Download
User manualHRpdf2025-01-21 13:39:23Download
